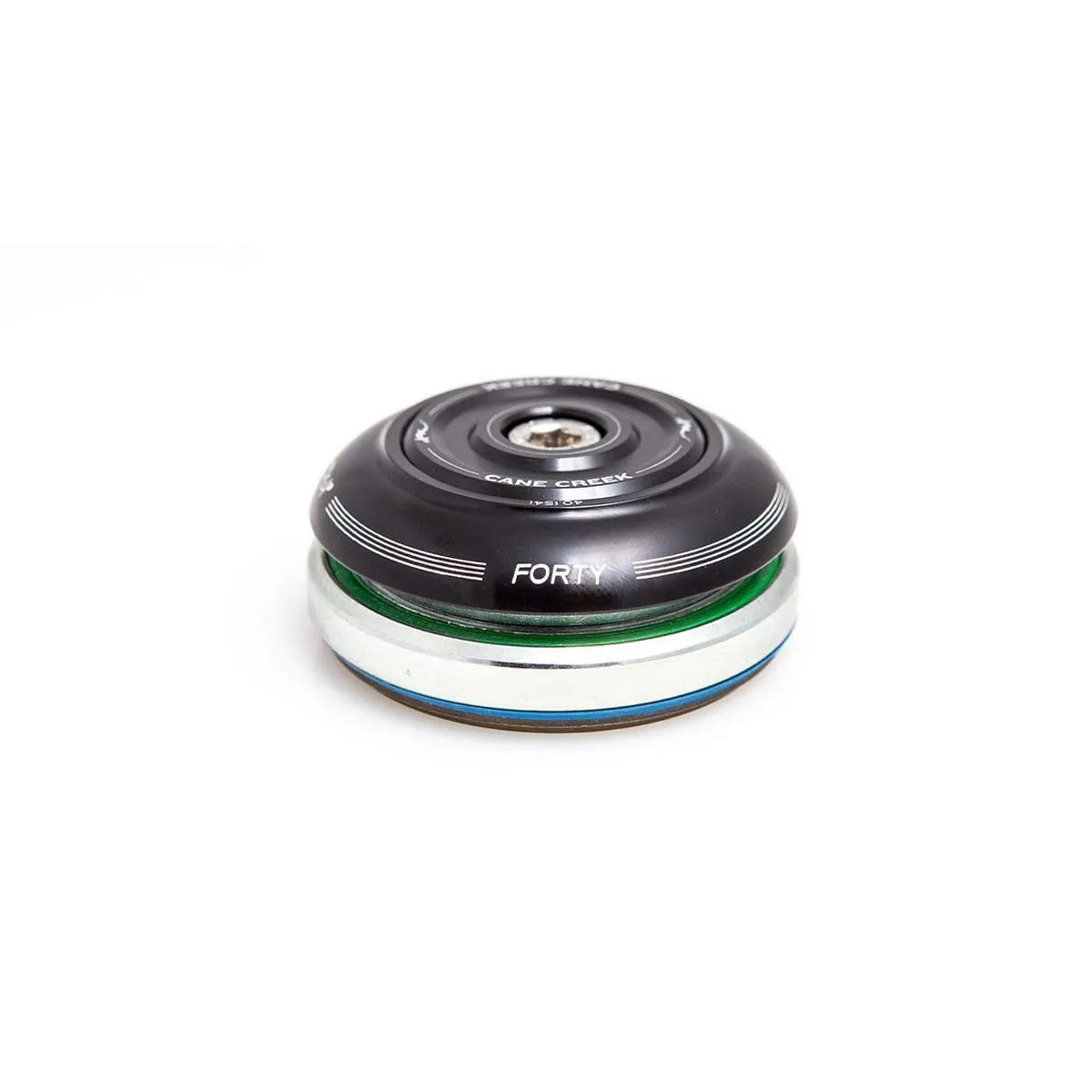

Cane Creek Forty Headset

The Cane Creek Forty IS41 headset top cup and IS52 bottom cup are designed for frames with an installation dimension of 41 mm at the top and 52 mm at the bottom of the head tube, and tapered forks with a steerer tube diameter of 1 1/8 inch / 28.6 mm at the top and 1.5 inches / 40 mm at the bottom.

Cane Creek Forty headset specifications and dimensions:

• Headset: 7075-T6 aluminium, CNC-machined
• Bearings: Cartridge bearings with multiple seals
• Height at top: 8 mm with cap
• Bottom height: 6.5 mm
• Steerer tube: Tapered 1 1/8 to 1.5 inches
• Weight: 80 grams (manufacturer’s specification)
• Contents: Cane Creek headset including end cap and clamp for aluminium / steel forks

Cane Creek Forty:

The headset offering excellent value for money in terms of durability and quality. Based on the premium design of the 110 series, it includes all the features that characterise a reliable headset. Available in various heights, as top cups or bottom cups for any frame and steerer tube – precision-manufactured by Cane Creek in Fletcher, NC.

Cane Creek bearings:

Fitted with high-quality stainless steel cartridge bearings, designed to protect all components from dirt and corrosion through multiple seals. This not only maximises service life but also minimises maintenance intervals. The prerequisites for a worry-free and unobtrusive headset.

IS41/28.6 top thread:

The IS headset is inserted into the head tube at the top; the installation dimension in the frame is 41 mm and the fork steerer tube diameter is 1 1/8 inch / 28.6 mm at the top.

IS52/40 bottom thread:

The IS headset is inserted into the head tube at the bottom; the frame clearance is 52 mm and the fork steerer tube diameter is 1.5 inches at the bottom. The headset cone requires a 40 mm seat on the fork at the bottom.

IS/Integrated Standard – fully integrated headset:

Headset assemblies designated IS / Integrated Standard are also referred to as fully integrated headsets. These headsets require a frame designed for this purpose, with a raceway for the bearings. Integrated Standard refers to the fact that the bearings are inserted into the head tube without bearing cups, and, for example, IS44 refers to the installation dimension, the outer diameter of the bearings and the inner diameter of the bearings in the frame. These headsets do not require any special tools; the frame is already prepared for them.

Herstellerinformation: Cane Creek, 355 Cane Creek Road, 29732 Fletcher, North Carolina, United States, https://www.canecreek.com
