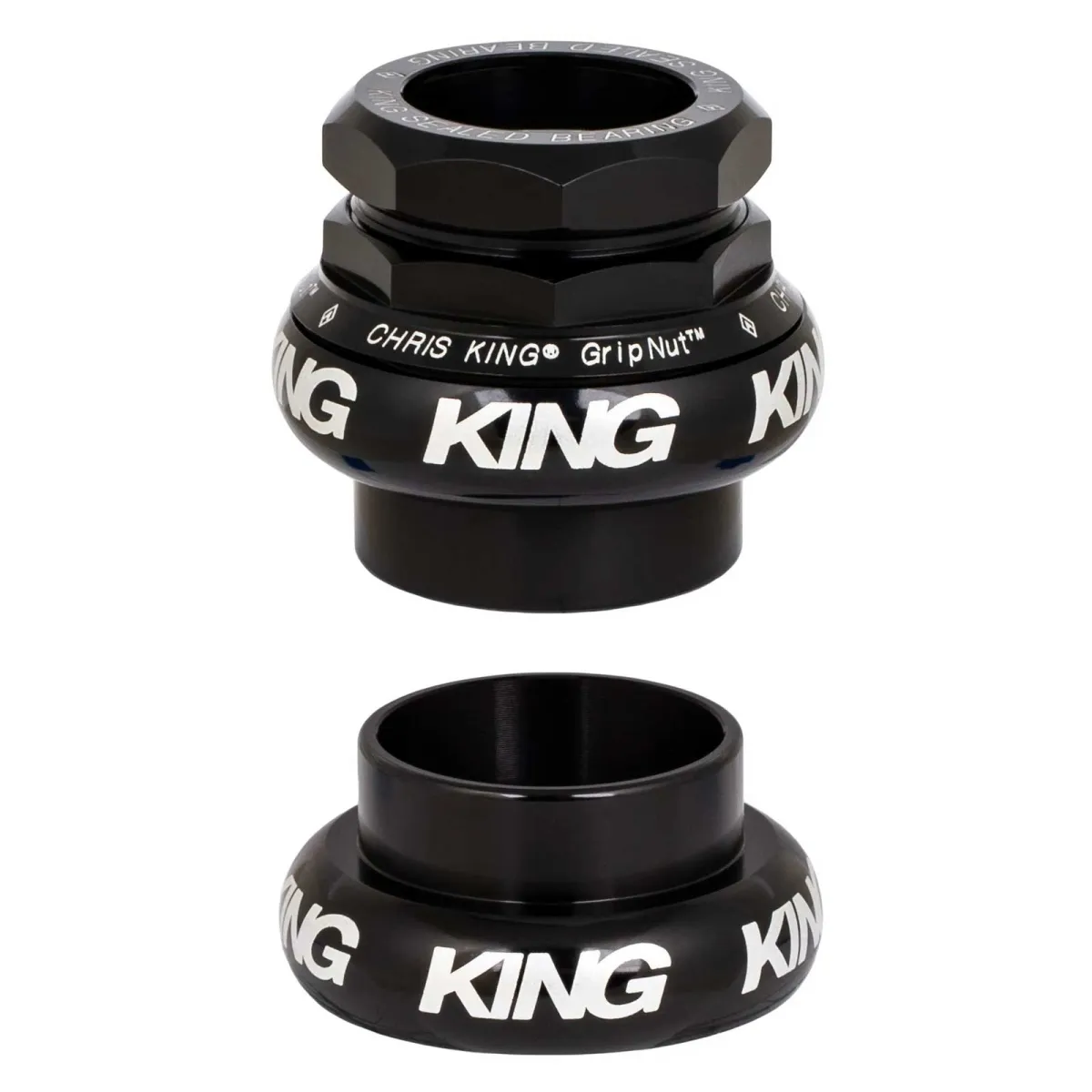

Chris King GripNut 1-inch EC30 threaded headset

The GripNut headset brings the proven Chris King quality to classic older frames that feature a threaded steerer tube instead of the Ahead standard commonly used today.

Chris King GripNut 1-inch headset – specifications and dimensions:

• Material: CNC-machined aluminium, anodised
• Bearings: Industrial bearings, multi-sealed
• Top: EC 30/25.4 thread, 24 tpi for 1-inch steerer tube
• Bottom EC 30/26 for 1-inch taper/steerer tube
• Overall height: 37.4 mm, cup height 11 mm, GripNut height 12 mm
• Weight: 93 grams (manufacturer’s specification)
• The headset cannot be used with spacers or brake cable retainers

A clamping sleeve between the adjustment nut and lock nut secures the steerer tube rock-solid, even if its thread is damaged or it has been sawn off slightly too short. Due to this design, the GripNut headset is not suitable for bicycles with spacers or brake cable stops between the adjustment nut and lock nut.

Chris King quality:

Anyone who hears the name Chris King immediately thinks of extremely durable headsets. They have been produced by Chris King in Portland, Oregon, USA for ages, and to a standard of quality that rightly deserves the label ‘indestructible’. The benchmark when it comes to headsets – often copied, never equalled – which is why there is also a 10-year warranty. The bearing cups and caps are made from aluminium and CNC-machined; the industrial bearings are multi-sealed and so well-finished that Chris King offers a 10-year warranty on all headsets.

Chris King Headset Installation Dimensions EC30/25.4-24tpi | EC30/26:

The GripNut headset is pressed into the head tube. The press-fit dimension in the frame is 30 mm, the steerer tube diameter is 1 inch / 25.4 mm, and the thread on the steerer tube has a pitch of 24 tpi. The fork’s tapered ring has a diameter of 26 mm.
