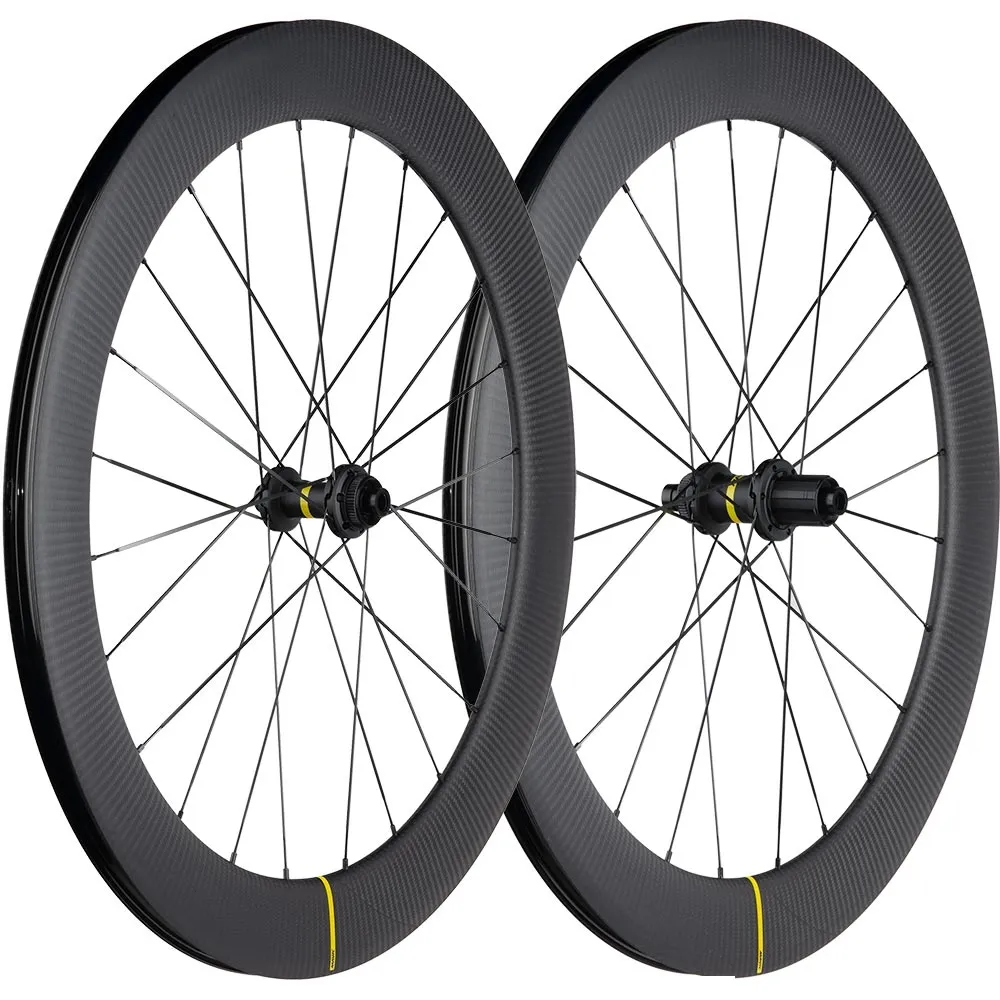

Mavic Cosmic SL 65 Carbon Disc

Spare parts for the Mavic Cosmic Carbon SL 65 Disc wheels, model years 2021–2024, item no. P1323155.

Your Mavic wheel is damaged; we repair all Mavic wheels, provided the spare parts are still available. Please send us the serial number of your wheel, stating the nature of the damage. We will then check whether a repair is possible. The serial number is located on the rim next to the barcode.

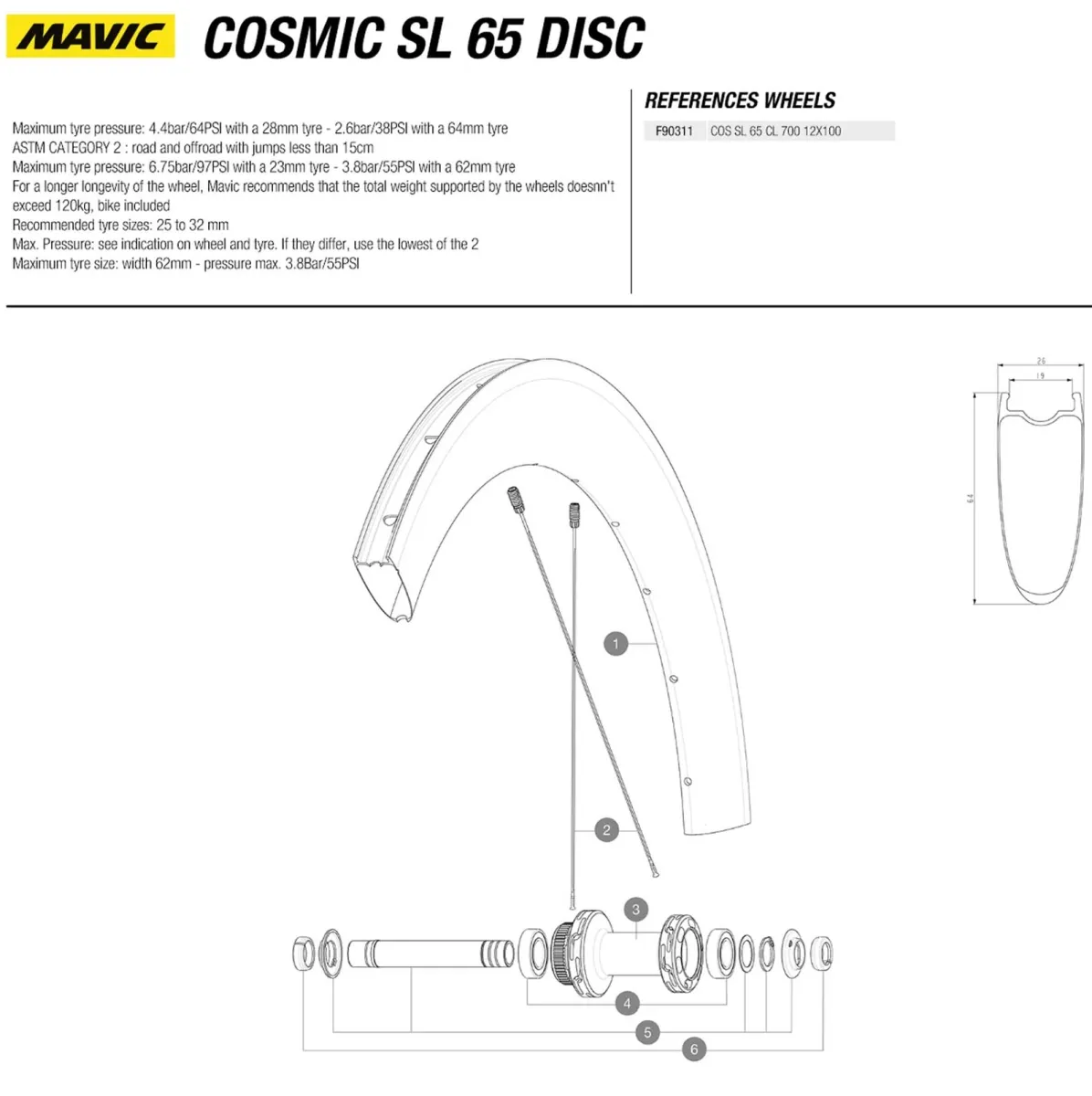

Spare parts for the Mavic Cosmic Carbon SL 65 Disc front wheel, model 2021–24, item no. F9031100:

• Front wheel adapter for 9x100mm quick-release mounting, Part No: V2680301
• Front wheel adapter for 12x100mm thru-axle mounting, Part No: V2680501
• Replacement rim for front or rear wheel, Part No: V4093115
• Replacement spokes Aero 254 mm with nipples and washers, Part No: V4163301
• Hub bearing type 6902 / 15x28x7 mm Item No: M40129
• Hub axle QRM Auto 12 x 100 mm Part No: V2373301

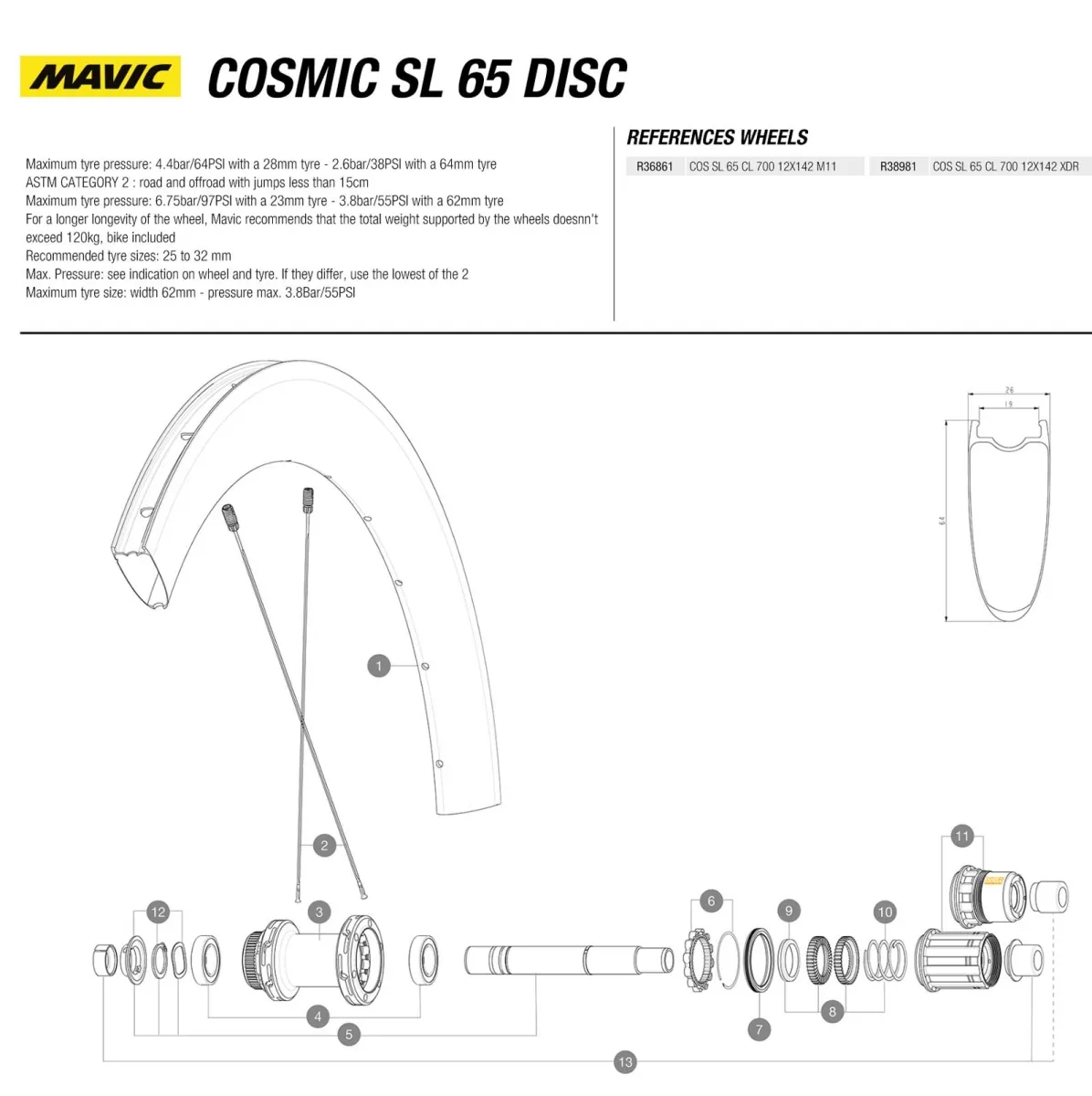

Spare parts for the Mavic Cosmic Carbon SL 65 Disc rear wheel, model 2021-24, Part No. R3686155, R3898155:

• Rear wheel adapter for 10x135mm quick-release mounting, Item No: V2510801
• Rear wheel adapter for 12x135mm thru-axle mounting, Item No: V2510901
• Rear wheel adapter for 12x142mm thru-axle mounting, Part No: V2510701
• Replacement rim, front or rear wheel, Part No: V4093115
• Replacement spokes Aero 254 mm with nipples and washers Item No.: V4163301
• Hub bearing type 6903 / 17x30x7 mm Item No: M40076
• Rear wheel axle kit 135/142 for ID360 Disc Centerlock hub with retaining ring and cover Item No:V2373401
• Sprocket retainer with retaining ring Part No: V2252701
• Freewheel body seal Part No: V00063631
• Sprocket kit with spring Item No.: V2251701
• Rubber for noise damping Part No: V2500501
• Spring for pawls Item No: V2251801
• Bearing cover with shaft washer and circlip Part No: V2373001

Compatible Mavic Instant Drive 360 freehub body:

• Aluminium Light freehub body for Shimano HG + Sram cassettes Part No: V3850101
• Aluminium freehub body for Shimano HG + SRAM cassettes Item No: V3430101
• Aluminium freehub body for Campagnolo ED cassettes 10-12 speed Item No: V3440101
• Aluminium freehub body for Campagnolo N3W cassettes 10-12 speed Item No: V4270101
• Aluminium freehub body for Sram XDR and XD cassettes Item No: V2580101
• Aluminium freehub body for Shimano Microspline cassettes Item No: V3990101

Mavic Cosmic SL 65 DCL Carbon Disc Clincher Wheel Technology:

• 28 inches, clincher for folding and clincher tyres ETRTO 622x19
• Material: 12K carbon weave, carbon rim bed, tubeless ready
• High-profile rim 65 mm
• Width: 19 mm (internal), 28 mm (external)
• Brake disc mount: Disc Centerlock
• Colour: Carbon black
• Spoke material: Stainless steel aero spokes
• Number of spokes: 24 front and 24 rear
• Spoke pattern: 2-cross front, 2-cross rear
• Hub body: Aluminium front and rear
• Bearing: QRM Auto
• Front wheel hub: aluminium body, QR 12x100mm, QR12 thru-axle mount,
  optionally convertible to quick-release
• Rear wheel hub: aluminium body, 12x142mm, X12 thru-axle mount,
  optionally convertible to 12x135mm thru-axle and quick-release mount
• Freewheel: Instant Drive 360 aluminium sprocket system, available as
  • HG11 freehub for Shimano and SRAM cassettes, compatible with 8, 9, 10 and 11-speed
  • ED Campagnolo freehub body for Campagnolo 9-speed, 10-speed, 11-speed and 12-speed cassettes
  • SRAM XDR freehub for SRAM Road AXS 12-speed and SRAM MTB XG 11- and 12-speed cassettes
• Recommended tyre width 25–32 mm
• Maximum recommended rider weight: 120 kg

Herstellerinformation: MAVIC GROUP SAS, Parc Altais, 44 Rue Saturne, 74650 CHAVANO, https://mavic.com
