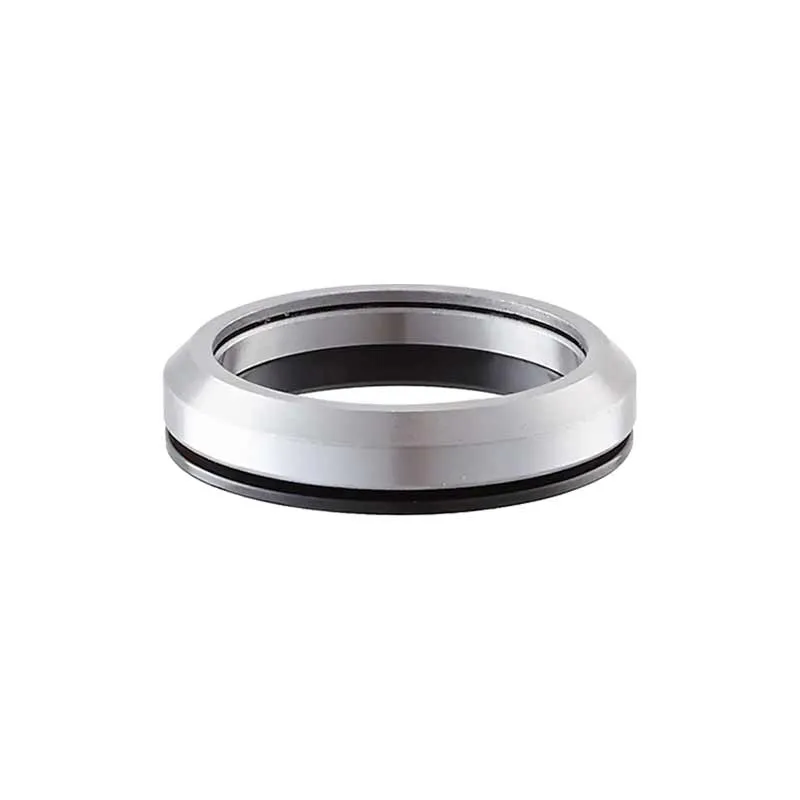

Ritchey Comp Drop-In Headset

The fully integrated Ritchey Comp bottom bracket, Integrated Standard, IS42, for frames with a 42 mm bearing seat and forks with a 1 1/8 inch / 30 mm steerer tube diameter at the bottom

The affordable Comp version of the Ritchey headset is fitted with industrial bearings. The compact precision bearings ensure long-lasting riding enjoyment. The fully integrated IS headsets are inserted into the head tube and do not require an additional bearing cup. The frame / head tube must, of course, have the appropriate mount, i.e. a bearing seat.

Ritchey Comp Headset Bearings:

the cartridge bearings with water-repellent Ritchey Special grease ensure robust and durable bearings.

IS headset system:

The IS headsets are inserted into the head tube and require no additional bearing cups. The frame’s head tube also serves as the bearing cup for the headset

IS42/30 headset bottom clearance:

The bottom dimension is 42 mm and the headset taper on the fork is 30 mm, 1 1/8 inches.

Ritchey Comp Drop-In Headset Technology

• for IS42 frame mount and 1 1/8-inch steerer tube
• Industrial bearings with stainless steel raceways
• Angled raceway on the fork crown
• CNC-machined aluminium bearing cups
• Extremely robust yet lightweight headset.
• Bearing dimensions: 41.8/30.5/8 mm 45°/45°

The fork cone is included in the scope of delivery.
