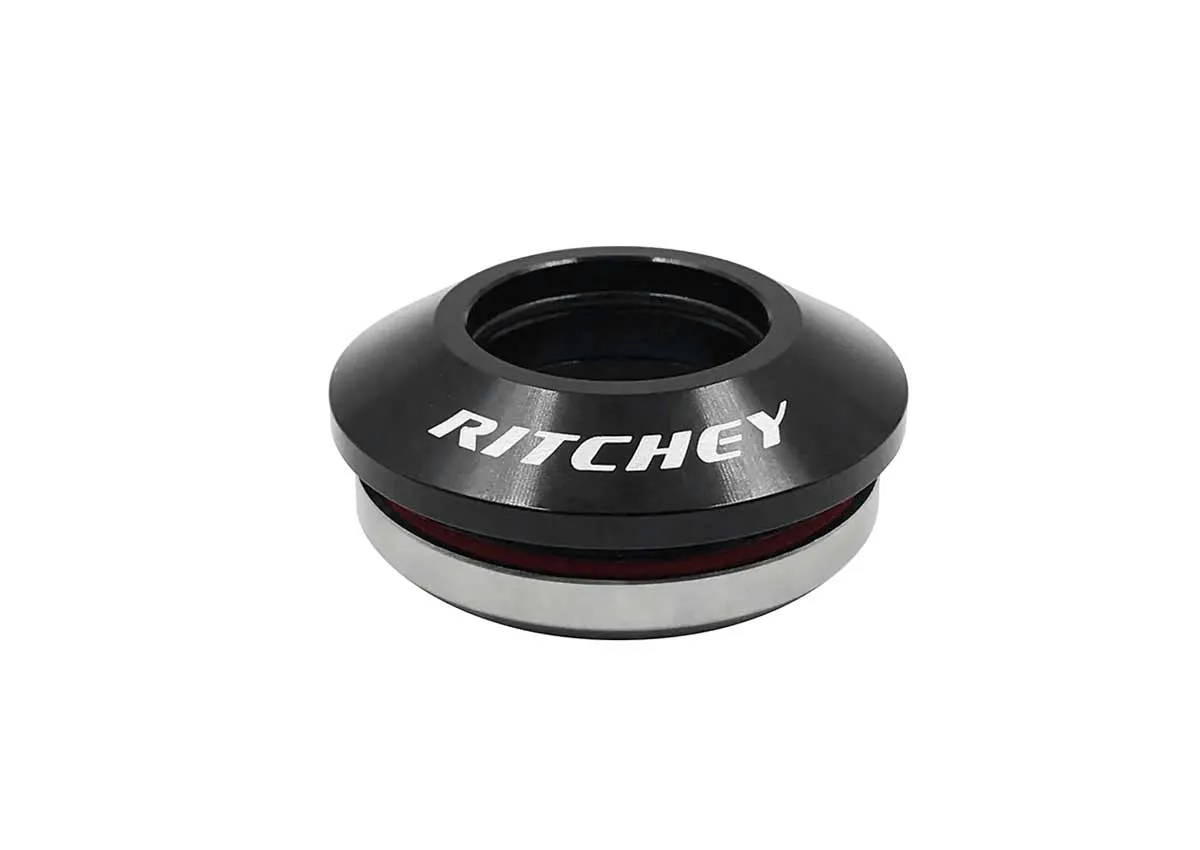

Ritchey Comp Drop-In Headset

The fully integrated Ritchey Comp Integrated Standard headset, IS52, for frames with a 52 mm bearing seat on the head tube and forks with a 1 1/8 inch / 28.6 mm steerer tube diameter at the top.

The affordable Comp version of the Ritchey headset is fitted with industrial bearings. The compact precision bearings ensure long-lasting riding enjoyment.

Ritchey Comp Headset Bearings:

the semi-cartridge bearings with stainless steel raceways and water-repellent Ritchey Special grease ensure robust and durable bearings.

Fully integrated IS45/28.6 headset installation dimensions:

The IS headsets are inserted into the head tube and do not require an additional bearing shell. The frame / head tube must, of course, have the appropriate mount and bearing seat. The top dimension is 52 mm and the fork steerer tube mount is 28.6 mm, 1 1/8 inches.

Ritchey Comp Drop-In Headset Technology

• for frames with IS52 bearing mount, 1 1/8-inch steerer tube
• Semi-cartridge bearings
• Angled raceway on the fork crown
• CNC-machined aluminium bearing cups
• Extremely robust yet lightweight headset.
• Height: 10 mm
• Weight: Headset 112 grams, A-Head cap 28 grams

The threading tool and Ahead cap are not included.
