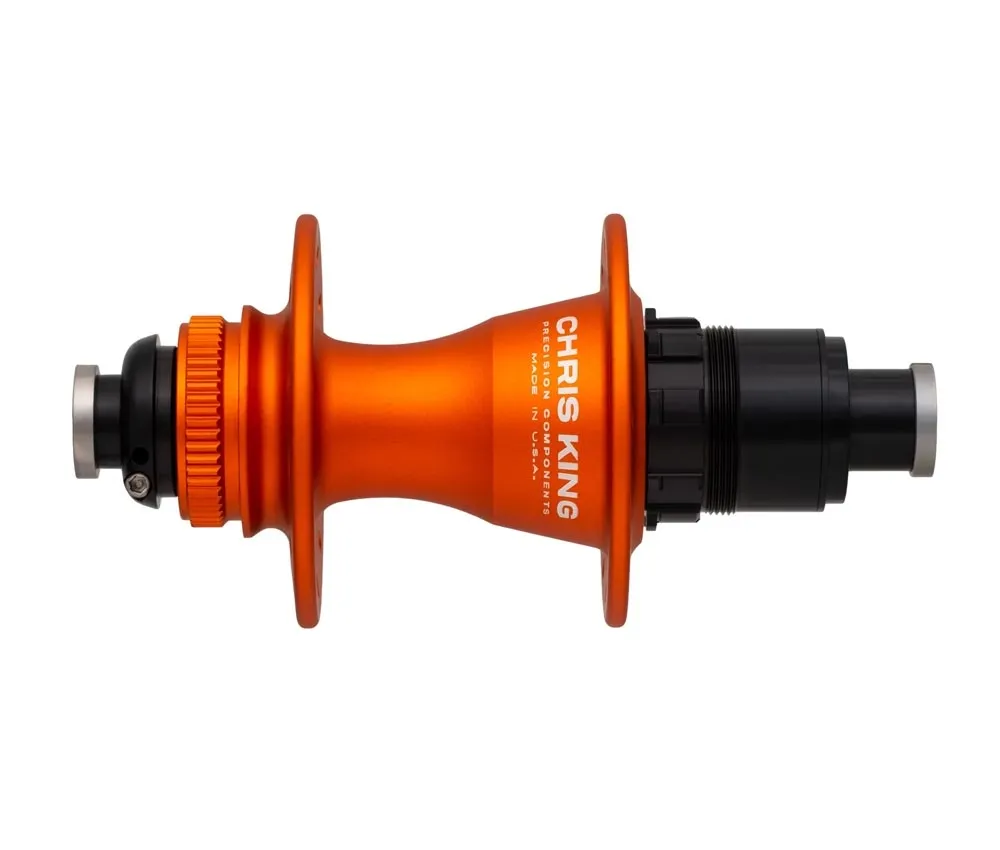

Chris King R45D rear hub

The disc version of the Chris King disc hubs. Lightweight, perfectly finished. These hubs can be easily and simply converted to a 10x135 mm quick-release setup by replacing the axle.

Chris King Ceramic Bearings

Chris King’s ceramic bearings offer the same qualities in terms of durability, maintenance and performance as the tried-and-tested stainless steel bearings. One of the most outstanding features of the ceramic balls used is their incredibly geometrically perfect roundness; furthermore, the extremely smooth surface guarantees optimal rolling behaviour and precision fit. Furthermore, they are even lighter and harder. Embedded in external bearing cups, the multi-sealed ceramic bearings are therefore virtually indestructible.

Chris King R45D Disc Hub

With great attention to detail, Chris King’s engineers have developed the R45D series to produce a hub body that is both lightweight and optimised for stiffness. Thanks to the significantly enlarged hub flange, the spoke holes are further apart than on disc hubs

Chris King R45D rear hub

The road bike version of the Chris King hubs for disc brakes with Sram XDR freehub body.

With great attention to detail, Chris King’s engineers have developed the R45D series to produce a hub body that is both lightweight and optimised for stiffness. By significantly enlarging the hub flange, the spoke holes are spaced further apart than on hubs from other manufacturers. This significantly increases stability and distributes forces more effectively across the hub flange. These hubs can be easily and simply converted to a 10x135 mm quick-release setup by replacing the axle.

Chris King R45D Hub Specifications and Dimensions:

• Application: Road, Gravel, Cyclo-Cross
• Hub material: Aluminium
• Bearings: Ceramic, 4x sealed
• Spoke type: J-bend
• Axle width: 12x142 mm
• Mounting type: Thru-axle, convertible to quick-release
• Pitch diameter left/right: 57.4 mm / 57.4 mm
• Flange spacing left/right: 33.0 mm / 18.7 mm
• Spoke hole diameter: 2.5 mm
• Freewheel body options:
  • Shimano HG11 freehub body compatible with Shimano Road 8-12-speed, Sram PG Road 8-11-speed cassettes
  • SRAM XDR freehub body compatible with SRAM 12-speed AXS cassettes
  • Shimano Micro Spline freehub body compatible with Shimano Micro Spline cassettes
• Freewheel type: 45-tooth stainless steel Chris King RingDrive
• Weight: 266 grams (manufacturer’s specification)
• Warranty: 5 years

Your custom wheel set with Chris King R45D hubs:

Ask us for a personalised quote. We will build your custom wheel, perfectly hand-trued. Choose your preferred rim from the complete range of DT Swiss, e*thirteen, Mavic, Stans NoTubes and WTB rims. We use exclusively DT Swiss spokes. Over the last few decades – ever since we started building wheels – these spokes have proven themselves to be by far the most durable.

Chris King Hub Quality

The quality of Chris King components is unique. High-precision manufacturing, the sort usually only seen in the medical sector. Chris King hubs have a reputation for being indestructible, and rightly so. The hub bodies are superbly crafted and, thanks to the maximum flange spacing, enable the construction of particularly laterally stiff wheelsets. Rounded off by the high-precision CNC-machined hub body with anodised finish and the multi-sealed industrial bearings. Superb, very light, extremely durable – manufactured by Chris King directly in Oregon, USA.

Chris King RingDrive:

The patented Chris King RingDrive freewheel technology with 45 teeth – meaning 45 simultaneous engagement points – transfers power to the ground quickly with unrivalled efficiency. It is the sheer number of teeth that creates the legendary Chris King ‘angry bee’ sound.

Chris King Ceramic Bearings

Chris King’s ceramic bearings offer the same qualities in terms of durability, maintenance and performance, but are even lighter and harder than the tried-and-tested stainless steel bearings. One of the most outstanding features of the ceramic balls used is their incredibly geometrically perfect roundness; furthermore, the extremely smooth surface guarantees optimal rolling behaviour and precision fit. The ceramic bearings are even lighter and harder than the stainless steel bearings, housed in external bearing cups, multi-sealed and virtually indestructible.

from other manufacturers. This significantly increases stability and distributes forces more effectively across the hub flange.

Chris King RingDrive Rotor

The RingDrive freehub body features 45 teeth that produce a distinct clicking sound. As a result, the Chris King freehub engages three times faster than conventional hubs with 24 teeth and pawls.

Chris King Quality

The quality of Chris King components is unrivalled in the cycling world. Beautifully designed, very light, extremely durable – manufactured by Chris King directly in Oregon, USA. High-precision manufacturing of a standard otherwise only seen in the medical sector, legendary, extremely durable and smooth-running bearings, manufactured by Chris King in Oregon, USA. Exceptionally beautiful, very light and absolutely durable. Chris King hubs have a reputation for being indestructible, and rightly so. The quality of the headset bearings is also reflected in the Chris King hubs. The hub bodies are superbly finished and offer maximum flange spacing for particularly laterally stiff wheels. The high-precision CNC-machined hub body with anodised finish, the multi-sealed high-end industrial bearings and the simple adjustment using two Allen keys are further hallmarks of Chris King hubs.

Chris King R45D Hub Technology:

• Application: Road, Gravel, Cyclo-Cross
• Hub material: Aluminium
• Bearings: Ceramic, 4x sealed
• Number of holes: 32
• Spoke type: J-bend
• Axle width: 12x142 mm
• Brake type: Disc Centerlock
• Mounting type: Thru-axle, convertible to quick-release
• Pitch circle diameter left/right: 57.4 mm / 57.4 mm
• Flange spacing left/right: 33.0 mm / 18.7 mm
• Spoke hole diameter: 2.5 mm
• Freewheel body: SRAM XDR, freewheel compatible with SRAM 11- and 12-speed, AXS 11- and 12-speed and XG MTB cassettes
• Freewheel type: 45-tooth stainless steel Chris King RingDrive
• Weight: 266 grams (manufacturer’s specification)
• Warranty: 5 years

Your custom wheel with Chris King R45D hubs:

Ask us for a personalised quote. We will build your dream wheelset, perfectly centred by hand. Choose your preferred rim from the complete range of DT Swiss, e*thirteen, Mavic, Stans NoTubes and WTB rims. We use exclusively DT Swiss spokes. Over the last few decades – ever since we started building wheels – these spokes have proven themselves to be by far the most durable.

Herstellerinformation: Manufacturer details: Chris King, 2801 NW Nela St, 97210 Portland, Oregon, United States, http://chrisking.com
