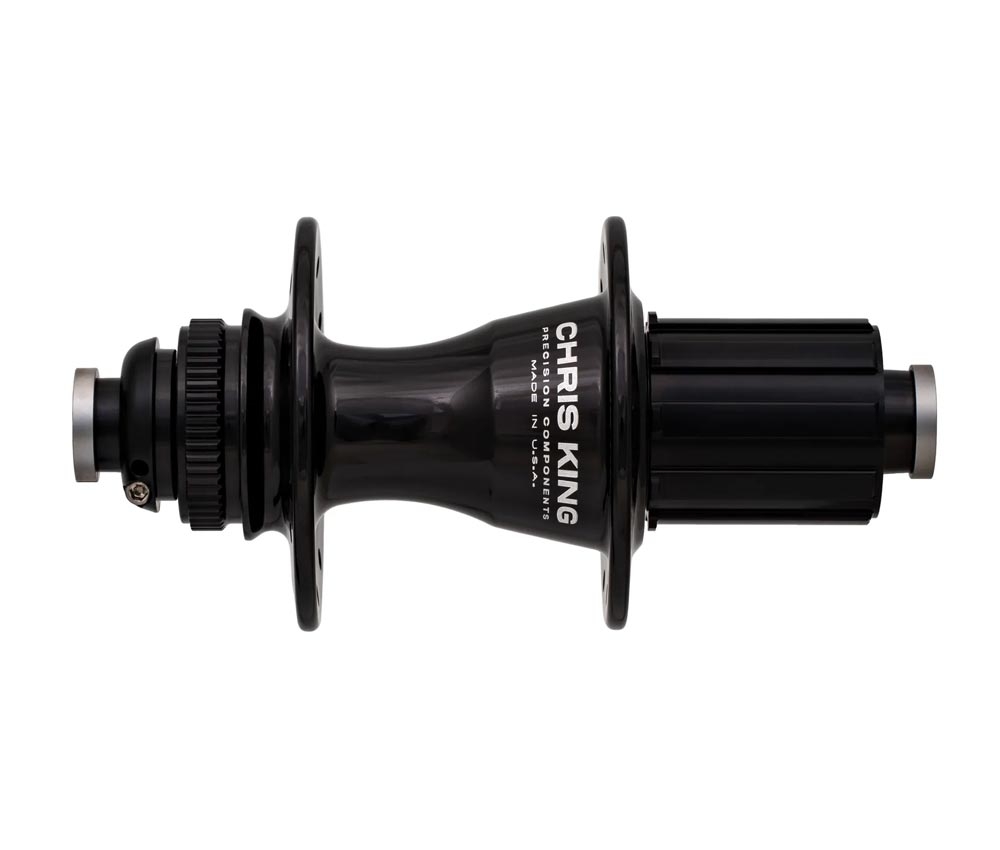

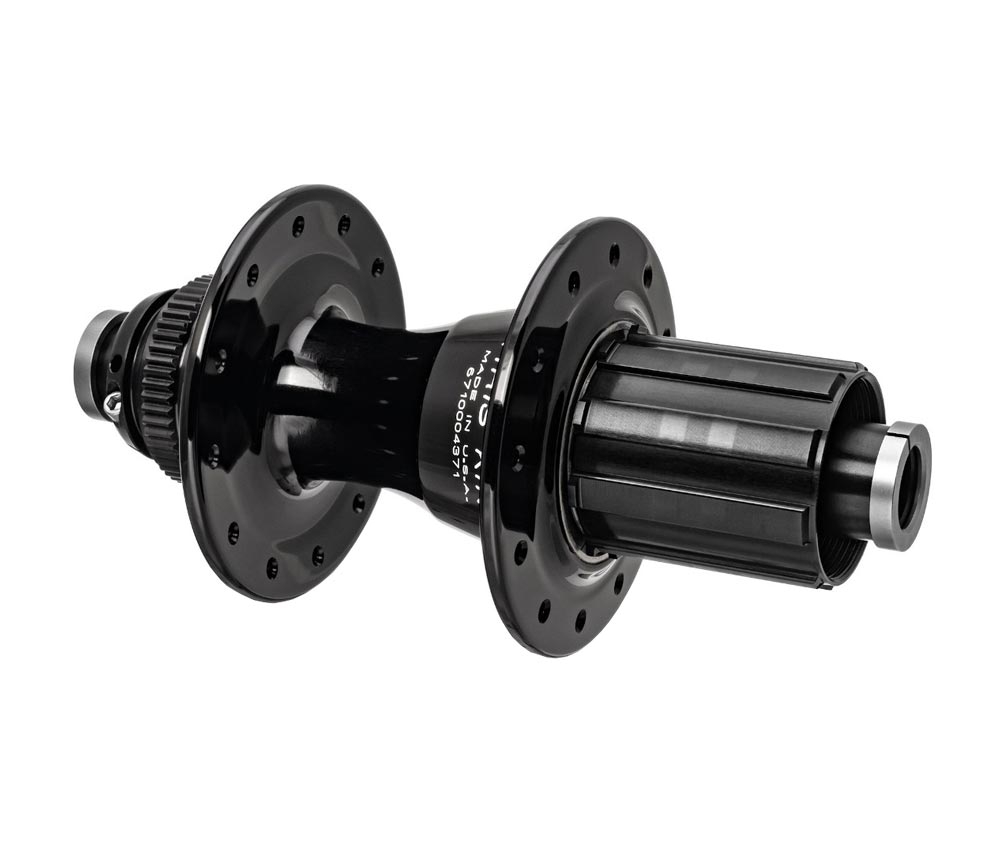

Chris King R45D rear hub

The road bike version of the Chris King hubs for disc brakes with Shimano Micro Spline freehub body.

With great attention to detail, Chris King’s engineers have developed the R45D series to produce a hub body that is both lightweight and optimised for stiffness. Thanks to the significantly enlarged hub flange, the spoke holes are further apart than on hubs from other manufacturers. This significantly increases stability and distributes forces more effectively across the hub flange. These hubs can be easily and simply converted to a 10x135 mm quick-release setup by swapping the axle.

Chris King R45D Hub Specifications and Dimensions:

• Application: Road, Gravel, Cyclo-Cross
• Hub material: Aluminium
• Bearings: 4x sealed stainless steel
• Spoke type: J-bend
• Axle width: 12x142 mm
• Mounting type: Thru-axle, convertible to quick-release
• Pitch circle diameter left/right: 57.4 mm / 57.4 mm
• Flange spacing left/right: 33.0 mm / 18.7 mm
• Spoke hole diameter: 2.5 mm
• Freewheel body options:
  • Shimano HG11 freehub body compatible with Shimano Road 8-12-speed, Sram PG Road 8-11-speed cassettes
  • SRAM XDR freehub body compatible with SRAM 12-speed AXS cassettes
  • Shimano Micro Spline freehub body compatible with Shimano Micro Spline cassettes
• Freewheel type: 45-tooth stainless steel Chris King RingDrive
• Weight: 266 grams (manufacturer’s specification)
• Warranty: 5 years

Your custom wheel set with Chris King R45D hubs:

Ask us for a personalised quote. We will build your dream wheelset, perfectly hand-laced and trued. Choose your preferred rim from the complete range of DT Swiss, e*thirteen, Mavic, Stans NoTubes and WTB rims. We use exclusively DT Swiss spokes. Over the last few decades – ever since we started building wheels – these spokes have proven themselves to be by far the most durable.

Chris King Hub Quality

The quality of Chris King components is unique. High-precision manufacturing, the sort usually only seen in the medical sector. Chris King hubs have a reputation for being indestructible, and rightly so. The hub bodies are superbly crafted and, thanks to the maximum flange spacing, enable the construction of particularly laterally stiff wheelsets. Rounded off by the high-precision CNC-machined hub body with anodised finish and the multi-sealed industrial bearings. Superb, very light, extremely durable – manufactured by Chris King directly in Oregon, USA.

Chris King RingDrive:

The patented Chris King RingDrive freewheel technology with 45 teeth – meaning 45 simultaneous engagement points – quickly transfers power to the ground with unrivalled efficiency. It is the sheer number of teeth that creates the legendary Chris King ‘angry bee’ sound.

Chris King stainless steel bearings

Chris King stainless steel bearings are manufactured in Oregon, USA, and each bearing is hand-checked and assembled. Unlike conventional radial bearings, Chris King builds sealed angular contact ball bearings that self-adjust during use rather than wearing out; like a fine wine or a high-quality guitar, the bearings improve with age. All bearings can be serviced without special tools; simply remove the retaining ring and seal, clean and re-lubricate – for lifelong reliability!

Herstellerinformation: Manufacturer details: Chris King, 2801 NW Nela St, 97210 Portland, Oregon, United States, http://chrisking.com
