Classified Powershift Smart Thru Axle
Finding the right thru-axle for the Powershift hub requires a bit of work. Firstly, the clear installation dimension in the frame must be determined, which is the easiest step. Next, you need to check whether the left side of the frame has a tapered or smooth outer mount for the thru-axle, and whether spacers need to be fitted there. Finally, the thread pitch and length must be measured. The thread for securing the thru-axle is interchangeable on the Smart Thru Axle.
Included in delivery:
- Smart thru-axle, threaded end M12x1.5 L14, charging cable

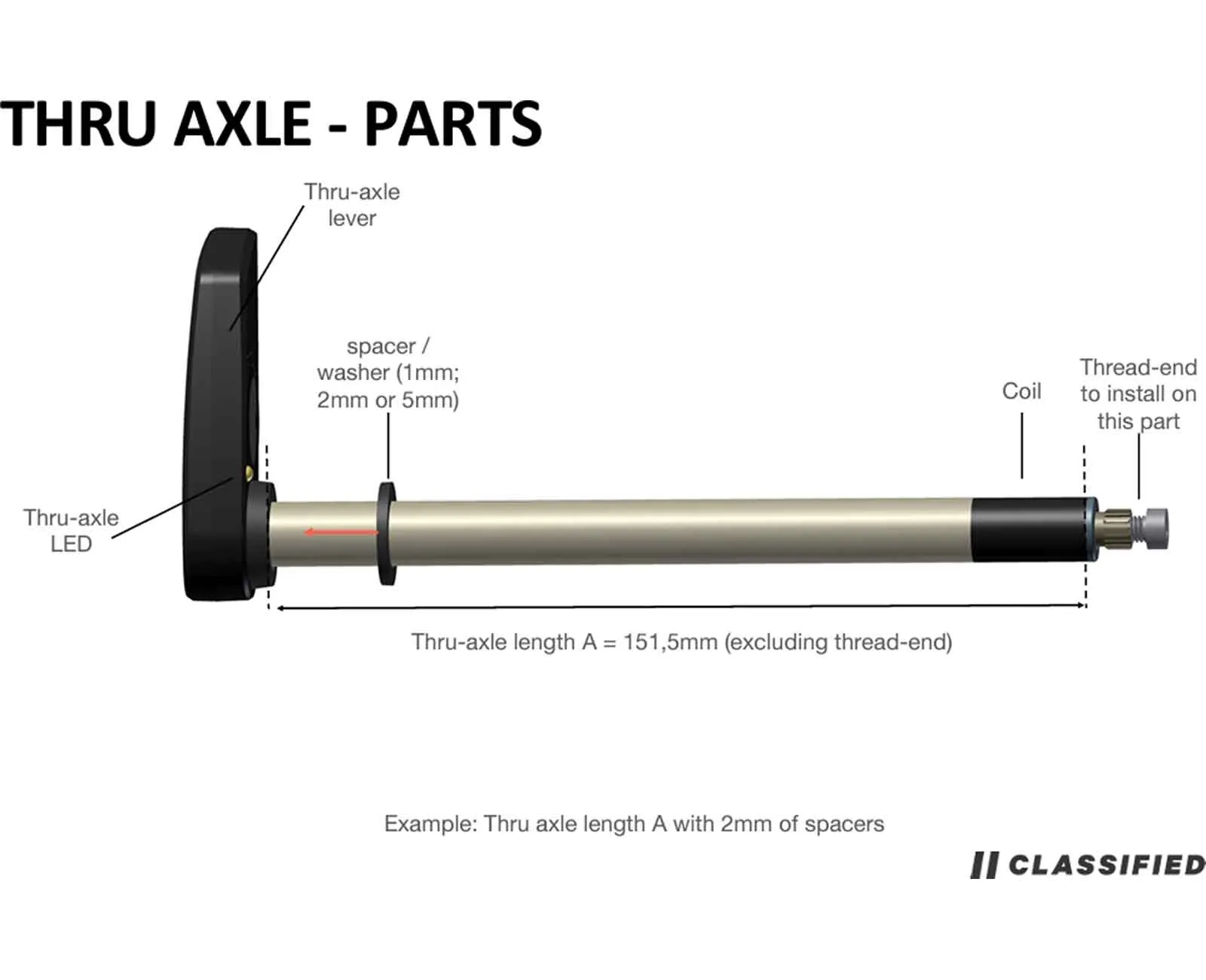

Classified Powershift Thru-Axle A Dimensions and specifications:
- Diameter: 12 mm
- Length: 151.5 mm
- Threaded end: M12x1.5, length 14 mm (alternative threaded ends available separately)
- Battery life: Approx. 10,000 gear changes or 4 months
- Battery: Li-ion battery, rechargeable via micro-USB
The control centre of the Powershift hub: the Smart Thru Axle The smart thru-axle communicates directly with the shift button via Bluetooth, enabling precise, wireless control of the Powershift hub. Various lengths are available to ensure a perfect fit for any frame.
Which thru-axle is the right one?
Classified offers thru-axles in various lengths and thread types for all common standards. To find the correct thru-axle length for your frame, a printable measuring tool and detailed instructions are available. You will also need to select the pitch and length for the thru-axle thread. You can find this information on your bike manufacturer’s website.
Link to the Classified guide for selecting the correct thru-axle

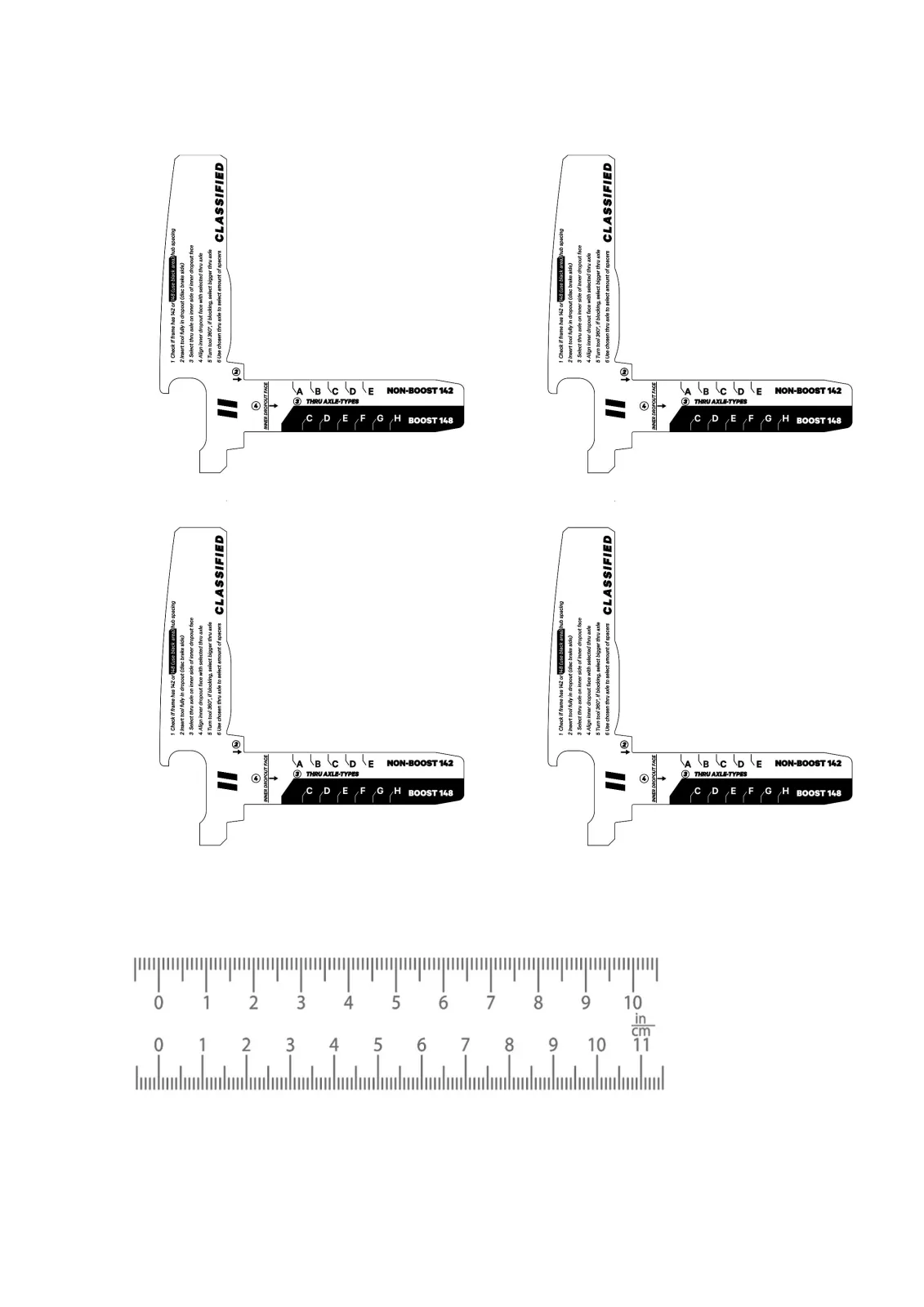

Link to the Classified measuring tool to print out yourself
Your custom wheel with Powershift hub:
Ask us for a personalised quote. We will build your chosen wheel, perfectly centred by hand. Select your preferred rim from the complete range of DT Swiss, e*thirteen, Mavic, Stans NoTubes and WTB rims. We use exclusively DT Swiss spokes. Over the last few decades – ever since we started building wheels – these spokes have proven themselves to be by far the most durable.
