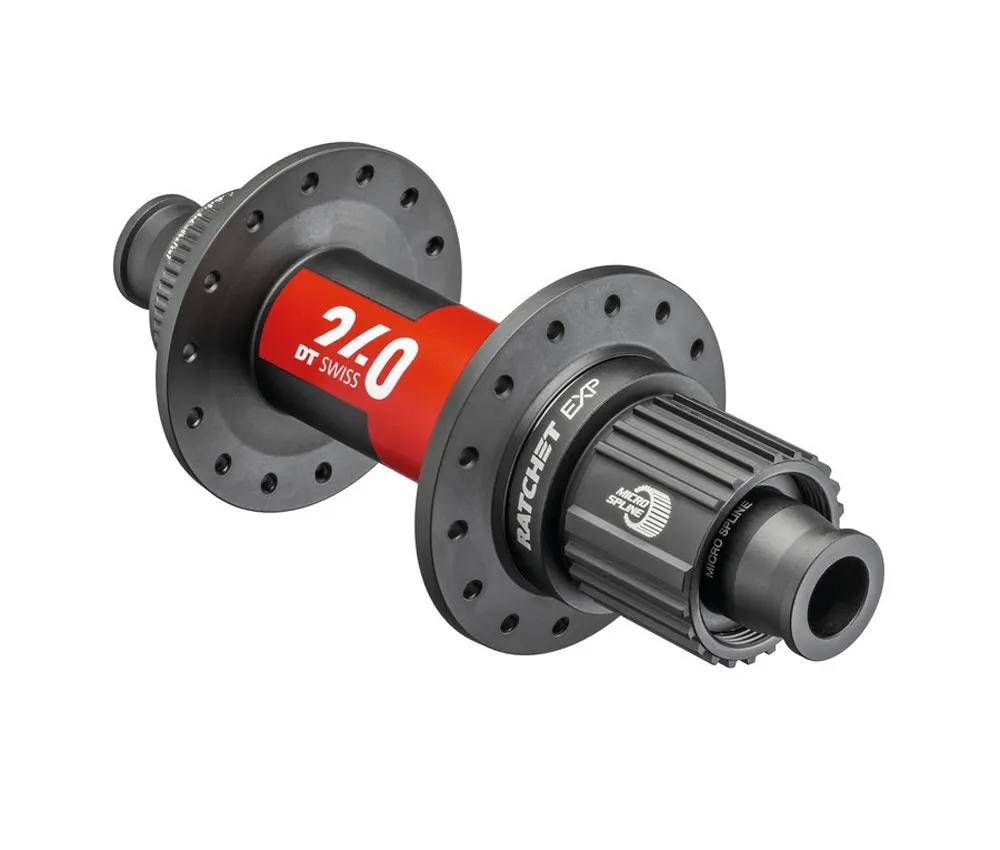

DT Swiss 240 EXP MTB Hub

The disc brake hubs from the DT Swiss 240 EXP series for use on MTBs with Boost 148 rear ends

The DT Swiss 240 EXP straight-pull hubs offer minimal weight combined with exceptional durability – a rarity, particularly in hub construction. The new axle system, with 15 per cent greater support width, increases hub stiffness. The ‘EXP’ in the DT Swiss 240 EXP hubs stands for the integration of the gear ring and threaded ring, which reduces the number of components and thus lowers the weight. A single cylindrical spring ensures faster, complete engagement and thus greater reliability. The complete interlocking of the ring gears creates a large contact surface and thus low point loads, resulting in superior reliability. The stainless steel ball bearings have proven to be extremely reliable and durable since the introduction of the 240 hubs. The patented freehub body features interlocking toothed discs. This guarantees loss-free power transmission. Straightpull refers to straight, non-offset spokes. Thanks to this technology, it is possible to achieve an ideal balance between weight and stability.

DT Swiss Star Ratchet EXP System:

The proven DT Swiss Star Ratchet System, now in the new EXP version with a toothed disc freehub body, allows for easy conversion to various rotor standards.

DT Swiss 240 EXP Rear Hubs Boost 12x148mm:

The DT Swiss EXP rear hubs can only be converted to a Boost 10x141 mm quick-release mount. The new end cap mount is compatible with the previous classic

DT Swiss 240 EXP rear hub technology:

• Application: Road bike
• Housing material: Aluminium
• Freewheel body: Aluminium with 2 sprockets, specially coated
• Axle: Aluminium
• Stainless steel ball bearings
• Seal-less sealing system
• Centerlock brake disc mount
• EXP Ratcht Star freehub body (optional)
  • HG10 freehub body for Shimano MTB cassettes (8, 9, 10 and 11-speed) and Sram MTB PG cassettes (8, 9 and 10-speed)
  • SRAM XD freehub body for SRAM 11- and 12-speed XG MTB cassettes
  • Micro Spline freehub body for Shimano 12-speed MTB cassettes
• Weight from 219 grams (manufacturer’s specification)

Your custom wheel with the DT Swiss 240 EXP hub

Ask us for a personalised quote. We will build your dream wheelset, perfectly trued by hand. Choose your preferred rim from the complete range of DT Swiss, e*thirteen, Mavic, Stans NoTubes and WTB rims. We use exclusively DT Swiss spokes. Over the last few decades – ever since we started building wheels – these spokes have proven themselves to be by far the most durable.
