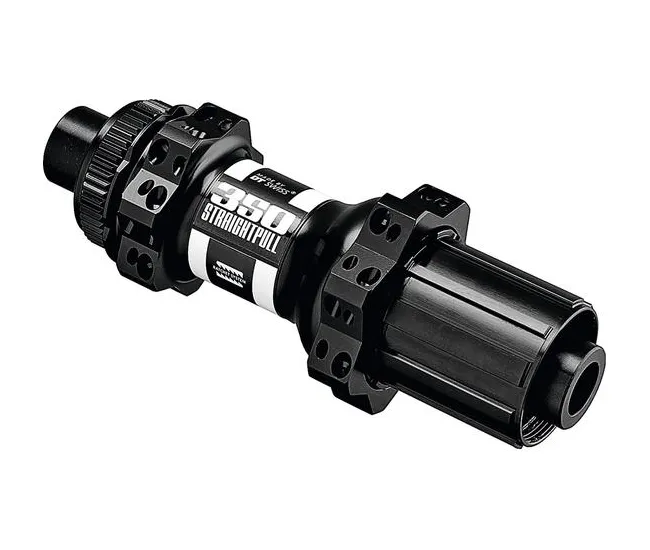

DT Swiss 350 Straightpull Hub

With the 350 hubs, DT Swiss offers affordable, high-quality hubs. From road bike to downhill versions, the 350 hub range is designed for maximum durability. Straightpull refers to straight, non-offset spokes. Thanks to this technology, it is possible to achieve an ideal balance between weight and stability. The straight-pull spokes allow for very precise alignment and optimised positioning within the wheel, resulting in a stiffer and more responsive wheel.

DT Swiss Straightpull:

• Straightpull spoke positioning: Straightpull lacing allows for precise placement and alignment of the spokes. This optimises wheel stiffness and eliminates any unwanted stress peaks.
• Straightpull hub shell: DT Swiss straight pull hub shells require minimal material, allowing them to be constructed to be lightweight yet stable.
• Straightpull lacing pattern: With crossed lacing, the spoke anchoring is designed so that the forces introduced almost cancel each other out. This increases the precision of the bearing race and further extends the service life of the ball bearings.

DT Swiss Star Ratchet System:

The proven DT Swiss Star Ratchet System with its toothed freewheel body allows for easy conversion to various axle or rotor standards.

DT Swiss 350 Straightpull Rear Hub Technology:

• Housing material: Aluminium
• Ratchet Star freehub body: Aluminium with 2 toothed discs, specially coated
• Axle: Aluminium
• Contact-free sealing system
• IS brake disc mount, 6-hole
• Weight: 274 grams
• Boost clamping width 142 x 12 mm for thru-axle mounting, convertible to 10x141 Boost quick-release mounting
• Freewheel body available as:
  • HG10 compatible with Shimano and Sram 8, 9 and 10-speed, and Shimano XT and XTR 11-speed cassettes
  • SRAM XD compatible with Shimano and SRAM XG 11- and 12-speed cassettes

Your custom wheel with the DT Swiss 350 Straightpull hub

Ask us for a personalised quote. We will build your dream wheelset, perfectly trued by hand. Choose your preferred rim from the complete range of DT Swiss, e*thirteen, Mavic, Stans NoTubes and WTB rims. We use exclusively DT Swiss spokes. Over the last few decades – ever since we started building wheels – these spokes have proven themselves to be by far the most durable.
