Freewheel body kit DT Swiss

For converting DT Swiss 370 Pawl MTB hubs and MTB rear wheels, with the Three Pawl – 3-pawl system, to the Shimano HG10 system for Shimano HG 8–12-speed and Sram PG 8–12-speed MTB cassettes.

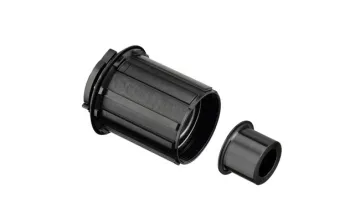

• The kit includes the freehub body and the right-hand frame end cap for 12x142mm, 10x148mm and 12x157mm thru-axle mounting. The right-hand end caps for the mounting dimensions are identical; the hub widths differ.

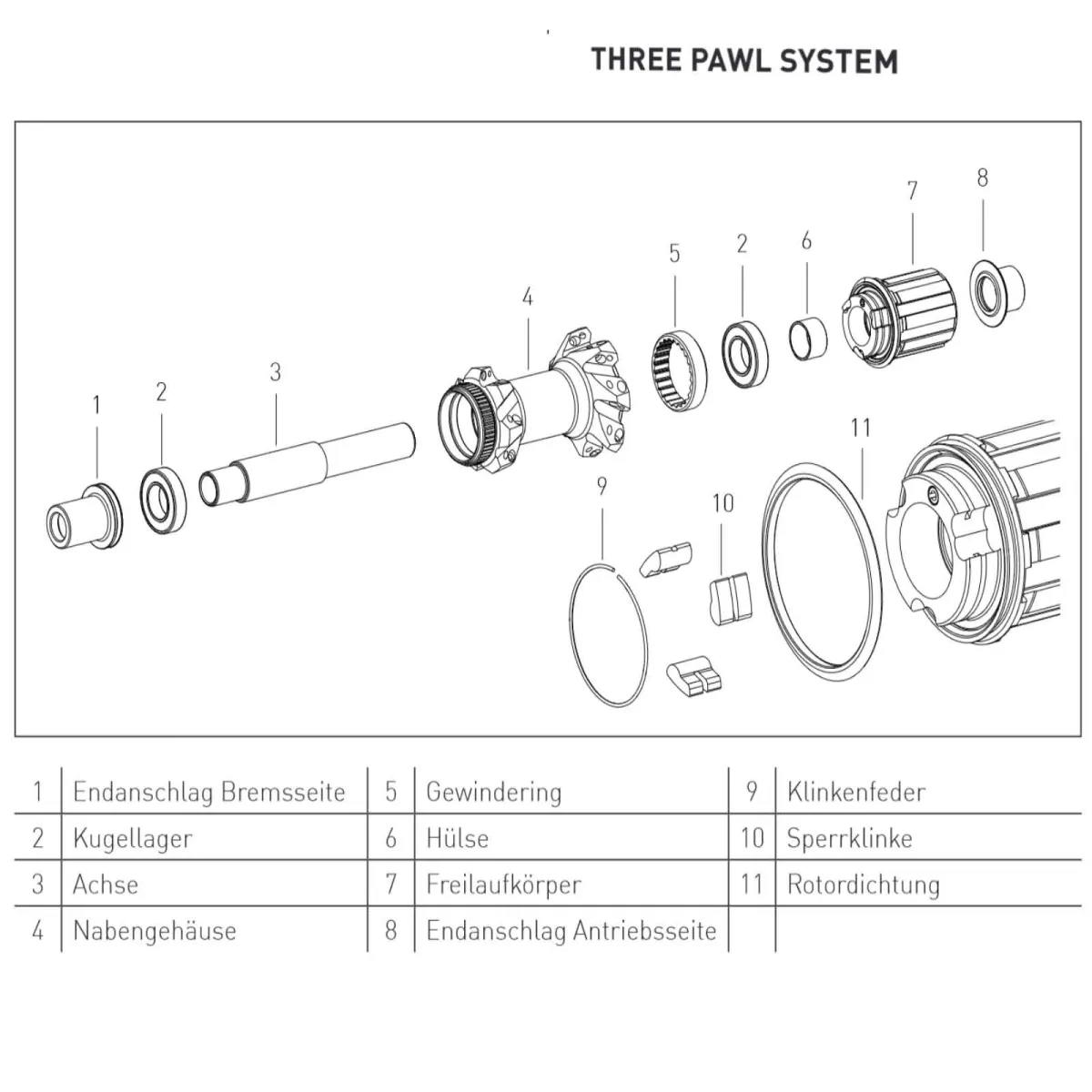

• The DT Swiss Pawl System with 3 pawls was used on the older DT Swiss 370 hubs and rear wheels.
• DT Swiss manufactures separate right-hand end stops for each cassette system, such as Shimano HG10, Shimano HG11, Shimano Micro Spline, Sram XD, Sram XDR, Campa ED and Campa N3W. These are also required for conversion if not already present. The right-hand end caps from older systems, such as 3-pawl or Ratchet Star, are also compatible with the new freehub bodies.

Not compatible with Ratchet LN, Ratchet Star, Ratchet EXP or Ratchet DEG hubs.
Not suitable for converting the hubs to a different installation dimension.

Herstellerinformation: DT Swiss, Längfeldweg 101, 2504 Biel, Bern, Switzerland, https://www.dtswiss.com/
