DT Swiss Ratchet and Pawl Freehub Body
The latest DT Swiss hubs use ratchet pawl systems for the freehub bodies. Only the older 370 hub series still require the 3-pawl system.
DT Swiss Ratchet Star:
The Ratchet Star system was DT Swiss’s first freehub system of this type. This tried-and-tested system is used in DT Swiss products in the mid-price range, such as the 350 hub and the older DT Swiss 240S and 180 hubs.
DT Swiss Ratchet EXP:
Ratchet EXP is DT Swiss’s lightest freehub system and is therefore used in DT Swiss products designed for the most demanding applications. It is used in the 180 and 240 hubs.
DT Swiss Ratchet LN:
Ratchet LN belongs to the entry-level range of DT Swiss ratchet systems and is therefore used in lower-priced products, such as the 370 hub. The Ratchet LN replaces the pawl freewheel system.
DT Swiss Three Pawl:
The three-pawl freehub system was used in affordable entry-level wheelsets with 370 DT Swiss hubs. Conversion kits containing sprockets, springs and a hub insert are available to convert older 370 hubs with the three-pawl system to the Ratchet LN system.
DT Swiss 3-Pawl Road Freehub Body Kit | Aluminium Campagnolo ED + Right-hand stop SSP 10x130/135mm
DT Swiss Rotor Hub Kit, Pawl – 3-pawl system, Road, Campagnolo 9-10-11-speed road bike cassette, 10x130 mm end stop

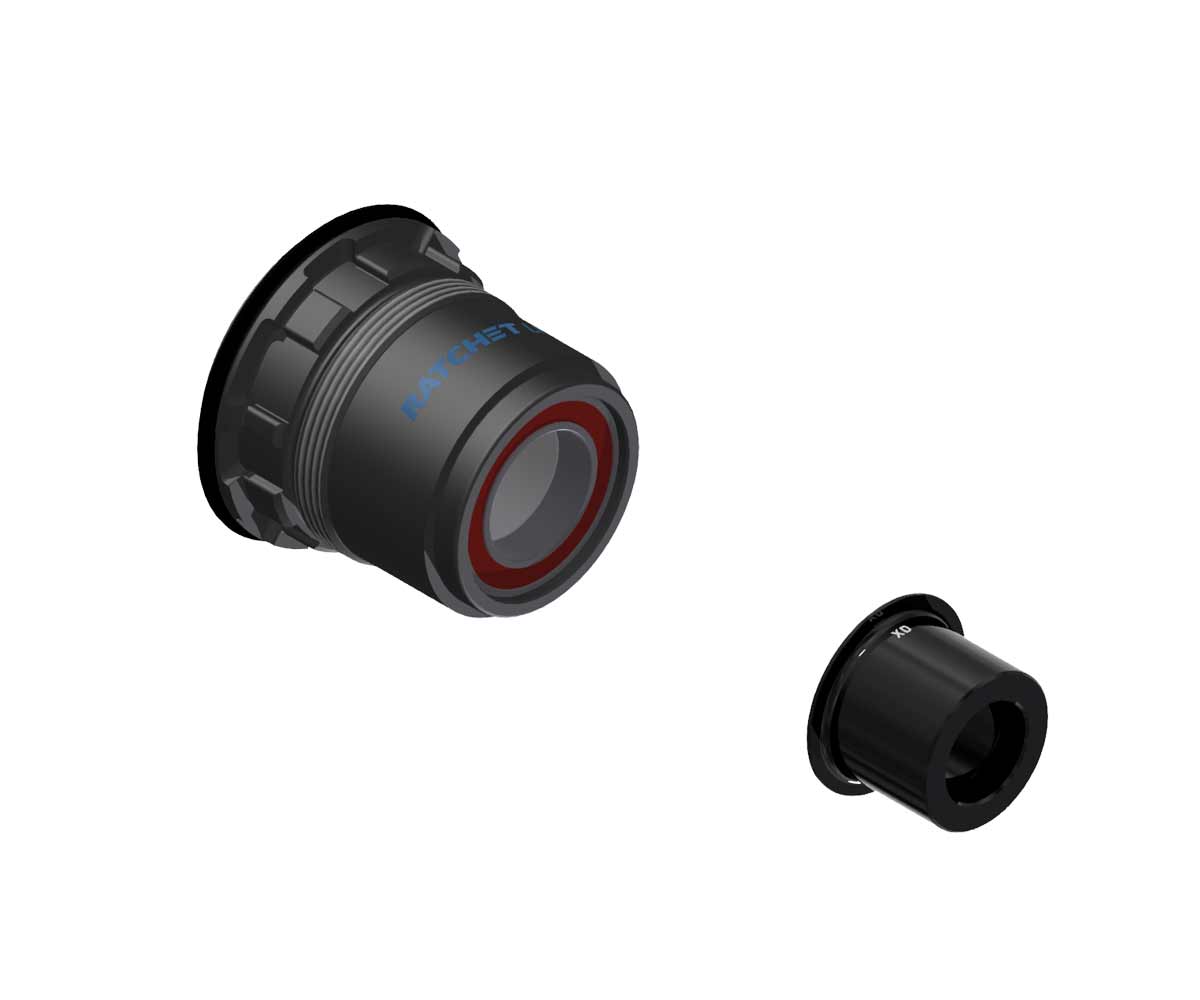

DT Swiss Ratchet LN MTB Freewheel Body Kit | Aluminium Sram XD + Right-hand stop 12x1352/150 mm
DT Swiss Aluminium Rotor Hub, Ratchet LN Sprocket System, for SRAM XG 11-speed and 12-speed MTB cassettes plus end stop 12x135/150mm
DT Swiss Ratchet LN Freehub Body Kit | Aluminium MTB Shimano HG10 + Right-hand end stop 12x135/150mm
DT Swiss Rotor Hub Kit, aluminium, Ratchet LN sprocket system, MTB, HG10 Shimano and Sram 8-speed to 11-speed MTB cassettes, with right-hand end stop for 12x135mm and 12x150mm thru-axle mounting
DT Swiss Ratchet LN Freehub Body Kit | Aluminium Road Shimano HG11 + Right-hand end stop SSP
DT Swiss Aluminium Freewheel Body Ratchet LN Sprocket System, Shimano Road HG11, plus right-hand end stop for 10x130mm, 10x135mm quick-release mounting
DT Swiss 3-pawl MTB freehub body kit | Aluminium Sram XD + right-hand end stop 12x142/147/157 mm
DT Swiss Aluminium Rotor Hub, Pawl – 3-pawl system, for SRAM XG 11-speed and 12-speed MTB cassettes plus end stop 12x142/148/157mm
DT Swiss 3-pawl MTB freehub body kit | Aluminium Sram XD + right-hand end stop 10x135 mm SSP
DT SDT Swiss Aluminium Rotor Hub, Pawl – 3-pawl system, for SRAM XG 11-speed and 12-speed MTB cassettes plus end stop, 12x135mm quick-release mounting

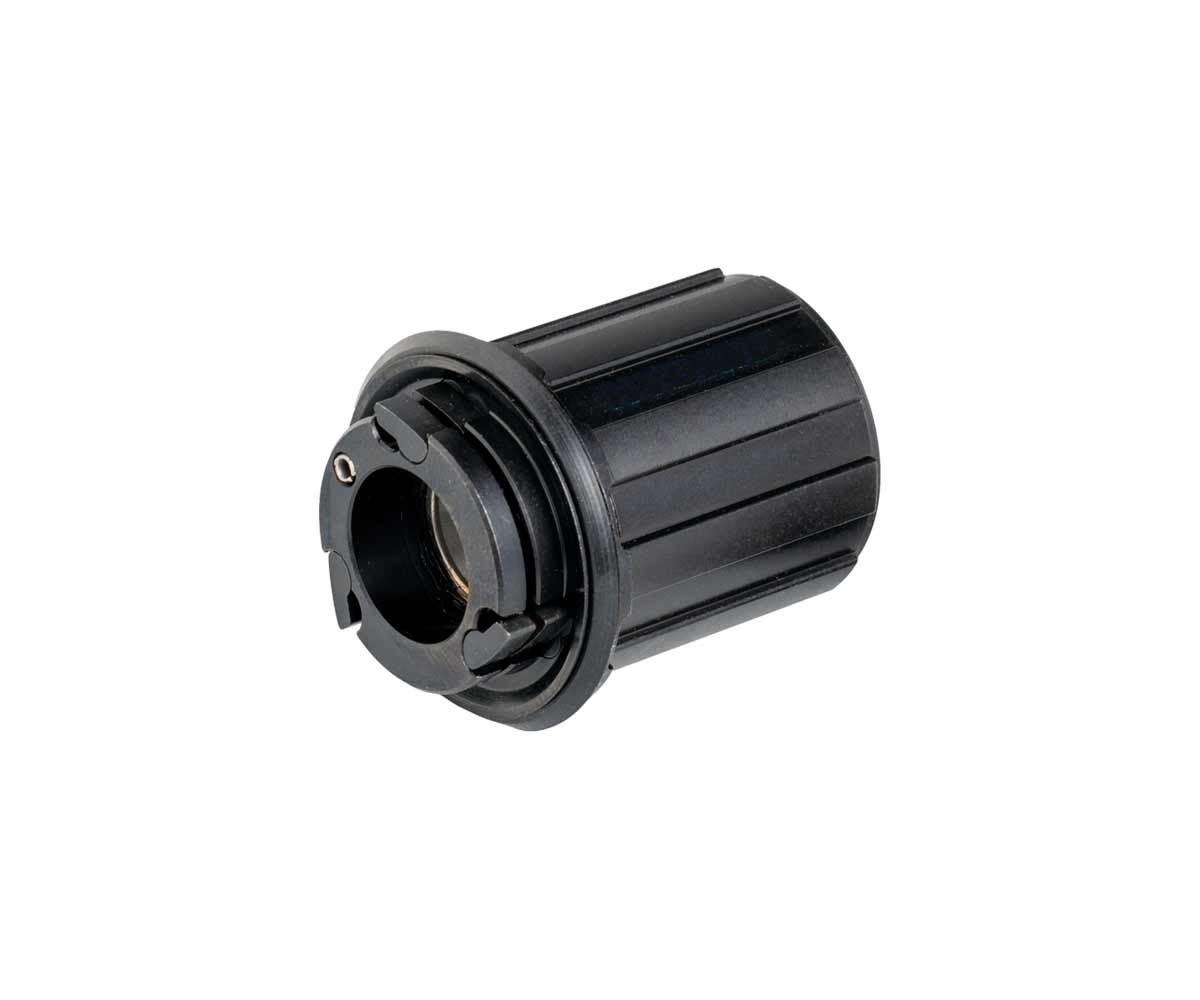

DT Swiss 3-Pawl Freehub Body Kit | Aluminium MTB Shimano HG10 + Right-hand end stop 12x142/148/157mm
DT Swiss Rotor hub, aluminium, pawl – 3-pawl system, HG10 for Shimano HG and Sram PG 8-speed to 12-speed MTB cassettes with right-hand end stop for 12x142/148/157 mm thru-axle installation
DT Swiss 3-Pawl Freehub Body Kit | Aluminium Road HG11 + Right-Hand Stop SSP 10x130/135 mm
DT Swiss Rotor Hub Kit, Pawl – 3-pawl system, Road, HG11 plus right-hand end stop for 10x130/135 mm quick-release mounting
DT Swiss 3-Pawl Freehub Body Kit | Aluminium Road HG11 + Right-hand end stop 12x142mm
DT Swiss Rotor Hub Kit, Pawl – 3-pawl system, Road HG11 with right-hand end cap for 12x142 mm thru-axle fitting
DT Swiss Ratchet Star MTB Freehub Body Kit | Aluminium Sram XD + Right-hand stop 10x135mm SSP
DT Swiss Aluminium Rotor Hub, Ratchet Star sprocket system, for Sram XG 11-speed and 12-speed MTB cassettes plus 10x135mm quick-release end stop
DT Swiss Ratchet Star MTB Freehub Body Kit | Aluminium Sram XD + Right-hand stop 12x142/147/157 mm
DT Swiss Aluminium Rotor Hub, Ratchet Star sprocket system, for Sram XG 11-speed and 12-speed MTB cassettes plus end stop 12x142/148/157mm
DT Swiss Ratchet Star Hybrid Freehub Body Kit | Steel MTB Shimano HG10 + Right-hand end cap 12x142/148/157mm
DT Swiss Steel Hub Rotor Kit, Ratchet Star System MTB, Hybrid HG 10 for Shimano and Sram 8-speed to 11-speed MTB cassettes with right-hand end stop for 12x142mm, 12x148mm, 12x157mm thru-axle mounting
DT Swiss Ratchet Star Freehub Body Kit | Aluminium MTB Shimano HG10 + Right-hand end cap 12x135/150mm
DT Swiss Aluminium Hub Rotor Kit, Ratchet Star System MTB, HG 10 for Shimano and Sram 8-speed to 11-speed MTB cassettes with right-hand stop for 12x135mm, 12x150mm, thru-axle mounting
DT Swiss Ratchet Star Freehub Body Kit | Aluminium Road Shimano HG11 + Right-hand stop SSP 10x130/135mm
DT Swiss Aluminium Hub Rotor Kit, Ratchet Star pawl system, Road, HG11 Shimano and Sram, plus right-hand stop for 10x130/135 mm quick-release mounting
DT Swiss Ratchet Star Hybrid Freehub Body Kit | Steel Road Shimano HG11 + Right-hand end cap 12x142/148mm
DT Swiss Steel Hub Rotor Kit, Ratchet Star sprocket system, Road Hybrid, HG11 Shimano and SRAM, plus right-hand end stop for 12x142mm and 12x148mm thru-axle installation
DT Swiss Ratchet EXP Road Hybrid Freehub Body Kit | Steel Sram XDR + Right-hand end stop 12x142/148 mm
DT Swiss Rotor hubs, steel, hybrid e-bike, Ratchet EXP sprocket system, XDR Road, for SRAM 12-speed AXS cassettes, plus right-hand end stop for 12x142/148 mm thru-axle assembly
DT Swiss Ratchet EXP MTB Hybrid Freehub Body Kit | Steel Sram XD + Right-hand stop 12x142/148/157 mm
DT Swiss Rotor steel hubs, hybrid e-bike, Ratchet EXP sprocket system, for SRAM XD 11-speed and 12-speed XG MTB cassettes, plus right-hand end stop for 12x142/148/157mm thru-axle fitting
DT Swiss Ratchet EXP Freehub Body Kit | Aluminium MTB Shimano HG10 + Right-hand end stop 12x135/150mm
DT Swiss Aluminium Rotor Hubs, EXP Ratchet Pulleys System, HG10 for Shimano and Sram 8-11-speed MTB cassettes, with right-hand end stop for 12x135mm and 12x150mm thru-axle mounting
DT Swiss Ratchet EXP Hybrid Freewheel Body Kit | Steel MTB Shimano HG10 + Right-hand end cap 12x142/148/157mm
DT Swiss steel Rotor hubs, EXP Ratchet pawl system, Hybrid HG10 for Shimano and Sram 8-11-speed MTB cassettes, with right-hand end stop for 12x142mm, 12x148mm, 12x157mm thru-axle mounting
DT Swiss Ratchet EXP MTB Hybrid Freehub Body Kit | Steel Shimano Micro Spline + Right-hand end cap 12x142/148/157 mm
DT Swiss Steel Rotor Hubs, Hybrid E-Bike, Ratchet EXP Sprocket System – MTB Hubs, for Shimano 12-speed Micro Spline cassettes plus right-hand end stop for 12x142/148/157mm thru-axle assembly
DT Swiss Ratchet EXP Road Freehub Body Kit | Aluminium Ceramic Shimano Micro Spline + Right-hand end stop 12x142/148 mm
DT Swiss Aluminium Rotor Hubs, Ratchet EXP Sprocket System – Road Bike Hubs, Superlight Ceramic Bearings, for Shimano 12-speed Micro Spline cassettes plus right-hand end stop for 12x142/148/157mm thru-axle assembly
DT Swiss Ratchet EXP Road Freehub Body Kit | Aluminium Shimano Micro Spline + Right-hand end stop 12x142/148 mm
DT Swiss Aluminium Rotor Hubs, Ratchet EXP Pawl System – Road bike hubs, for Shimano 12-speed Micro Spline cassettes plus right-hand end stop for 12x142/148/157mm thru-axle fitting
DT Swiss Ratchet DEG MTB Hybrid Freewheel Body Kit | Steel Sram XD + Right-hand stop 12x148/157 mm
DT Swiss steel Rotor hubs, hybrid e-bike, Ratchet DEG sprocket system, SRAM XD for SRAM 11-speed and 12-speed XG and Transition MTB cassettes, with right-hand end stop for 12x148 Boost or 12x157 Superboost
DT Swiss Ratchet DEG MTB Freehub Body Kit Ceramic | Aluminium Sram XD + Right-hand stop 12x148/157 mm
DT Swiss aluminium Rotor hubs, Ratchet DEG sprocket system, ceramic ball bearings, Sram XD for Sram 11-speed and 12-speed XG and Transition MTB cassettes, with right-hand end stop for 12x148 Boost or 12x157 Superboost
DT Swiss Ratchet DEG MTB Freehub Body Kit | Aluminium Sram XD + Right-hand stop 12x148/157 mm
DT Swiss Aluminium Rotor Hubs, Ratchet DEG Sprocket System, Sram XD for Sram 11-speed and 12-speed XG and Transition MTB cassettes, with right-hand end stop for 12x148 Boost or 12x157
DT Swiss Ratchet DEG MTB Hybrid Freewheel Body Kit | Steel HG10 + Right-hand stop 12x148/157 mm
DT Swiss steel Rotor hubs, hybrid e-bike, Ratchet DEG sprocket system, HG10 for Shimano 8- to 10-speed HG cassettes and Sram 8- to 12-speed PG MTB cassettes, with right-hand end stop for 12x148 Boost or 12x157 Superboost
DT Swiss Ratchet DEG Freehub Body Kit | Aluminium MTB Shimano HG10 + Right-hand end stop 12x148/157 mm
DT Swiss Aluminium Rotor Hubs, Ratchet DEG Sprocket System, HG10 for Shimano HG and Sram PG 8-11-speed MTB cassettes, with right-hand end stop for 12x148 Boost or 12x157
DT Swiss Ratchet DEG MTB Hybrid Freewheel Body Kit | Steel Shimano Micro Spline + Right-hand stop 12x148/157 mm
DT Swiss Steel Rotor Hub, Hybrid E-bike, Ratchet DEG sprocket system, for Shimano 12-speed Micro Spline cassettes plus right-hand end stop for 12x142/148/157mm thru-axle fitting
DT Swiss Ratchet DEG MTB Freehub Body Kit | Aluminium Shimano Micro Spline + Right-hand stop 12x148/157 mm
DT Swiss Aluminium Rotor Hub, Ratchet DEG Sprocket System, for Shimano 12-speed Micro Spline cassettes plus right-hand end stop for 12x142/148/157mm thru-axle installation
DT Swiss Ratchet DEG MTB Freehub Body Kit | Ceramic Light Aluminium Shimano Micro Spline + Right-hand end stop 12x148/157 mm
DT Swiss Aluminium Rotor Hub, Ratchet DEG Tooth Disc System, Light matt black, for Shimano 12-speed Micro Spline cassettes plus right-hand end stop for 12x142/148/157mm thru-axle fitting
DT Swiss Ratchet DEG MTB Freehub Body Kit | Light Aluminium Shimano Micro Spline + Right-hand stop 12x148/157 mm
DT Swiss Aluminium Rotor Hub, Ratchet DEG Tooth Disc System, Light matt black, for Shimano 12-speed Micro Spline cassettes plus right-hand end stop for 12x142/148/157mm thru-axle fitting
