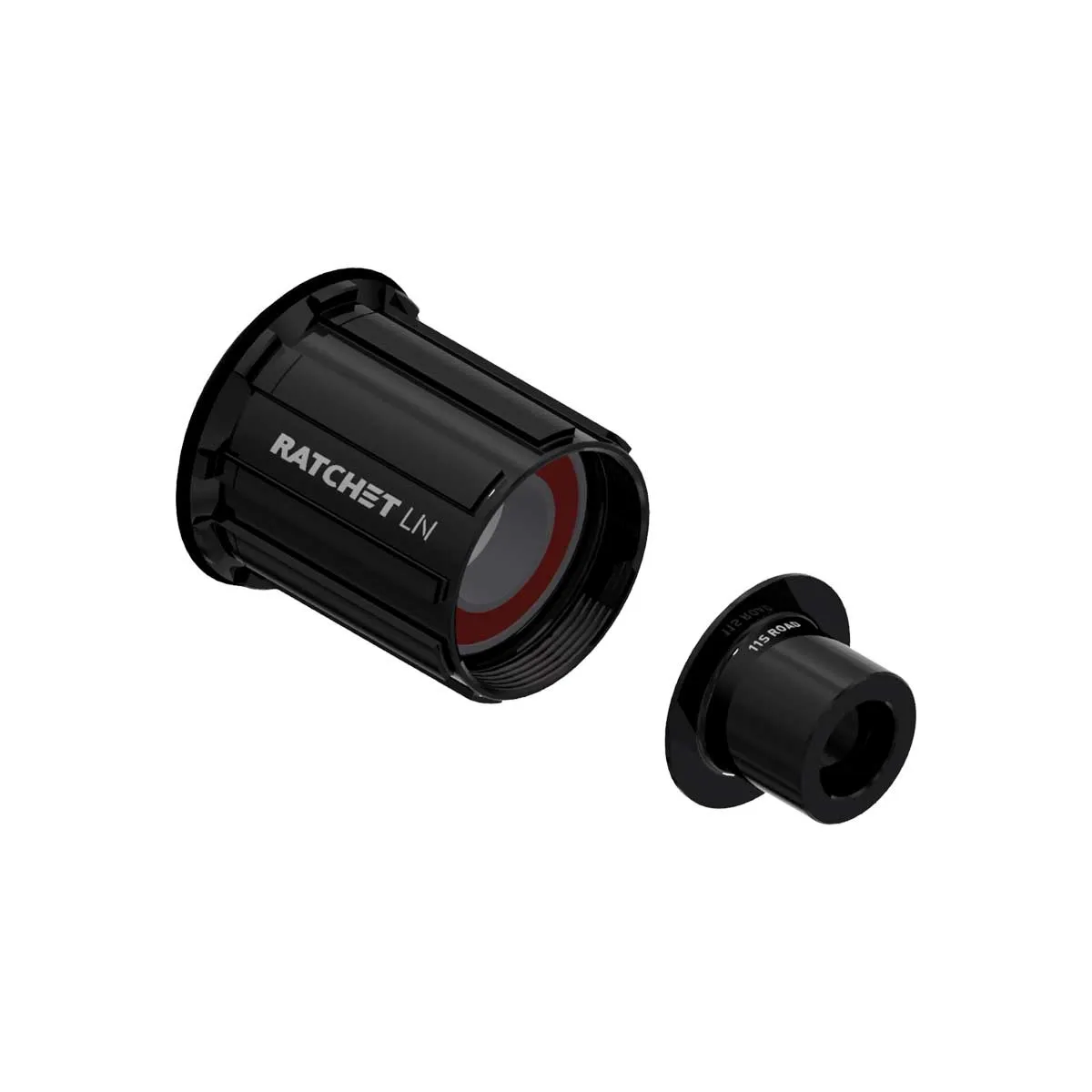

DT Swiss road bike freehub body

For converting DT Swiss 370 Ratchet LN road bike hubs to the Shimano HG11 system for Shimano HG 8-12 and Sram PG 8-11-speed road bike cassettes.

• The kit includes the freehub body and the right-hand frame stop for 12x142mm or 12x148mm thru-axle installation. The right-hand end stops for both mounting dimensions are the same; the hub widths differ.
• Due to the special seal, the Ratchet LN freehub bodies do not fit the Ratchet 350 and 240 hubs, but only the new DT Swiss 370 hubs and wheelsets featuring these hubs. Conversion kits containing sprockets, springs and a hub insert are available to convert older 370 series hubs with the 3-pawl system to the Ratchet LN system.
• DT Swiss manufactures specific right-hand endstops for each cassette system, such as Shimano HG10, Shimano HG11, Shimano Micro Spline, Sram XD, Sram XDR, Campa ED and Campa N3W. These are also required for conversion if not already present. The right-hand end stops from older systems, such as 3-pawl or Ratchet Star, are also compatible with the new freehub bodies.

Not compatible with pawl / 3-pawl hubs, or Ratchet Star, Ratchet EXP, Ratchet DEG hubs.
Not suitable for converting the hubs to a different installation size.

Herstellerinformation: DT Swiss, Längfeldweg 101, 2504 Biel, Bern, Switzerland, https://www.dtswiss.com/
