MTB and gravel bike hubs: Mavic Infinity MX801 SP

The straight-pull mountain bike hubs from the Mavic Infinity series. Thanks to the special design of the hub flanges, only one spoke length is required for both the front and rear wheels.

Mavic MX801 Infinity SP Boost rear hub specifications and dimensions:

• Axle: Aluminium
• Housing material: Aluminium
• Bearing technology: QRM Auto, automatic bearing adjustment
• Brake disc mount: DCL Disc Centerlock
• Boost clamping width 148x12 mm for thru-axle mounting, convertible to 10x141 Boost quick-release mounting

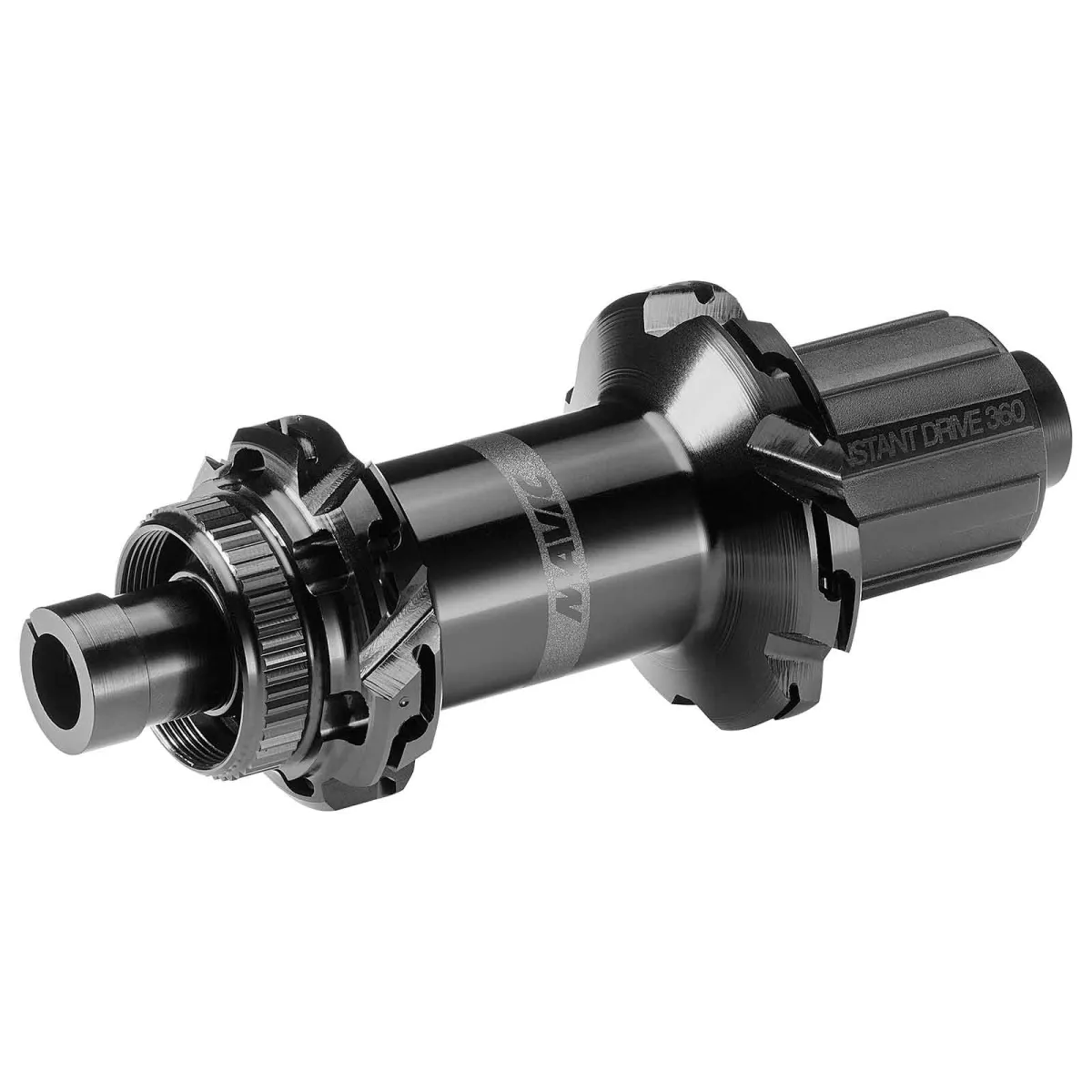

• Freewheel body: Instant Drive 360 system, with 2 sprockets
• Freewheel body available as:
  • HG10 aluminium freehub body for Shimano MTB cassettes 8 + 9 + 10 + 11-speed and Sram MTB cassettes 8 + 9 + 10-speed
  • HG10 steel freehub body for Shimano MTB cassettes (8, 9, 10 and 11-speed) and SRAM MTB cassettes (8, 9 and 10-speed)

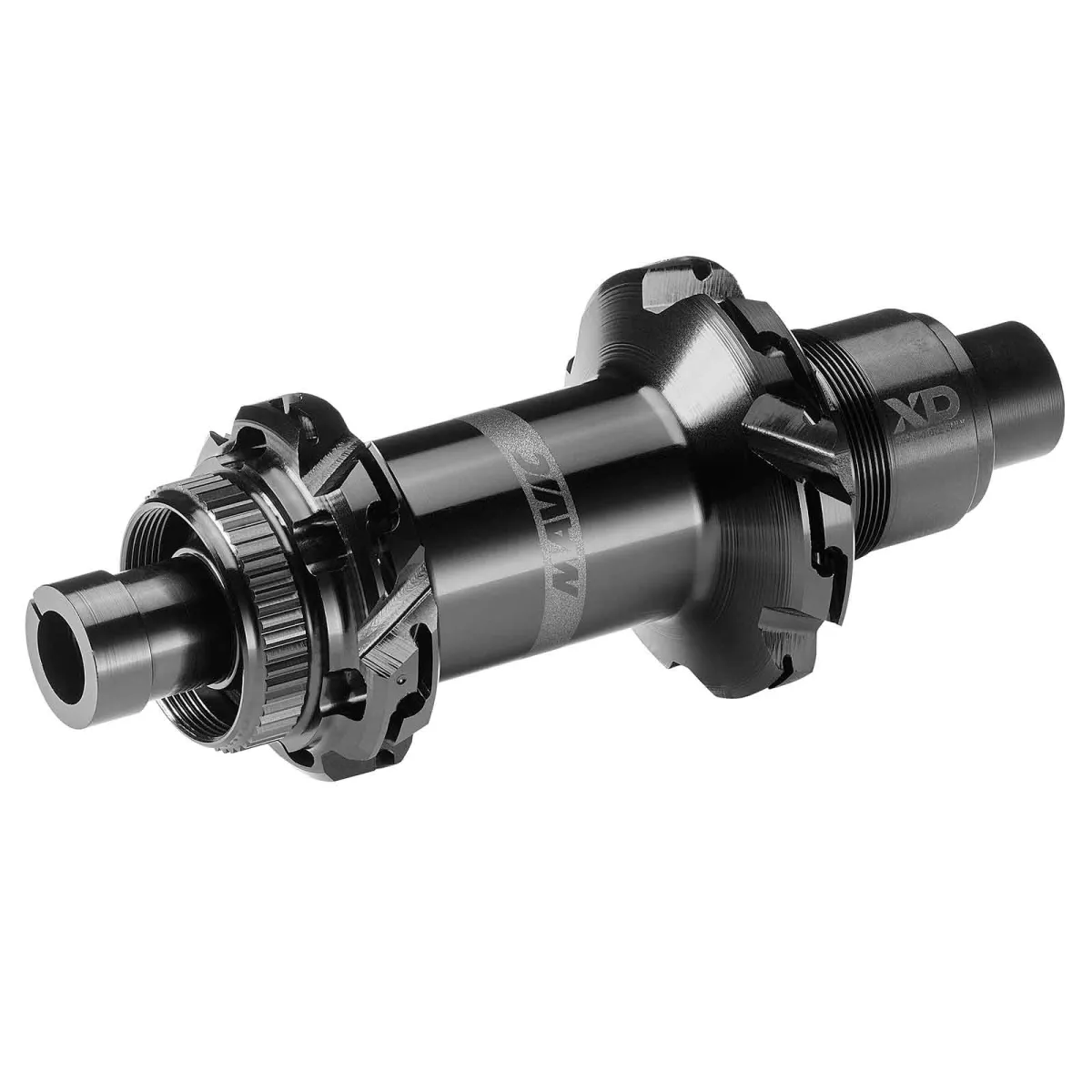

  • SRAM XD freehub body for SRAM 11- and 12-speed XG MTB cassettes
  • SRAM XDR freehub body for SRAM 12-speed Road AXS and MTB cassettes

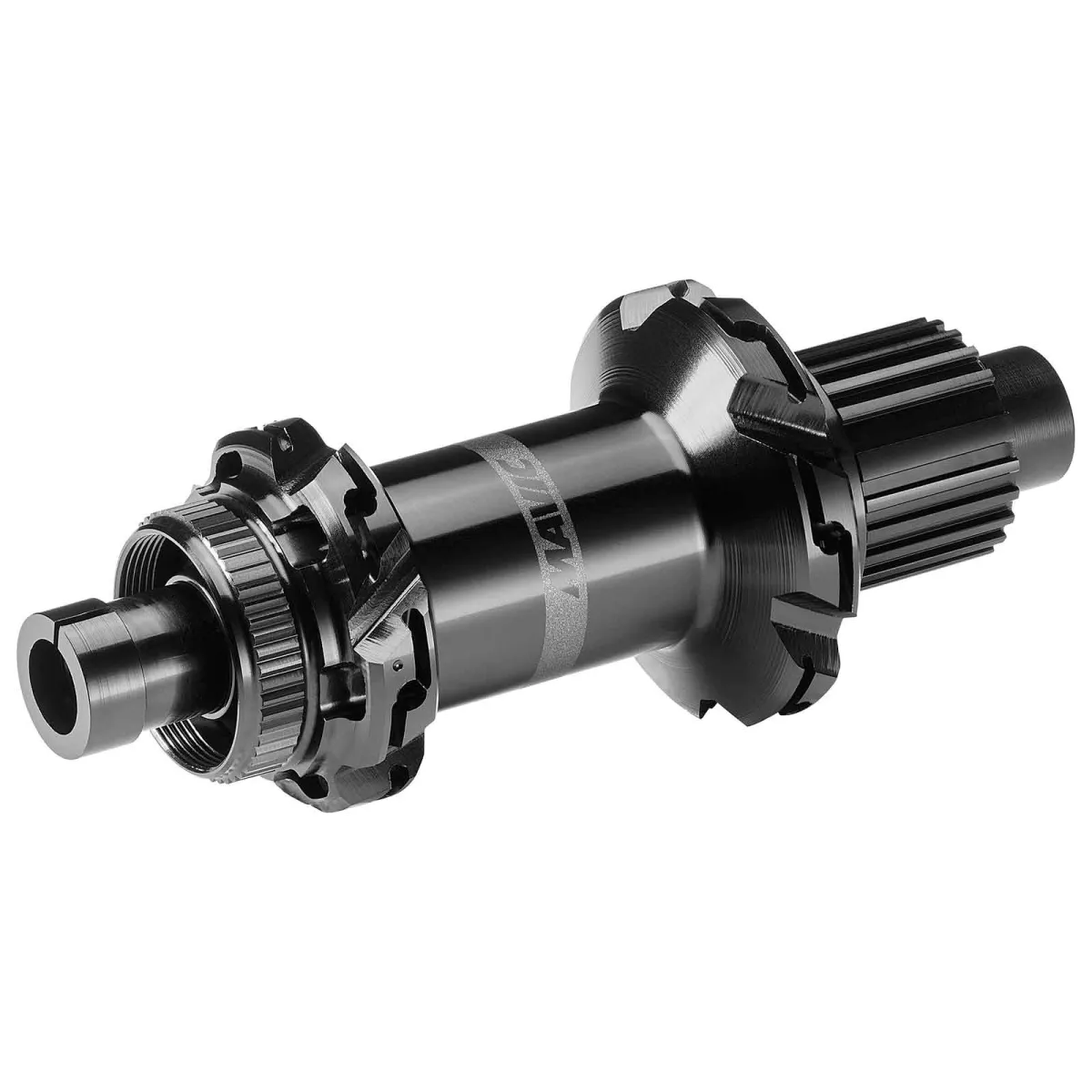

  • Micro Spline freehub body for Shimano 12-speed MTB cassettes
• Weight 267 grams, manufacturer’s specification

Your dream bike with the Mavic Infinity hub:

Ask us for a personalised quote. We will build your custom wheel set, perfectly centred by hand. Choose your preferred rim from the complete range of DT Swiss, e*thirteen, Mavic, Stans NoTubes and WTB rims. We use exclusively DT Swiss spokes. Over the last few decades – ever since we started building wheels – these spokes have proven themselves to be by far the most durable.

We hand-build these wheels exclusively for you. Thanks to over 30 years’ experience in wheel building, we extract the optimum in roundness, durability and stiffness from the materials. These wheels are, of course, pressure-tested multiple times, and we also pre-load the spokes in the longitudinal direction. This eliminates the need for re-truing over a long period of time.

Mavic MX801 INFINITY SP:

are the rightful successors to the legendary Mavic hubs (501, 571 …), as they bring our latest innovations to the trails. Now also available for custom wheelsets! Infinity technology impresses with its weight-saving design, optimal lacing – contact-free straight-pull spokes with uniform spoke length for even spoke tension – and the proven Instant Drive 360 freehub system. The Instant Drive 360 freehub with toothed disc mechanism impresses with rapid engagement and perfect power transmission with minimal friction loss, as well as easy maintenance. Freewheel bodies are available for all relevant sprocket cassettes: Shimano HG and MicroSpline, Sram XD. The precision CNC-machined hub bodies ensure optimised spoke angles and reduced asymmetry – resulting in stable, stiff and durable wheels. Large-dimensioned industrial bearings (2 at the front, 4 at the rear) with minimal play ensure smooth, long-lasting operation. Our QRM Auto system with automatic bearing preload guarantees smooth bearing operation and perfectly adjusted bearing play without any adjustment effort. This MTB version is only compatible with the Boost standard for frames and forks: 15x110 mm at the front and 12x148 mm at the rear. Developed, designed and tested in France. CNC-machined in Europe

Mavic Infinity Disc Hubs:

The proven Mavic QRM Auto industrial bearings are used in the Infinity hubs. The widened bearing spacing ensures torsional stiffness of the hub, whilst the new spoke lugs ensure effective power transfer. Equipped with the Instant Drive sprocket freehub body and the ORM Auto axle system. The self-aligning bearing system of the rear hub, QRM auto, combined with the sprocket freehub, ensures maintenance-free operation over a long period.

Mavic Instant Drive 360 freewheel body

The Instant Drive 360 freehub system is super-light and ensures rapid power transfer with a mere 9-degree engagement angle. A large, contact-free rubber seal reduces friction. And a wide selection of axle stubs ensures compatibility with many mounting standards. The oversized aluminium axle and the hardened aluminium freehub body save 40 g. Two pawls with 40-tooth engagement ensure fast and loss-free power transfer. A radial seal guarantees low friction at high speeds and perfect water resistance. This freehub body is easy to convert and is available as an HG10 version for Shimano 8-11-speed / Sram 8-10-speed, Sram XD 11- and 12-speed and Shimano 12-speed Micro Spline

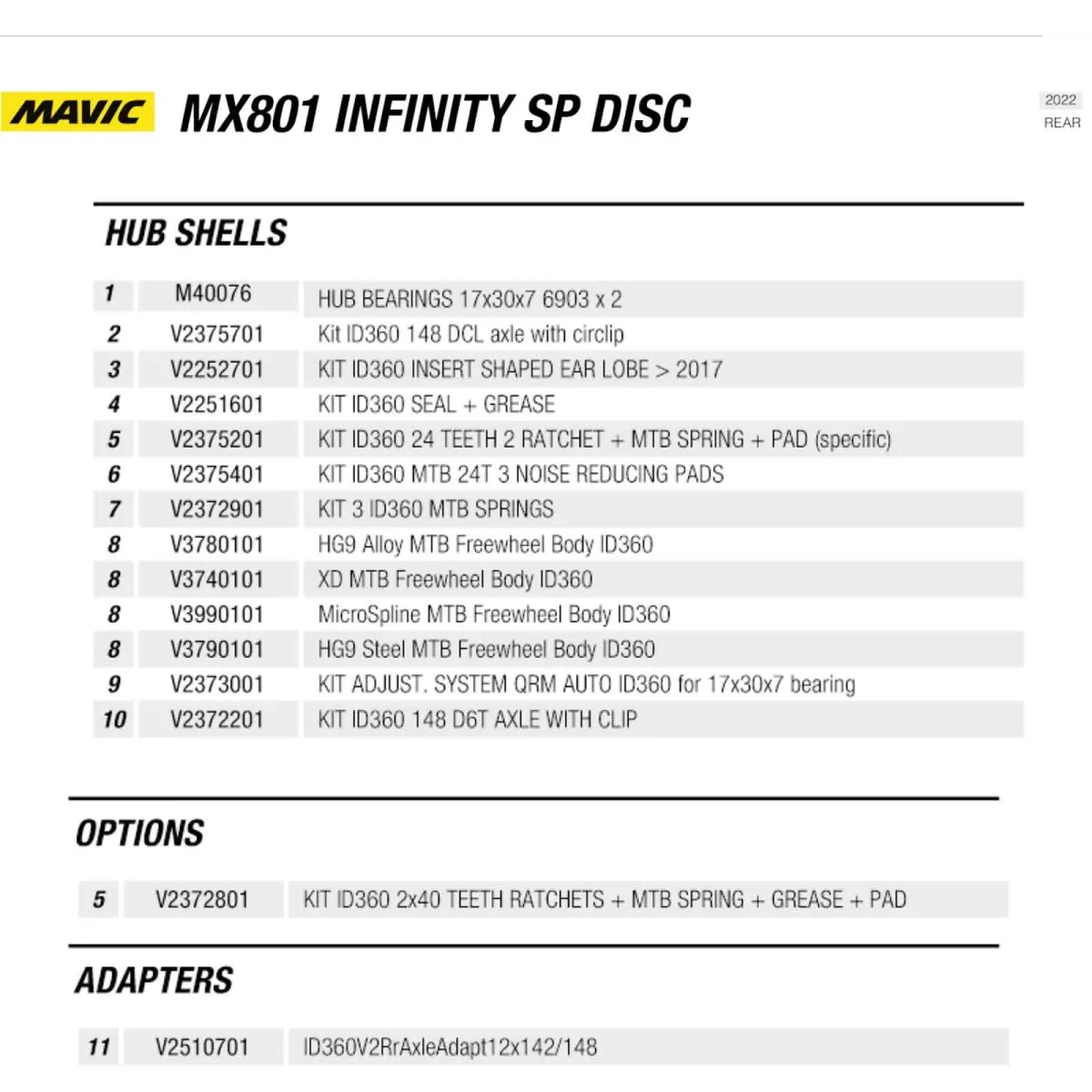

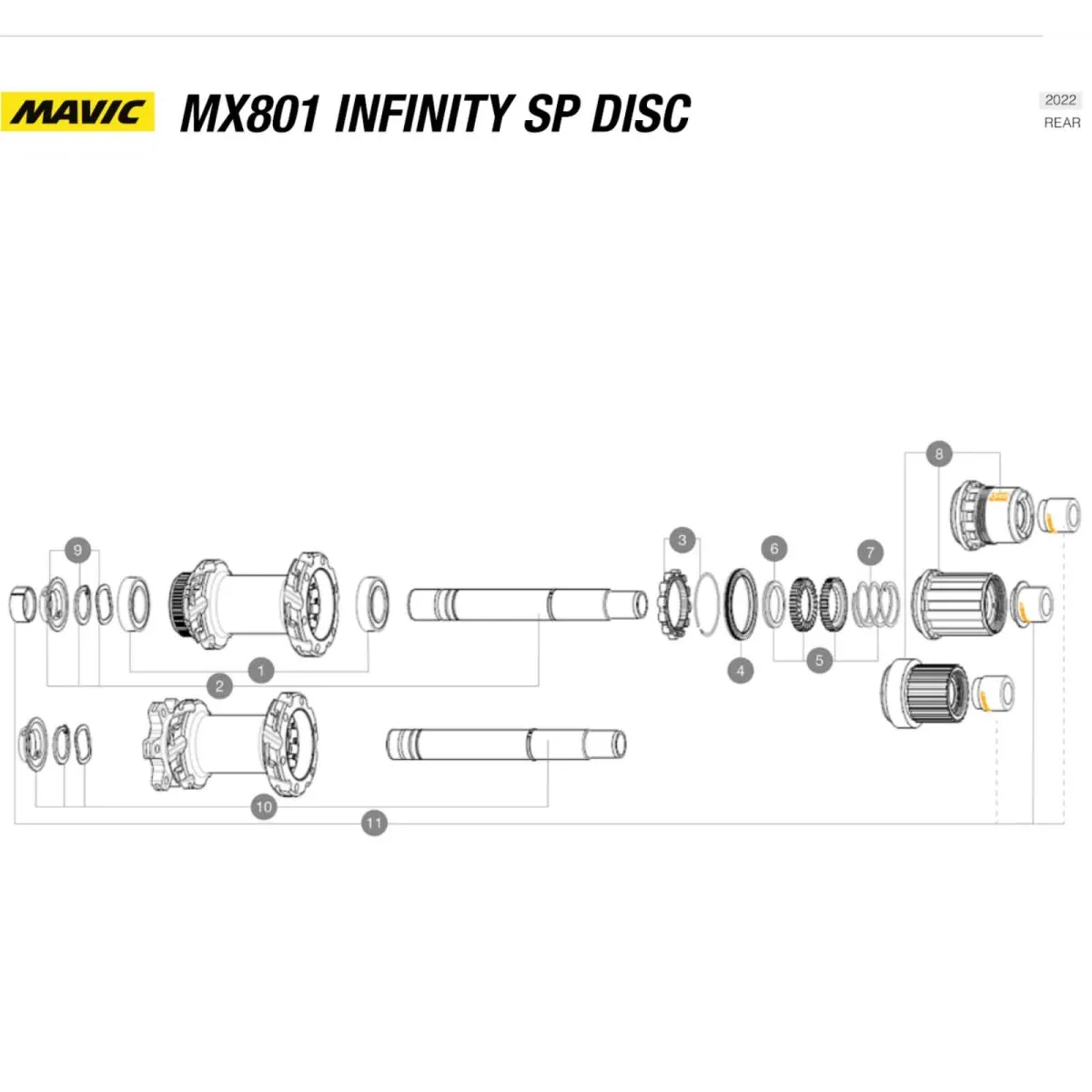

Mavic Infinity Rear Wheel Boost Hub Spare Parts:

• 1. Item No: M40076, Hub bearings Type 6903, 17x30x7 mm, HUB BEARINGS 17x30x7 6903 x 2
• 2. Item No: V2373401, Hub axle including clip 135/142 mm Disc Centerlock, Kit ID360 148 DCL axle with circlip
• 3. Item No: V2252701, Sprocket insert with retaining ring, KIT ID360 INSERT SHAPED EAR LOBE > 2017
• 4. Item No: V2251601, Seal for Instant Drive freehub body KIT ID360 SEAL + GREASE
• 5. Item No: V2251701, Ratchet disc kit 24-tooth, Instant Drive KIT ID360 24 TEETH 2 RATCHET + MTB SPRING + PAD (specific)
• 5. Item No: V2372801, Sprocket kit 40-tooth, KIT ID360 2x40 TEETH RATCHETS + MTB SPRING + GREASE + PAD
• 6. Item No.: V2500501, Noise-reducing rubber pads for freehub body, KIT ID360 MTB 24T 3 NOISE REDUCING PADS
• 7. Item No: V2372901, Springs for Instant Drive freehub body, ID360 MTB SPRINGS
• 9. Item No: V2373001, Left bearing cover with retaining clip for Auto Adjust hub
• 10. Item No.: V2372201, Hub axle including clip 135/142 mm disc 6-hole, KIT ID360 148 D6T AXLE WITH CLIP
• 8. Item No: V3780101, Instant Drive aluminium freewheel body HG10, HG9 alloy MTB freewheel body ID360
• 8. Item No: V3790101, Instant Drive aluminium freewheel body HG10, HG9 steel MTB freewheel body ID360
• 8. Item No: V3430101, Instant Drive Aluminium Freewheel Body HG11 Alloy, Road HG11 Freewheel Body ID360
• 8. Item No: V3430101, Instant Drive Aluminium Freewheel Body HG11 Light Alloy, Road HG11 Freewheel Body ID360
• 8. Item No: V2580101, Instant Drive Aluminium Freewheel Body Sram XD Alloy, XD MTB Freewheel Body ID360
• 8. Item No: V2580101, Instant Drive Aluminium Freewheel Body Sram XDR Alloy, XDR Road Freewheel Body ID360
• 8. Item No: V3990101, Instant Drive Aluminium Freewheel Body Shimano Micro Spline Alloy, MicroSpline MTB Freewheel Body ID360
• 8. Item No: A00090231, Instant Drive Aluminium Freewheel Body Shimano Micro Spline Steel, MicroSpline MTB Freewheel Body ID360
• 8. Item No: V2252101, Instant Drive Aluminium Freewheel Body Campa ED Alloy, Road ED Freewheel Body ID360
• 8. Item No: V4270101, Instant Drive Aluminium Freewheel Body Campa N3W Alloy, Road N3W Freewheel Body ID360
• 11. Item No.: V2510701, End stops for Instant Drive hub for X12x142/148 mm thru-axle mounting
