Shimano XTR FH-M988 spare part

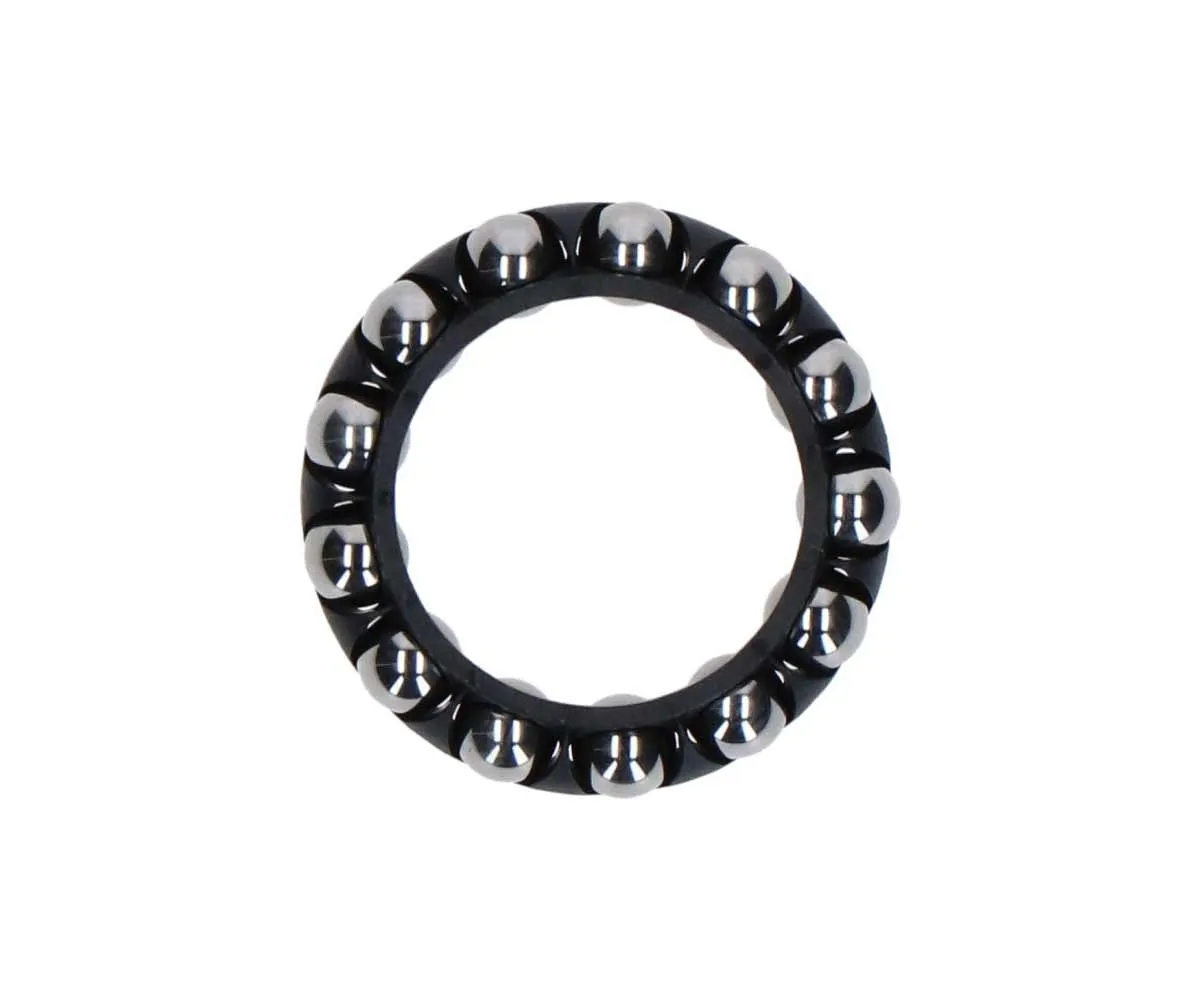

Part No. 4 in the exploded view.

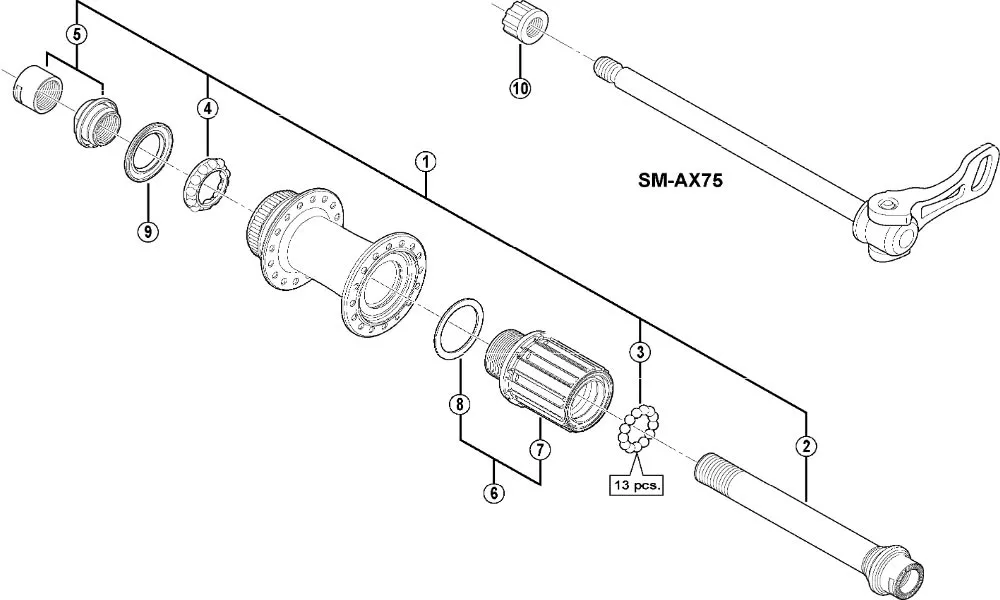

Shimano XTR FH-M988 Disc Rear Hub Spare Parts:

• No. 1: Y3DY98010 – Complete hollow axle
• No. 2: Y3DY98020 – Hollow axle
• No. 3: Y00091270 – 3/16" steel balls, 22 pieces
• No. 4: Y25R98080 – Ball bearing 3/16" left
• No. 5: Y3DY98030 - Axle + cone nut
• No. 6: Y3DY98040 - Freehub body 8-11-speed complete
• No. 7: Y3DY98050 - Freewheel body 8-11-speed
• No. 8: Y3CN07000 – Sealing ring, right-hand, sold out
• No. 9: Y26D10000 - Sealing ring, left
• No. 10: Y27Y02000 - Axle nut M12 for SM-AX76 thru-axle

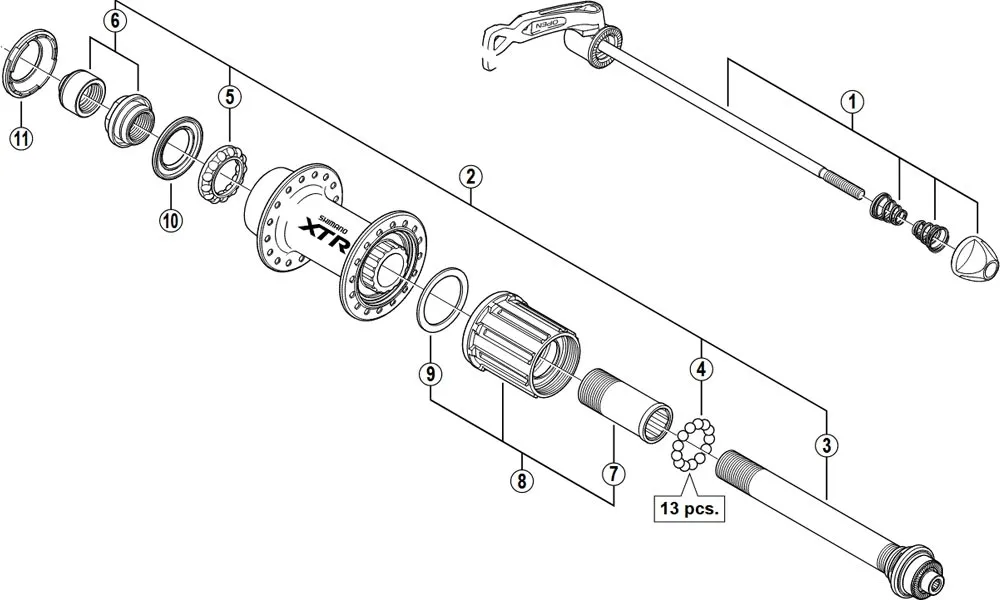

Shimano XTR FH-M970 rear hub spare parts:

• No. 1: Y3CN98010 - Quick release 168mm - sold out
• No. 1: Y3CN98020 - Quick release 173mm sold out
• No. 2: Y3CN98030 - Hollow axle, complete – sold out
• No. 3: Y3CN98040 - Hollow axle sold out
• No. 4: Y00091270 - Steel balls 3/16" 22 pieces
• No. 5: Y25R98080 - Ball bearing, left, 3/16"
• No. 6: Y3CN98050 – Axle + tapered nut – sold out
• No. 7: Y3CN17000 - Hollow axle for freewheel body - sold out
• No. 8: Y3CN98080 - Freehub body 8-11-speed, complete – sold out
• No. 9: Y3CN07000 – Sealing ring, right, sold out
• No. 10: Y26D10000 - Sealing ring, left
• No. 11: Y26D12000 - Left dust cap

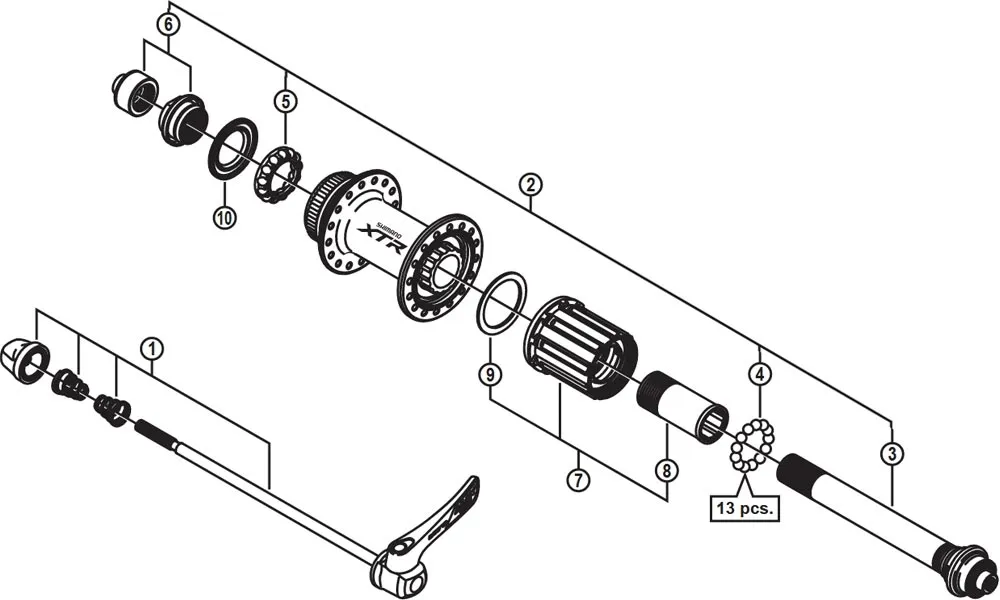

Shimano XTR FH-M985 Disc rear hub spare parts:

• No. 1: Y4G498010 - Quick release 168mm - sold out
• No. 1: Y4G498020 - Quick release 173mm - sold out
• No. 2: Y3DX98010 - Thru-axle complete sold out
• No. 3: Y3CN98040 - Thru-axle sold out
• No. 4: Y00091270 - Steel balls 3/16" 22 pieces
• No. 5: Y25R98080 - Ball bearing, left-hand, 3/16"
• No. 6: Y3DX98020 – Axle + tapered nut
• No. 7: Y3CN98080 – Freehub body 8-11-speed completely sold out
• No. 8: Y3CN17000 - Hollow axle for freehub body - sold out
• No. 9: Y3CN07000 – Sealing ring, right-hand side – sold out
• No. 10: Y26D10000 - Sealing ring, left

Shimano XTR HB-M970 front hub spare parts:

• No. 1: Y26D98010 - Quick-release skewer 133mm - sold out
• No. 2: Y26D98030 - Hollow axle complete - sold out
• No. 3: Y26D98040 - Axle + cone nut
• No. 4: Y25R98080 - Ball bearing
• No. 5: Y26D06000 - Hollow axle
• No. 6: Y26D12000 - Dust cap, right or left
• No. 7: Y26D10000 – Sealing ring, right or left

Shimano XTR HB-M985 Disc front hub spare parts:

• No. 1: Y27W98010 - Quick-release skewer 133mm (sold out)
• No. 2: Y27W98020 - Hollow axle, complete
• No. 3: Y27W98030 - Axle + cone nut
• No. 4: Y25R98080 - Ball bearing 3/16" right or left
• No. 5: Y26E98020 - Hollow axle
• No. 6: Y26D12000 - Dust cap, right
• No. 7: Y26D10000 – Sealing ring, left or right
