Wolf Tooth thru-axle for Fox suspension forks, Boost 110 mm mounting width, length 155 mm, M14 thread, thread pitch 1.5 mm, material: aluminium

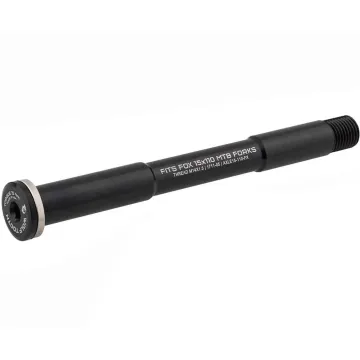

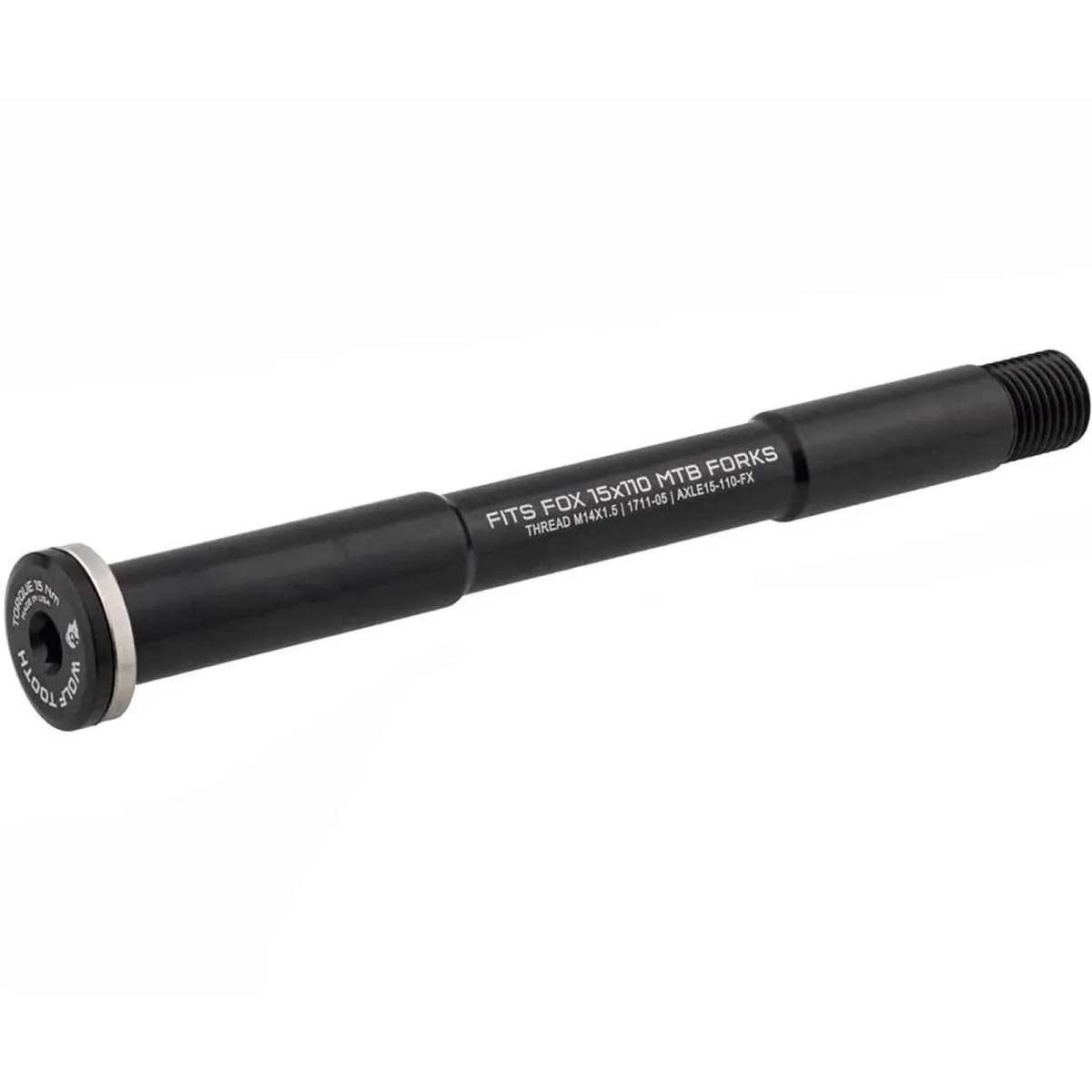

Wolf Tooth Thru-Axle - FOX
The Wolf Tooth thru-axle for FOX Boost suspension forks can be combined with the Wolf Tooth PlugIn Multitool, which includes the most commonly required hex and Torx bits.

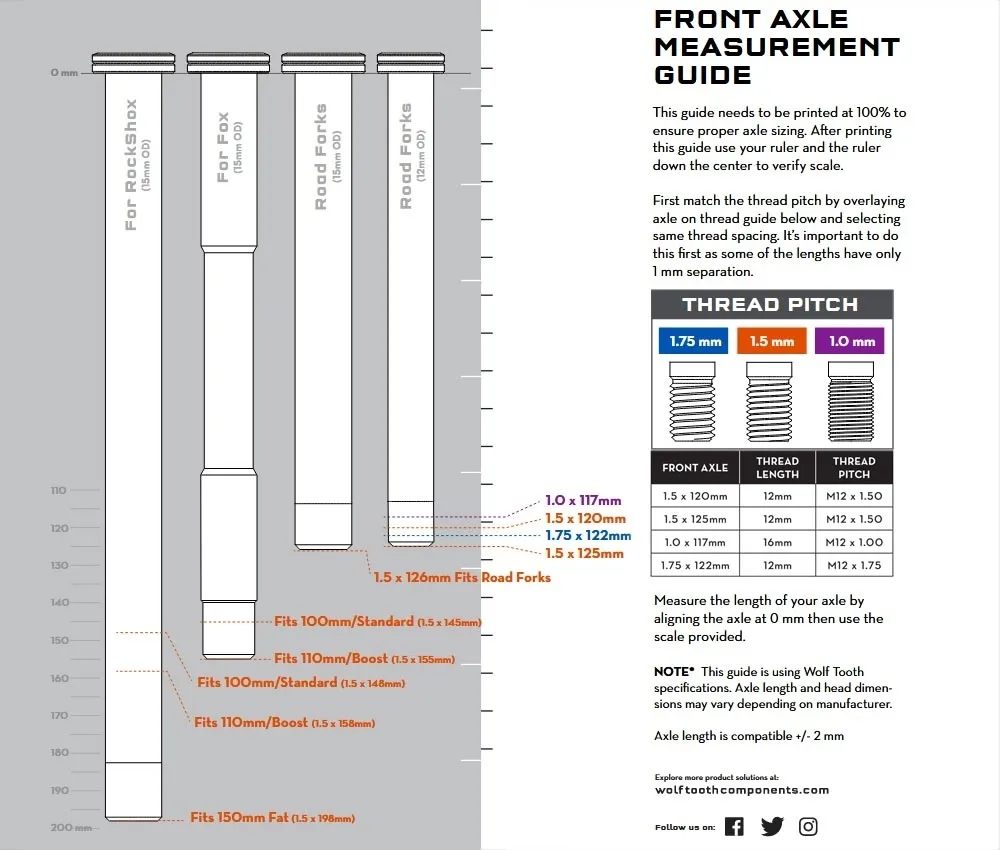

Thru-axles are available in various designs; please note the exact dimensions such as length, diameter, thread length and pitch.
Wolf Tooth Thru-Axle Technology:
- Front wheel thru-axle for Fox Boost 15x110 suspension forks
- Not compatible with Fox F36 and F38 from 2021 onwards
- Material: Axle 7075-T6 anodised hardened aluminium
- Material: Washer – stainless steel

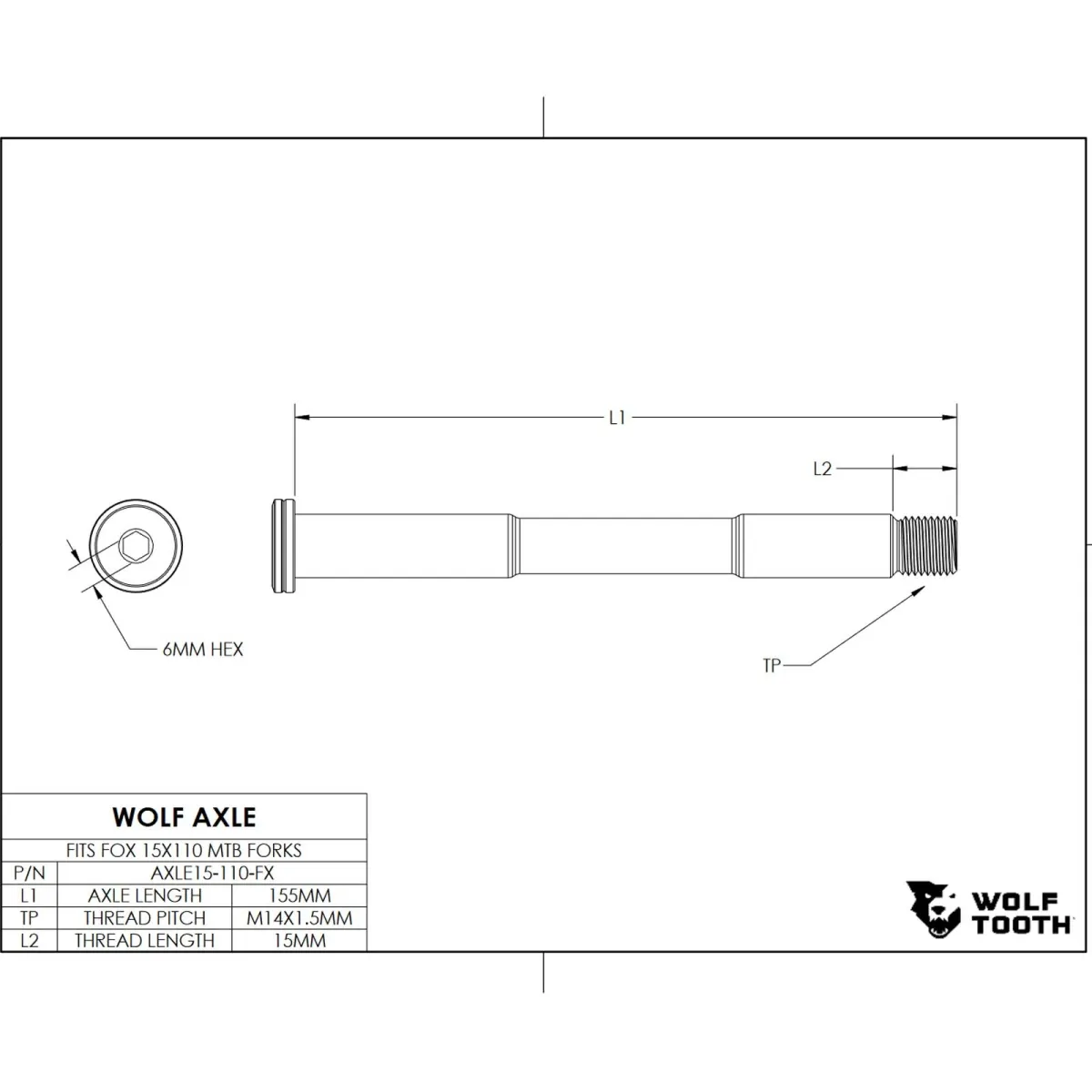

- Mounting width: 110 mm
- Axle length: 155 mm with thread
- Axle diameter: 15 mm
- Thread: M15
- Thread pitch: 1.5 mm
- Tool shank: 5/6 mm hex socket
- Maximum tightening torque: 12–15 Newton metres
- Compatible with the Woltooth Axle Handle Multitool (sold separately)
The thru-axle features a captive washer beneath the clamping head, which reduces friction on the fork and transfers a high torque. This protects the fork and generates clamping force for an even stiffer interface. When fitting, always apply a small amount of grease to the washer and the thread.
