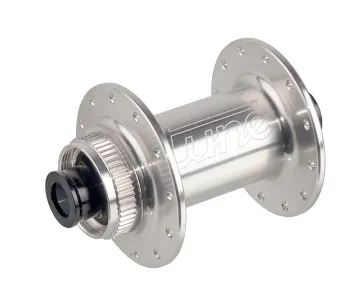

Tune KillHill Front Hub

The tried-and-tested front wheel hub for disc brakes from Tune. A very sturdy hub with a unique design that ensures, thanks to adjustable play, that bearing seizure is no longer possible, even under the toughest clamping conditions. The King consists of a one-piece, CNC-machined aluminium body and 2 deep-groove ball bearings. Tune uses special bearings that are not available in shops!

Tune hub bearings:

Tune uses special bearings that are not available in shops! The bearings feature a special grease and a higher grease fill level. They are also double-sealed and maintenance-free. The Endurance Special hub bearings for off-road use feature a solid lubricant injected around the balls to prevent the ingress of moisture and rust. Ideal for MTB, CX, gravel and XC use. The ceramic ball bearings are particularly lightweight and offer minimal rolling resistance. These are only available on road bike hubs.

Tune Kill Hill Hub Technology

• Application: Cross, Gravel, All Mountain to Enduro
• Axle: Aluminium
• Seal: double-sealed
• Flange spacing (left): 22.4 mm
• Flange spacing (right): 32 mm
• Left flange diameter: 55.5 mm
• Flange diameter, right: 55.5 mm
• Spoke hole diameter: 2.4 mm
• Brake disc mount: Disc Centerlock
• Mounting dimensions: 15x100 mm for 15x100 mm thru-axle assembly
• Weight: from 115 grams

Your custom wheel with the Tune KillHill hub

Ask us for a personalised quote. We will build your dream wheelset, perfectly trued by hand. Choose your preferred rim from the complete range of DT Swiss, e*thirteen, Mavic, Stans NoTubes and WTB rims. We use exclusively DT Swiss spokes. Over the last few decades – ever since we started building wheels – these spokes have proven themselves to be by far the most durable.

Herstellerinformation: Tune, Im Mittelfeld 18, 79426 Buggingen, Germany, https://www.tune.de
