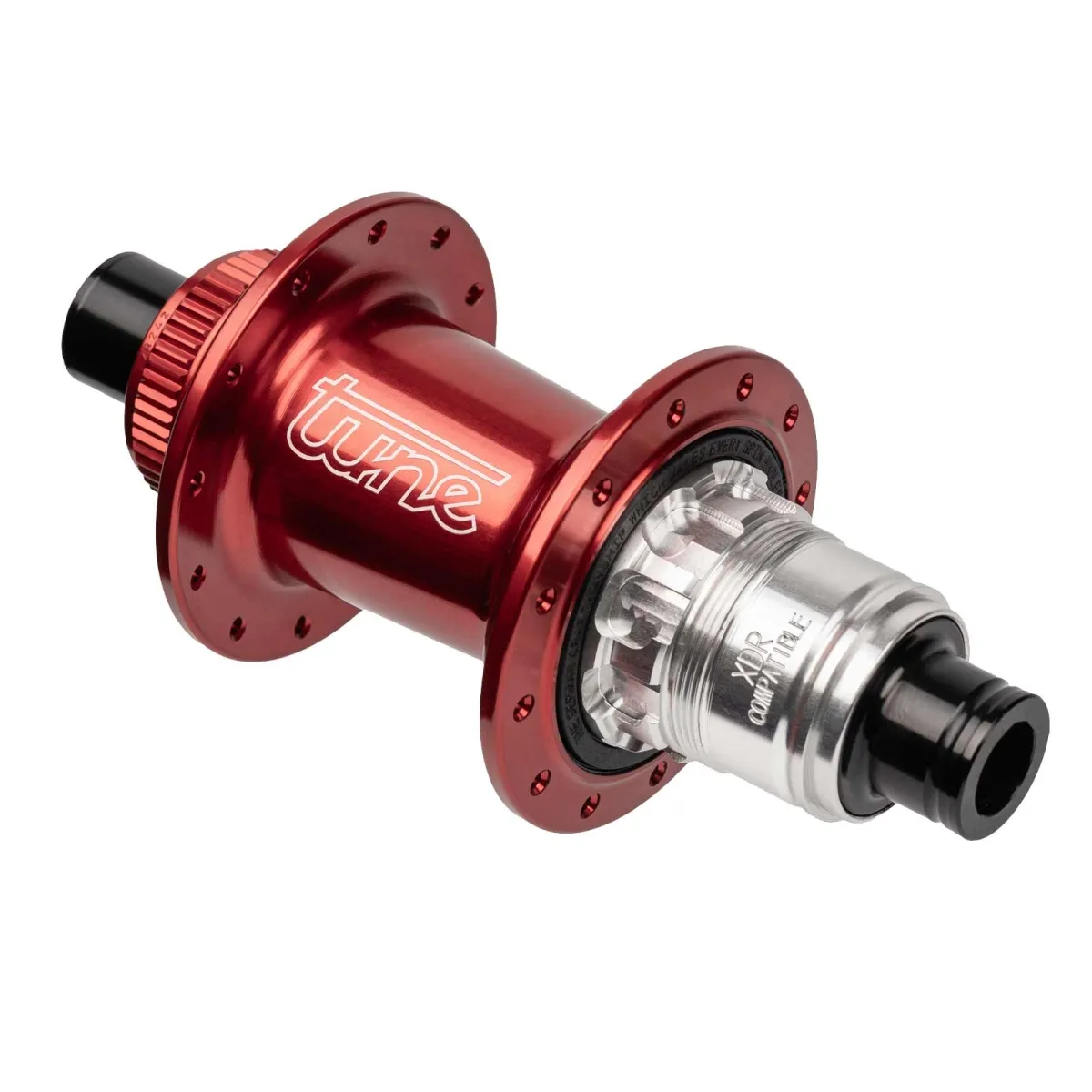

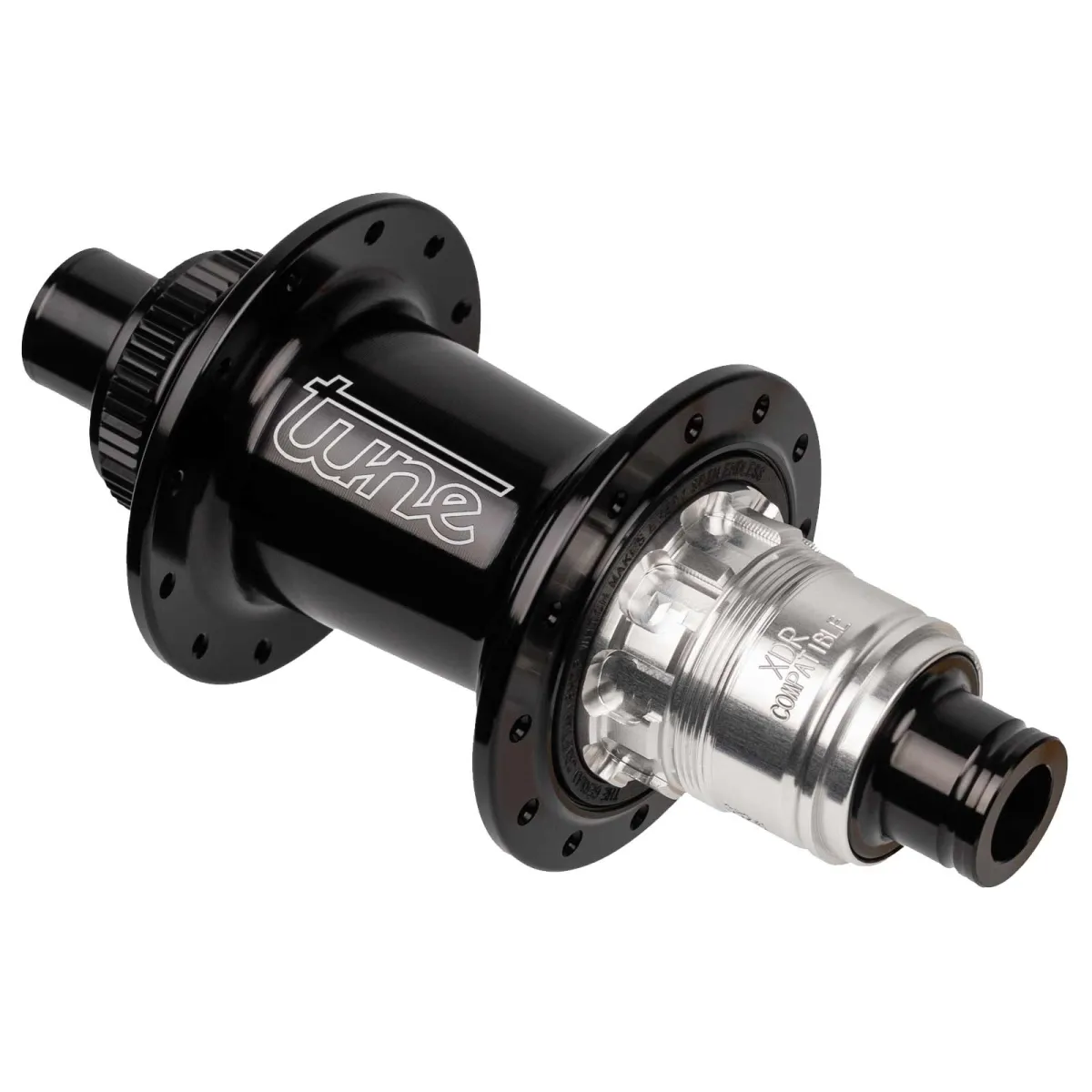

Road, Gravel Bike Hub Tune Micro

The new disc rear hub for road and gravel bikes from Tune: the Micro hubs with 12x142mm thru-axle mount. Tune has completely redesigned the hubs, featuring new freehub bodies, axles, hub flanges and ball bearings. What remains is the minimal weight and reliability.

Tune Micro rear bike hub specifications and dimensions:

• Applications: Road, Gravel, Cyclocross, Touring
• Axle: Aluminium
• Hub body: CNC-machined aluminium
• Colour: choice of silver, black or red
• Seal: double-sealed
• For crossed lacing only
• Bearings: EnduroBearings Ceramic Lifetime Warranty XD15
• Flange spacing (left): 32.5 mm
• Flange spacing (right): 19 mm
• Left flange diameter: 55.5 mm
• Right flange diameter: 55.5 mm
• Spoke hole diameter: 2.4 mm
• Disc standard: Disc Centerlock
• Mounting dimensions: 12x142 mm for 12x142 mm thru-axle installation, not convertible
• POEtry 69 aluminium freehub body:
  • Sram XDR freehub compatible with Sram AXS 12-speed road bike and XD 11 + 12-speed MTB cassettes
• Max rider weight: 100 kg
• Max. system weight: 115 kg
• Weight: approx. 217 grams

Herstellerinformation: Tune, Im Mittelfeld 18, 79426 Buggingen, Germany, https://www.tune.de
