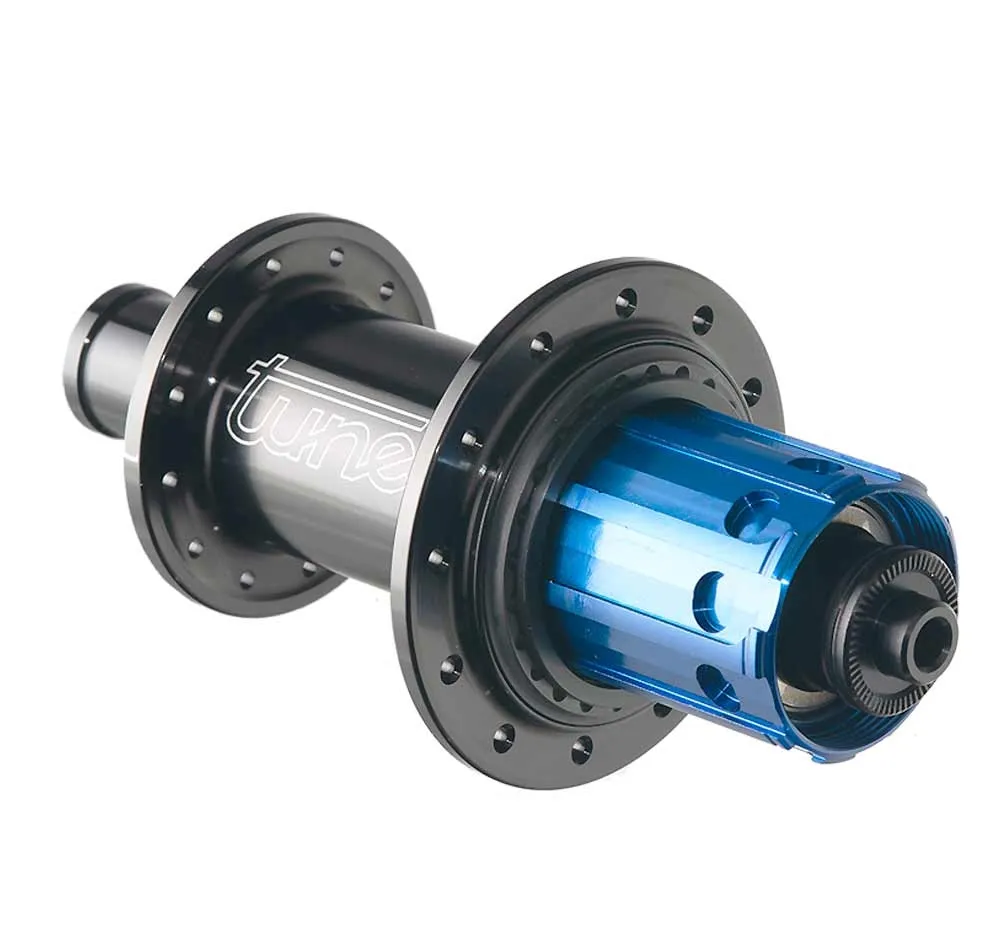

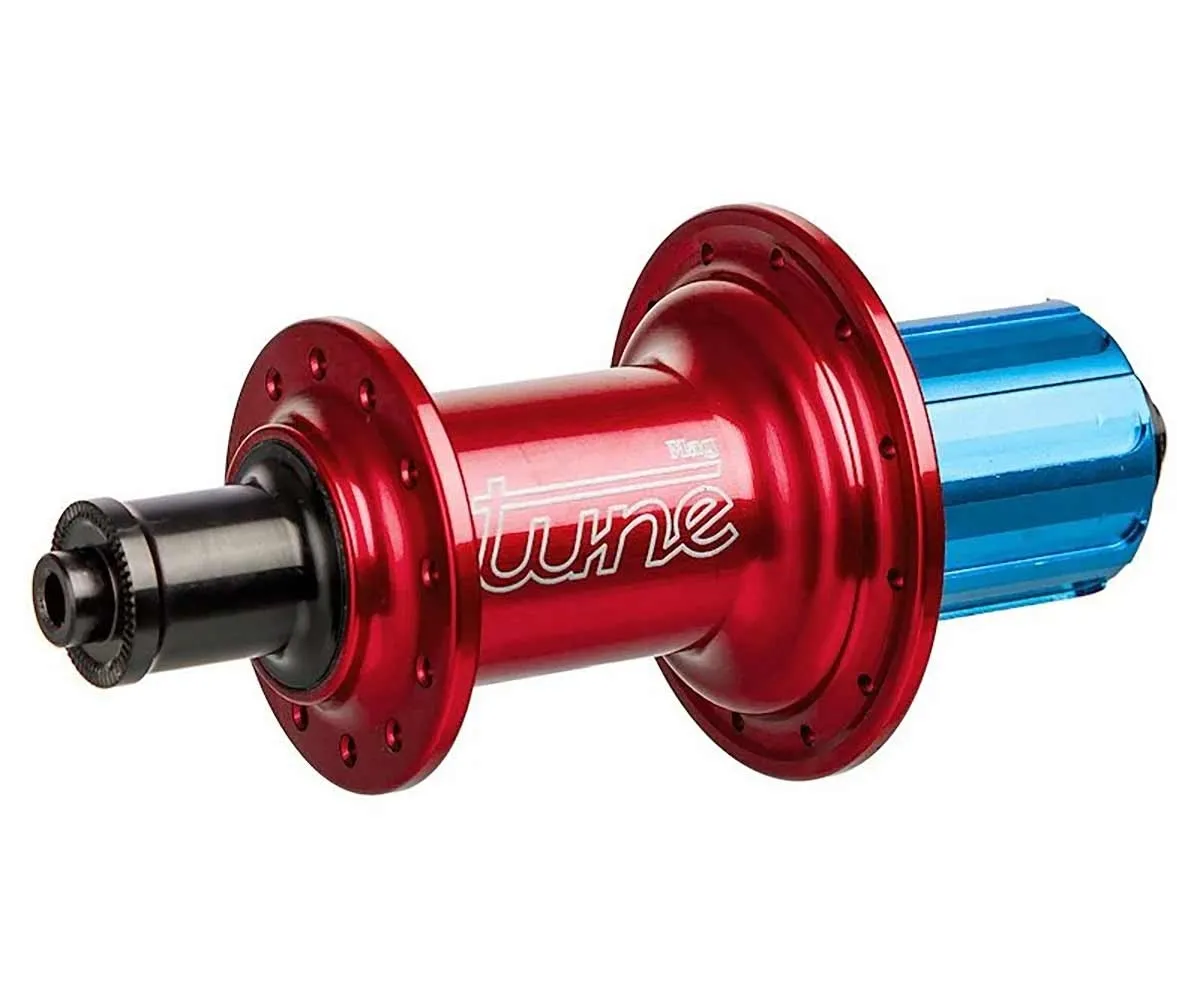

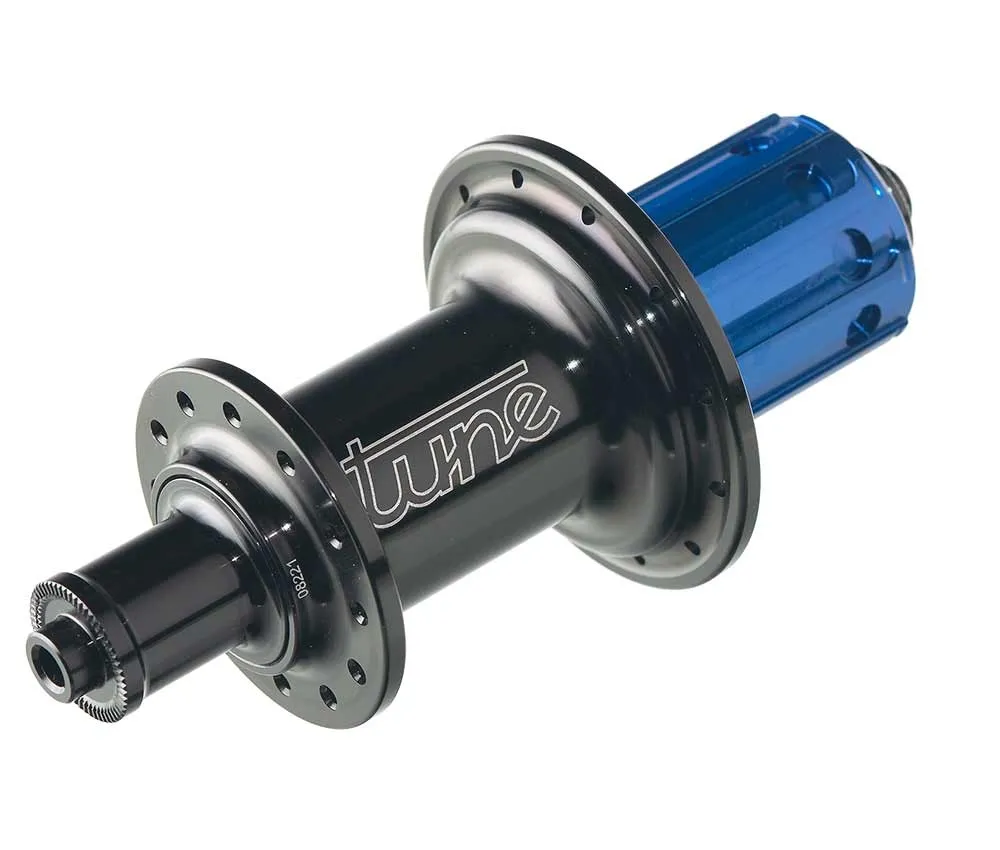

Tune Mag 170 Rear Hub

The revised classic MAG 180 has been transformed into the Tune MAG 170 with the new 17mm axle! The successor impresses with its durability, increased stiffness and further reduced weight. The Mag 170 with a 17mm axle now finally opens up the hardcore segment among rim brake hubs. Unique design: thanks to adjustable play, there is no bearing seizure even under the toughest clamping conditions. The larger flange, high/low flanges, on the freehub side allows for a more angled spoke pattern and thus a more symmetrical wheel. The Tune MAG 170 features 4 bearings and 8 seals. Despite its sensationally low weight, there are no restrictions on use! Tune uses special bearings that are not commercially available.

Tune Mag 170 Hub Specifications:

• Axle: 17 mm aluminium
• Pawl teeth: Titanium TiAI6V4
• Mounting width: 130 mm
• Seal: double-sealed
• Clamping method: Quick-release axle 10x130 mounting width
• Bolt circle: 55.5 mm
• Bearings: Standard 4 deep groove ball bearings 3 x 61803, 1 x 61903
• Freewheel body options:
  • HG11 freehub body compatible with Shimano and Sram road cassettes (8-speed, 9-speed, 10-speed and 11-speed)
  • Campa ED freehub body compatible with Campagnolo 9-, 10-, 11- and 12-speed cassettes
• Weight: approx. 178 grams

Your custom wheel with the Tune Mag 170 hub

Ask us for a personalised quote. We will build your dream wheelset, perfectly trued by hand. Choose your preferred rim from the complete range of DT Swiss, e*thirteen, Mavic, Stans NoTubes and WTB rims. We use exclusively DT Swiss spokes. Over the last few decades – ever since we started building wheels – these spokes have proven themselves to be by far the most durable.

Herstellerinformation: Tune, Im Mittelfeld 18, 79426 Buggingen, Germany, https://www.tune.de
