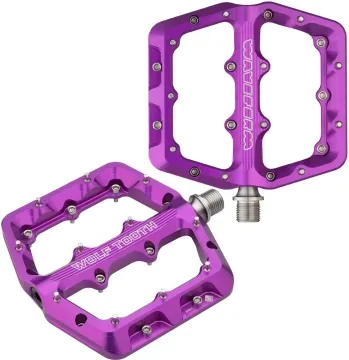

Wolf Tooth Platform Pedals

The new Waveform platform pedal from Wolf Tooth. CNC-machined in Minnesota, USA. Two different sizes ensure an optimal connection between shoe and pedal. The Waveform flat pedal offers low weight thanks to its minimal height of 14–12.5–14 mm; the concave pedal shape literally grips the sole of the shoe.

Three high-quality, fully sealed industrial bearings and an igus bearing with a radial seal ensure smooth running and very high durability. The open design saves weight and aids self-cleaning in muddy conditions. Optimal grip is guaranteed by 11 interchangeable pins per pedal side, further enhanced by the concave shape.

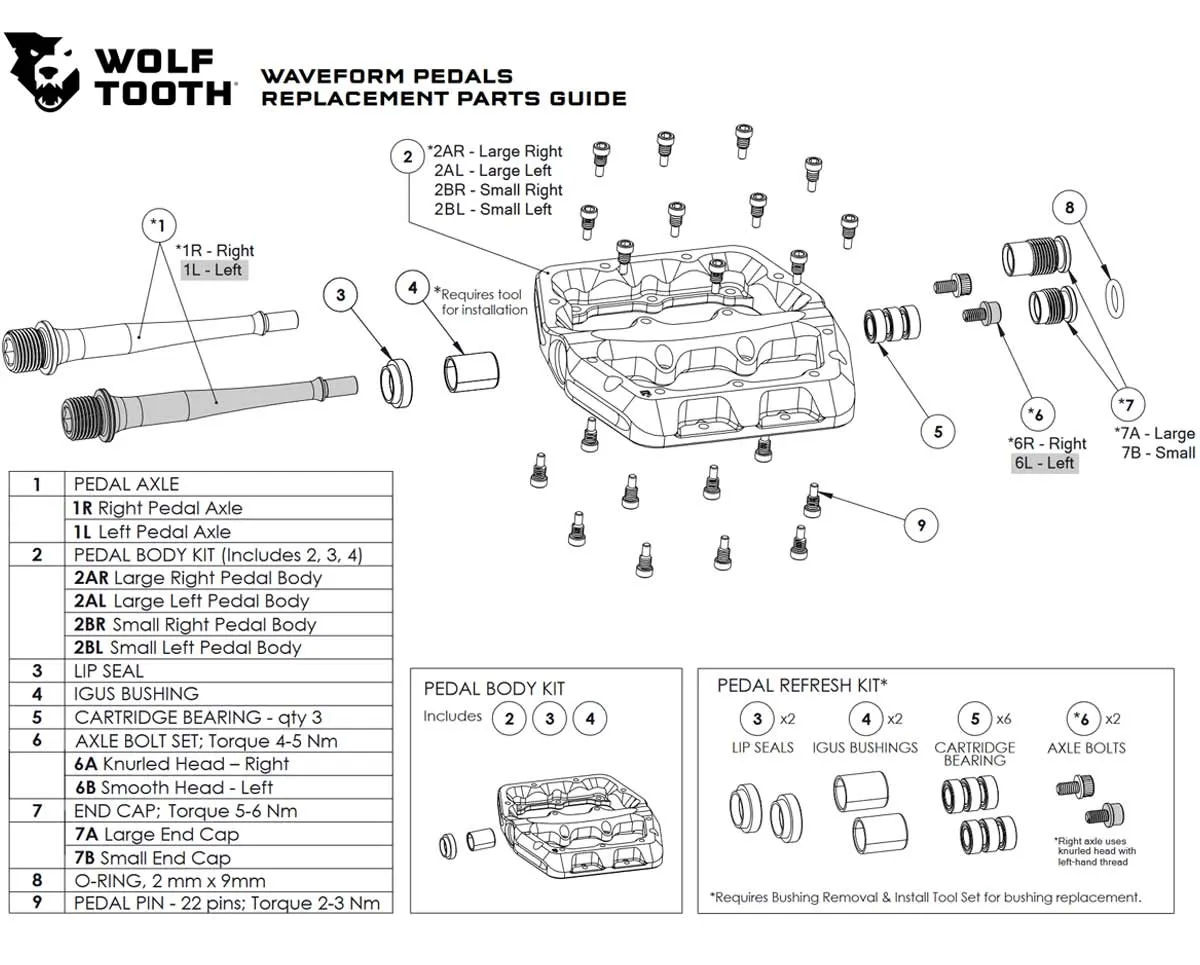

If necessary, all pedal components are available as spare parts.

Wolf Tooth Waveform Flat Pedal Technology:

• forged chromoly steel axle,
• 3 sealed industrial bearings on the outside, igus bearing
• pedal body made from 6061 aluminium
• replaceable pins
• Standard pin length 3.2 mm
• Contact surface size: Large 112x106 mm
• Height: 14–12.5–14 mm
• Weight (Large size): 384 g (manufacturer’s specification)

Herstellerinformation: Wolftooth, 3100 West Park Drive, 55306 Burnsville, Minnesota, United States, https://wolftoothcomponents.com | Contact EU Cosmic Sports GmbH Leyher Strasse 47, 90763 Fürth, Germany, https://cosmicsports.de
