Spare part: Shimano Dura Ace Di2 ST-R9150

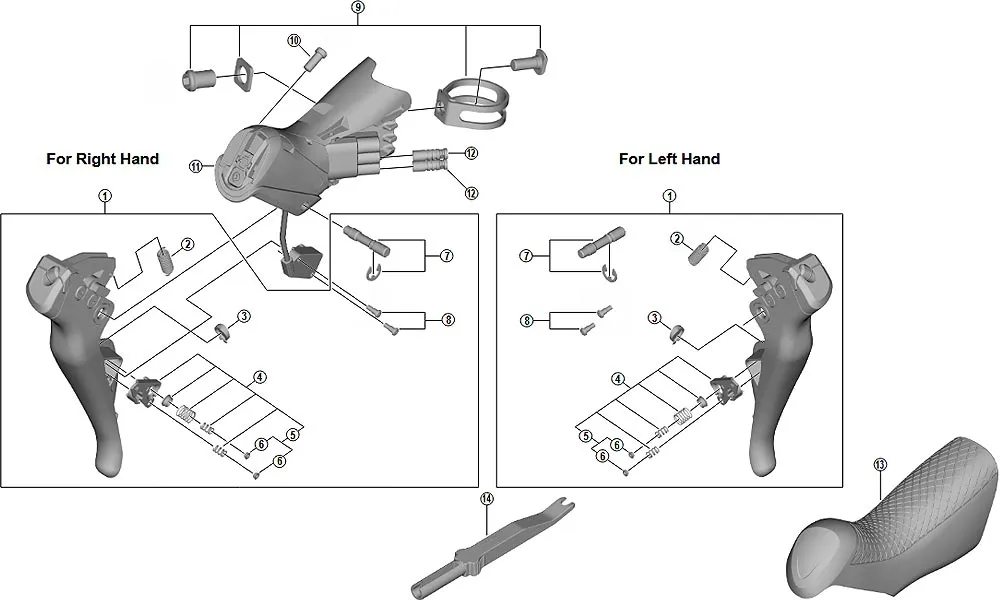

Included in spare parts set no. 13 and shown in the illustration: 1x pair of rubber grips for the right and left sides.

Shimano Dura Ace Di2 ST-R9150 2x11-speed shift/brake lever spare parts:

• No. 1: Y0C898020 – Right-hand shift lever unit
• No. 1: Y0C798010 – Left shift lever unit
• No. 2: Y0C800043 – Return spring
• No. 3: Y0C800009 – Axle cap
• No. 4: Y0C898090 - Right-hand button unit
• No. 4: Y0C798030 - Left button unit
• No. 5: Y0C898040 - Gear lever buttons
• No. 6: Y0C800024 – Gear lever button
• No. 7: Y0C898050 – Complete lever shaft
• No. 8: Y0C898060 - Fixing screws
• No. 9: Y0C898070 - Clamp assembly
• No. 10: Y0C800012 – Handle adjustment screw
• No. 11: Y0C898080 – Complete lever bracket, right
• No. 11: Y0C798020 – Complete lever bracket, left
• No. 12: Y6VE15000 – E-Port dummy plug

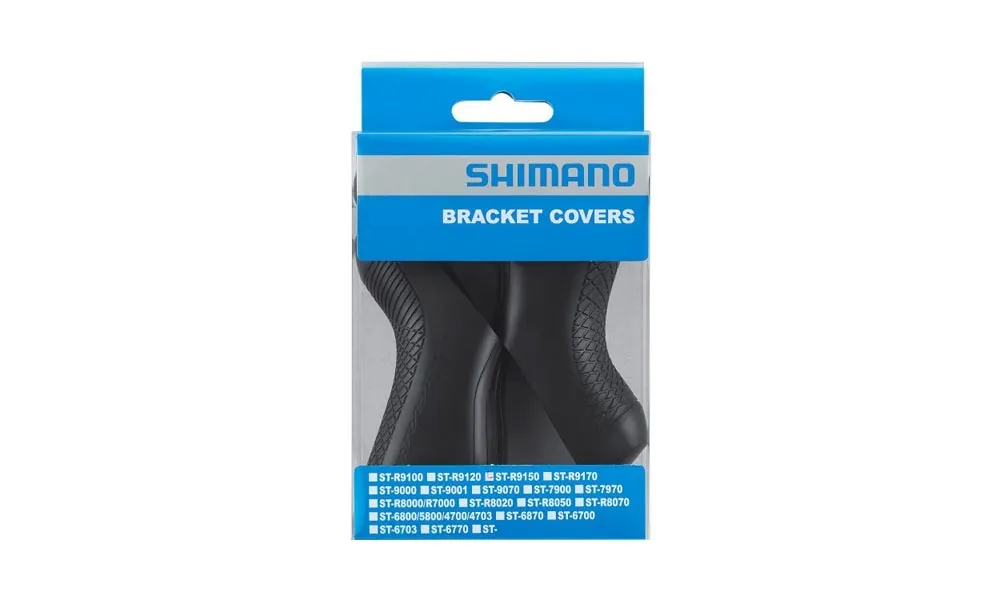

• No. 13: Y0C898010 - Pair of rubber grips
• No. 14: Y6VE16000 - TL-EW02 connector tool
