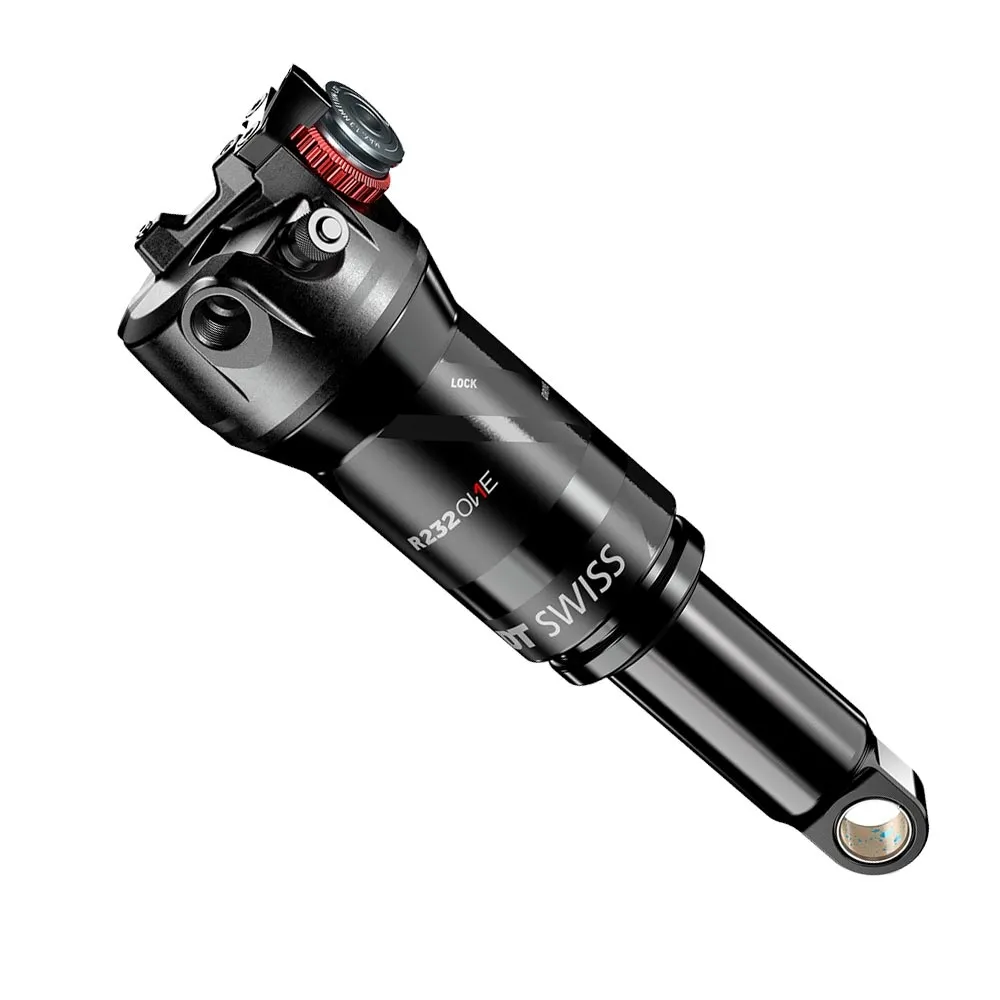

DT Swiss R 232 One DU Trunnion shock absorber

The DT Swiss DU shock absorbers feature 12.7 mm shock mounts for greater compatibility with frames that have 8 or 10 mm shock bolts.

The cross-country and marathon shock absorber from DT Swiss, the new R 232 One shock absorber with a linear spring rate and sensitive response. With the Incontrol settings, the shock absorber can be adjusted to different terrain in a single step. The Line Air suspension with adjustable rebound damping allows for easy adjustment to your suspension setup and riding style. With the R 232 One shock, DT Swiss offers the perfect complement to the F 232 One suspension forks. Swiss precision engineering guarantees perfect function and outstanding durability

DT Swiss Incontrol 3-Position Open Drive Lock:

The newly developed R232 shock series allows the rider to choose between three riding modes on any bike: full travel for descents, reduced travel for rough climbs, or lockout for tarmac – climbs and sprints. With the Incontrol adjustment, you can adapt your suspension to any riding situation. The three stages of seamless damping adjustment allow the rider to switch between Open mode for uneven terrain, Ride mode for optimal riding enjoyment on smoother roads, or Lockout mode for tarmac sections and sprints. This is a simple mechanism that allows you to adapt your suspension to any situation. It features a particularly seamless Open Mode for rougher terrain, a sporty Ride Mode for perfect riding efficiency on climbs and flat roads, and a Lockout Mode for tarmac roads and sprints.

DT Swiss Line Air:

Responsiveness has been significantly improved by the new Line-Air air chamber system with large negative volume and by modifications to the compression piston. The rebound unit has also been optimised to ideally absorb rapid, successive impacts. The Line Air spring characteristic is optimised for cross-country, race and marathon use, offering fine responsiveness, good support in the mid-travel range and sufficient end-stroke progression.

Trunnion shock mount:

On frames with this shock mount, the shock head is bolted directly to the frame; only the shaft has the classic eye for mounting the shock bushing. This mount allows for a more compact design. The frame must be designed for this. These shocks are not compatible with standard frames.

DT Swiss DU bushing mount:

The mount for the shock bushings is 12.7 mm and allows mounting on frames with 8 mm or 10 mm threaded mounts. Shocks with DU plain bearings are compatible with both 8 mm and 10 mm bolts. Only compatible with the new HU shock bushings

DT Swiss R 232 One DU Trunnion Remote Shock Technology:

• Applications: Cross Country, Race, Marathon
• Oil-air damping
• Adjustable low-speed rebound
• Incontroll Open Drive Lock, 3-stage with lockout
• Shock mounts with 12.7 mm diameter
• For handlebar remote control; remote lever not included
• Compatible with DT Swiss L2 or L3 handlebar remotes
• Weight from 276 grams (manufacturer’s specification)

Contents:

DT Swiss R 232 One DU shock absorber without shock absorber bushings and without remote lever:

PLEASE NOTE: A shock absorber always requires a set of mounting bushings, which must be ordered separately!
