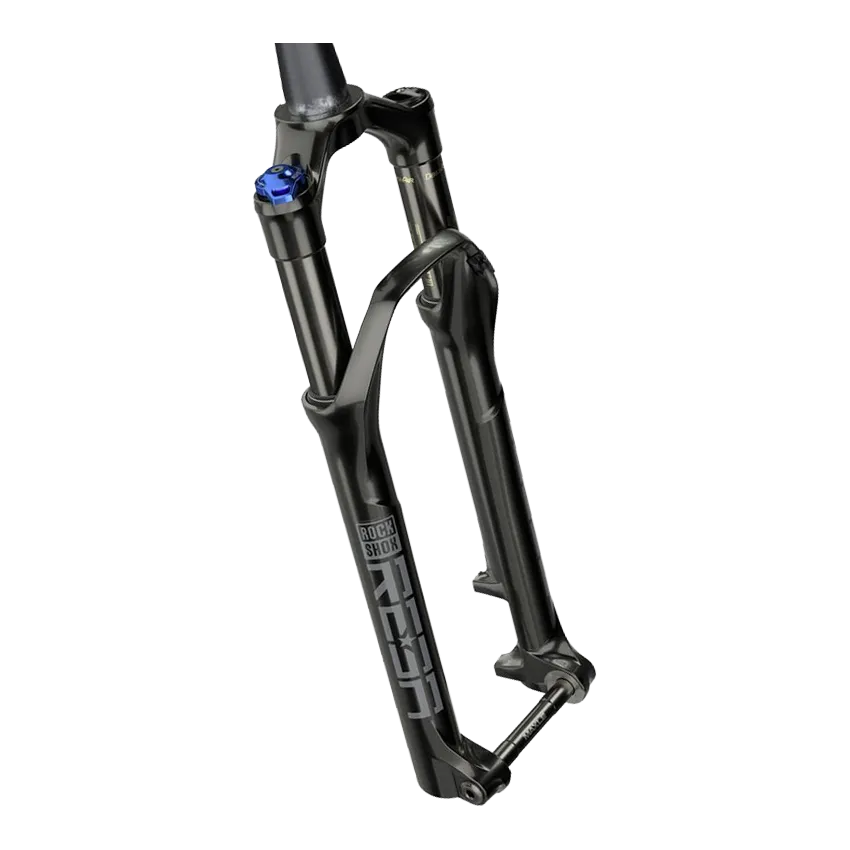

RockShox Reba RL Solo Air suspension fork
At RockShox, the name Reba has always been synonymous with quality and performance. This is now truer than ever, as the Reba once again takes a pioneering role with its chassis options, from XC to trail riding. Featuring technologies developed for the SID, Reba and Revelation, the Reba is the first choice for anyone seeking the unique RockShox performance.
RockShox Reba Motion Control:
the damping unit for optimum suspension performance and minimal weight. Designed for cross-country to trail use, the Reba Motion Control unit features a trigger torque that reliably suppresses excessive bobbing when standing or climbing.
RockShox Reba Solo Air suspension system:
The Solo Air system, featuring external rebound adjustment, external low-speed compression adjustment and lockout, can be adjusted quickly and easily. Air pressure is automatically distributed between the positive and negative chambers depending on the riding situation. The RockShox Reba RL forks feature a self-adjusting negative air chamber. This allows the full travel to be utilised, despite the air suspension.
RockShox Bottomless Tokens:
By inserting the optionally available volume spacers, the air volume of the fork can be reduced, thereby influencing the suspension characteristics. A smoother response with higher end-stroke progression is achieved by using the volume spacers.
RockShox Air Shaft:
The Airshaft is mounted in the left fork leg. This can be changed relatively easily, thereby altering the travel. The Airshafts are available as spare parts.
RockShox Maxle Stealth thru-axle:
The 15 mm thru-axle system offers greater stiffness with low weight, but is only compatible with wheelsets designed for this purpose. The new Stealth thru-axles can be fitted quickly and easily using a 6 mm Allen key.
RockShox Reba RL Solo Air suspension fork technology:
- Intended use: Cross Country, Trail
- For 27.5-inch Boost wheels
- Tapered steerer tube tapering from 1.5 to 1 1/8 inches
- Suspension: Solo Air
- Maximum tyre width 81 mm
- Maximum tyre diameter 714 mm
- Travel: 100 mm
- Clearance: 487 mm
- Offset: 42 mm
- Suspension: Solo Air
- Suspension adjustability: Positive and negative air pressure via Schrader valve, spring rate curve volume spacers / bottomless tokens max. 3 pieces
- Damping: Motion Control with preset platform
- Damping adjustability: External rebound adjustment, external low-speed compression adjustment up to lockout
- Crown: Hollow-forged aluminium AL66 TV
- Legs: Aluminium 7000, low-friction anodised, 32 mm
- Stanchions: Magnesium, one-piece,
- disc brakes only, PM6-74 mount
- Boost dropouts 15x110 mm including Boost Maxel Lite thru-axle
- up to 210 mm disc size
- Weight: approx. 1620 g (manufacturer’s specification)
Contents: RockShox Reba RL:
RockShox Reba RL suspension fork, 27.5-inch, Boost Maxle Stealth thru-axle, claw, in original packaging with instruction manual and, of course, full manufacturer’s warranty.
27.5-inch Boost:
The 27.5-inch suspension forks have a 42 mm offset and a 15x110 mm hub/wheel mounting dimension.
For tyres wider than 2.6 inches, please note the minimum clearance between the tyre and the fork crown, which is 6–8 mm. Tyres from different manufacturers and fitted to rims of varying widths will also have different profile heights. The maximum tyre width must not exceed 81 mm, and the maximum diameter of the wheel with tyre must not exceed 71 cm.
