Campa Zonda GT C23 Disc wheelset

The wheelsets for the Ekar GT and Ekar Gravel components. 23 mm rim width, true tubeless rims, classic hub bearings and G3 lacing result in robust, stiff and lightweight wheelsets. Maximum versatility on all types of roads: ideal for wider off-road tyres and narrower road bike setups.

Included:

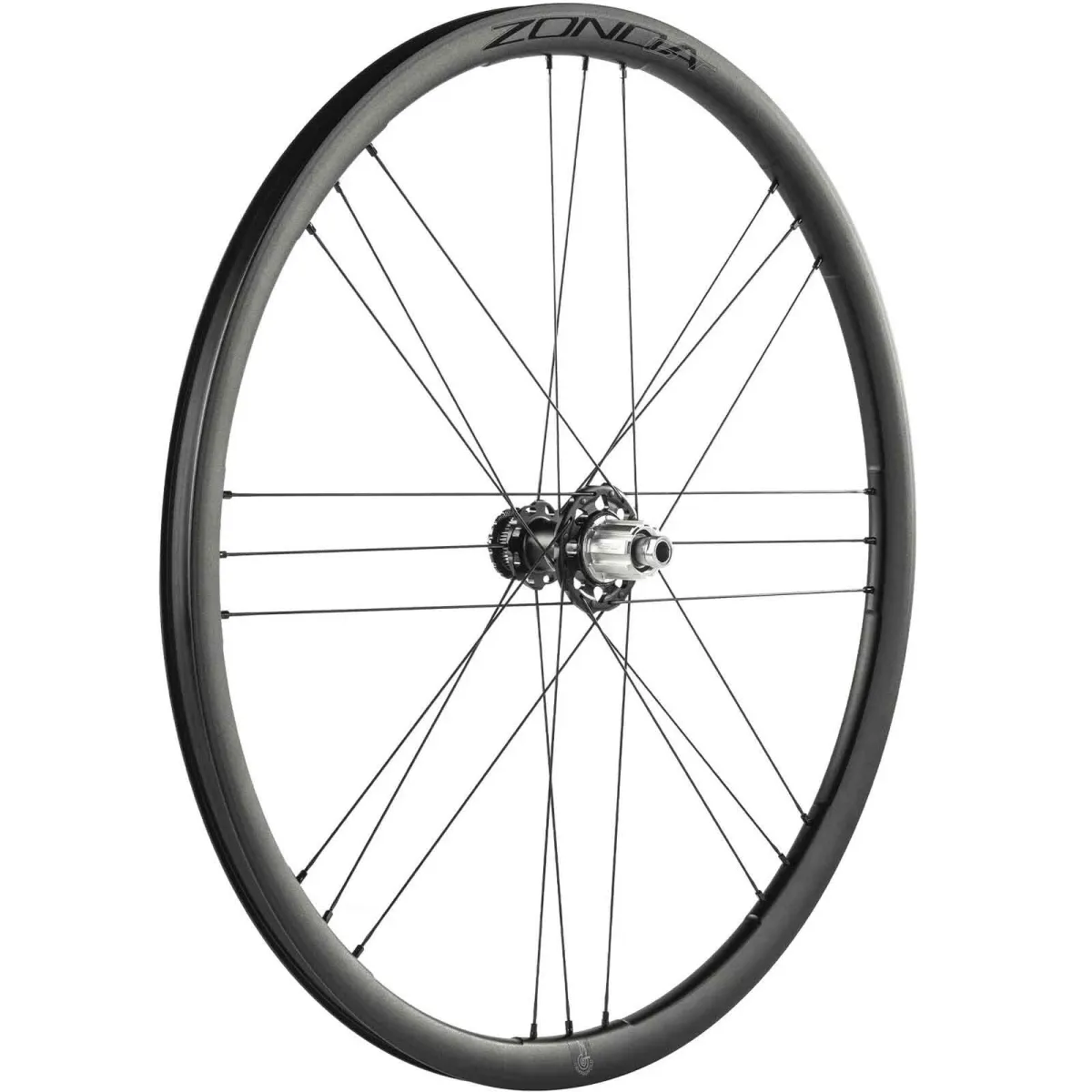

• Campagnolo Zonda GT C23 rear wheel for 12x142mm thru-axle mounting

Campagnolo Zonda GT C23 Disc Wheel Technical Specifications:

• 28-inch ETRTO 622x23
• Rim type: 2 Way Fit, tubeless
• Number of spokes: 24 front and rear wheels, G3 lacing
• Intended use: Competition, Training
• Brake disc mount: Disc Centerlock
• N3W freehub body for Campagnolo 12- and 13-speed cassettes
• Front hub 100x12 mm thru-axle mount
• Weight: 910 grams (manufacturer’s specification)

The Zonda GT wheelsets are characterised by an outstanding combination of the best Campagnolo technologies and offer maximum versatility in the choice of suitable tyres – from gravel to road. The iconic G3 lacing pattern and anodised finish give the Zonda GT aluminium wheelset its refined appearance and clearly identify the wheelset as a Campagnolo product. Weighing just 1690 g thanks to the durable yet lightweight aluminium structure and Campagnolo’s patented freehub. The 23 mm internal width highlights the Zonda GT’s great versatility: a wheel suitable for both wider tyres for off-road and gravel trails, and thinner road tyres.

Campagnolo Zonda GT C23 DB rims and spokes:

• Mega G3 geometry Perfect balance of spoke tension on both sides of the wheel. Reduces stress, increases lateral stiffness and power transfer to the wheel. G3 eliminates vibrations even for heavier riders.
• Momag enables a non-drilled rim profile – greater stiffness and no need for rim tape.
• Dynamic Balance: Every point on the rim is balanced by an equal counterweight on the opposite side. Maximum stability of the wheel even at high speeds.
• Differentiated rim height: 26 mm on the front wheel for optimum handling; 30 mm on the rear wheel for the most efficient power transfer to the drive wheel.
• Spoke Anti-Rotation System: keeps the spokes in the position offering optimum aerodynamics.
• Aerodynamic stainless steel spokes: optimal airflow – reduced weight and greater responsiveness.

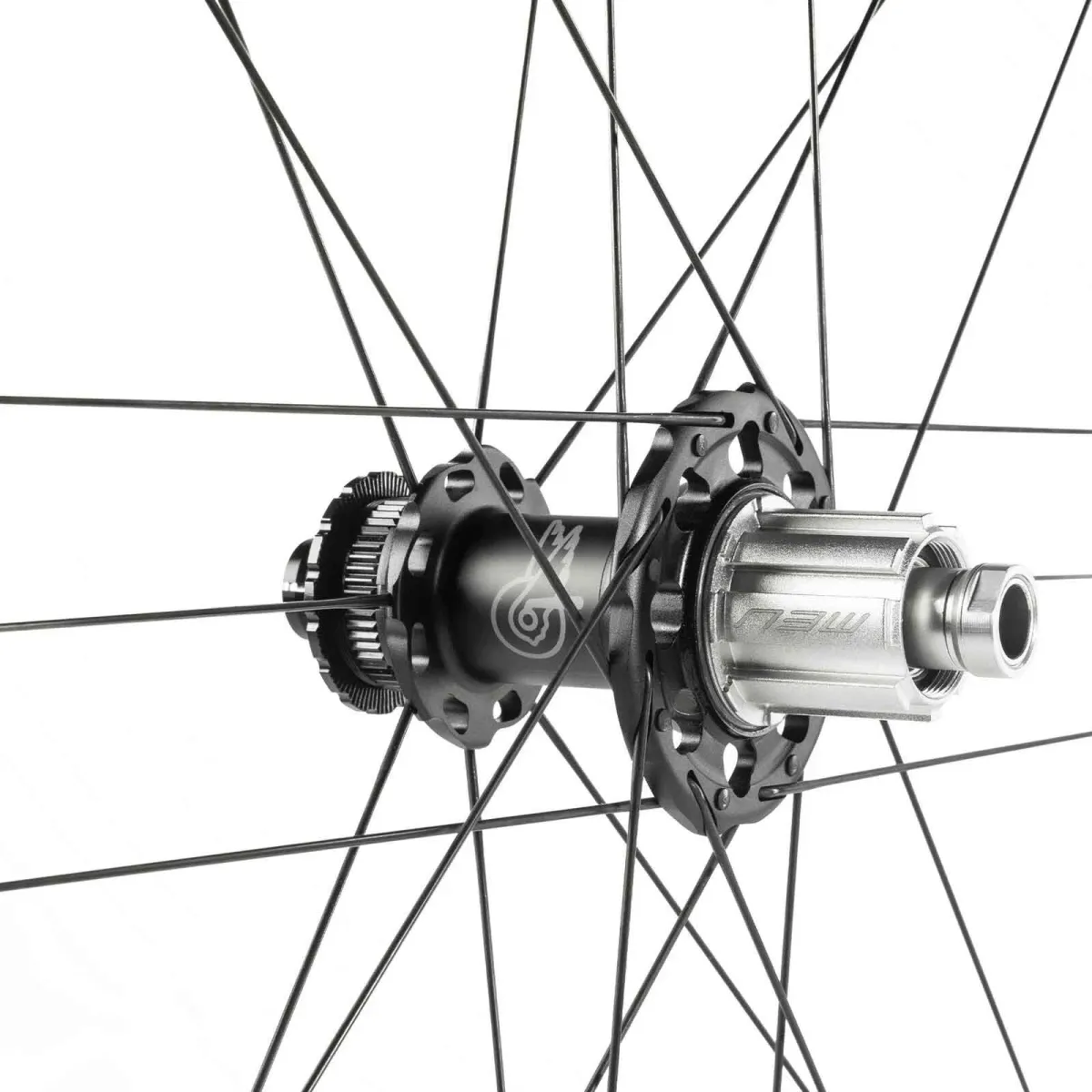

Campagnolo Zonda hubs:

• Oversize flange Mega G3: increases torsional stiffness, resulting in better responsiveness to every change in the rider’s cadence. The hubs with oversize hub bodies feature particularly smooth-running precision deep-groove ball bearings. To save weight, the freehub body and pawl carrier are machined from a single piece of aluminium.
