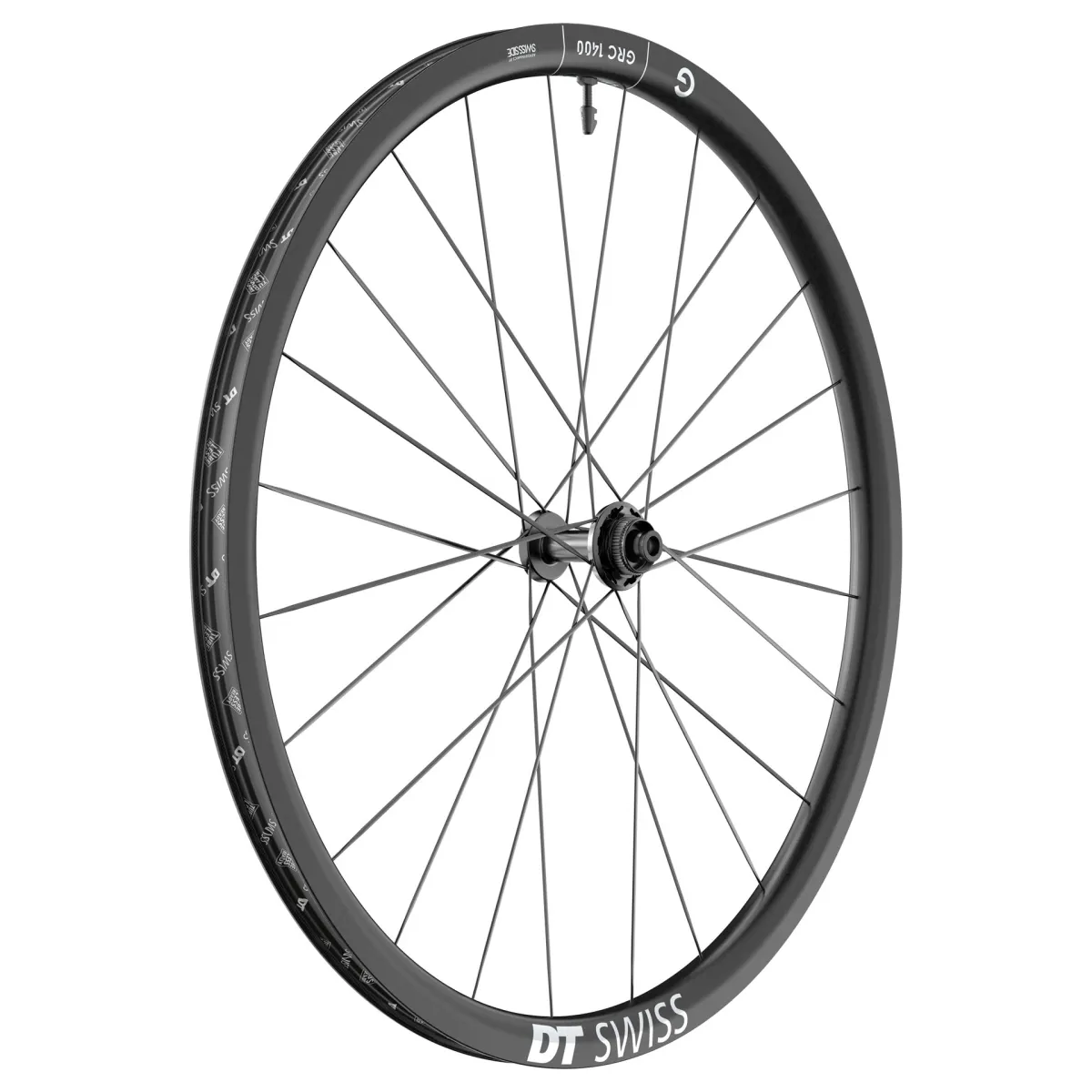

DT Swiss GRC 1400 Dicut 30 wheel
30 mm high carbon aero rims, with 24 mm rim width, high-end Dicut hubs, in the 27.5, 650B version, DT Swiss GRC 1400 Dicut 30 DB, the super-light gravel wheels
Included:
- DT Swiss GRC 1400 Dicut DB 30 front wheel, end stops as selected, DT Swiss tubeless-ready rim tape 27 mm, DT Swiss tubeless valve
DT Swiss GRC 1400 Dicut 30 wheel Disc technology and dimensions:
- for folding and clincher tyres, clincher tubeless-ready
- ERTRO 584 x 24 / 700C
- Rim type: Carbon Hooked / Crotchet tubeless TC
- Rim width (external) 31 mm, height 30 mm, rim depth 24 mm
- Top-end hub with stainless steel ball bearings and EXP ratchet freewheel
- Spokes: butted, cold-forged Aerolite flat spokes
- Nipples: DT Swiss Proloc Hidden special nipples
- Lacing pattern: 2-cross
- Recommended tyre width 28–54 mm
- Front hub end caps available for either 12x100 mm thru-axles or 9x100 mm quick-release mounting
- Weight: 624 grams (manufacturer’s specification)
- ASTM classification 2
- Recommended max system weight: 130 kg
DT Swiss GRC 1400 Dicut 30 DB:
The aerodynamically optimised and particularly agile 30 mm rim is ideal for chasing KOM/QOM titles and leaving your friends in the dust on your favourite gravel section. The low steering torque of the 30 mm rim gives you the agility you need on long adventures. Thanks to a new patented manufacturing process for carbon rims, the rims come straight from the mould without any further machining. This makes your wheelset lightweight yet robust, and you’re sure to turn heads. With the ideal power-to-weight ratio of the 240 DICUT hub and the robust, aerodynamic DT Aerocomp II spokes, the new GRC 1400 DICUT wheels are just waiting to leave the road behind. Now the decision is yours. Do you want to chase best times or venture into the unknown on a gravel adventure?
The moment you leave the road behind, your body adjusts to the transition to stony, thrilling terrain. The GRC 1400 DICUT takes on the vibrations and obstacles of a gravel ride. This allows you to leave not only the road but also your shadow behind and take on new challenges. Benefit from maximum reliability in two different rim heights to glide at speed over gravel sections, or tackle the unpredictability of unpaved trails with confidence.
DT Swiss Straight Pull Spokes
To achieve an ideal balance of weight and stability, only the highest-quality straight-pull spokes are used in the wheelsets. They are more stable than conventional spokes yet can still be trued and replaced using standard tools.

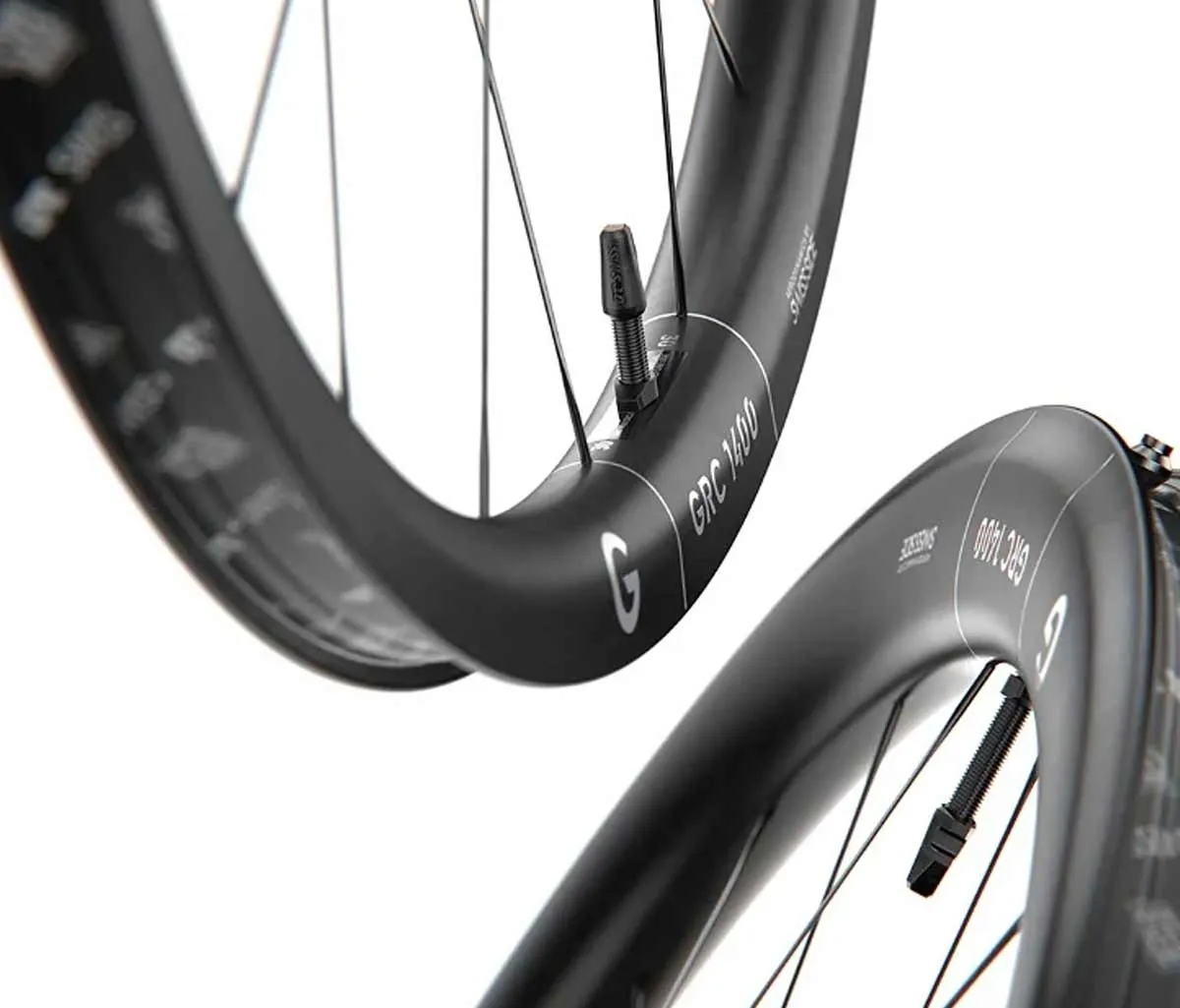

DT Swiss GRC 1400 Dicut Disc Clincher Rims
A new manufacturing concept for the carbon rims eliminates the need for an additional coating and delivers a fantastic surface design. The rims, with a 24 mm rim width, are built for tough cyclocross and gravel use and also offer good aerodynamics. The GRC 1400 rims are made from high-modulus carbon fibre using a new resin. The profile, developed by Swiss Side and inspired by aircraft construction, offers optimum aerodynamics. The 1366-gramm wheelset, suitable for folding and clincher tyres, is completed by straight knife spokes. The DT GRC 1400 Clincher wheels, the ultimate choice for competitive use
DT Swiss 240 Dicut Disc hubs
The DT Swiss hubs, with their optimised hub shell and wider hub flanges, offer greater lateral stiffness. Designed for straight-pull spokes and the proven ratchet pawl freewheel system, based on the DT Swiss high-end hubs with Swiss industrial stainless steel bearings, they are exceptionally durable and can be serviced and converted to Shimano, Sram, Campagnolo and Sram XD freewheel bodies without tools.
Compatible endstops for DT Swiss GRC 1400 Dicut DB Disc Road front wheels:
- Quick-release mounting 9x100 mm Part No. HWGXXX0000051S
Spare parts for Dicut front wheel:
- Ball bearing 6802 Ø 15/24x5mm Part No. HSBXXX00N2464S
- Aluminium axle 100 mm, Ø 15/58.3 mm Item No. HRCXXX00N3382S
- DT aluminium nipple, hidden Pro Lock, silver, Part No. NPAF20120N0100
Herstellerinformation: DT Swiss, Längfeldweg 101, 2504 Biel, Bern, Switzerland, https://www.dtswiss.com/
