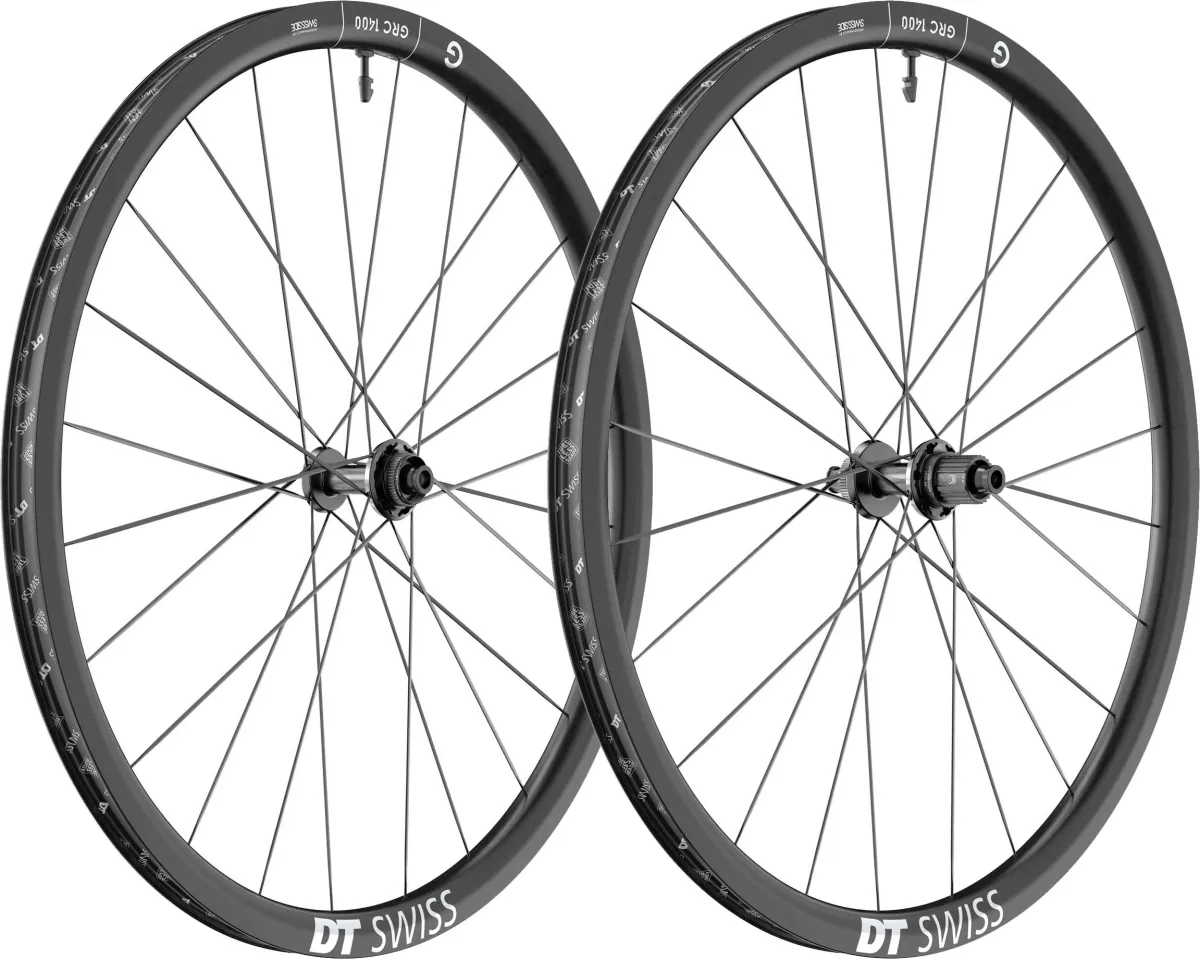

DT Swiss GRC 1400 Dicut 30 wheelset

30 mm high carbon aero rims, with a 24 mm rim width, high-end Dicut hubs, weighing just 1366 grams, DT Swiss GRC 1400 Dicut 30 DB, the super-light gravel wheels

Included:

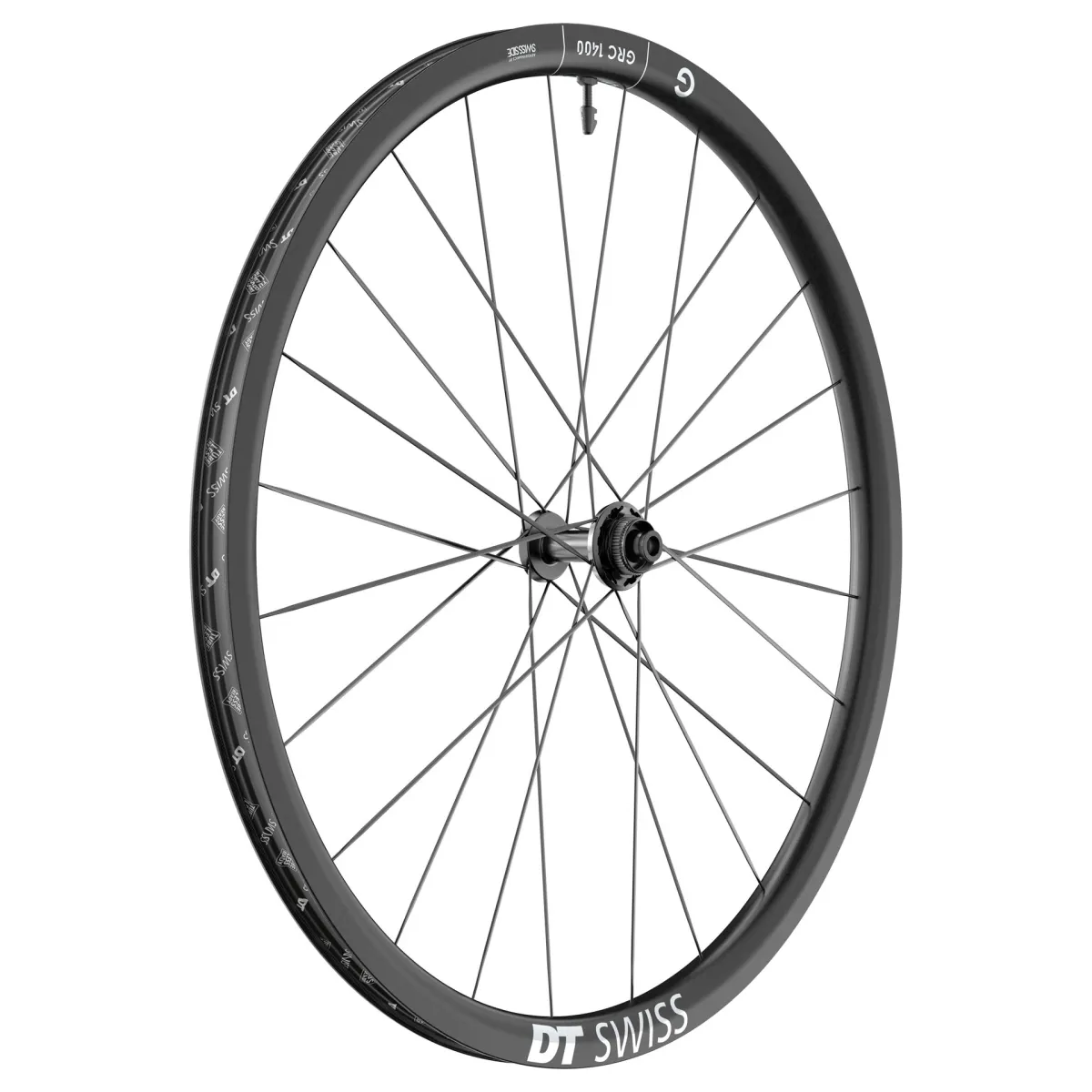

• DT Swiss GRC 1400 Dicut DB 30 front wheel, end stops as selected, DT Swiss tubeless-ready rim tape 27 mm, DT Swiss tubeless valve
• DT Swiss GRC 1400 Dicut DB 30 rear wheel, freehub body and end caps as selected, DT Swiss tubeless-ready rim tape 27 mm, DT Swiss tubeless valve

DT Swiss GRC 1400 Dicut 30 wheel set Disc technology and dimensions:

• for folding and clincher tyres, clincher tubeless-ready
• ERTRO 622 x 24 / 700C
• Rim type: Carbon Hooked / Crotchet tubeless TC
• Rim width (external) 31 mm, height 30 mm, rim depth 24 mm
• Top-end hub with stainless steel ball bearings and EXP ratchet freewheel
• Spokes: butted, cold-forged Aerolite flat spokes
• Nipples: DT Swiss Proloc Hidden special nipples
• Lacing pattern: 2-cross
• Recommended tyre width 28–54 mm
• Front hub end caps available for either 12x100 mm thru-axles or 9x100 mm quick-release mounting
• Rear hub end caps, optional for 12x142 mm thru-axles or 10x135 mm quick-release mounting
• Ratchet EXP aluminium freehub body, available as:
  • HG11 freehub body compatible with Shimano and SRAM road cassettes (8, 9, 10 and 11-speed), including Shimano 12-speed road
  • Shimano Microspline Road freehub body, compatible with Shimano Microspline 12-speed cassettes
  • Campa ED freehub body, compatible with Campagnolo 9-, 10-, 11- and 12-speed cassettes
  • Campa N3W freehub body, compatible with Campagnolo 13-speed cassettes
  • SRAM XDR freehub body, compatible with SRAM AXS road bike cassettes (12-speed)
• Weight approx. set 1366 grams, front wheel: 656 grams, rear wheel: 775 grams Manufacturer’s specification
• ASTM classification 2
• Recommended maximum system weight: 130 kg

DT Swiss GRC 1400 Dicut 30 DB:

The aerodynamically optimised and particularly agile 30 mm rim is ideal for chasing KOM/QOM titles and leaving your friends behind on your favourite gravel section. The low steering torque of the 30 mm rim gives you the agility you need on long adventures. Thanks to a new patented manufacturing process for carbon rims, the rims come straight from the mould without any further machining. This makes your wheelset lightweight yet robust, and you’re sure to turn heads. With the ideal power-to-weight ratio of the 240 DICUT hub and the robust, aerodynamic DT Aerocomp II spokes, the new GRC 1400 DICUT wheels are just waiting to leave the road behind. Now the decision is yours. Do you want to chase best times or venture into the unknown on a gravel adventure?

The moment you leave the road behind, your body adjusts to the transition to stony, thrilling terrain. The GRC 1400 DICUT takes on the vibrations and obstacles of a gravel ride. This allows you to leave not only the road but also your shadow behind and take on new challenges. Benefit from maximum reliability in two different rim heights to glide at speed over gravel sections, or confidently tackle the unpredictability of unpaved trails.

DT Swiss Straight Pull Spokes

To achieve an ideal balance of weight and stability, only the highest-quality straight-pull spokes are used in the wheelsets. They are more stable than conventional spokes yet can still be trued and replaced using standard tools.

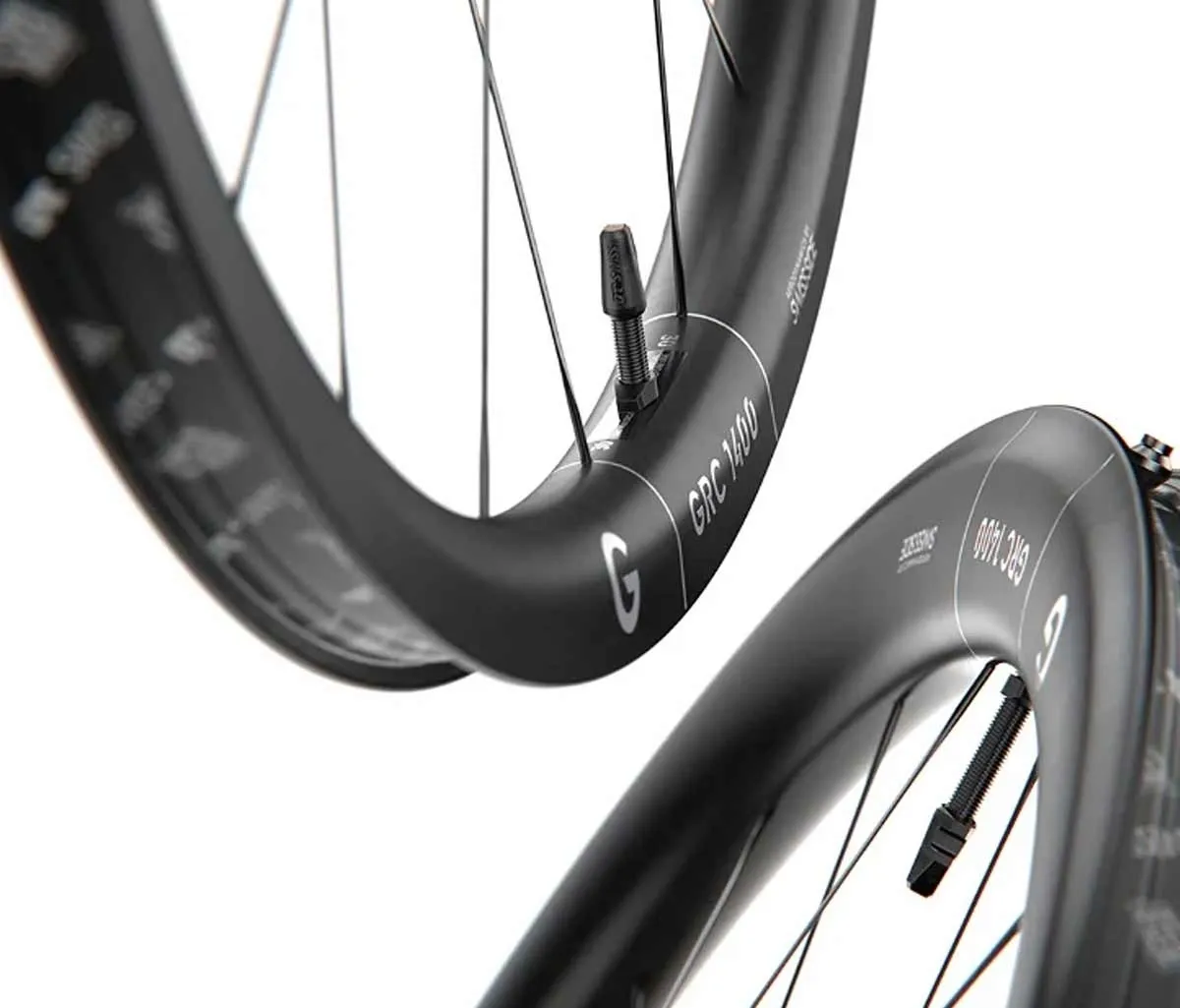

DT Swiss GRC 1400 Dicut Disc Clincher Rims

A new manufacturing concept for the carbon rims eliminates the need for an additional coating and delivers a fantastic surface design. The rims, with a 24 mm rim width, are built for tough cyclocross and gravel use and also offer good aerodynamics. The GRC 1400 rims are made from high-modulus carbon fibre using a new resin. The profile, developed by Swiss Side and inspired by aircraft construction, offers optimum aerodynamics. The 1366-gramm lightweight wheelset, suitable for folding and clincher tyres, is completed by straight knife spokes. The DT GRC 1400 Clincher wheels, the ultimate choice for competitive use

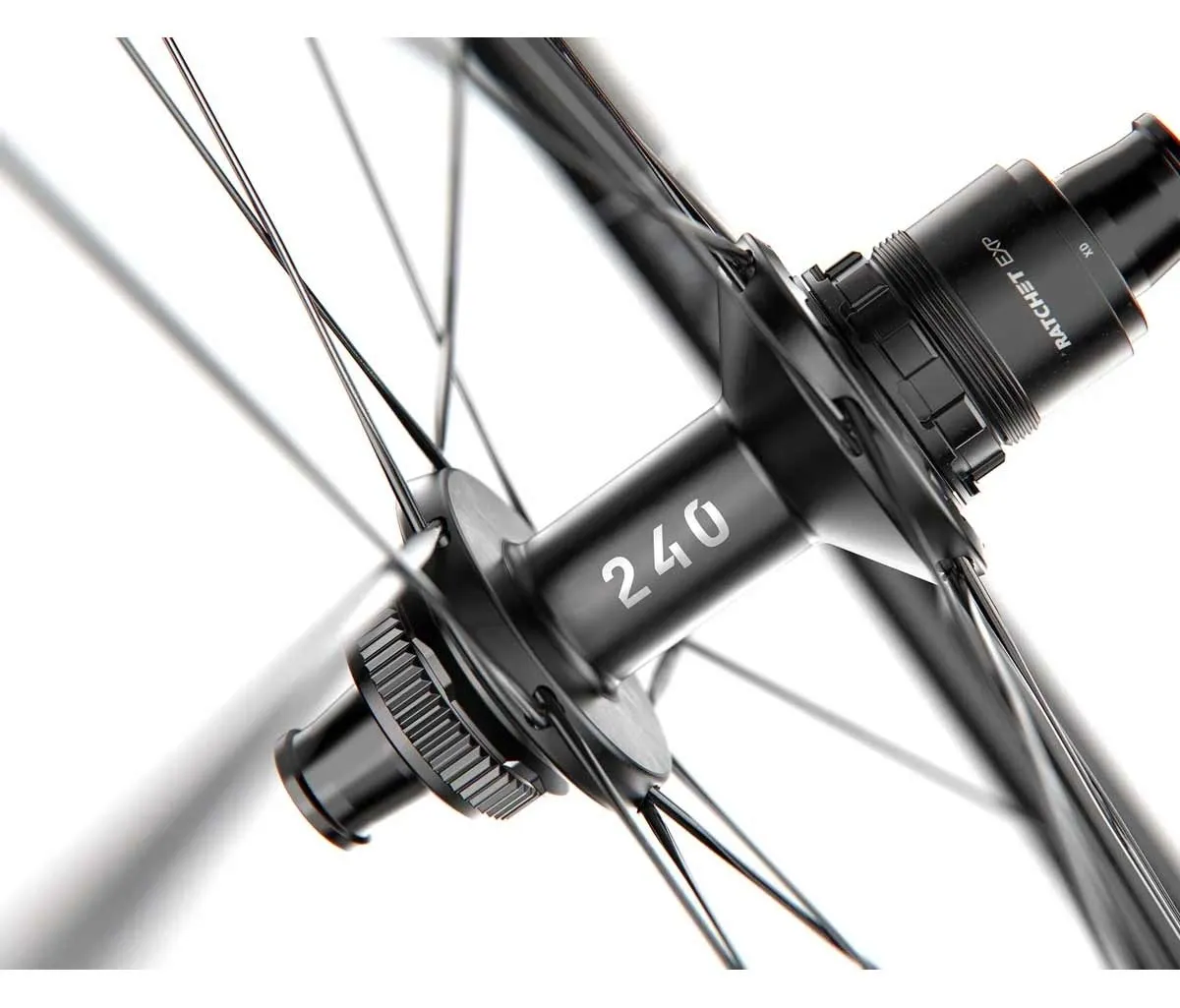

DT Swiss 240 Dicut Disc hubs

The DT Swiss hubs, with their optimised hub shell and wider hub flanges, offer greater lateral stiffness. Designed for straight-pull spokes and the proven ratchet pawl freewheel system, based on the DT Swiss high-end hubs with Swiss industrial stainless steel bearings, they are exceptionally durable and can be serviced and converted to Shimano, Sram, Campagnolo and Sram XD freewheel bodies without tools.

Compatible endstops for DT Swiss GRC 1400 Dicut DB Disc Road front wheels:

• Quick-release mounting 9x100 mm Part No. HWGXXX0000051S

Spare parts for Dicut front wheel:

• Ball bearing 6802 Ø 15/24x5mm Part No. HSBXXX00N2464S
• Aluminium axle 100 mm, Ø 15/58.3 mm Item No. HRCXXX00N3382S
• DT aluminium nipple, hidden Pro Lock, silver, Part No. NPAF20120N0100

Spare parts Dicut EXP rear wheel:

• Ball bearing 1526 Ø 15/26x7mm Item No. HSBXXX00N3741S
• Hub/rotor seal Ø30x36x2.5mm Item No. HSOXXX00N1031S
• Aluminium axle 100mm, Ø15/58.3mm Item No. HRCXXX00N3382S
• EXP sleeve Ø18/15x10.7mm HRDXXX00N8242S
• Maintenance kit Part No HWYXXX00N0042S
• DT aluminium nipple, hidden Pro Lock, silver, Part No. NPAF20120N0100
• Freewheel body kit EXP Microspine Road 12x142mm Road Item No: HWYABL00S1960S
• End stop kit EXP Microspine Road 12x142 mm Item No. HWGXXX00S5639S
• Freewheel body kit EXP Microspine Road 10x135mm Road Item No: HWGXXX00S5623S
• Endstop Kit EXP Microspine Road 10x135 mm Item No.: HWGXXX00S5623S
• EXP Campa ED Road Freehub Body Kit 12x142 mm Item No.: HWYABL00S7074S
• EXP Campa ED Road 12x142mm Freehub Body Kit Item No: HWYABL00S7073S
• Endstop Kit EXP Campa ED 10x135mm Item No: HWGXXX00S2766S
• EXP Campa N3W freehub body kit 12x142mm Item No.: HWYABL00S2993S
• EXP Campa N3W freehub body kit 10x135mm Item No: HWYABL00S2993S
• End Stop Kit EXP Campa N3W 10x135 mm Item No.: HWGXXX00S3191S
• EXP Shimano Road HG11 10x135 mm freehub body kit Item No.: HWYABL00S5399S
• End Stop Kit EXP Shimano Road HG11 10x135 mm Item No.: HWGXXX00S7446S
• EXP Sram XDR 12x142mm freehub body kit Item No: HWYABL00S5401S
• Endstop Kit EXP Sram XDR 12x142mm Item No: HWGXXX00S0564S
• Freewheel body kit EXP Sram XDR 10x135 mm Item No.: HWYABL00S5382S
• Endstop Kit EXP Sram XDR 10x135mm Item No: HWGXXX00S2760S

Herstellerinformation: DT Swiss, Längfeldweg 101, 2504 Biel, Bern, Switzerland, https://www.dtswiss.com/
