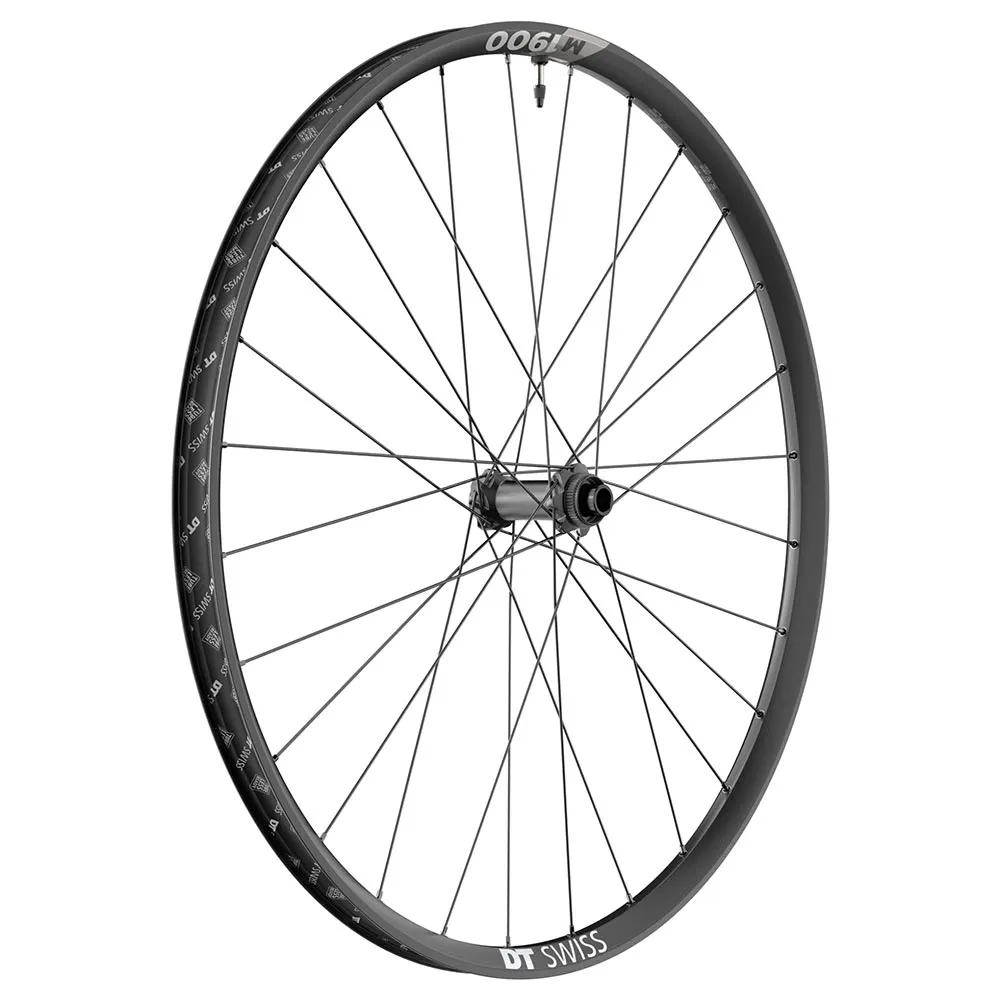

DT Swiss M 1900 Spline 30 - 29 wheel

The affordable and extra-sturdy DT Swiss All Mountain and Trail front wheel M 1900 with the Boost front hub for 15x110mm thru-axle mounting.

The new affordable All Mountain and Trail DT Swiss M 1900 Spline wheels with a 30 mm rim width for really wide tyres and the new Ratchet LN freehub system. Thanks to the DT Swiss hubs with Swiss precision ball bearings and the lightweight rims, the M 1900 wheels offer high stability combined with a good weight-to-strength ratio. Built for tough MTB use, tyres up to 2.8” wide can be fitted. The legendary reliability of the DT Swiss hubs and the straight-pull lacing ensure long-lasting riding enjoyment. Designed for an optimal balance between durability and weight, the rim offers efficient climbing performance and high resilience on natural singletrack. Thanks to the new Ratchet LN freehub system and the tried-and-tested hand-built construction, this wheel is a reliable partner when it comes to experiencing moments of freedom in the mountains.

DT Swiss M 1900 Spline 29-inch wheel specifications:

• 29-inch ETRTO: 622 x 30 / 700C
• Rims: Aluminium tubeless ready

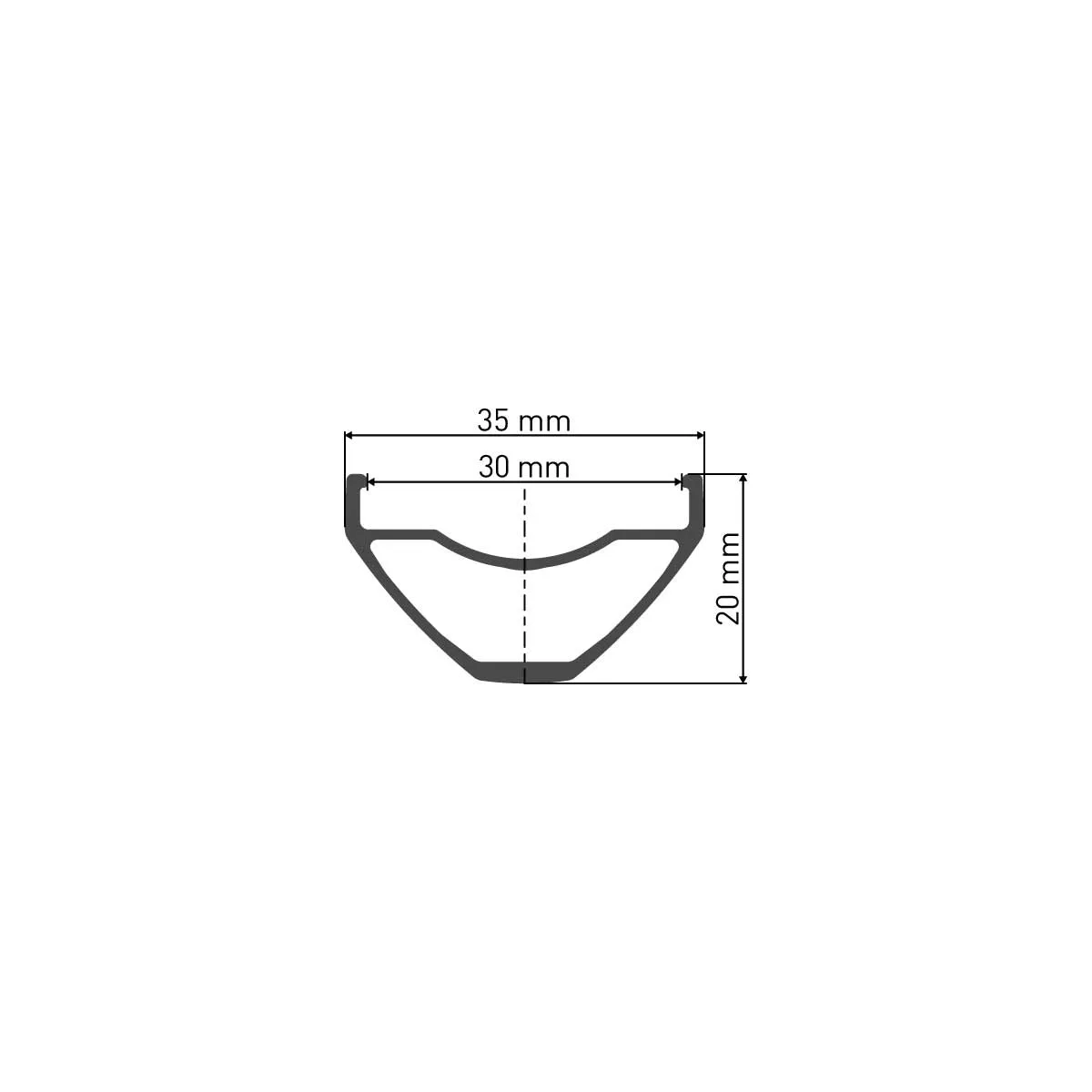

• Rim dimensions: Inner width 30 mm, outer width 35 mm, height 20 mm
• Tubeless ready, Crotchet Tubeless TC including tubeless rim tape and valve.
• Hub with steel ball bearings
• DT Swiss Comp Straight Pull spokes: cold-forged round spokes
• Nipples: DT Pro Lock brass nipples
• Spoke pattern: 3-cross
• Number of spokes: 28 per wheel
• Maximum tyre width 2.8
• Required rim tape width: 32 mm
• Boost front hub 15x110 clamping width for 15 mm Boost thru-axle fitting, not convertible
• Front wheel weight: 951 grams, manufacturer’s specification
• Rim weight: 570 grams
• ASTM classification 4
• Recommended maximum system weight: 120 kg

Scope of delivery DT Swiss M 1900 Spline 30 wheel:

DT M 1900 Spline 30 front wheel, 15x110 Boost end caps, 32 mm tubeless-ready rim tape, 32 mm tubeless valve

DT Swiss 1900 Spline hubs:

DT Swiss straight-pull hub shells for the Spline wheelsets require minimal material, allowing them to be constructed to be lightweight yet stable. With the optimised hub body, specifically designed for extreme braking forces, and the reinforced flange, DT Swiss provides the perfect foundation for extra-stable wheelsets. The hubs of the Spline wheelsets feature a Centerlock brake disc mount

DT Swiss Ratchet LN freehub body:

The proven DT Swiss Star Ratchet LN system with the toothed freehub body allows for easy conversion to various axle or rotor standards. The DT Swiss Ratchet LN rear hubs can be easily converted to fit the standard mounts of various cassette systems.

DT Swiss M 1900 Spline rims:

The DT Swiss M 1900 wheelsets use the DT Swiss M 502 rim. Built for tough all-mountain and trail use, the DT Swiss M 1900 rims, with an outer width of 35 mm, offer increased stability whilst weighing just 535 grams. With a 30 mm rim width, tyres ranging from 2.0 to 2.8 inches in width can be fitted. Thanks to new, extra-sturdy rim beads, the DT Swiss Spline rims are ideally designed for tubeless use. Tubeless rim tape and a valve are included in the scope of delivery.

DT Swiss Champion Straight Pull Spokes:

To achieve a good balance between weight and stability, Champion straight-pull spokes are used in Spline wheelsets. They are sturdier than conventional spokes yet can still be trued and replaced using standard tools. The straight-pull lacing pattern allows for precise placement and alignment of the spokes. This optimises wheel stiffness and eliminates any unwanted stress peaks.
