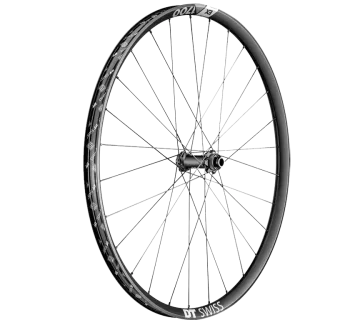

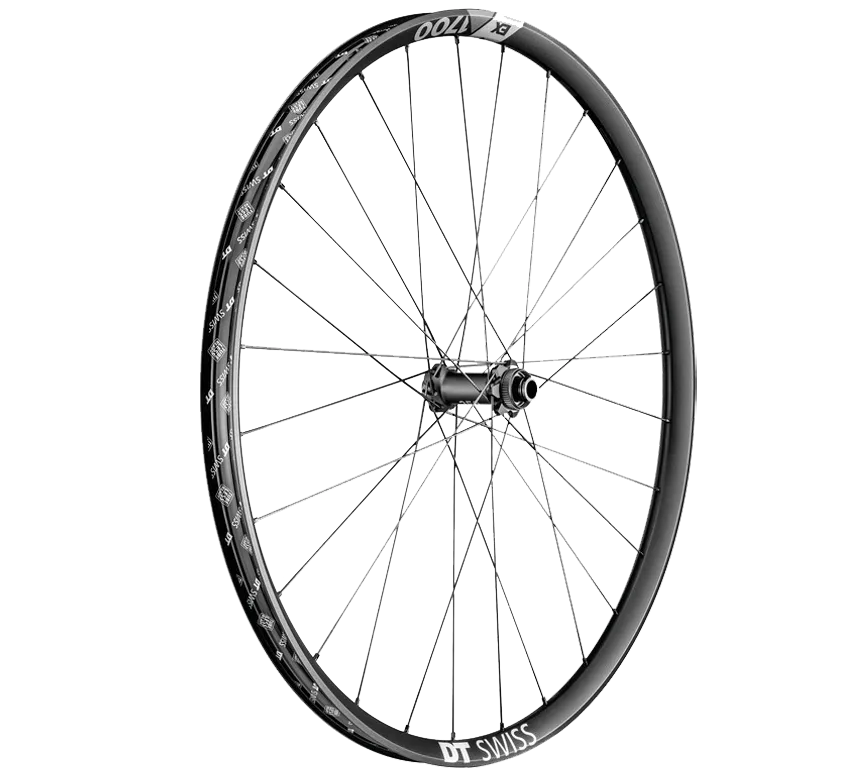

DT Swiss EX 1700 Spline wheelset

The Enduro and Gravity wheelsets developed for the toughest enduro tracks in the world, DT Swiss EX 1700 Spline with a super-sturdy, reinforced rim with a 30 mm rim width.

They are based on DT Swiss 350 hubs with a 36-tooth ratchet system, combined with welded and super-sturdy 30 mm aluminium rims. The rim profile is designed to be sturdy enough to satisfy the best enduro riders, yet remain light enough for you to climb your favourite trail with ease. Laced with Competition straight-pull spokes, the EX 1700 SPLINE wheels can easily withstand even the toughest enduro conditions.

DT Swiss EX 1700 Spline 30 Wheel 27.5-inch Specifications:

• 27.5-inch ETRTO: 584 x 30
• Rims: SBWT welded DT Swiss rim

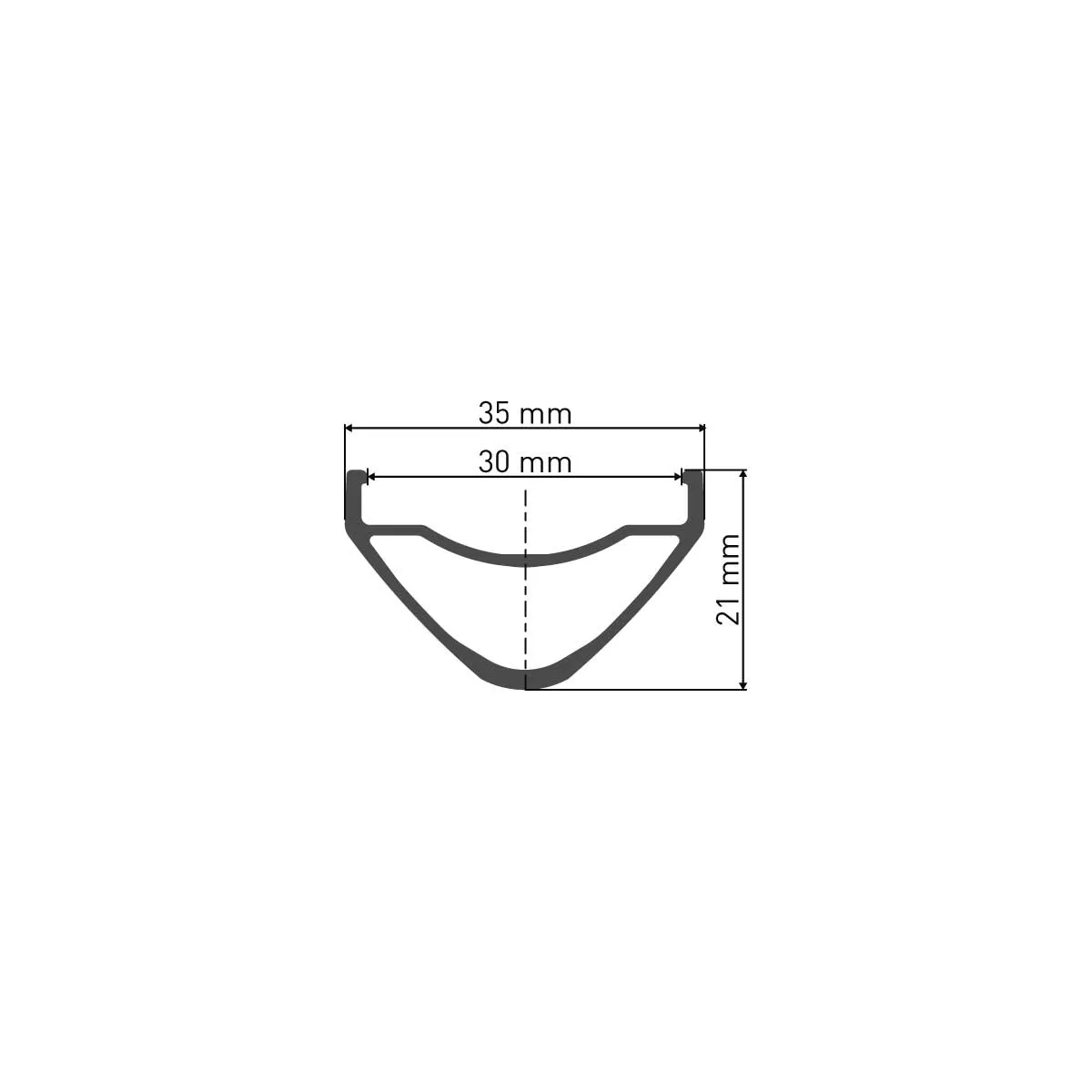

• Rim dimensions: inner width 30 mm, outer width 35 mm, height 21 mm
• Hub with Swiss precision ball bearings
• DT Swiss Straight Pull spokes: tapered, cold-forged round spokes
• Nipples: DT Pro Lock aluminium nipples
• Lacing pattern: 3-cross
• Number of spokes: 28 per wheel
• Maximum tyre width: 2.6
• Required rim tape width: 32 mm
• Brake mount: Centerlock
• Boost front hub 15x110 mm clamping width for Boost thru-axle assembly, not convertible
• Weight from front wheel: 894 grams
• Maximum recommended system weight: 130 kg
• ASTM classification: 4

Scope of delivery DT Swiss EX 1700 Spline wheel:

• DT Swiss EX 1700 Spline 30 front wheel, 15x110 mm, Boost end stops, 32 mm tubeless rim tape, 32 mm tubeless valve

DT Swiss 1700 Spline hubs:

The straight-pull hub shells of the DT Swiss Spline wheelsets require minimal material, allowing them to be constructed to be lightweight yet stable. With the optimised hub body, specifically designed for extreme braking forces, and the reinforced flange, DT Swiss provides the perfect foundation for extremely stable All Mountain, Enduro and FR wheelsets.

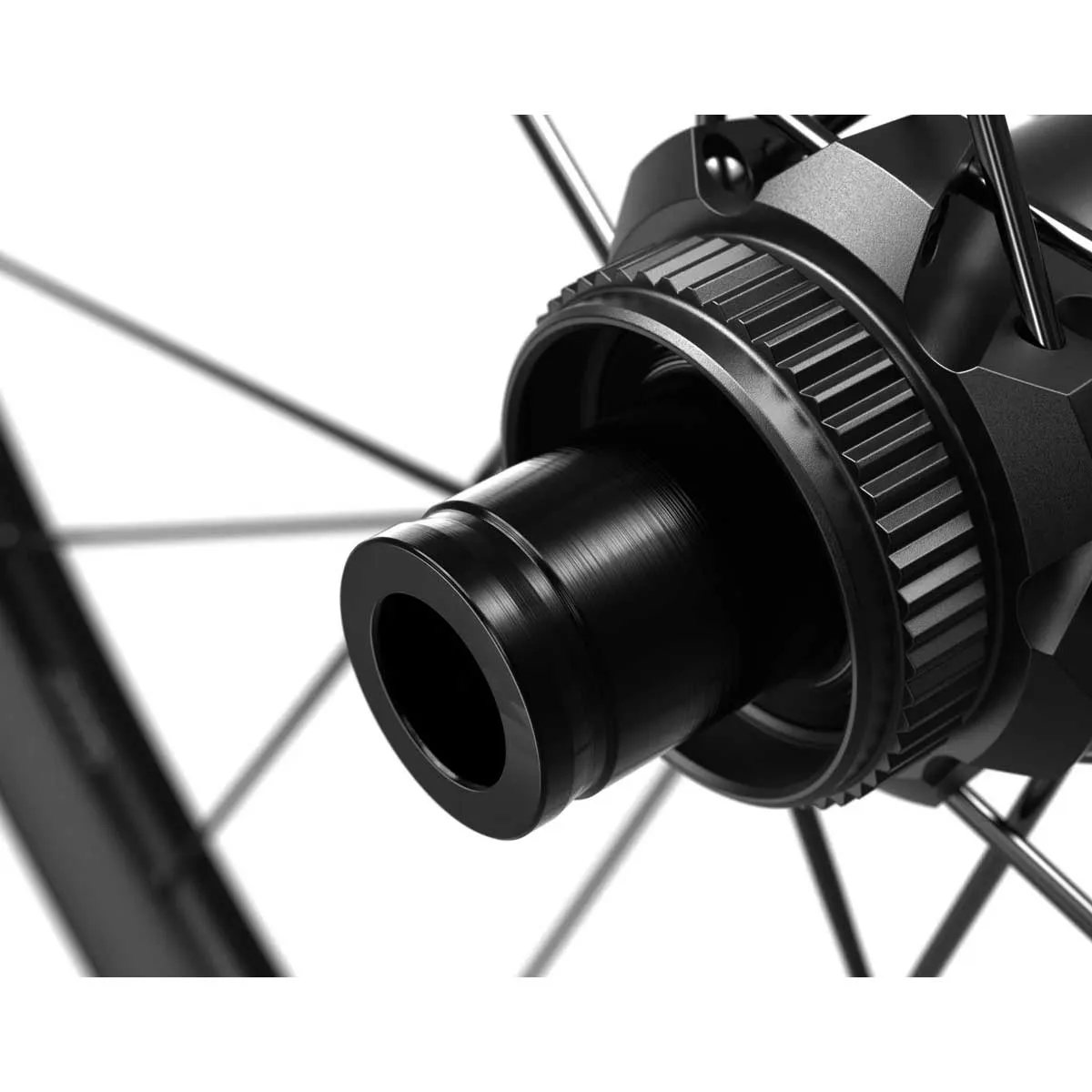

DT Swiss Spline 1700 Boost 15x110 front hub:

The DT Swiss Spline Boost front hubs feature a wider hub body with spoke holes and flange positioned further outwards. This makes these wheels even more laterally stiff and durable. Due to the wider hub design with a 110x15 mm thru-axle mount, they cannot be converted and are only compatible with Boost 15x110 mm forks.

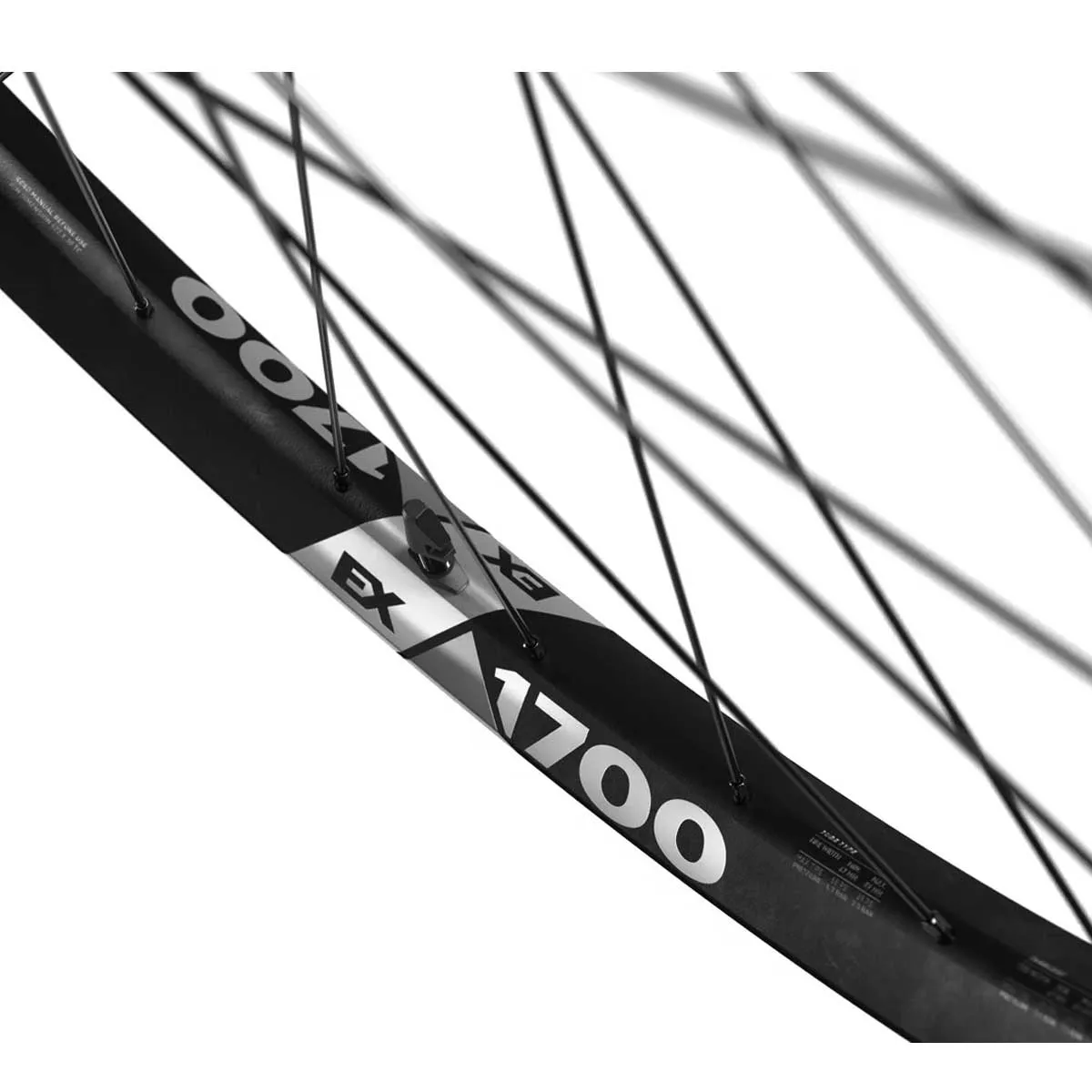

DT Swiss EX 1700 Spline rims:

Built for tough enduro use, the DT Swiss EX 1700 offers excellent acceleration and high stability. The super-sturdy rims are butt-welded. The rim profile is designed to be stable enough to satisfy the best enduro riders, whilst remaining lightweight. With a 30 mm rim width, tyres ranging from 2.0 to 2.6 inches in width can be fitted. Thanks to the wide rims, wide tyres roll significantly more easily and offer greatly improved cornering. The new rim beads on the DT Swiss Spline rims are ideally designed for upgrading with a tubeless kit.

DT Swiss Straight Pull Spokes:

To achieve an ideal balance between weight and stability, only the highest-quality straight-pull Competition spokes are used in Spline wheelsets. They are stiffer than conventional spokes yet can still be trued and replaced using standard tools. The straight-pull lacing allows for precise placement and alignment of the spokes. This optimises wheel stiffness and eliminates any unwanted stress peaks.
