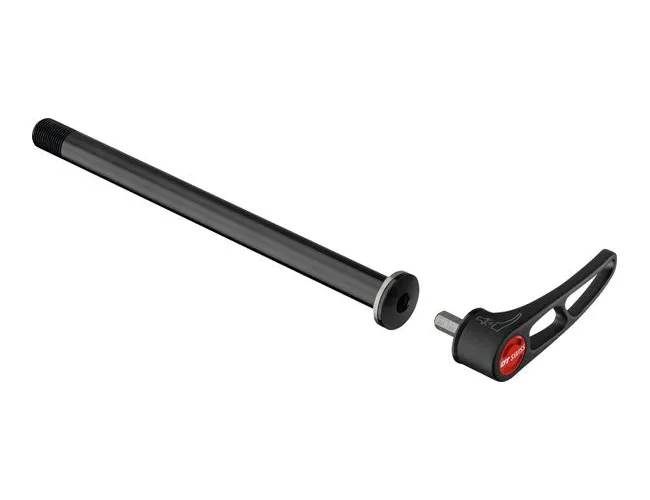

DT RWS Plug In Thru-Axle

DT Swiss RWS Plug In thru-axles are available with different thread types. Please always check the exact thread size, thread length and pitch.

The patented RWS wheel mounting system from DT Swiss is stiff, secure and easy to use. The Plug In version offers all the advantages of tool-free quick-release axle installation, if that is what you prefer. If you prefer the clean look of a threaded axle, simply remove the lever unit and stow it in your rucksack. Or leave it at home altogether. The axle features a 6 mm hex socket that can be operated with any standard tool. The lever unit also features a 6 mm hex socket, which can of course be used as a mini-tool when out and about. Clean and smart: the RWS Plug In.

DT Swiss RWS:

stands for Ratchet Wheel Mounting System, the innovative wheel mounting system from DT Swiss! Instead of the eccentric clamping principle developed for road bikes over 80 years ago, the RWS builds up clamping force by tightening a screw connection with a lever. The lever can be set to any position by lifting it axially and turning it.

Operation is incredibly simple: tighten the clamp by turning the lever clockwise as tightly as possible by hand, using at least 15 Nm of torque. Depending on the frame or fork design, this can also be achieved by flipping the lever several times. Then lift the lever and turn it to the desired position – the wheel is securely and firmly mounted. Because there are no plastic parts in the force path with the RWS, the clamping force is temperature-independent, making the RWS 100 per cent compatible with disc brakes!

Thanks to the direct transfer of lever force to the thread, the RWS can achieve up to 50 per cent higher clamping force than existing eccentric quick-release mechanisms. This is not only safer but also increases stiffness, which is particularly noticeable with disc brakes.

DT Swiss RWS Plug-In Thru-Axle Technology

• Screw-in axle with patented lever system
• for front wheels with 15 mm thru-axle mount
• Axle diameter 15 mm
• Axle length 143 mm
• Thread length 15 mm
• Thread pitch 15x1.5 mm
• Aluminium axle and clamping lever
• Weight: 70 grams

Herstellerinformation: DT Swiss, Längfeldweg 101, 2504 Biel, Bern, Switzerland, https://www.dtswiss.com/
