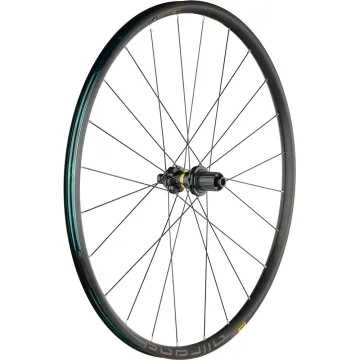

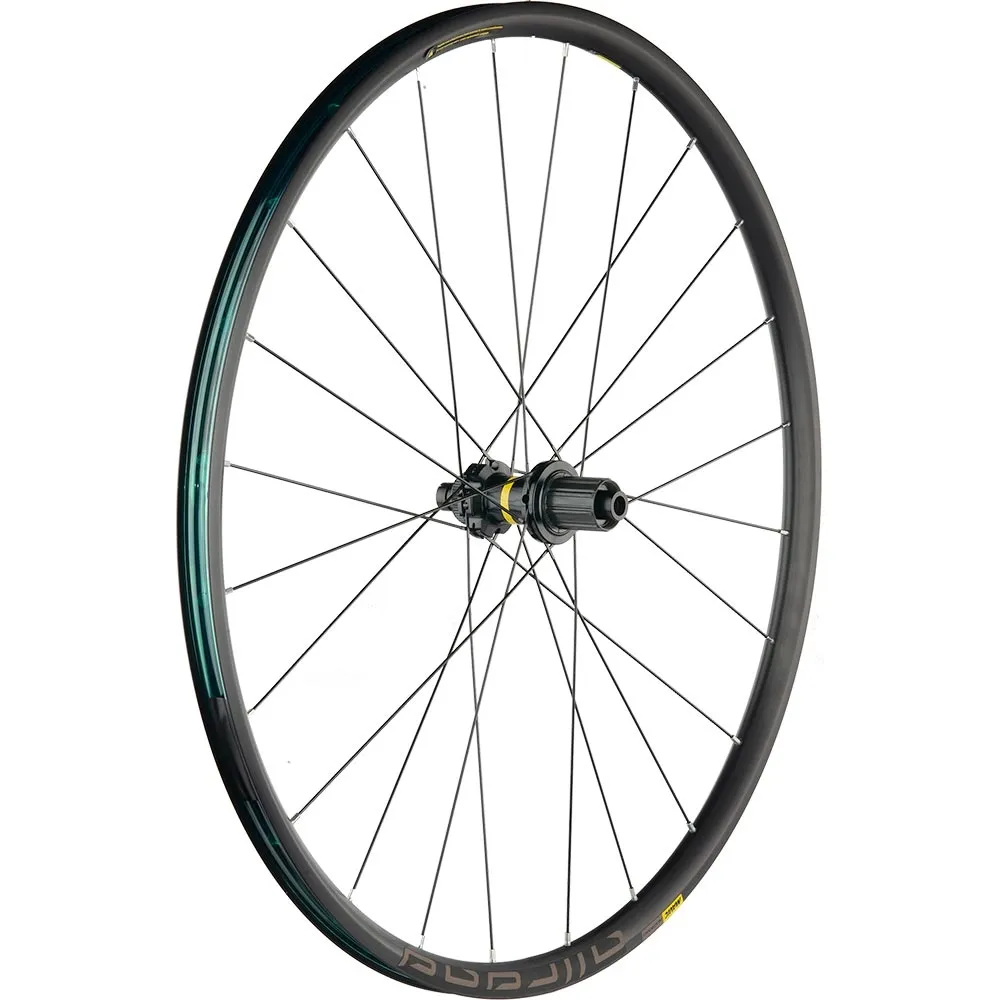

Mavic Allroad Disc Wheel

The gateway to the high-performance world of Mavic Allroad road bikes, equipped with wide and sturdy tubeless-ready rims, straight steel aero spokes, adjustable industrial bearings and lightweight, versatile rims.

The robust Mavic Allroad Disc wheelsets with Instant Drive freehub body. The rims, with a 23 mm rim width, offer perfect grip even for wide tyres and are tubeless-ready

Of course, these wheelsets can also be used with standard tyres and inner tubes.

Mavic Allroad Disc wheel technology:

• Recommended use: Road racing, training, cyclocross
• 28 inches, 622 x 23, for folding and clincher tyres
• Spokes: 24 straight, black high-tensile steel spokes
• Rim: S6000 aluminium rim, butted, black, H2 cold-forged, tubeless ready
• Spoke pattern: Front and rear wheels double-crossed
• Bearings: Industrial-grade hubs
• Hub body: Aluminium
• Brake disc mounting: DCL Disc Centerlock
• Rear hub: Aluminium body, 12x142mm thru-axle or 10x135mm quick-release mount
• Instant Drive 360-tooth freehub body, available as:
  • HG11 freehub for Shimano and Sram cassettes 8 + 9 + 10 + 11-speed
  • Microspline freehub for Shimano Gravel cassettes, 12-speed compatible
  • ED Campagnolo freehub body for Campagnolo cassettes 9, 10, 11 and 12-speed
  • N3W Campagnolo freehub body for Campagnolo 13-speed cassettes
  • SRAM XDR freehub for SRAM Road AXS 12-speed and SRAM MTB XG 11- and 12-speed cassettes
• Maximum recommended rider weight: 120 kg

Mavic Allroad Disc weights (manufacturer’s specifications):

• Rear wheel: 1020 grams

Contents of delivery for Mavic Allroad Disc wheel:

• Mavic Allroad Disc rear wheel, limit stops and freehub body as selected, tubeless rim tape, tubeless valve

The Mavic Allroad UST Disc wheelset weighs just 1890 grams and has a 23 mm rim width. Despite the weight saving, the rims have become even more stable and durable thanks to H2 cold-forging. High-quality hub technology with industrial bearings, 20 spokes per wheel, cleanly finished, robust rims specially designed for use with disc brakes, and all at a price at which you couldn’t even build your own wheels. The ideal wheelset for gravel, cyclocross, training and road touring.

Compatible end stops, rear wheel:

• Quick-release mounting, 10x135 mm adapter, item no.: V2510801
• Thru-axle mounting, 12x135 mm, adapter part no.: V2510901
• Thru-axle mounting, 12x142 mm adapter, item no.: V2510701

Compatible Instant Drive 360 freehub body

• HG11 aluminium freehub for Shimano and SRAM cassettes, compatible with 8, 9, 10 and 11-speed systems, item no. V3430101
• HG11 Aluminium Light Freewheel for Shimano and SRAM cassettes, 8 + 9 + 10 + 11-speed compatible Part No. V3850101
• Microspline aluminium freehub for Shimano and SRAM cassettes, 8 + 9 + 10 + 11-speed compatible Item No. V3990101
• ED freewheel for Campagnolo cassettes, 9 + 10 + 11 + 12-speed compatible Item No. V34401001
• N3W freehub for Campagnolo cassettes, 10 + 11 + 12 + 13-speed compatible Item No. V4270101
• SRAM XD Road freehub for SRAM AXS Road and XG MTB cassettes, 11 + 12-speed compatible Item No. V2580101

Mavic Allroad Disc technologies:

• Mavic rims:
  the rims are fitted with special rim flanges that make fitting tyres extremely easy; the tyres practically spring into the correct position and, provided you have a strong thumb, can be fitted without tools and inflated using standard air pumps.
• QRM Auto:
  Industrial bearings of this quality are only found in Mavic hubs – QRM bearings with double seals, of the 2RS or LLU type, and with extremely tight tolerances. Self-aligning bearings offer very high durability, low maintenance and excellent smoothness.
• Mavic Instant Drive Freehub Body:
  The new Instant Drive 360 freehub system is super-light and ensures rapid power transfer with a mere 9-degree engagement angle. A large, contact-free rubber seal reduces friction. And a wide selection of axle stubs ensures compatibility with many mounting standards. The oversized aluminium axle and the hardened aluminium freehub body save 40 g. Two pawls ensure fast and loss-free power transfer. A radial seal guarantees low friction at high speeds and perfect water resistance. This freehub body is easy to convert and is available in an HG11 version for Shimano and SRAM 8-11-speed, SRAM XD 11- and 12-speed XG/AXS, and Campagnolo 9-11-speed ED cassettes.
• Compatibility:
  the oversized aluminium axles allow for easy conversion to all standard axle systems, including quick-release mounting as well as QR 12x100 mm, X12x142 mm and 12x135 mm thru-axle mounting. End stops for 12 mm thru-axles and quick-release mounts are included in the scope of delivery. Conversion to 15x100 mm front wheel mounting is possible by replacing the entire hub axle

Herstellerinformation: MAVIC GROUP SAS, Parc Altais, 44 Rue Saturne, 74650 CHAVANO, https://mavic.com
