DT Swiss H 1900 Spline 27.5" - 30mm CL Hybrid Utility Wheel

Wheels for everyday use; reinforced hybrid hubs, rims and spokes allow for a maximum system weight of 180 kg – the durable DT Swiss Hybrid Utility 1900 Spline e-bike wheels.

Included in delivery

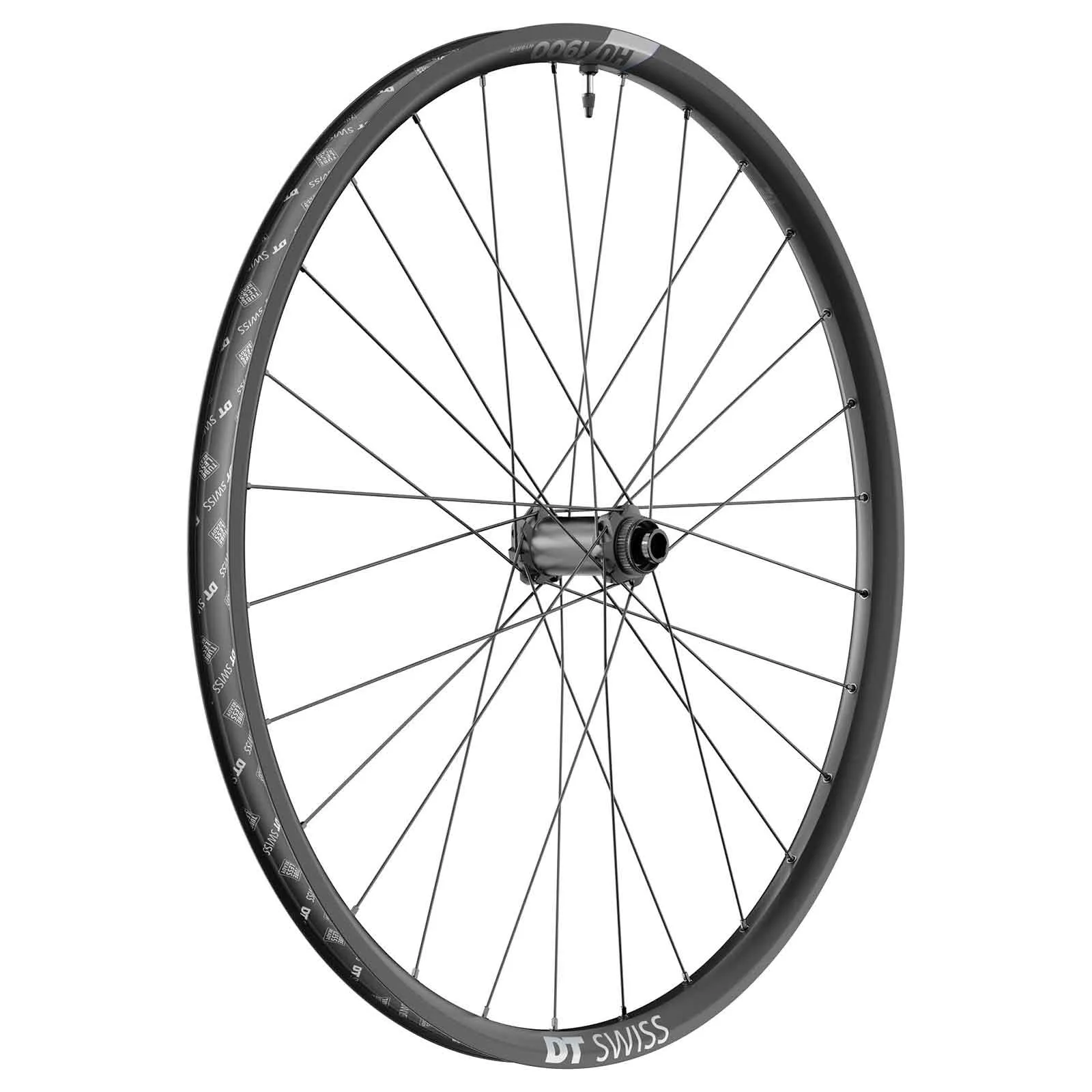

• DT HU 1900 Spline 30 Hybrid Utility front wheel, Boost end caps, 32 mm tubeless rim tape

DT Swiss HU 1900 Spline Boost wheel technology and dimensions:

• 27.5-inch ETRTO: 584 x 30 / 650B
• Rims: Aluminium Crotchet tubelessready

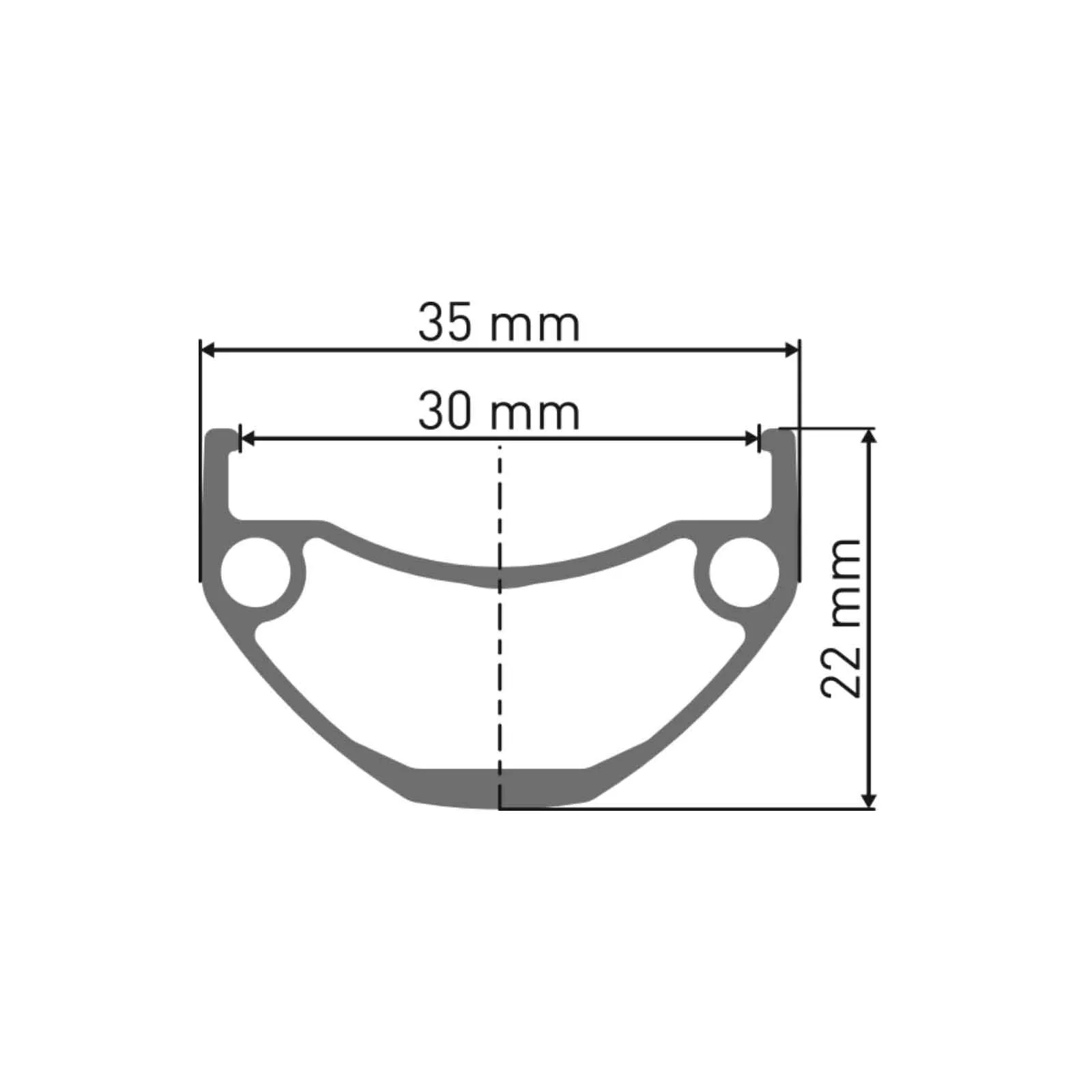

• Rim dimensions: Internal width 30 mm, external width 35 mm, height 22 mm
• Hub with oversized steel ball bearings
• DT Swiss Straight Pull spokes: cold-forged, extra-reinforced hybrid round spokes
• Nipples: DT Pro Lock aluminium nipples
• Lacing pattern: 3-cross
• Number of spokes: 28 per wheel
• Maximum tyre width: 3.0
• Required rim tape width: 32 mm
• Brake disc mount: Disc Centerlock
• Boost front hub: 15x110mm clamping width, thru-axle mounting, convertible to 12x110mm
• Weight approx. 1094g (manufacturer’s specification)
• Max. recommended system weight: 180 kg
• ASTM classification 2

Thanks to the latest developments in electric motors and e-bike concepts, it is now possible to carry even heavier loads and cover longer distances, often on uneven terrain. However, this leads to greater stress and strain on the wheels and their components.

Hybrid Utility wheels from DT Swiss have been specially developed and tested for these increased physical stresses. With an approved maximum system weight of 180 kg, these wheels offer the user lasting reliability and long-term confidence.

Technical expertise accumulated over many years has enabled DT Swiss to become a champion of new technologies, designing specific components to meet rapidly evolving requirements. Like a chain, where every link contributes to the strength of the entire system, every single component of a DT Swiss wheel has been designed with scalability in mind to enhance performance and the riding experience. Every hub on a hybrid bike has been redesigned with components which – supported by thicker spokes and reinforced rims – transfer the full power of the rider and motor directly to the ground.

DT Swiss HU 1900 Spline Hybrid Hubs:

The DT Swiss straight-pull hub bodies of the Hybrid Spline wheelsets are equipped with reinforced steel hub bodies, oversized ball bearings and reinforced spoke heads. With the optimised hub body, specially designed for extreme braking forces, and the reinforced flange, DT Swiss provides the perfect foundation for extremely stable wheelsets. Equipped with a Centerlock brake disc mount, the wheelsets are compatible with all standard systems. Centerlock adaptors for 6-hole brake discs are available separately.

DT Swiss HU 1900 Spline Hybrid Rims:

Built for tough e-bike, freeride and enduro use, the DT Swiss H 1900 rims with a 30 mm rim width offer maximum stability; the rim bed is further reinforced to easily absorb high drive forces. With a 30 mm internal rim width, tyres ranging from 2.2 to 3.0 inches in width can be fitted. Thanks to new, extra-sturdy rim spokes, the DT Swiss Spline rims are ideally designed for upgrading with a tubeless kit.

DT Swiss Hybrid 1 Straight Pull Spokes:

To achieve maximum stability, Spline wheelsets use DT Hybrid straight-pull spokes. With a reinforced spoke head of 2.34 mm to ensure durability even with a high overall system weight. They are sturdier than conventional spokes yet can still be trued and replaced using standard tools. The straight-pull lacing allows for precise placement and alignment of the spokes. This optimises wheel stiffness and eliminates any unwanted stress peaks.
