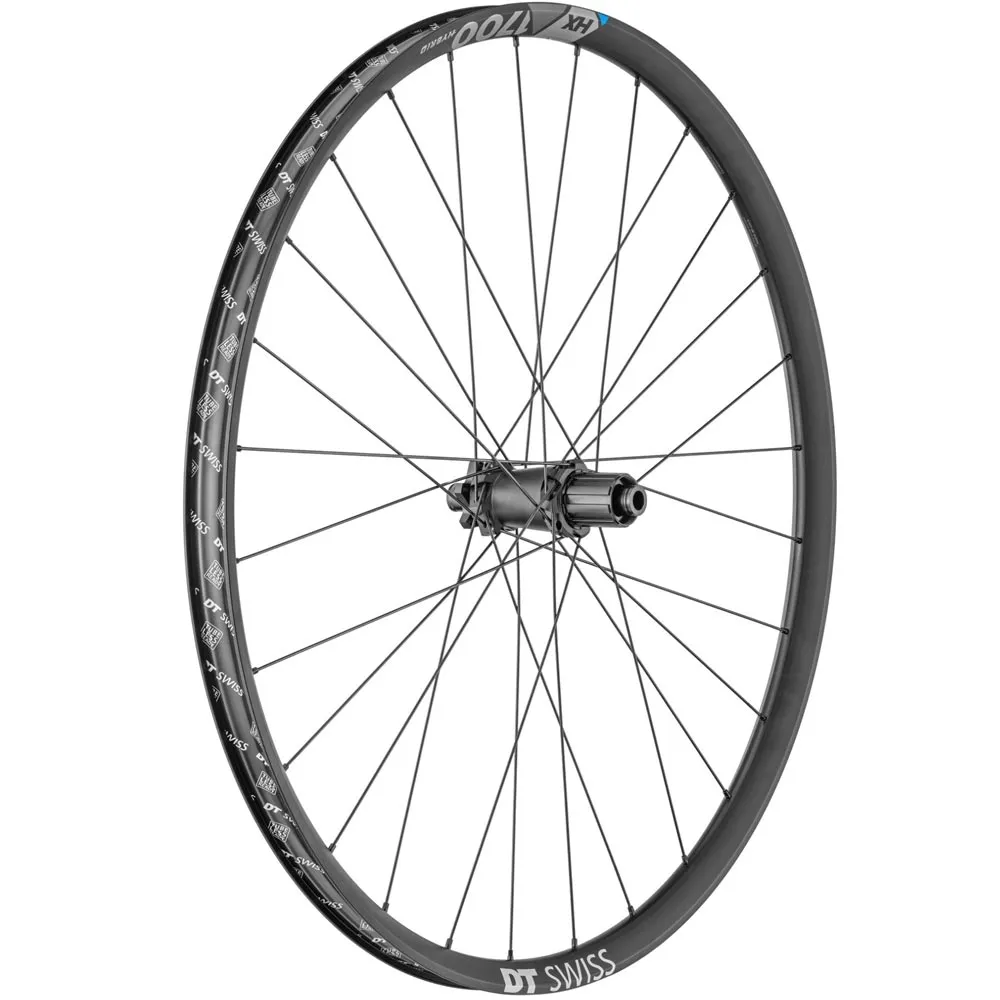

Hybrid wheel DT Swiss HX 1700 SPLINE 27.5 - 30 mm IS

The hybrid wheels with the new extra-reinforced hubs, specially optimised for e-bikes, are of course also the best choice for enduro, trail and DH use. Approved for a system weight of up to 150 kg.

Included in delivery:

• DT HX 1700 Spline 30 hybrid rear wheel, freehub body as selected, 32 mm tubeless rim tape, Tubeless Venti

DT Swiss HX 1700 Spline 30 wheel technology:

• 27.5-inch ETRTO: 584 x 30
• Rims: Aluminium tubeless-ready

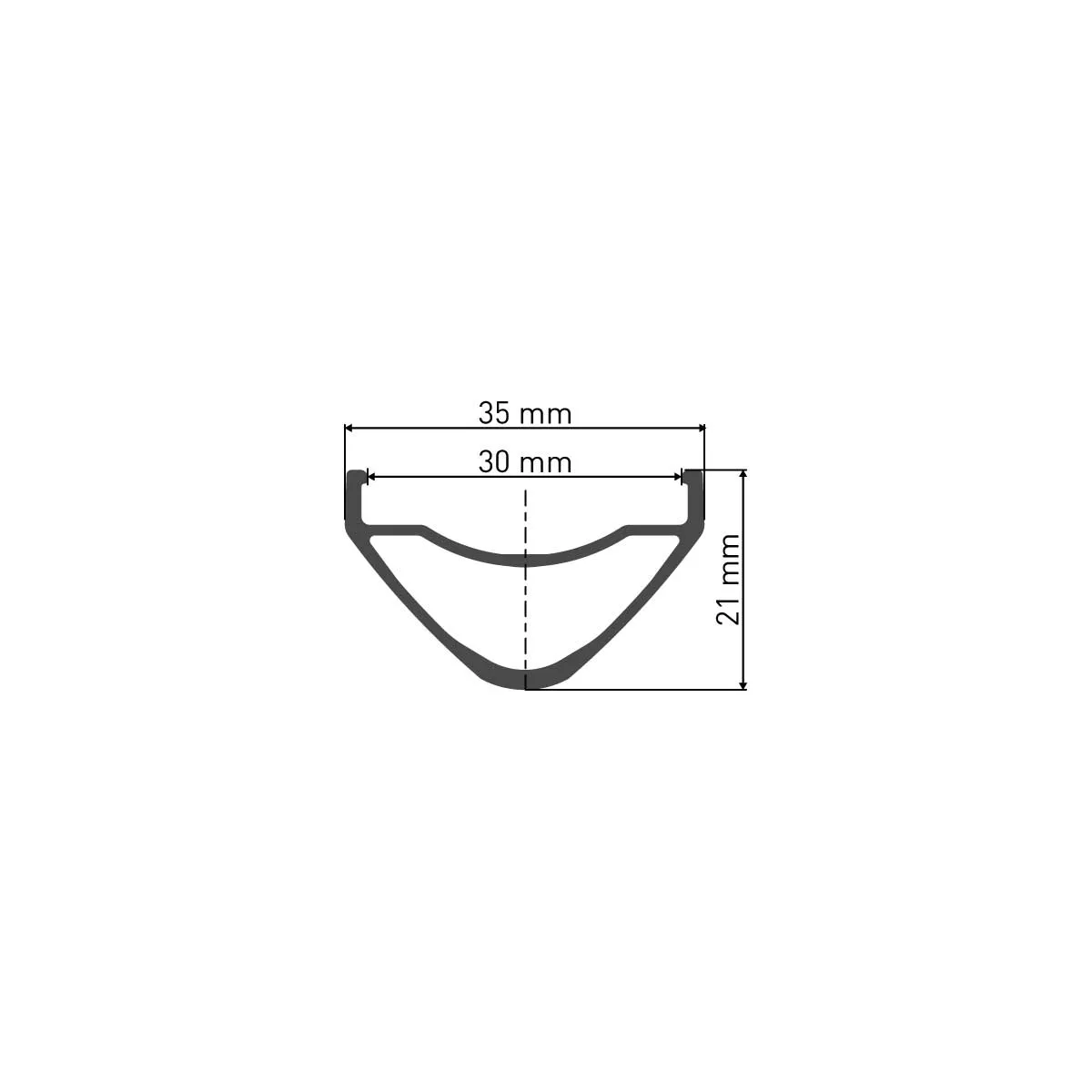

• Rim dimensions: Inner width 30 mm, outer width 35 mm
• Hub with oversized stainless steel ball bearings
• Sprocket freehub system, 24-tooth
• DT Swiss Hybrid Straight Pull spokes: cold-forged round spokes
• Nipples: DT Pro LockAlu nipples
• Lacing pattern: 3-cross
• Number of spokes: 28 per wheel
• Maximum tyre width: 3.0
• Required rim tape width: 32 mm
• Brake disc mount: 6-hole disc
• Boost rear hub: 12x148 mm clamping width for 12 mm Boost thru-axle mounting, not convertible
• Ratchet pawl freehub body available as:
  • HG10 freehub body compatible with Shimano 8–11-speed and Sram 8–10-speed MTB cassettes
  • SRAM XD freehub body compatible with SRAM 11- and 12-speed XG MTB cassettes
  • Micro Spline compatible with Shimano 12-speed MTB cassettes
• Weight approx. FR: 959 grams RB: from 1117 grams Manufacturer’s specification
• ASTM classification 4
• Maximum recommended system weight 150 kg

DT Swiss HX 1700 Spline Hybrid:

Featuring reinforced rims, more durable bearings and steel freehub bodies. The DT Swiss HX1700 Spline Hybrid, with a 30 mm flange width, oversized ball bearings, a new high-load axle, 24-tooth sprocket, steel freehub body and reinforced hub shell, is designed for significantly higher torque and offers 20 per cent greater load capacity than standard wheelsets. The legendary reliability of DT Swiss hubs and straight-pull lacing ensure long-lasting riding enjoyment.

eMTBs are designed to ride up and down mountains quickly and have fun doing so. The new HX 1700 SPLINE high-end aluminium wheelset is the ideal partner for this. Building on many years of experience in the development of eMTB components and targeted testing procedures, DT Swiss has redesigned this wheelset to meet the increased demands of modern e-mountain biking. The redesigned 350 hub features a larger hub body, which enables better braking and drive torque and results in greater robustness. The new hub is now combined with a high-quality welded aluminium rim and reinforced hybrid spokes. This wheel is available in two spoke patterns and two wheel sizes, making it suitable for all riders looking to expand their eMTB adventure.

DT Swiss HX 1700 Spline Hybrid Hubs:

Based on the DT Swiss 350 series, the DT Swiss straight-pull hub shells of the Hybrid Spline wheels feature reinforced hub shells, oversized ball bearings and reinforced spoke heads. The new design of the 350 hub features the familiar ratchet freewheel and is characterised by a larger hub body, which better absorbs high braking and drive torques, resulting in a longer service life. With the optimised hub body, specifically designed for high torque and extreme braking forces, and the reinforced flange, DT Swiss provides the perfect foundation for extremely stable e-bike and enduro-DH wheelsets.

Boost standard:

The thru-axle standard requires new hubs. The wider hub shell with the flanges positioned further out allows for wheels with greater lateral stiffness. On Boost hubs, the brake disc mount is also positioned further out. Therefore, these hubs cannot be fitted to frames with the narrower mounting dimension.

DT Swiss Ratchet Star steel freehub body:

The proven DT Swiss Ratchet System freehub in a reinforced version with 24-tooth gearing and stronger ratchet discs. The multi-tooth ratchet freehub body ensures loss-free power transmission. Thanks to the tool-free design of the DT Swiss rear hubs, they can be serviced and converted without tools. The freehub bodies are available as HG10 for Shimano and Sram 8-10-speed and Shimano 11-speed MTB cassettes.

DT Swiss H 1700 Spline Hybrid Rims:

Built for tough e-bike, freeride and enduro use, the DT Swiss H 1700 rims, with a width of 30 mm, offer maximum stability; the rim bed is further reinforced to easily absorb high drive forces. With a 25 mm rim width, tyres ranging from 2.0 to 2.6 inches in width can be fitted. Thanks to new, extra-sturdy rim spokes, the DT Swiss Spline rims are ideally designed for upgrading with a tubeless kit.

DT Swiss Straightpull Hybrid1 spokes:

To achieve maximum stability, Spline wheelsets use DT Hybrid 1 straight-pull spokes. They are more stable than conventional spokes yet can still be trued and replaced using standard tools. The straight-pull lacing allows for precise placement and alignment of the spokes. This optimises wheel stiffness and eliminates any unwanted stress peaks.

Spare parts DT Swiss HX 1700 SPLINE 27.5 - 30 mm IS 12/148 mm hybrid rear wheel:

• Tubeless ready tape 32 mm / 10 m black, Item No: TVX3210S29846S
• Presta tubeless valve, aluminium silver, MTB, Item No.: TVVXA32S25873S
• Maintenance kit, SERVICE KIT RATCHET 24T, Item No: HWTXXX00NSKTFS
• Hub/rotor seal, SEAL HUB/ROTOR Ø30x36x2.5mm, Item No.: HHXDXXX00N1131S
• Threaded ring, steel M34x1mm, RING NUT STEEL M34X1 240, Item No.: HXDXXX00N1131S
• Shim ring DIN 988 Ø28/20x0.5mm, burnished, SHIM RING, Item No: HCDXXX00S1083S
• Ball bearing 6902 Ø 15/28x7mm, B.BEARING 6902 ESB/ESNB L, Item No: HSBXXX00N2336S
• Sleeve Ø15/18x15.4mm, SPACER ALLOY 15.4MM B, Item No: HCDXXX00S1077S
• Aluminium axle 148mm, Ø15/48.2mm, RW AXLE AL 148MM Ø15/48.2MM, Item No: HCCXXX00S6450S
• DT Aluminium Nipple Squorx Pro Head Pro Lock Black, Item No: NPAH20150S0100
• Spokes left: DT Hybrid 1 straight pull BLACK 2.34/2.0 x 287, Item No: SH1S23287S0020
• Spokes, right: DT Hybrid 1 straight pull BLACK 2.34/2.0 x 283, Item No: SH1S23283S0020
• Compatible replacement rim DT Swiss HX 531, HX 531 27.5 30 mm DB VI, Item No: RDHX53BDPW28SA0570

Compatible endstops for DT Swiss Disc MTB rear wheels Boost 148:

• Thru-axle fitting HG10 freehub, 12x148 mm, Item No: HWGXXX0002193CBoost
• Thru-axle mount Sram XD freehub, 12x148mm Item No: HWGXXX00S3188S
• Thru-axle mount Shimano Micro Spline freehub, 12x148 mm, Item No.: HWGXXX00S5643S
• Boost quick-release mount HG10 freehub, 10x141 mm, Item No.: HWGXXX0001528S
• Boost quick-release mount Sram XD freehub, 10x141mm, Item No: H HWGXXX00S2790S
• Boost quick-release mount Shimano Micro Spline freehub, 10x141 mm, Item No.: HWGXXX00S2789S

Compatible freehub bodies for DT Swiss Disc MTB Hybrid rear wheels with Ratchet Steel Rotor System:

• DT Swiss Rotor Kit Steel Ratchet Shimano/Sram HG10 + End Stop for 12x142/148/157mm Thru-Axle Mounting, Item No: HWYABX00S5569S
• DT Swiss Rotor Steel Ratchet Sram XD 11-12 speed, Item No: HWRAAXWSS2356S
• DT Swiss Rotor Kit Steel Ratchet Sram XD 11-12-speed + end stop for 12x142/148/157mm thru-axle mounting, Item No.: HWYAAX00S5036S
• DT Swiss Rotor Steel Ratchet Shimano 12-speed Micro Spline + end stop for 12x142/148/157 mm thru-axle mounting, Item No: HWYABL00S4935S

Herstellerinformation: DT Swiss, Längfeldweg 101, 2504 Biel, Bern, Switzerland, https://www.dtswiss.com/
