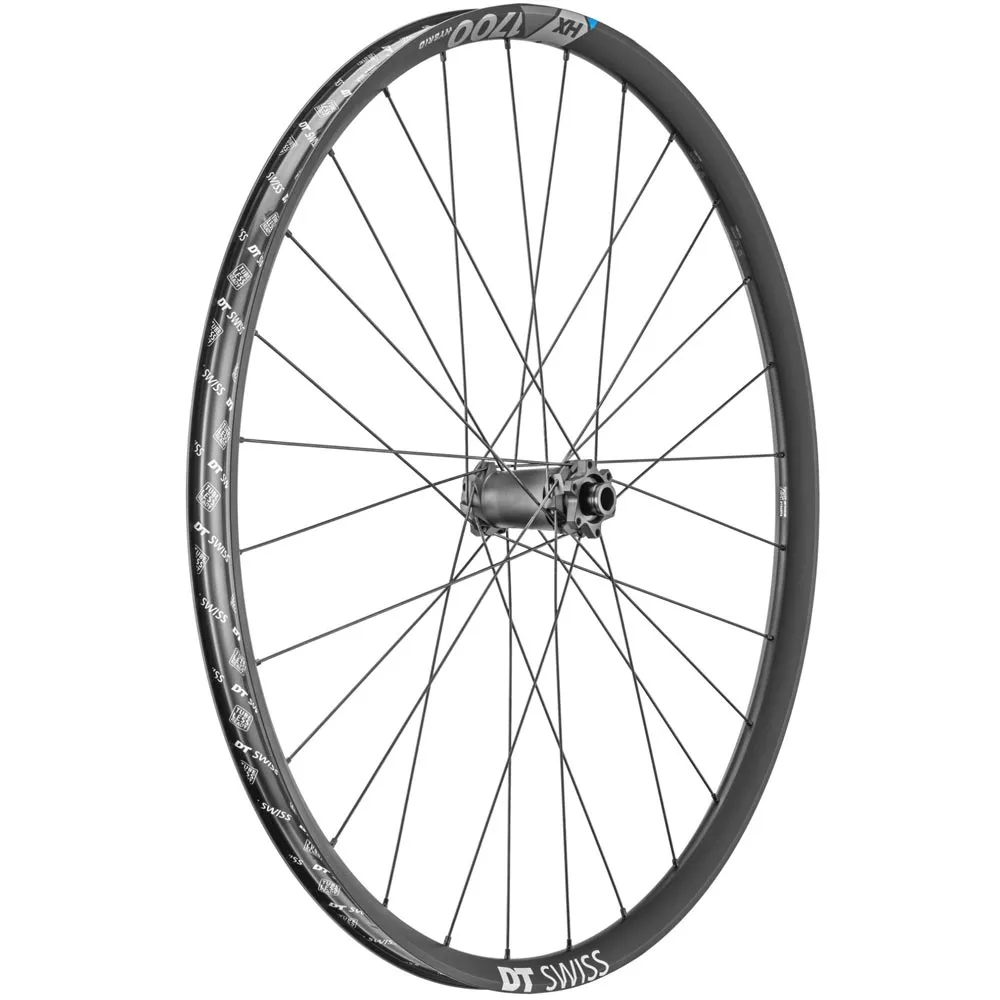

Hybrid wheel DT Swiss HX 1700 SPLINE 29–30 mm IS

The hybrid wheelsets, featuring the new extra-reinforced hubs, rims with a 30 mm rim width and high-tensile hybrid spokes, optimised for e-bikes, are naturally also the best choice for enduro, trail and DH use. Approved for a system weight of up to 150 kg.

Included in delivery:

• DT HX 1700 Spline 30 hybrid front wheel, 32 mm tubeless rim tape, tubeless valve

DT Swiss HX 1700 Spline 29-inch Boost wheel specifications:

• 29-inch ETRTO: 622 x 30
• Rims: Aluminium tubeless-ready
• Rim dimensions: Inner width 30 mm, outer width 35 mm
• Hub with oversized stainless steel ball bearings
• Sprocket freehub system, 24-tooth
• DT Swiss Hybrid Straight Pull spokes: cold-forged round spokes
• Nipples: DT Pro LockAlu nipples
• Lacing pattern: 3-cross
• Number of spokes: 28 per wheel
• Maximum tyre width: 3.0
• Required rim tape width: 32 mm
• Brake disc mount: 6-hole disc
• Boost front hub: 15x110mm clamping width for 15 mm Boost thru-axle mounting, not convertible
• Weight approx. FR: 1005 grams RR: from 1139 grams Manufacturer’s specification
• ASTM classification 4
• Maximum recommended system weight: 150 kg

DT Swiss HX 1700 Spline Hybrid:

With reinforced rims, more durable bearings and steel freehub bodies. The DT Swiss HX1700 Spline Hybrid, featuring a 30 mm flange width, oversized ball bearings, a new high-load axle, 24-tooth spline with steel freehub body and reinforced hub shell, is designed for significantly higher torque and offers 20 per cent greater load capacity than standard wheelsets. The legendary reliability of DT Swiss hubs and straight-pull lacing ensure long-lasting riding enjoyment.

eMTBs are designed to ride up and down mountains quickly and have fun doing so. The new HX 1700 SPLINE high-end aluminium wheelset is the ideal partner for this. Building on many years of experience in the development of eMTB components and targeted testing procedures, DT Swiss has redesigned this wheelset to meet the increased demands of modern e-mountain biking. The redesigned 350 hub features a larger hub body, which enables better braking and drive torque and results in greater robustness. The new hub is now combined with a high-quality welded aluminium rim and reinforced hybrid spokes. This wheel is available in two spoke patterns and two wheel sizes, making it suitable for all riders looking to expand their eMTB adventure.

DT Swiss HX 1700 Spline Hybrid Hubs:

Based on the DT Swiss 350 series, the DT Swiss straight-pull hub shells of the Hybrid Spline wheels feature reinforced hub shells, oversized ball bearings and reinforced spoke heads. The new design of the 350 hub features the familiar ratchet freewheel and is characterised by a larger hub body, which better absorbs high braking and drive torques, resulting in a longer service life. With the optimised hub body, specifically designed for high torque and extreme braking forces, and the reinforced flange, DT Swiss provides the perfect foundation for extremely stable e-bike and enduro-DH wheelsets.

Boost standard:

The thru-axle standard requires new hubs. The wider hub shell with the flanges positioned further out allows for wheels with greater lateral stiffness. On Boost hubs, the brake disc mount is also positioned further out. Therefore, these hubs cannot be fitted to frames with the narrower mounting dimensions.

DT Swiss Ratchet Star steel freehub body:

The proven DT Swiss Ratchet System freehub in a reinforced version with 24-tooth gearing and stronger ratchet discs. The multi-tooth ratchet freehub body ensures loss-free power transmission. Thanks to the tool-free design of the DT Swiss rear hubs, they can be serviced and converted without tools. The freehub bodies are available as HG10 for Shimano and Sram 8-10-speed and Shimano 11-speed MTB cassettes.

DT Swiss H 1700 Spline Hybrid Rims:

Built for tough e-bike, freeride and enduro use, the DT Swiss H 1700 rims, with a width of 30 mm, offer maximum stability; the rim bed is further reinforced to easily absorb high drive forces. With a 25 mm rim width, tyres ranging from 2.0 to 2.6 inches in width can be fitted. Thanks to new, extra-sturdy rim spokes, the DT Swiss Spline rims are ideally designed for upgrading with a tubeless kit.

DT Swiss Straightpull Hybrid1 spokes:

To achieve maximum stability, Spline wheelsets use DT Hybrid 1 straight-pull spokes. They are more stable than conventional spokes yet can still be trued and replaced using standard tools. The straight-pull lacing allows for precise placement and alignment of the spokes. This optimises wheel stiffness and eliminates any unwanted stress peaks.

Spare parts DT Swiss HX 1700 SPLINE 29–30 mm IS 15/110 mm hybrid front wheel:

• Tubeless ready tape 32 mm / 10 m black, Item No: TVX3210S29846S
• Presta tubeless valve, aluminium silver, MTB, Item No.: TVVXA32S25873S
• End stops 15x110mm, FW ADAPT KIT 100/TA15 B 350/370, Item No: HWGXXX0004785S
• End stops 15x110mm, FW ADAPT KIT Torque Caps 100/TA15 B 350/370, Item No: HWGXXX0009100S
• Ball bearing 6902 Ø 15/28x7mm, B.BEARING 6902 ESB/ESNB L, Item No: HSBXXX00N2336S
• Spacer Ø15.2/19x67.2mm, SPACER Ø15MM x 67.2MM, Item No: HXD00000N6567C
• DT Aluminium nipple Squorx Pro Head Pro Lock black, Item No: NPAH20150S0100
• Spokes left: DT Hybrid 1 straight pull BLACK 2.34/2.0 x 304, Item No: SH1S23304S0020
• Spokes, right: DT Hybrid 1 straight pull BLACK 2.34/2.0 x 304, Item No: SH1S23304S0020
• Compatible replacement rim DT Swiss HX 531, HX 531 29 30 mm DB VI, Item No: RDHX53CDPW28SA5988

Herstellerinformation: DT Swiss, Längfeldweg 101, 2504 Biel, Bern, Switzerland, https://www.dtswiss.com/
