27.5-inch wheel set DT Swiss 350

The front wheel featuring DT Swiss 350 Classic hubs and tubeless-ready rims from DT Swiss. Hand-built in our specialist workshop. You can customise this wheelset entirely to your specifications.

Wheel building at TNC-Hamburg:

We manufacture these wheels entirely by hand for you. Thanks to more than 30 years’ experience in wheel building, we extract the optimum in concentricity, durability and stiffness from the materials. These wheels are, of course, tested multiple times; we also pre-load the spokes in both the radial and lateral directions. This eliminates the need for re-truing over a long period.

These wheelsets are made to order specifically for you, which is why we cannot offer a right of return for them. Please feel free to enquire about other wheelset configurations. We will then provide you with a quote.

DT Swiss 350 MTB Disc 6-hole front hub specifications:

• Housing material: Aluminium
• Axle: Aluminium
• Industrial ball bearings
• Seal-less sealing system
• Weight from 172 grams
• Available as:
  • 9x100 mm quick-release mount
  • 15x100 mm thru-axle mount
  • DH 20x110 mm thru-axle mount
  • Boost 15x110 mm thru-axle mount
  • Super Boost 20x110 mm thru-axle mount

Available DT Swiss rims for this wheel:

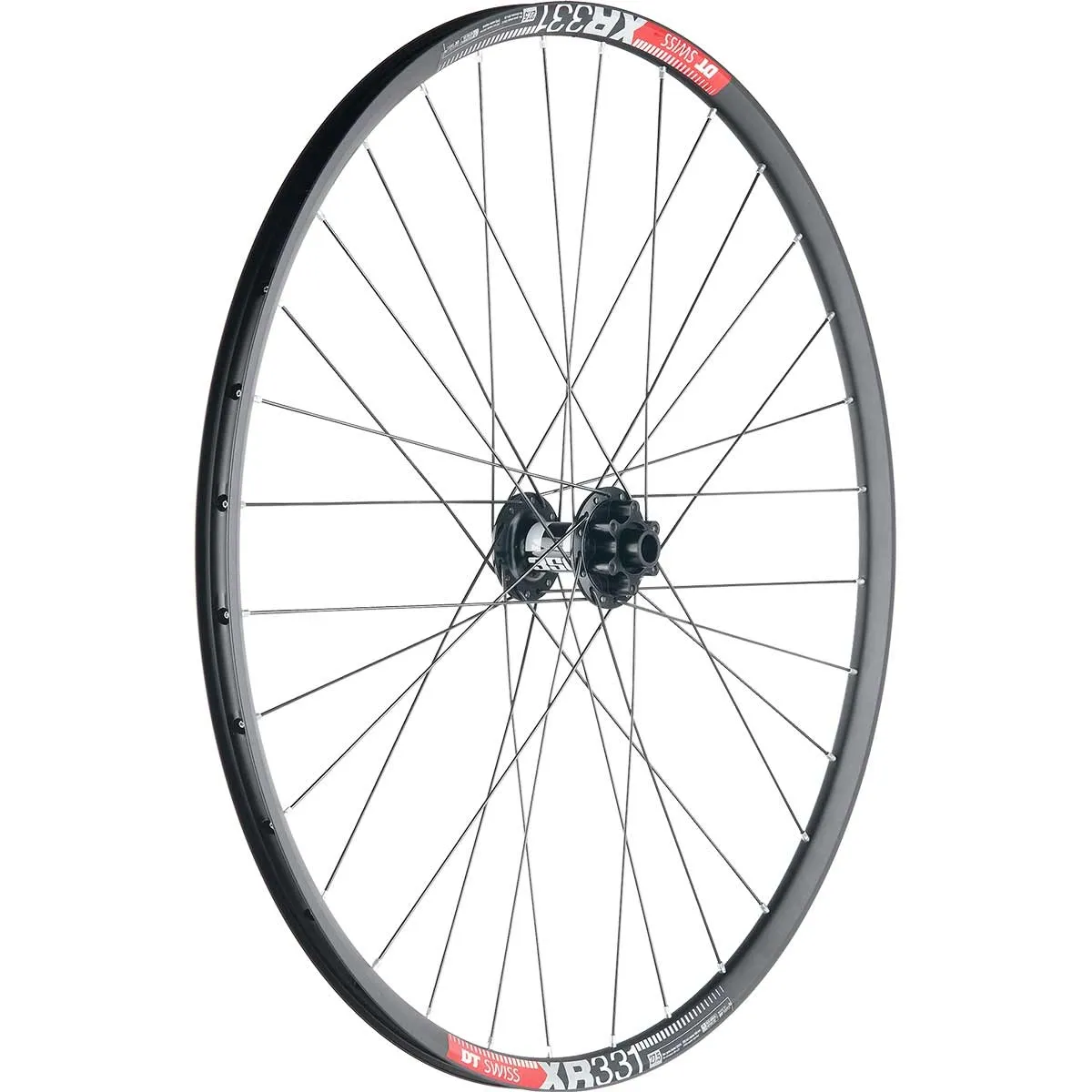

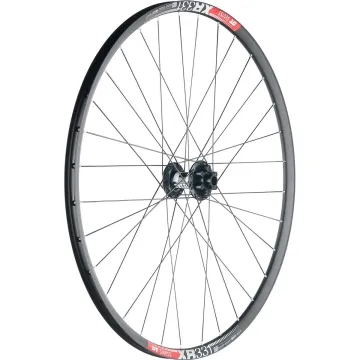

• DT Swiss XR 331 rim, the lightweight All Mountain CC rim from DT Swiss
  Width: 20 mm (internal) 24 mm (external), weight 355 grams including Squorx Pro Head nipples
• DT Swiss XM 401 rim, the all-mountain and enduro rim from DT Swiss
  Width: 22.5 mm (internal) 24 mm (external), weight 430 grams including Squorx Pro Head nipples
• DT Swiss XM 481 rim, the wide and lightweight Enduro rim from DT Swiss
  Width: 30 mm (internal) 35 mm (external), weight 490 grams including Squorx Pro Head nipples
• DT Swiss XM 521 rim, the wide Enduro rim from DT Swiss
  Width: 35 mm (internal) 40 mm (external), weight 545 grams including Squorx Pro Head nipples
• DT Swiss XM 521 rim, the super-wide Enduro rim from DT Swiss
  Width: 40 mm (internal) 45 mm (external), weight 595 grams including Squorx Pro Head nipples

DT Swiss 350 Classic hubs

With the 350 hubs, DT Swiss offers affordable, high-quality hubs. From road bike to downhill versions, the 350 hub range is designed for maximum durability. Equipped with high-quality seals and bearings, they are the ideal choice if you are looking for hubs for durable, low-maintenance wheelsets. The DT 350 rear hubs are also fitted with DT’s patented Ratchet Star freehub system. Two toothed discs mesh together to guarantee loss-free power transmission. Thanks to the raised hub flanges, the DT Swiss 350 hubs provide wheelsets with excellent lateral stiffness and durability.

DT Swiss tubeless-ready rims:

The new generation of DT Swiss rims, featuring an excellent stiffness-to-weight ratio and a new rim design. These rims are supplied with DT Squorx Pro Head nipples and must only be laced using these nipples and washers. The DT Swiss XR 331, XM 401 and EX 475 rims are equipped with specially adapted rim flanges for tubeless tape and can be easily upgraded to lightweight tubeless rims using DT Swiss tubeless tape

DT Competition spokes:

The double cold-forged spoke made from rust-resistant 18/10 chrome-nickel steel with a tapered middle section for robust, lightweight wheelsets. We recommend these spokes for virtually all wheelsets. Extremely durable and sufficiently lightweight, the DT Competition spokes enable wheel building of the highest standard. Thanks to the tapered section, the spokes absorb movements in the wheel exceptionally well, without compromising on lateral stiffness or durability. Weight with nipple approx. 7 grams

DT Swiss Aero Comp spokes:

Designed for stable, laterally stiff yet aerodynamic wheelsets, the DT Swiss Aero Comp spoke in the straight-pull version is first cold-forged in the middle section, making it lighter and stronger. In a further complex process, it is flat-forged to optimise aerodynamic properties whilst simultaneously increasing material strength. The DT Aero Comp guarantees a balanced combination of stiffness, aerodynamics and durability.

DT Swiss Aero Lite spokes:

The DT Swiss Aerolite spoke is flatter and lighter than any other; the DT Swiss Aerolite spoke features an aerodynamic flat profile and is extremely lightweight. Thanks to the 0.9 x 2.3 mm aerodynamic mid-section, this spoke can be fitted to all standard hubs. The Cold Forging Technology (CFT) developed by DT Swiss makes the reduced and forged DT Aerolite the lightest stainless steel spoke and gives it excellent mechanical properties. Particularly suitable for super-light and fast road or cross-country wheelsets. 64 DT Aerolite spokes weigh an incredible 278 g at a length of 264 mm. Weight per spoke at a length of 264 mm: 4.31 grams
