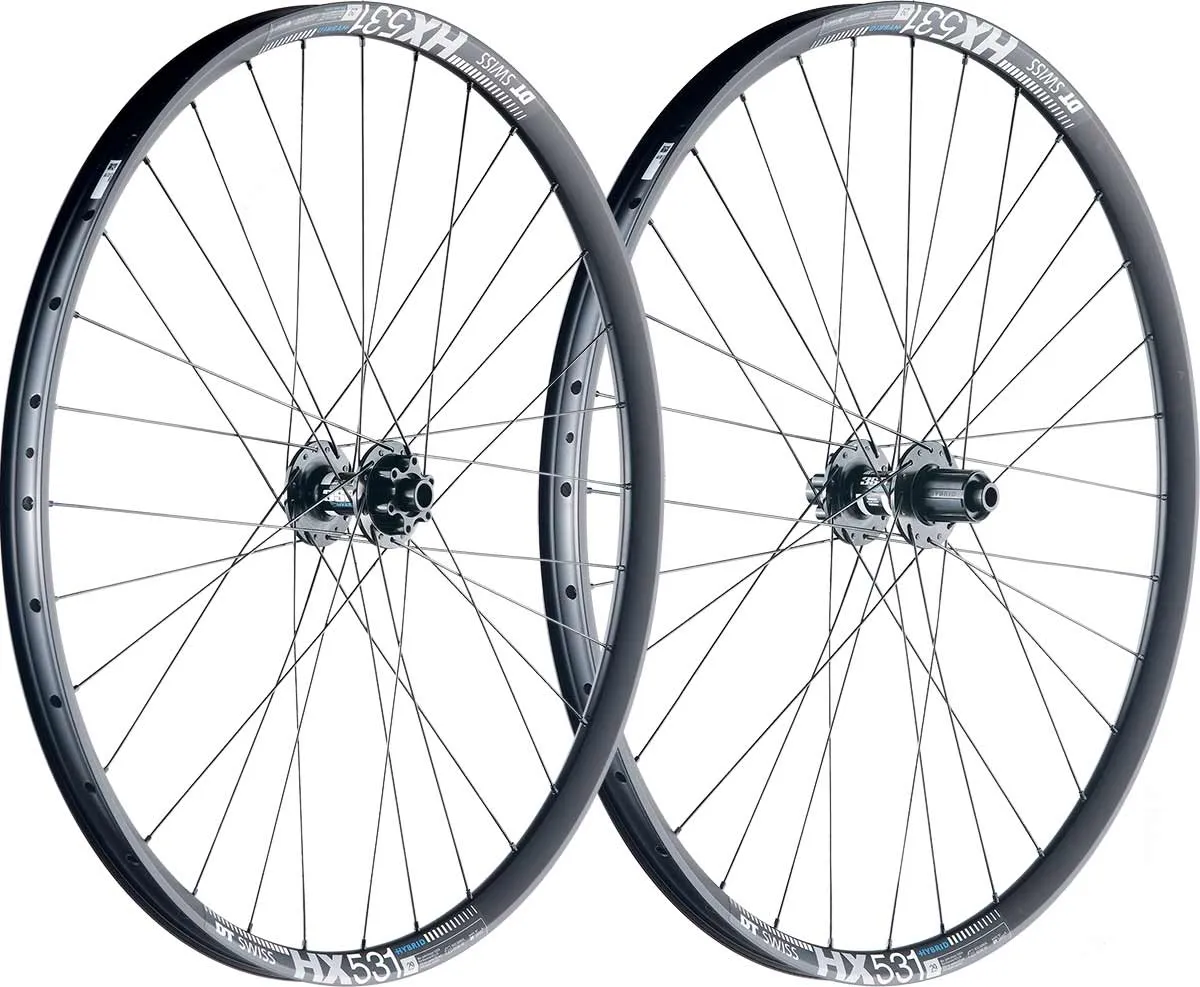

DT Swiss 350 Hybrid Hub and HX 531 Rim Wheel Set

The wheelset for e-bikes featuring HX 531 rims and DT Swiss 350 Hybrid hubs with reinforced axles and flanges. We offer the wheelset in the classic quick-release version and for thru-axles, including the Boost version. The freehub bodies are available for HG, SRAM XD and Micro Spline cassettes

Wheel building at TNC-Hamburg:

We hand-build these wheels exclusively for you. Thanks to over 30 years’ experience in wheel building, we extract the optimum in roundness, durability and stiffness from the materials. These wheels are, of course, pressure-tested multiple times, and we also pre-load the spokes in both the radial and lateral directions. This eliminates the need for re-truing over a long period. We use DT Swiss spokes exclusively. These ensure outstanding durability of the wheels. For DH and Enduro use, we recommend brass nipples.

These wheels are made to order for you, so we cannot offer a right of return for them. We do not offer cash on delivery for these wheels.

Included in delivery:

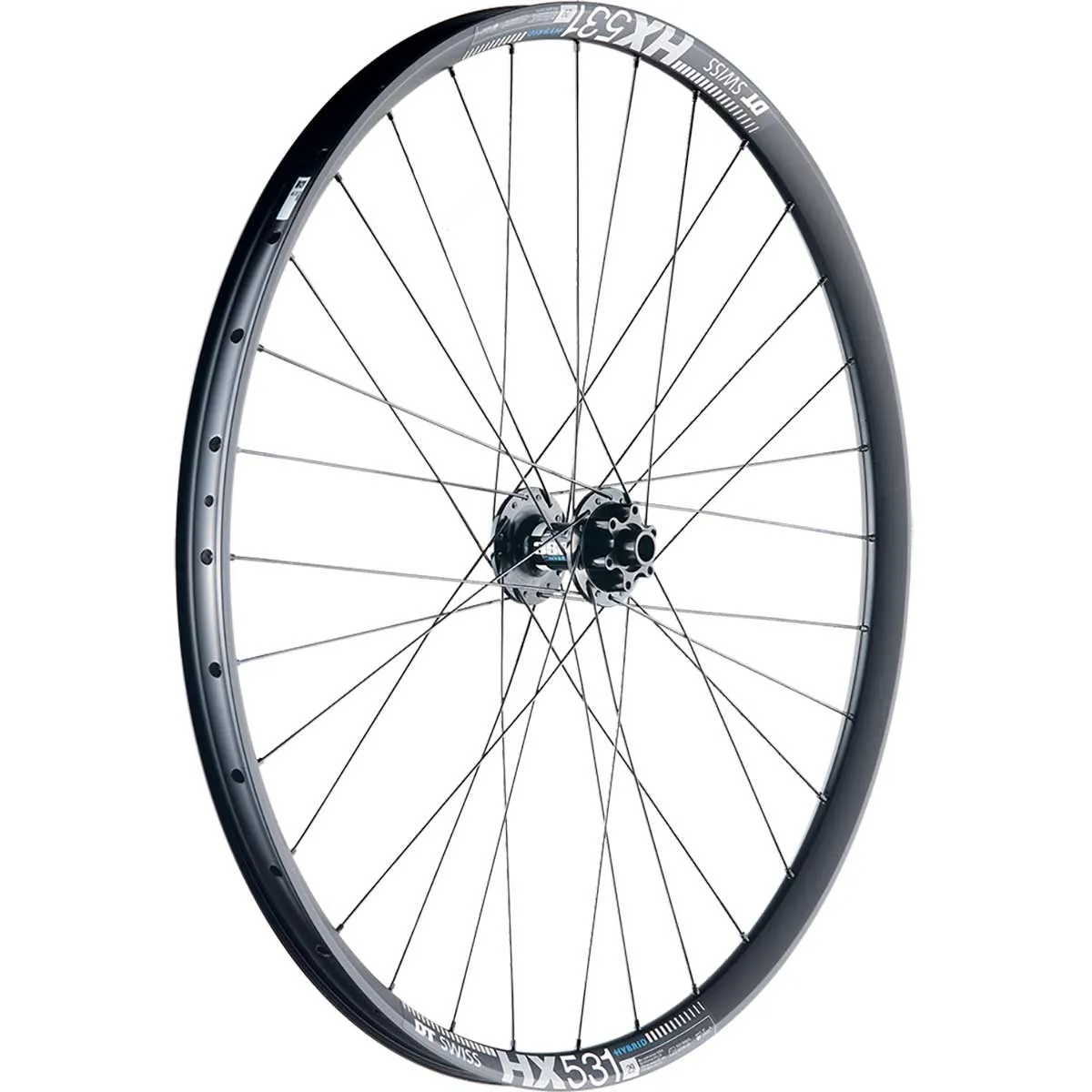

• Front wheel fully laced and hand-trued in our workshop, with DT 350 Hybrid hub, DT spokes, DT nipples and DT Swiss HX rims as selected. Excludes rim tape and valve

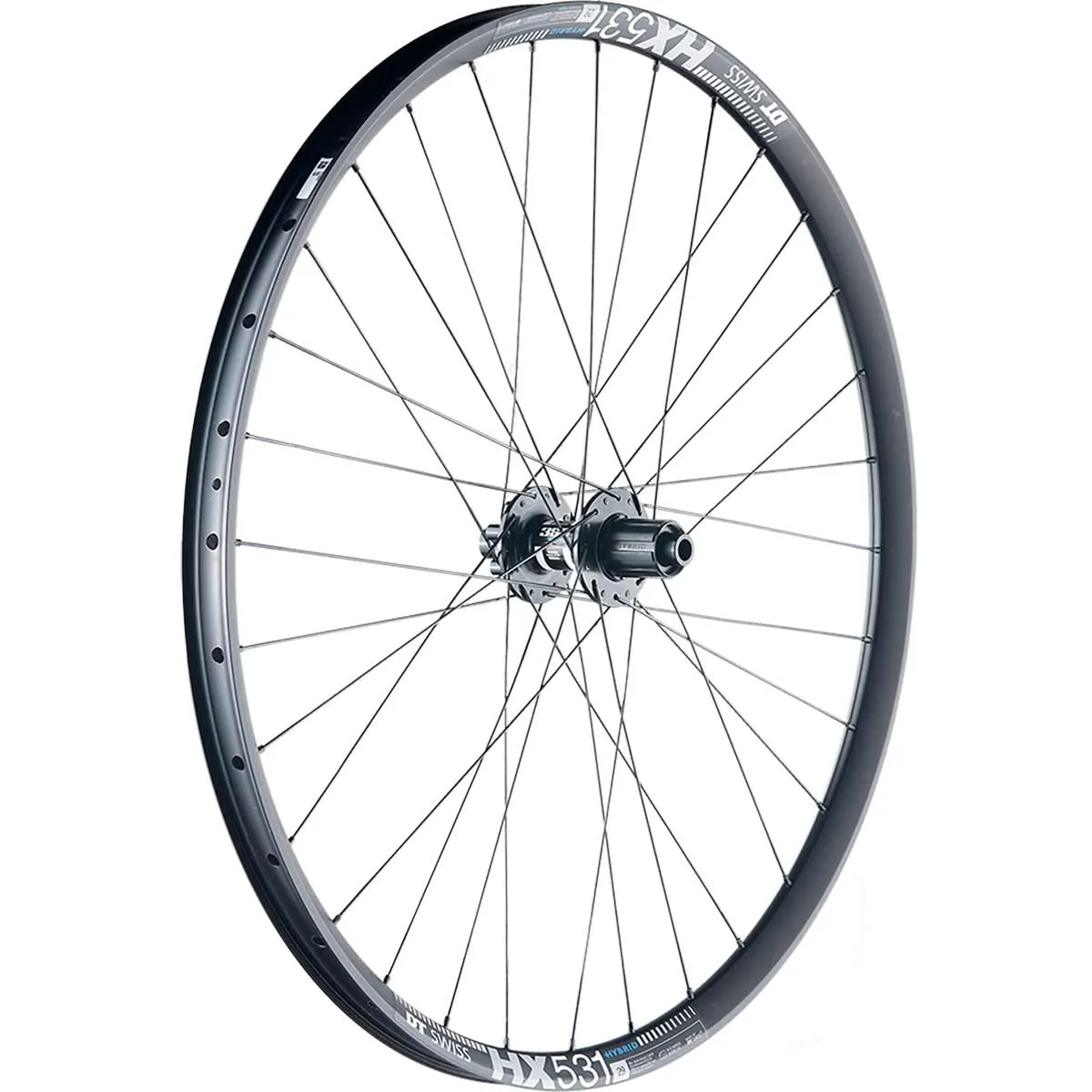

• Rear wheel fully laced and hand-trued in our workshop, with DT 350 Hybrid hub, DT spokes, DT nipples and DT Swiss HX rims as selected. Excludes rim tape and valve

Please feel free to enquire about other wheel configurations. We will then send you a quote.

Available DT 350 Hybrid front wheel hubs:

• Quick-release mount, 9x100 mm, convertible to 15x100 and 12x100 mm thru-axle mount
• Thru-axle mount, 15x100 mm, convertible to 12x100 mm thru-axle mount and 9x100 mm quick-release mount
• Boost thru-axle mount, 15x110 mm, not convertible

DT Swiss 350 Hybrid MTB Disc 6-hole front hub technology:

• Housing material: Aluminium
• Axle: Aluminium
• Industrial ball bearings
• Classic J-bend spoke lugs
• Seal-less sealing system
• Weight from 192 grams

DT Swiss 350 Hybrid MTB Disc 6-hole rear hub technology:

• Housing material: Aluminium
• Freewheel body: Aluminium with 2 sprockets, specially coated
• Axle: Aluminium
• Industrial ball bearings
• Classic J-bend spoke lugs
• Seal-less sealing system
• Weight from 272 grams

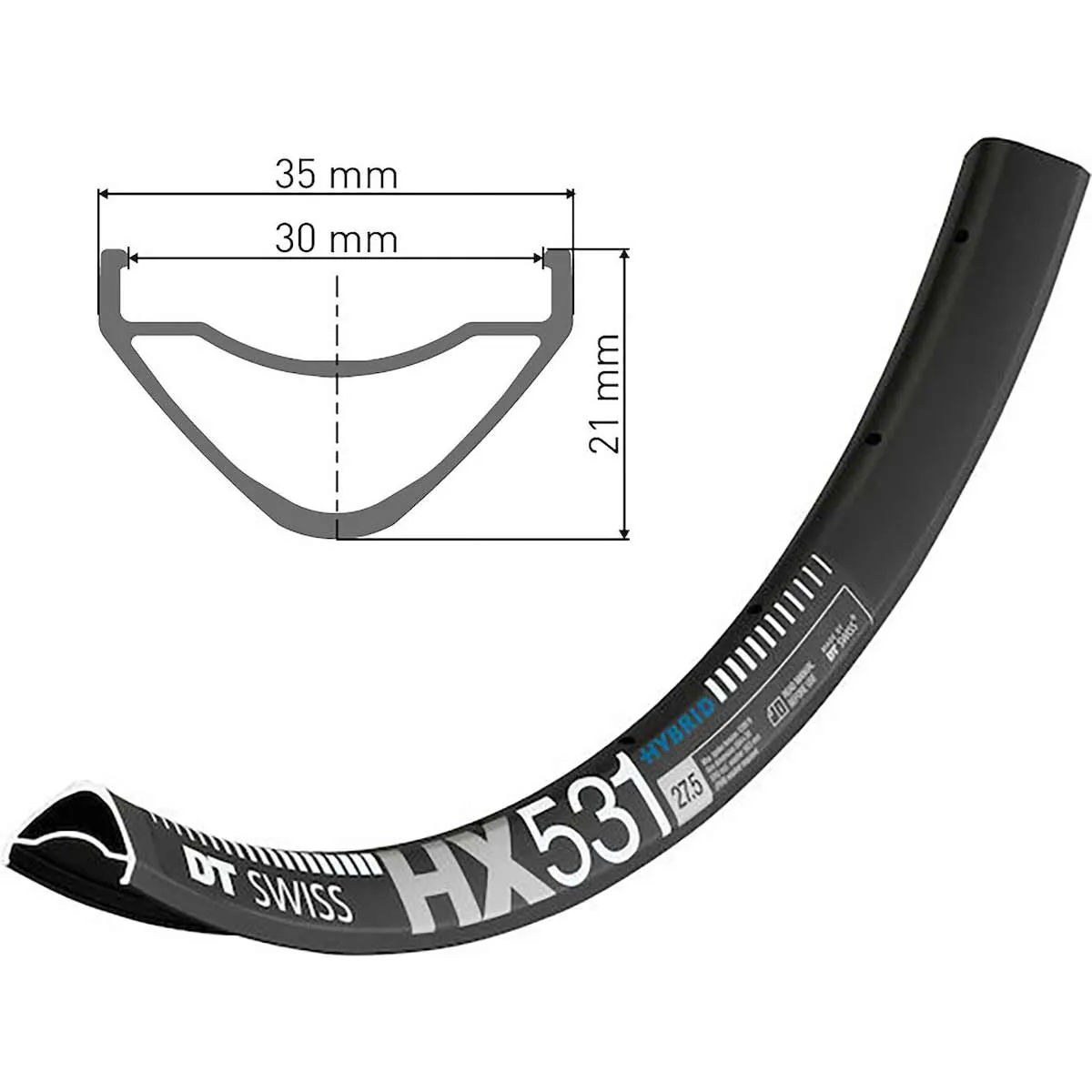

DT Swiss HX 531 Hybrid Disc Rims Specifications:

• ETRTO: 584 x 30, 650B
• ERD: 563 mm
• Aluminium rim, single-spoke
• Width: 30 mm (internal), 35 mm (external) Height: 21 mm
• Maximum recommended tyre width: 2.8
• Valve hole 6.5 mm
• Recommended rim tape: 584 x 32 mm
• Weight: 555 grams
• Max system weight 150 kg

Hubs: DT Swiss 350 Hybrid Disc 6-hole hubs

With the 350 Hybrid hubs, DT Swiss offers affordable, high-quality hubs for e-bike use, featuring reinforced axles, bearings, spoke holes and freehub bodies. The 350 hub range is designed for maximum durability. Equipped with high-quality seals and bearings, they are the choice if you are looking for hubs for long-lasting and low-maintenance wheelsets. These hubs are not only suitable for e-bikes but are also very well suited to high-load dirt, DH and enduro bikes

DT Competition spokes:

The double cold-forged spoke made from rust-resistant 18/10 chrome-nickel steel with a tapered middle section for robust, lightweight wheels. We recommend these spokes for virtually all wheels. Extremely durable and sufficiently lightweight, DT Competition spokes enable wheel building of the highest standard. Thanks to the tapered middle section, the spokes absorb movement in the wheel exceptionally well, without compromising on lateral stiffness or durability. Weight with nipple approx. 7 grams.

DT Swiss HX 531 rim:

The DT Swiss HX 531 hybrid rims, with a width of 35 mm, offer maximum stability; the rim bed is further reinforced to easily absorb high drive forces. With an internal rim width of 30 mm, tyres ranging from 2.2 to 3.0 mm in width can be fitted. Thanks to new, extra-sturdy rim beads, the DT Swiss Spline rims are ideally designed for upgrading with a tubeless kit

DT Swiss Squorx Pro Head spoke nipples:

The DT Squorx Pro Head nipple combines ease of installation, light weight and optimal performance in a single product. The Torx head makes lacing flat spokes a breeze. The spherical contact surface ensures perfect alignment with the spoke, whilst the square section allows for easy re-centring using standard tools with the tyre fitted. The washers ensure even pressure distribution and long-lasting durability

Compatible end caps
for DT Swiss 350 Disc MTB QR 15x100 mm front hub; Boost quick-release and 20x110 mm thru-axle hubs cannot be converted:

• Quick-release fitting 9x100 mm: Item No. HWGXXX00S3801S
• Thru-bolt mounting 9x100 mm: Item No. HWGXXX00S3803S
• QR12 thru-axle fitting 12x100 mm: Item No. HWGXXX00S6885S
• QR15 thru-axle mount 15x100 mm: Item No. HWGXXX0004785S

Compatible end stops
for DT Swiss 350 Disc MTB rear hubs; Boost hubs cannot be converted:

• Quick-release mount HG10 freehub, 10x135 mm: Item No. HWGXXX0001528S
• Quick-release mount Sram XD freehub, 10x135 mm: Item No.HWGXXX00S3115S
• Thru-bolt mounting HG10 freehub, 10x135 mm: Item No. HWGXXX0004634S
• Thru-bolt mount Sram XD freehub, 10x135 mm: Item No. HWGXXX00S3218S
• QR12 thru-axle mount HG10 freehub, 12x135 mm: Item No. HWYXXX0001287S
• QR12 Thru-Axle Mount Sram XD Freewheel, 12x135 mm: Item No.HWGXXX00S3382S
• X12 thru-axle mount HG10 freehub, 12x142 mm: Item No. HWGXXX0002193C
• X12 thru-axle mount Sram XD freehub, 12x142 mm: Item No. HWGXXX00S3188S

Compatible DT Swiss MTB Ratchet
Star freehub body:

• DT Swiss freehub body, aluminium, MTB Ratchet Star, Shimano/Sram HG10, Item No. HWRBBX00S1074S
• DT Swiss Hybrid Steel MTB Ratchet Star Freewheel Body Shimano/Sram HG10H, Item No. HWRABX00S6530S
• DT Swiss freehub body, hybrid steel, MTB Ratchet Star, Sram XD 11-12-speed, item no. HWRAAXWSS2356S
• DT Swiss Freewheel Body Hybrid Steel MTB Ratchet Star Shimano 12-speed Micro Spline for X12x142/148/157mm thru-axle mounting, Item No. HWRABL00S0758S
• DT Swiss Freewheel Body Kit Aluminium Ratchet Star Sram XD 11-12-speed end stop for 10x135mm quick-release mounting, Item No. HWYAAX00S3115S
• DT Swiss Freehub Body Kit Aluminium Ratchet Star SRAM XD 11-12-speed end stop for X12x142/148/157mm thru-axle mounting, Item No. HWYAAX00S3188S
• DT Swiss Freehub Body Kit Aluminium Ratchet Star SRAM XD 11-12-speed end stop for X12x135 or 12x150mm thru-axle mounting, Item No. HWYAAX00S3382S
• DT Swiss freehub body, steel, MTB Ratchet Star, Shimano 12-speed Micro Spline for X12x142/148/157mm thru-axle mounting, item no. HWYABL00S4935S
