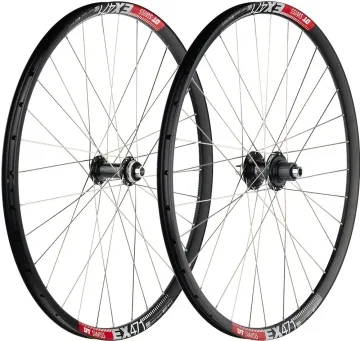

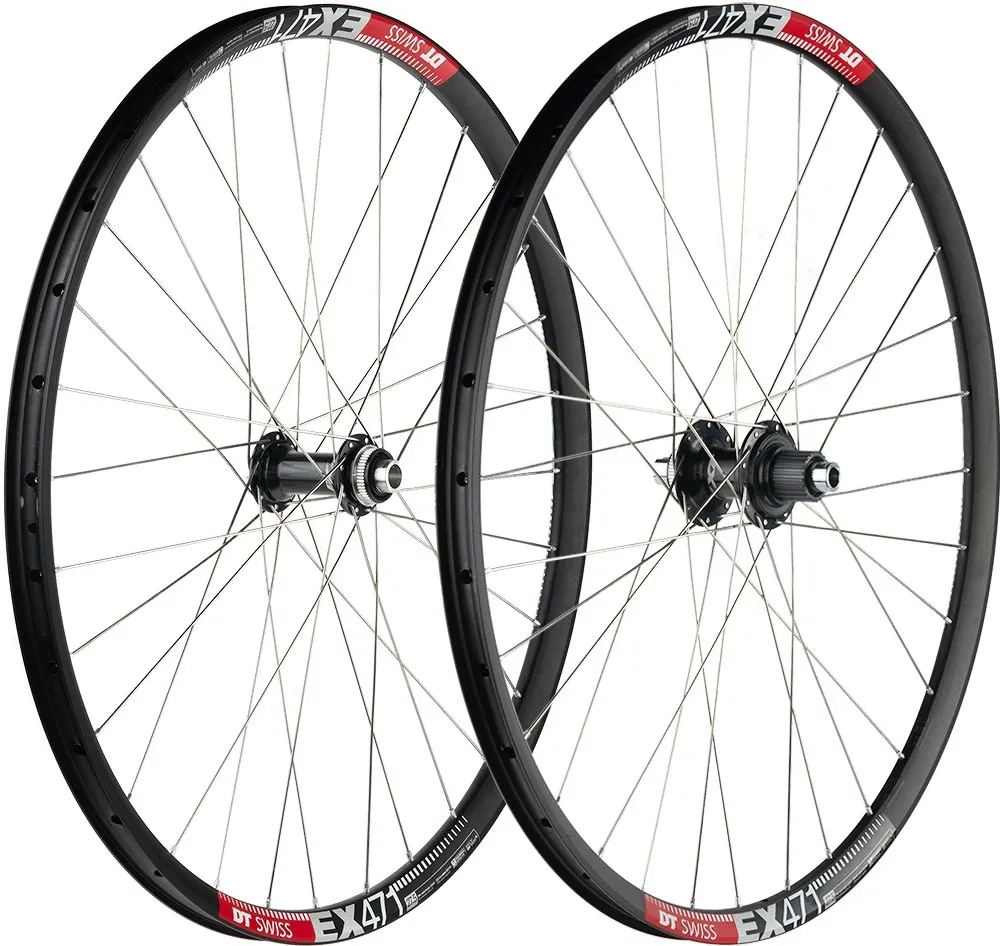

Shimano Deore XT 8110 hub wheelset, 12-speed Micro Spline – DT Swiss EX 471

The wheelset for all-mountain to enduro use with a 25 mm rim width. The EX 471 DT Swiss enduro rim is suitable for tyres up to 2.5” wide, and the robust Shimano XT hubs from the 12-speed series, featuring the Micro Spline freehub body, are highly durable and low-maintenance. The Shimano Deore XT M8110 hubs allow the wheelset to be configured with either standard or Boost hubs.

Wheel building at TNC-Hamburg:

We hand-build these wheels exclusively for you. Thanks to over 30 years’ experience in wheel building, we extract the optimum in truing, durability and stiffness from the materials. These wheels are, of course, tested multiple times for truing, and we also pre-load the spokes in the longitudinal direction. This eliminates the need for re-truing over a long period of time. We use exclusively DT Swiss spokes and DT Swiss Pro Lock spoke nipples. This is the only way we can guarantee that you will not experience any spoke breaks, even after many years.

These wheelsets are made to order specifically for you, which is why we cannot offer a right of withdrawal for them. The handmade wheelsets are not eligible for a discount.

Shimano XT M8110 hubs:

With the Deore XT hubs, Shimano offers classic cone-bearing MTB hubs that are extremely durable and easy to maintain. Super-polished raceways and balls, double high-performance seals and easy adjustability ensure years of riding enjoyment. Recommended for a wide range of applications from MTB to gravel and touring, the XT hubs provide a solid foundation for high-quality wheelsets. The new XT rear hubs with the Micro Spline freehub body for Shimano 12-speed MTB cassettes are only compatible with these. The raised hub flange significantly improves lateral stiffness.

Shimano Micro Spline 12-speed freehub body:

the first new freehub body system since the introduction of the HG10 freehub bodies almost 20 years ago. The fine-pitch gearing ensures a perfect fit for the new Shimano 12-speed MTB cassettes. Not compatible with older Shimano HG cassettes.

The Micro Spline freehub body reduces weight when used with a lightweight cassette hub, with the smallest sprocket having 10 teeth. Smaller and more widely spaced teeth prevent sprocket damage on the freehub body, which is made from lightweight aluminium.

Rim: DT Swiss E 532 Disc

Wide profiles thus offer an alternative for even the most demanding endurance riders, both in terms of price and performance. As a close relative of our EWS-winning welded rims, the E 532 packs the materials and technologies used by the world’s fastest racers into an affordable rim for the enthusiastic amateur rider.

The DT Swiss rims are equipped with rim flanges adapted for tubeless tape and can be easily upgraded to lightweight tubeless rims using DT Swiss tubeless tape

DT Competition Spokes:

The double cold-forged spoke made from rust-resistant 18/10 chrome-nickel steel with a tapered middle section for robust, lightweight wheelsets. We recommend these spokes for virtually all wheelsets. Extremely durable and sufficiently lightweight, the DT Competition spokes enable wheel building of the highest standard. Thanks to the tapered section, the spokes absorb movements in the wheel exceptionally well, without compromising on lateral stiffness or durability. Weight with nipple approx. 7 grams

DT Competition Race spokes:

Just as versatile as the bent version of the DT Competition spoke, but in a straight design. They are optimally matched to the new straight-pull hubs and offer even greater durability compared to the conventional DT Competition spoke. Thanks to the extra-thin middle section, they save a further 70 g per wheel compared to the already lightweight DT Competition, whilst offering almost the same stiffness and durability.

DT Swiss Aero Comp spokes:

Designed for stable, laterally stiff yet aerodynamic wheelsets, the DT Swiss Aero Comp spoke in the straight-pull version is first cold-forged in the middle section, making it lighter and stronger. In a further complex process, it is flat-forged to optimise aerodynamic properties whilst simultaneously increasing material strength. The DT Aero Comp guarantees a balanced combination of stiffness, aerodynamics and durability.

Shimano XT HB-M8110 hub technology:

• super-polished running surfaces
• Centerlock brake disc mount
• Boost 15x110mm or 15x100mm clamp width for thru-axles
• Weight approx. 158 grams

Shimano XT FH-M8110 Hub Technology:

• Aluminium axle
• Super-polished raceways
• Micro Spline freehub body compatible with Shimano 12-speed MTB sprockets
• Boost 12x148 mm or 12x142 mm clamp width for Boost thru-axle installation
• Weight approx. 384 grams

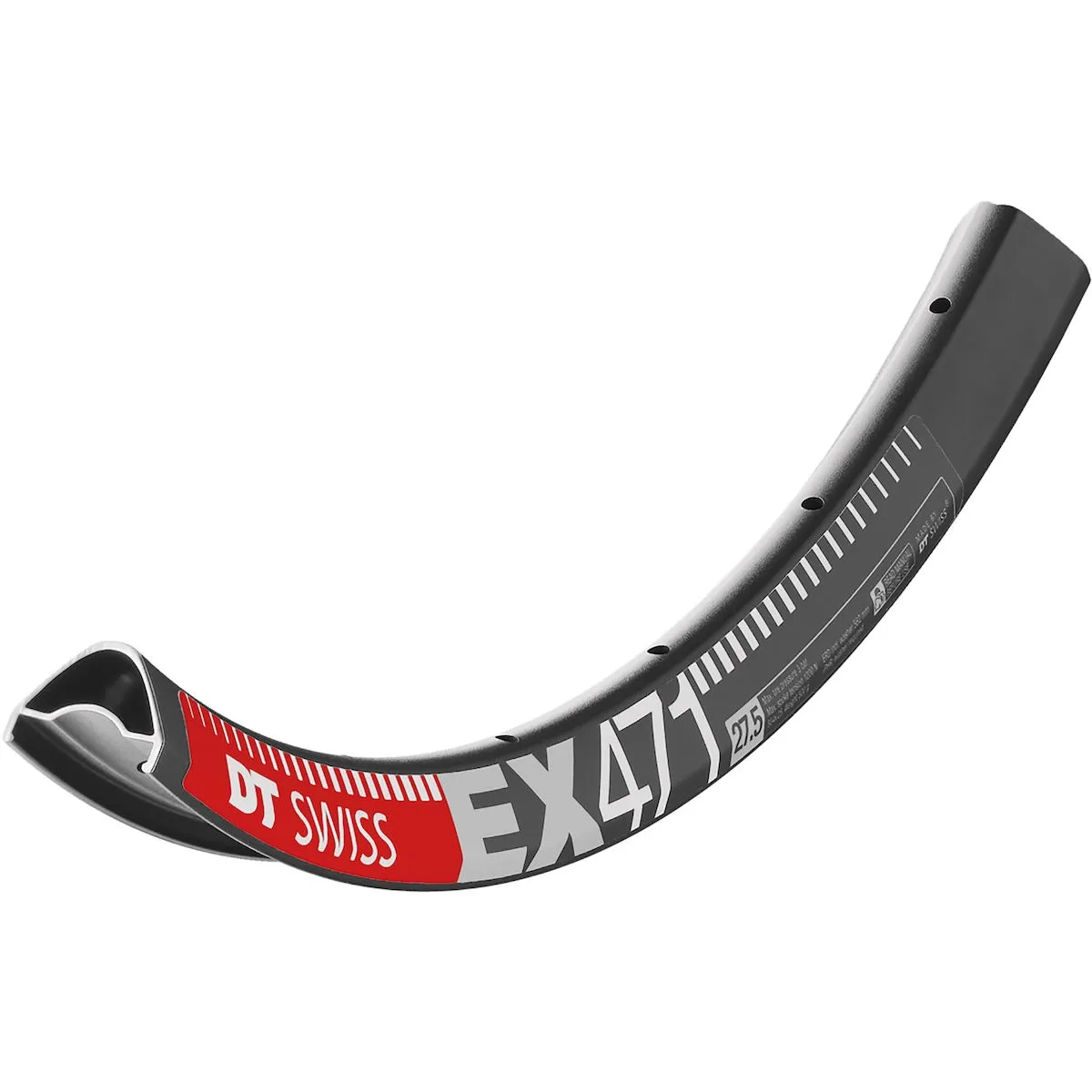

DT Swiss EX 471 Disc rims Specifications:

• ETRTO: 584 x 25, 27.5 inches
• ERD: 562 mm
• Aluminium rim, single-pinned

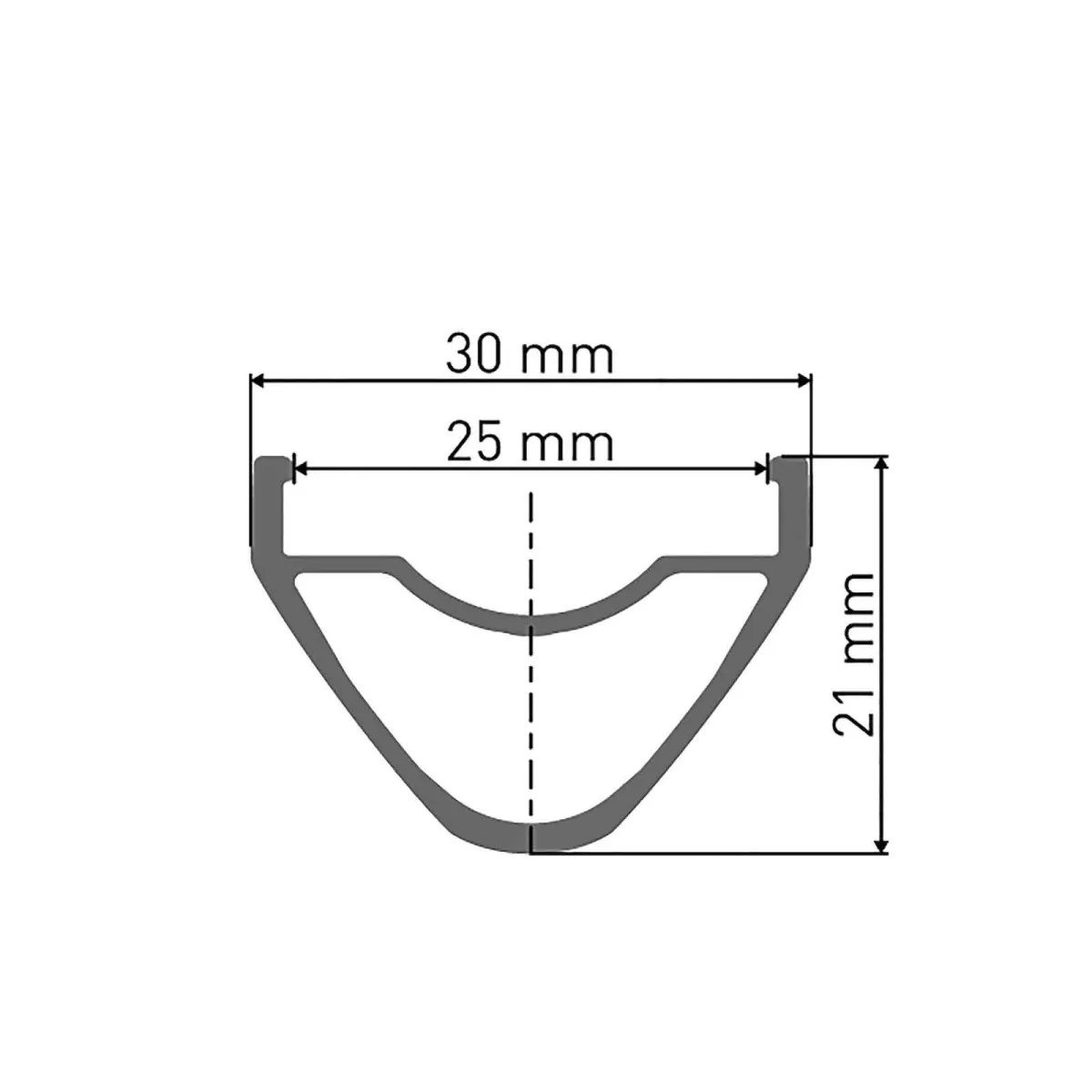

• Width: 25 mm (internal), 30 mm (external) Height: 21 mm
• Max. recommended tyre width: 2.5
• SBTW welded joint
• Valve hole 6.5 mm
• Required tubeless rim tape: 27 mm
• Weight 500 grams including Squorx Pro nipples

Included in delivery:

Wheelsets fully laced and trued with the hubs, spokes and nipples of your choice. Without rim tape
