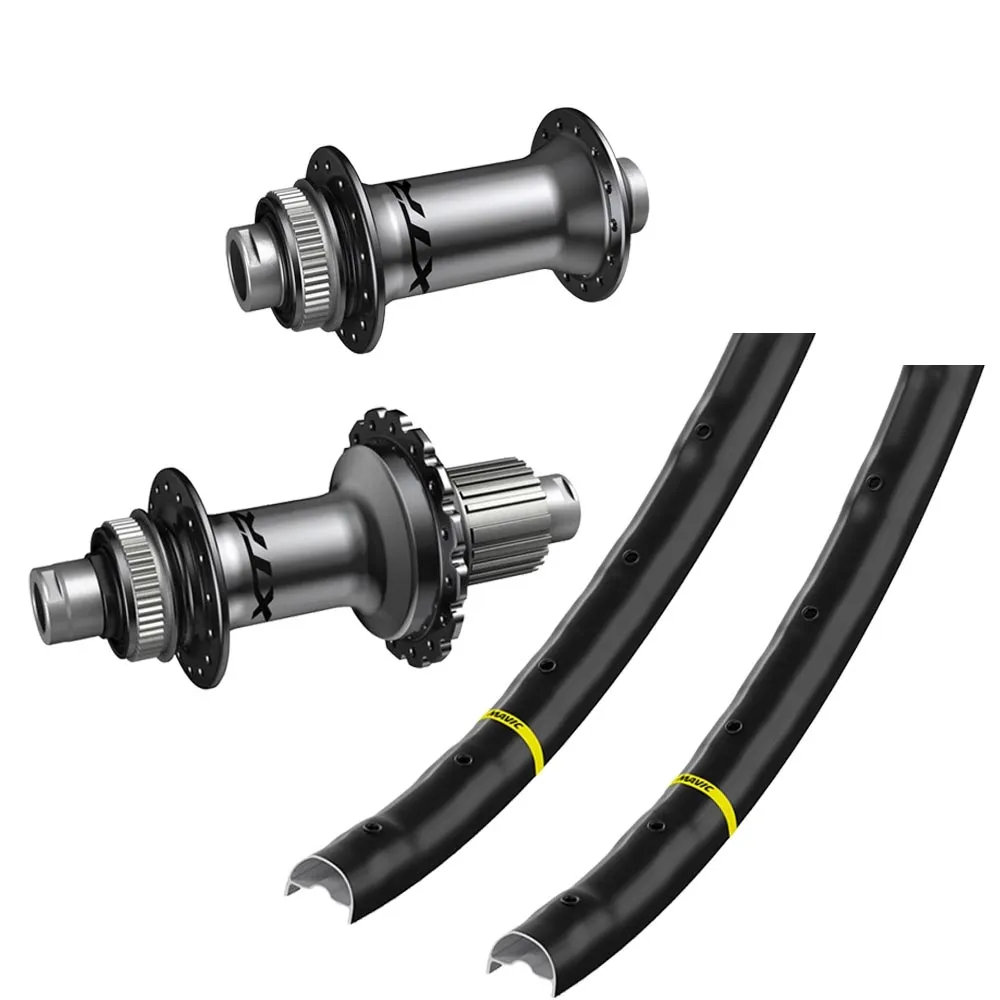

Shimano Deore XTR 9100 wheel set, 12-speed Micro Spline - Mavic XC 1025 rims

The high-end wheelset for cross-country and marathon use with the classic axle standards 15x100 and 12x142 mm. With a 25 mm inner rim width, the robust and lightweight XC 1025 rim from Mavic, suitable for tyres up to 2.5” wide, and the Shimano XTR hubs from the 12-speed series with the Micro Spline freehub body, results in very lightweight, durable and low-maintenance wheels.

Wheel building at TNC-Hamburg:

We manufacture these wheels entirely by hand for you. Thanks to more than 30 years’ experience in wheel building, we extract the optimum in concentricity, durability and stiffness from the materials. These wheels are, of course, pressure-tested multiple times, and we also pre-load the spokes in the longitudinal direction. This eliminates the need for re-truing over a long period of time.

These wheelsets are made to order specifically for you, which is why we cannot offer a right of withdrawal for them. The handmade wheelsets are not eligible for a discount.

Shimano XTR M9110 Hub:

The classic version of the Shimano XTR disc brake hub. Designed for a 3-cross spoke pattern, it provides the perfect conditions for particularly laterally stiff and durable wheelsets. Typical of Shimano XTR, the finest materials are used. Stainless steel ball rings, high-end polished raceways, angled bearings, double labyrinth seals and the titanium freehub body are the hallmarks of the Shimano XTR rear hubs. The new bearings and seals significantly increase the service life of the Shimano XTR hubs. Designed for maximum wheel stiffness with a large flange spacing and an extended flange at the sprocket side

Shimano Micro Spline 12-speed freehub body:

the first new freehub body system since the introduction of the HG10 freehub bodies almost 20 years ago. The fine-pitch spline ensures a perfect fit with the new Shimano 12-speed MTB cassettes. Not compatible with older Shimano HG cassettes.

The Micro Spline freehub body reduces weight when used with a lightweight cassette hub, with the smallest sprocket having 10 teeth. Smaller and more widely spaced teeth prevent sprocket damage on the freehub body, which is made from lightweight aluminium.

Mavic XC 1025 rim

The high-end cross-country rim, featuring ISM 4D weight tuning, 25 mm internal width, hookless rim flange optimised for tubeless use, welded rim joint and reinforced rim holes, offering an excellent weight-to-stability ratio. Super-sturdy welded rim joint; despite a 25 mm rim width, the welded rim is exceptionally light at 499 grams, thanks to ISM 4D weight tuning and Inter Spoke Milling, which removes material precisely where it is not needed without weakening the highly stressed spoke holes. This form of weight saving enables faster acceleration without compromising on durability. All this makes the XC 1025 our top recommendation for stable and lightweight cross-country wheelsets. Suitable for disc brakes only. Application: Cross-country.

DT Swiss spokes:

For this wheelset, we offer the standard DT Competition spokes – our recommendation when extra stability is required – and the DT Aero Comp with a flat middle section.

The double cold-forged spoke made from rust-resistant 18/10 chrome-nickel steel with a tapered middle section for robust, lightweight wheels. We recommend this spoke for virtually all wheels. Extremely durable and sufficiently lightweight, the DT Competition spokes enable wheel building of the highest standard. Thanks to the tapered section, the spokes absorb movement in the wheel exceptionally well, without compromising on lateral stiffness or durability.

Shimano XTR HB-M9110 Hub Technology:

• Aluminium axle
• Super-polished raceways
• Stainless steel balls
• Angled bearings
• Spoke hole circle: 44 mm
• Flange diameter: 52.8 mm
• Flange spacing: 60.2 mm
• Centerlock mount for brake discs
• Mounting dimensions 15x100 mm, for thru-axle mounting, not convertible
• Weight 134 grams (manufacturer’s specification)

Shimano XTR FH-M9111 Hub technology:

• 10 mm aluminium axle
• Super-polished raceways
• Stainless steel balls
• Angled bearings
• Spoke hole circle: 50 mm left / 61 mm right
• Flange diameter: 59 mm left / 70 mm right
• Flange spacing: 55.89 mm
• Centerlock mount for brake discs
• Aluminium freehub body
• Micro Spline freehub body for Shimano 12-speed MTB cassettes
• Mounting dimension 12x142 mm, for thru-axle mounting, not convertible
• Weight 237 grams (manufacturer’s specification)

MAVIC XC 1025 MTB rims dimensions:

• ETRTO 622 x 25c, 29 inches
• tubeless ready
• 6106 Maxtal aluminium
• Suitable for disc brakes only
• black anodised
• Recommended tyre width: 1.3–2.7
• Rim dimensions: Inner: 25 mm, Outer: 24 mm, Height: 24 mm
• Required rim tape width: 28 mm
• Weight: 499 grams
