Spare part: Mavic Crossmax hub

The rear axle for Mavic ITS4 rear hubs from the 2012 model year onwards with a 135 mm mounting width. Not compatible with older freehub bodies or 150 mm rear hubs. The quick-release or 12x142 mm end caps are also required for the corresponding mounting widths.

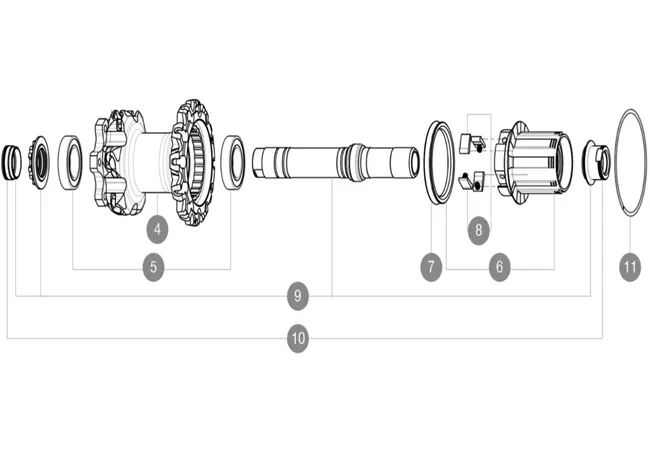

Included in the scope of delivery No. 9 in the illustration

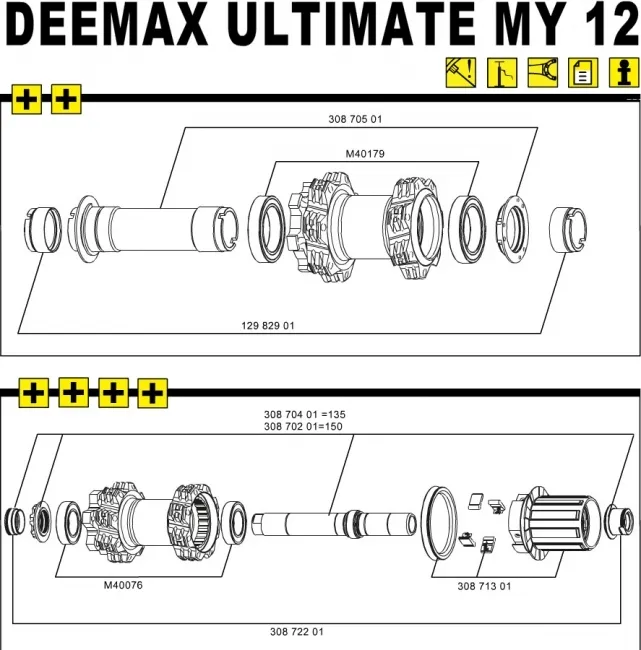

Mavic ITS4 hub spare parts

• No. 5: M40076, hub ball bearings, 2 pieces, type 6903, dimensions 17x30x7mm
• No. 6: 35126001, ITS-4 freehub body with seal, without pawl
• No. 7: 99610701, ITS4 seal
• No. 8: 99610601, ITS4 pawl kit, 4 pieces with springs 30872201
• No. 9: 30870401, Rear wheel axle kit ITS4 12x 135mm D6T/DCL 2012
• No. 10: 99694201, ITS-4 hub end stops 10x135 mm quick-release assembly
• No. 10: 30872201, ITS-4 Hub End Stops 12x135 mm, Thru-Axle Mounting
• No. 10: 30859301, ITS-4 hub end stops 12x142 mm thru-axle mount
• No. 11: 30871801, Spoke retainer ring, 56 mm diameter

Compatible with Crossmax, Crossmax ST, Deemax and Deemax Ultimate rear wheels featuring an ITS-4 freehub body and a mounting width of 135 or 142 mm

Herstellerinformation: MAVIC GROUP SAS, Parc Altais, 44 Rue Saturne, 74650 CHAVANO, https://mavic.com
