Spare parts for Mavic Crossmax SL Pro LTD 29-inch

Spare parts, rims, spokes, bearings and freehub bodies for the 29-inch Mavic Crossmax SL Pro LTD wheelsets with yellow detailing. The spoke heads feature 7 mm UST nipples; the required spoke wrench is item no. 99607901

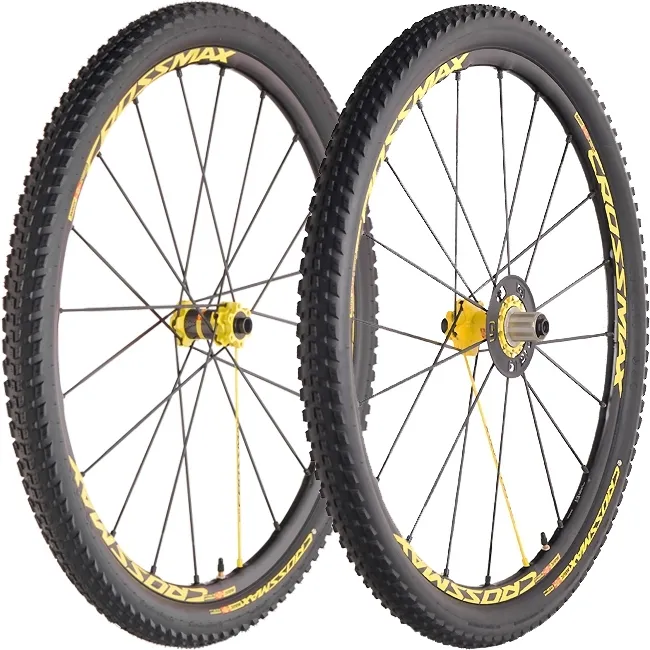

The Mavic Crossmax SL Pro wheels in the LTD version with yellow hubs and rim graphics. These wheels are identical in construction to the 2015 Mavic Crossmax SL Pro wheels. The front rims for standard and Lefty hubs are the same; for the rear wheel, two rim versions are available: the standard rim and the SMU rim for the asymmetrical lacing of Cannondale bikes.

Crossmax SL Pro 29-inch rim dimensions

• ETRTO: 622 x 17c
• Height: 20.9 mm
• Width: 22.4 mm
• Number of holes: 20

Mavic Crossmax SL Pro LTD Front Wheel Spare Parts

• Item No: V2313610, Front wheel rim, 20-hole, yellow finish
• Item No: 35113701, Front wheel spokes, Zical aluminium, 299.5 mm
• Item No: 99688501, Hub bearing, 2 pcs, 32x20x7 mm
• Item No: 99688201, Hub axle including fasteners
• Item No: 10846501, End stops for 15x100 mm thru-axle assembly
• Item No: 99694101, End stops for 9x100 mm quick-release assembly

Mavic Crossmax SL Pro LTD Lefty Supermax front wheel spare parts

• Item No: V2313610, Front wheel rim, 20-hole, yellow finish
• Item No: 35113701, Front wheel spokes, Zical aluminium, 299.5 mm
• Item No: M40771, Hub bearing for Mavic Lefty hub
• Item No: 367093, Screw connection for Lefty Supermax hub

• Item No: V2313713, Rear wheel rim 20-hole, yellow finish
• Item No: V2313813 Rear wheel rim Offset SMU Cannondale, 20-hole, yellow finish
• Item No: 35113801, Rear wheel spoke (disc side), Zical aluminium, 269.5 mm
• Item No: 35113701, Rear wheel spoke, freehub side, Zical aluminium, 299.5 mm
• Item No: 30870401, Hub axle including fasteners
• Item No: M40076, ITS4 rear wheel bearing, dimensions 30x17x7 mm
• Item No: 99610701, Seal for ITS4 freewheel body
• Item No: 99610601, ITS4 pawls with springs, 4 pcs
• Item No: 35126001, ITS4 freehub body HG10
• Item No: 35684101, ITS4 freehub body Sram XD with left-hand end stop
• Item No: 30873101, HG end stops ITS4 hub 10x135 mm for quick-release mounting
• Item No: 30870401, HG end stops ITS4 hub 12x135 mm for thru-axle mounting
• Item No: 30859301, HG end stops ITS4 hub 12x142 mm for thru-axle mounting
• Item No: 36929301, XD end stops ITS4 hub 12x135 mm for thru-axle mounting
• Item No: 36929501, XD end stops ITS4 hub X12x142 mm for thru-axle mounting
