Mavic E Deemax S 29" wheelset
The E Deemax S wheels with the new WB rims for easier tyre fitting. The genuine UST rims are extra sturdy as they feature no weakening drill holes.
Designed and developed for DH, Enduro and E-Mountain Bikes, equipped with ultra-sturdy Deemax hubs, Instant Drive sprocket freewheels, reinforced and lightweight ISM rims with a 30 mm rim width and extra-reinforced PFP sidewalls for tyre widths up to 3.0. Approved for a system weight of up to 180 kg and ASTM Class 5, the new E Deemax is perfect for DH, Enduro and E-bikes, the bike park and other extreme riding
Included in delivery:
- Mavic E Deemax S 29 rear wheel, freehub body as selected, tubeless valve
Mavic E Deemax S 29 wheel specifications and dimensions:
- 29-inch ETRTO 584x30
- Recommended tyre width: 2.5 to 3.0 inches
- Hub: aluminium body, sealed industrial bearings, adjustable,
- Rim width: 30 mm
- Rim: Welded and ISM, Maxtal, extra-reinforced e-bike profile
- Spokes: 28 stainless steel aero spokes
- Rear wheel: Boost 12x148 mm thru-axle
- Instant Drive 360-tooth freehub body, optionally as
- HG10 freehub body for Shimano MTB cassettes 8 + 9 + 10 + 11-speed and Sram MTB cassettes 8 + 9 + 10-speed
- SRAM XD freehub body for SRAM 11- and 12-speed XG MTB cassettes
- Micro Spline freehub body for Shimano 12-speed MTB cassettes
- Weight approx. 1096 grams (manufacturer’s specification)
- Maximum recommended system weight: 180 kg
- Mavic ASTM Category 5: for use on extreme terrain, particularly downhill
Mavic E Deemax S Application:
E-bikes, All Mountain, Trail, Enduro and DH. Suitable for use with disc brakes only. Approved by Mavic for riders and bikes up to 180 kg. These wheels can be ridden with genuine UST tyres, tubeless-ready tyres and also standard tyre-inner tube combinations.

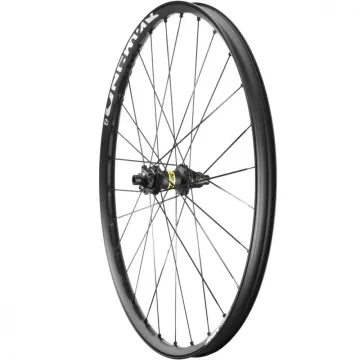

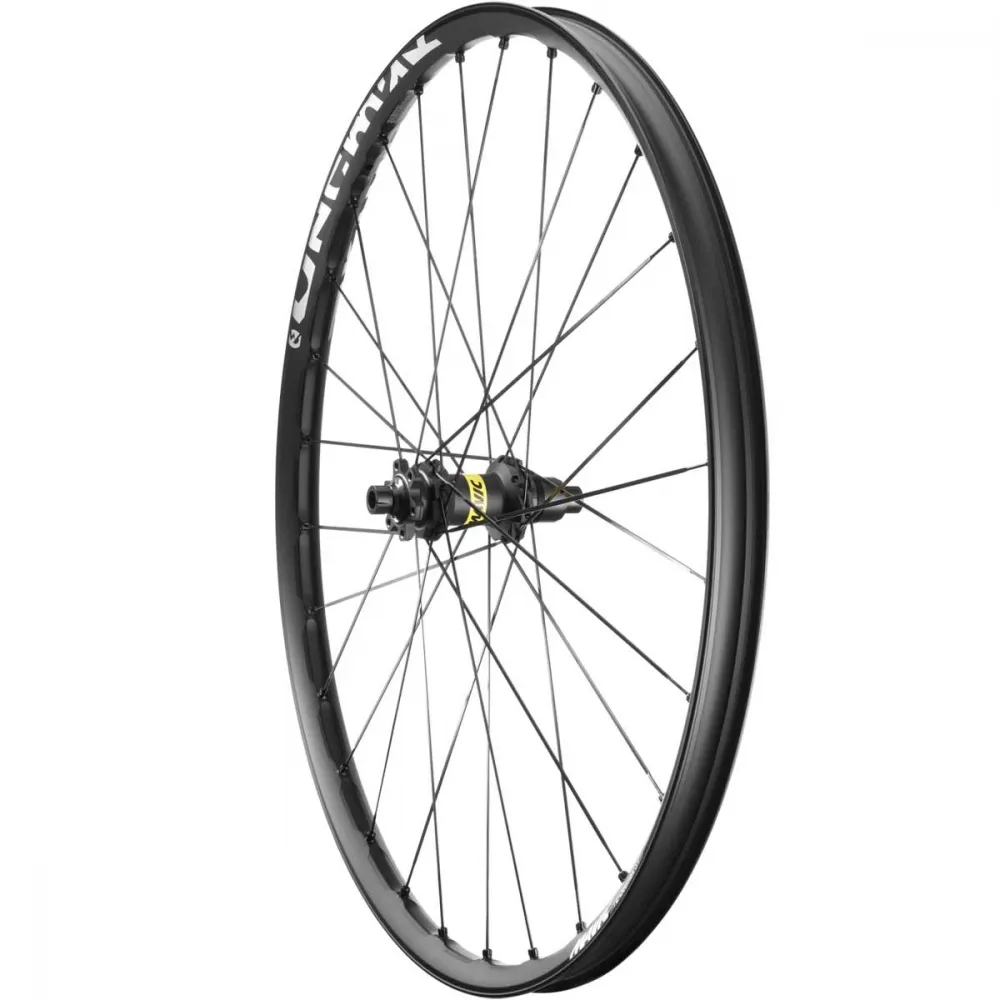

Mavic E-Deemax S Boost 12x148mm rear wheel:

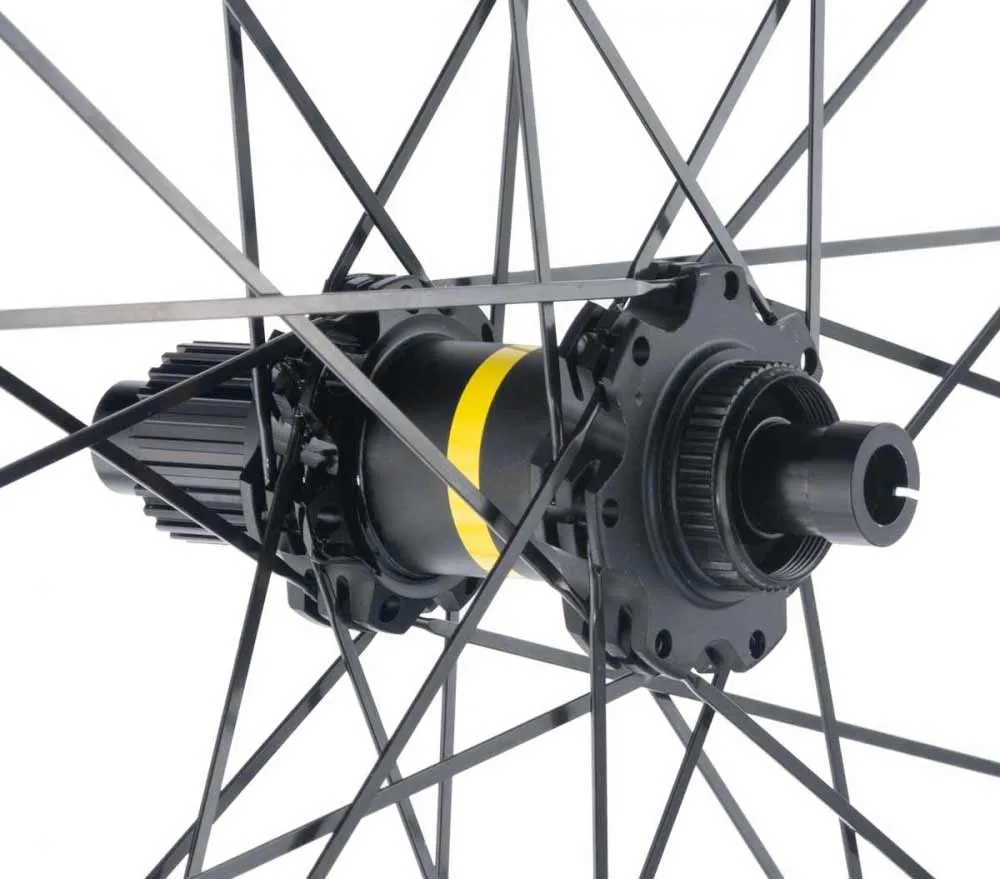

The Deemax Boost rear hub with 12x148 mm Boost thru-axle mounting. These Boost rear wheels are only compatible with frames featuring 148 mm Boost thru-axles and cannot be converted. Not compatible with Super Boost frames with 12x157 mm mounting, as these have wider hub bodies.
Spare parts for the Mavic E-Deemax S 29 rear wheel:
- Boost 12x148 mm thru-axle assembly, Part No: V2510700
- Boost 10x141 mm quick-release assembly, Part No: V2510800
- Replacement rim, front or rear wheel, 28-hole, height 21 mm, width 35 mm, rim width 30 mm, Part No: V00100431
- Replacement stainless steel spokes 305 mm straight with M6 nipples, Item No.:V00100831
- Hub bearing type 6903 / 17x30x7 mm, Part No: M40076
- Rear wheel axle kit Boost 148 mm for ID360 Disc Centerlock hub with retaining ring and cover Item No.: V2375701
- Sprocket retainer with retaining ring Item No.: V2252701
- Freewheel body seal Part No: V00063631 / V2251601
- Sprocket kit 24 teeth with spring Part No: V2375201
- Rubber for noise damping Item No: V2500501
- MTB spring for toothed discs Part No: V2251801
- Bearing cover with shaft washer and circlip Part No: V2373001
Compatible Instant Drive 360 MTB freehub body:
- HG10 aluminium freehub for MTB cassettes, compatible with Shimano 8–11-speed / Sram 8–10-speed, Part No: V3780101
- HG10 steel freehub for MTB cassettes, compatible with Shimano 8–11-speed / 8–10-speed cassettes, Part No: V3790100
- Micro Spline aluminium freehub for Shimano 12-speed MTB cassettes, 12-speed compatible only Item No.: V3990101
- Micro Spline steel freehub for Shimano 12-speed MTB cassettes, 12-speed compatible only Item No: A00090231
- SRAM XD aluminium freehub for SRAM XG MTB cassettes, 11 + 12-speed compatible Item No: V3740101
The name Mavic E-Deemax
has become the benchmark in the e-MTB scene – and the new E-Deemax S lives up to this reputation. The Fore technology offers a stronger rim profile thanks to fewer spoke holes,
a fully sealed rim and no rim tape, making it the best system on the market, developed by the pioneers of tubeless technology. Pinch Flat Protection (PFP) technology ensures the rim flanges’ contact surface is large enough to significantly reduce the risk of cuts and punctures to the tyre. For greater reliability, the rims are welded. Thanks to a 30 mm rim width and tubeless compatibility, it can be ridden with lower tyre pressure to further enhance traction and control.

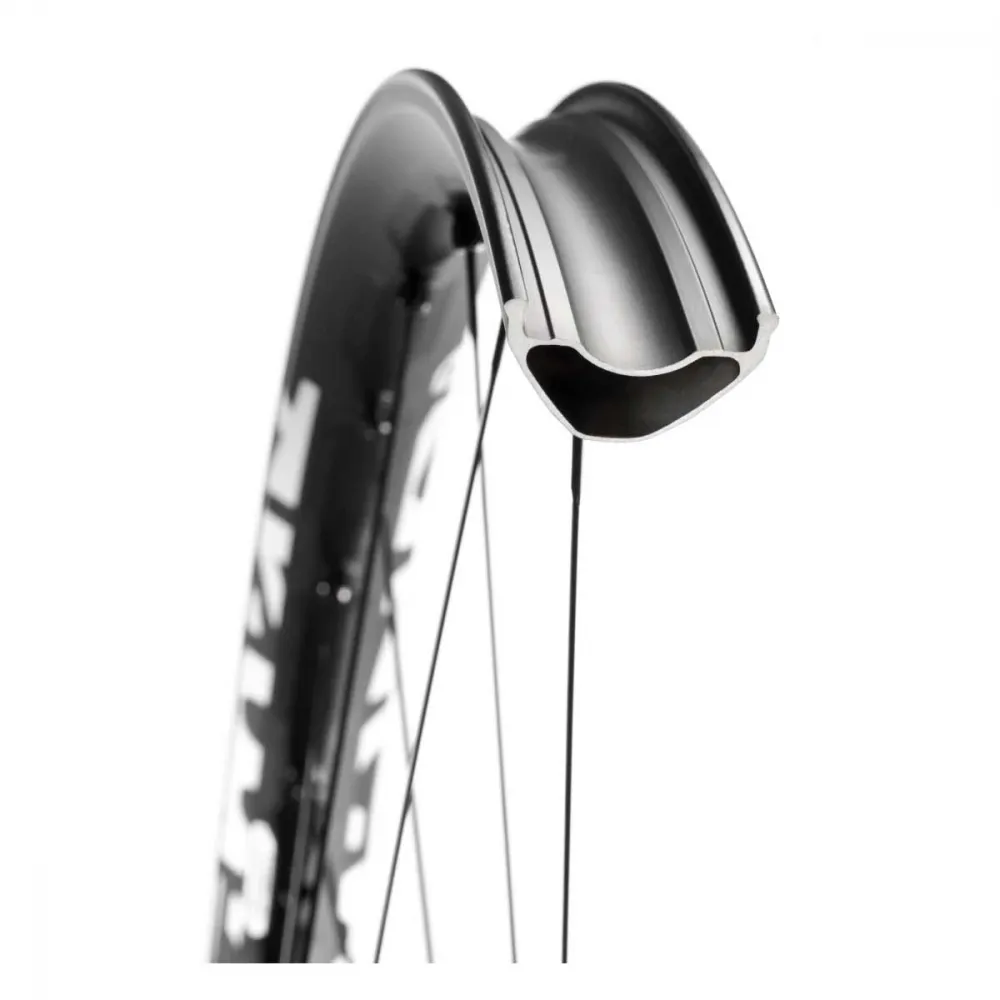

Mavic E Deemax S UST Disc Force rims:
The wide rims with a 30 mm rim width, made from high-strength Maxtal aluminium, are lightweight and, thanks to their asymmetrical spoke lacing, offer excellent lateral stiffness. The rims, developed specifically for use on e-bikes, are ultra-stable. The rim flanges are highly puncture-resistant thanks to Pinch Flat Protection technology. The new Black Shield hardened rims are extra robust and scratch-resistant. Even in the event of punctures, the rims remain black at the damaged point. The Force threads for the spoke heads are formed into the rims by material displacement; the rim bed itself is undrilled, airtight and requires no tubeless rim tape. This saves weight, simplifies assembly and ensures rims that are 20 per cent stiffer than conventional drilled rims. The rim joint is additionally welded and planed. Thanks to the asymmetrical rim design, braking and drive forces are absorbed evenly, which increases the service life. The E Deemax S rims are suitable for UST, tubeless tyres, Tubeless Ready tyres and standard tyres with an additional inner tube.
Mavic E Deemax spokes:
High-strength aero stainless steel spokes offer very high strength and durability. The spokes form a single unit with the Force nipples. These are screwed directly into the rim, further increasing stability.
Mavic Instant Drive 360 Freehub Body
The Instant Drive 360 freehub system is super-light and ensures rapid power transfer with a mere 9-degree engagement angle. A large, contact-free rubber seal reduces friction. And a wide selection of axle ends ensures compatibility with many mounting standards. The oversized aluminium axle and the hardened aluminium freehub body save 40 g. Two sprockets with 40-tooth profiles ensure fast and loss-free power transfer. A radial seal guarantees low friction at high speeds and perfect water resistance. This freehub body is easy to convert and is available as an HG10 version for Shimano 8-11-speed / Sram 8-10-speed, Sram XD 11- and 12-speed and Shimano 12-speed Micro Spline
Mavic E Deemax S wheel technology:
- Mavic QRM Auto: Mavic’s top-of-the-range bearing technology: featuring a double seal and extremely dimensionally stable, self-aligning, and exceptionally torsionally rigid and durable, perfect for the long-lasting bearing assembly of Mavic hubs.
- Mavic Instant Drive freehub body: the Instant Drive 360 freehub system is super-light and ensures rapid power transfer with an engagement angle of just 9 degrees. A large, non-contact rubber seal reduces friction. And a wide selection of axle stubs ensures compatibility with many mounting standards. The oversized aluminium axle and the hardened aluminium freehub body save 40 g. Two sprockets with 40-tooth profiles ensure fast and loss-free power transfer. A radial seal guarantees low friction at high speeds and perfect water resistance. This freehub body is easy to convert and is available as an HG10 version for Shimano and SRAM 8-11-speed, SRAM XD 11-speed and 12-speed XG.
- Mavic UST Force rims: The rim profile with extra-reinforced spokes offers optimum durability. Universal Standard for Tubeless: More tyre grip for better control, no more inner tubes: it sounds too good to be true. UST technology puts an end to inner tube punctures caused by overheated rims, reduces rolling resistance and prevents sudden air loss in the event of a puncture.
- Mavic ISM: Inter Spoke Milling is an exclusive process patented by Mavic. With ISM, the lower deck of the rim is machined between each spoke hole to create a lightweight and robust rim without compromising durability.
- Mavic SRS: Spoke Retention System. The spoke seats on the hub body are specially milled so that the spoke head remains firmly anchored even under extreme conditions. The spoke still has sufficient play to provide adequate flexibility on rough terrain. Spokes remain securely anchored even under the harshest frontal loads. The wheel still offers sufficient flexibility.
- Mavic Maxtal: This aluminium alloy, manufactured exclusively for Mavic, is 30 per cent stronger than 6106 aluminium. This means Maxtal rims can be super-light yet still rigid.
- Mavic SUP: Soude Usine Process. A welded rim joint is more stable, prevents any brake judder and makes it easier to lace and true a perfect wheel.
