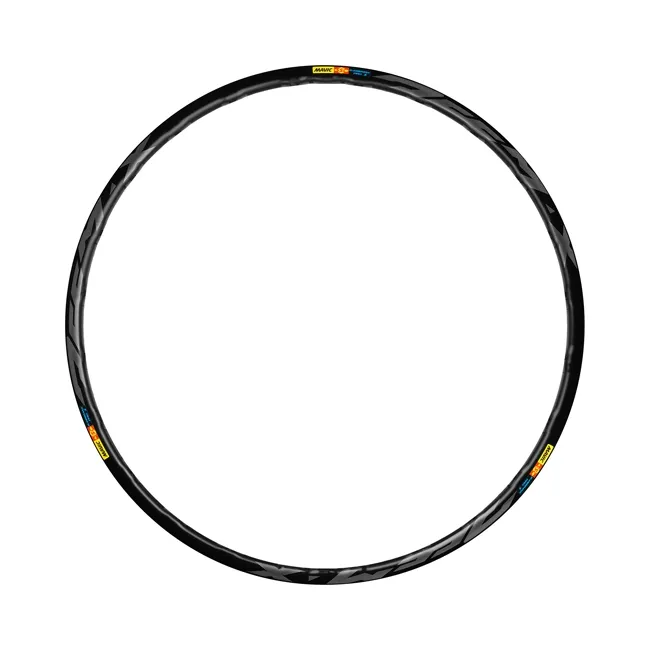

Mavic Deemax Pro 29-inch replacement rim

Mavic Deemax Pro rear wheel rim, 29-inch black, 24-hole. This rim is compatible with Deemax Pro and Pro Boost wheelsets manufactured from 2019 onwards.

The rims, spokes and bearings are the same for the Deemax Pro and Deemax Boost wheelsets. The axles are available in different versions for standard installation width and for Boost. The wheelsets cannot be converted to Boost or vice versa using the axles, as the hub bodies are of different widths. The hubs are not available as spare parts.

Mavic Deemax Pro rim dimensions:

• Rim width: 312.3 mm
• Spoke spacing: 28 mm
• Height: 20.7 mm
• Number of holes: 24
• Colour: black

Spare parts Mavic Deemax Pro front wheel QR15x100mm

• Item No. V3762310 0 Front wheel rim, black, 24-hole, outer width 32.3 mm, inner width 28 mm, height 20.7 mm
• Item No. A7209901 Front wheel spoke, 293 mm, Aero Zircal aluminium
• Item No. V2252301 Front wheel axle with screw connection, QR15x100 mm, without end stops
• Item No. 99688501 Front wheel bearing set, Type 6804, 20x32x7mm
• Item No. B4104401 End stops QR15x100 mm for 15 mm thru-axle assembly
• Item No. B4104301 End stops QR9x100 mm for quick-release assembly

Spare parts Mavic Deemax Pro Boost front wheel QR15x110mm

• Item No. V3762310 Front wheel rim, black, 24-hole, outer width 31.3 mm, inner width 28 mm, height 20.7 mm
• Item No. A7209901 Front wheel spoke, 293 mm, Aero Zircal aluminium
• Item No. V2370701 Front wheel axle with Boost QR15x110 mm thread, without end stops
• Item No. 99688501 Front wheel bearing set, Type 6804, 20x32x7 mm
• Item No. B4104401 End stops Boost 15x110 mm for thru-axle assembly

Please note that the Deemax Boost hubs with a 12x148 mm mounting width cannot be converted to a 12x142 mm mounting width. The hub bodies are of different widths, so conversion is not possible

Mavic Deemax Pro 29-inch Boost rear wheel spare parts:

• Item No: V3762413, Rear wheel rim 24-hole, width 32.3 mm, height 20.7 mm, rim width 28 mm, 29-inch
• Item No: V3820601, rear wheel spoke (disc side), 293 mm
• Item No: V2386501, rear wheel spoke (freewheel side), 278 mm
• Item No: M40076, Hub bearing Type 6903, dimensions 17x30x7 mm
• Item No: V2372201, Rear axle with clip, spring and retaining ring
• Item No: V2252701, Hub insert for sprocket
• Item No: V2251601, Freewheel body seal
• Part No: V2375201, Sprocket kit with springs
• Item No: V2375401, Noise-reducing damper
• Part No: V2372901, Sprocket springs
• Item No: V3780101, HG 10 Shimano/Sram aluminium ID 360 freehub body
• Item No: V3790101, HG 10 Shimano/Sram steel ID 360 freehub body
• Item No: V3740101, Sram XD aluminium ID 360 freehub body
• Item No: LV3990100, Microspline aluminium ID 360 freehub body
• Item No: V2510701, Boost 12x148mm end stops
• Item No: V2373001, Clip, spring and retaining ring for axle mounting

Front wheel (non-Boost):

• 20x110mm end stop for thru-axle mounting, Item No: 12982901, included in delivery
• 15x100mm end stop, thru-axle mount, Part No: B4104401, included
• 9x100mm end stop quick-release mounting, Item No: 12982701

Front wheel Boost:

• 15x110mm end stop thru-axle assembly, Part No: B4104401, included in delivery

Rear wheel (non-Boost):

• 12x135mm end stop, 12 mm thru-axle mount, Part No: V2510901
• X12x142mm end stop, 12 mm thru-axle mount, Item No: V2510701, included in delivery

Rear wheel Boost:

• 12x148mm end stop, 12 mm thru-axle mount, Part No: V2510701, included

Instant Drive freehub body

• HG 10 Shimano/Sram aluminium freehub body, Part No: V3780101
• HG 10 Shimano/Sram steel freehub body, item no.: V3790101
• SRAM XD aluminium freehub body, Part No: V3740101
• Shimano Micro Spline freehub body, item no.: V3990101

We can repair your faulty Mavic wheel on request. To provide a cost estimate, we require as detailed a description of the fault as possible, along with the year of manufacture and the serial number of the wheel. You will find the number on the rim, beneath the barcode.
