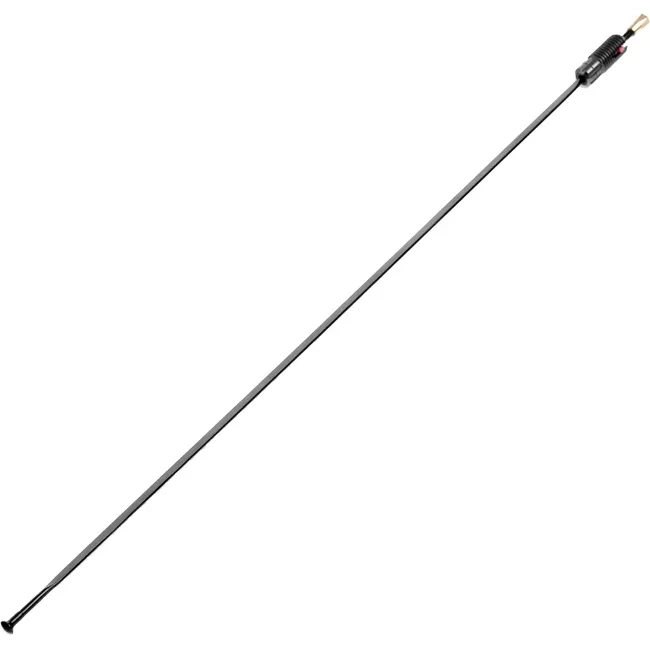

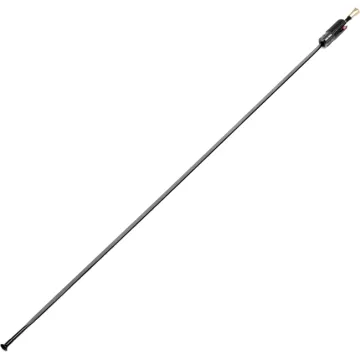

Mavic Deemax Ultimate 27.5 Replacement Spoke

16 spokes are required per side. The UST spoke nipples have a 7 mm head; the required spoke wrench is item no. M40652

Spare parts Mavic Deemax Ultimate front wheel QR20, 27.5 inches

• Item No. V2312210 Front wheel rim, 28 holes, 27.5 inches
• Item No. V2380501 Front wheel spokes, 284 mm
• Item No. 30870501 Front wheel axle with QR20x110 mm thread
• Item No. M40179 Front wheel bearing set
• Item No. 12982901 End stops QR20x110 mm for 20 mm thru-axle assembly
• Item No. 12982901 End stops QR15x100 mm for 15 mm thru-axle fitting
• Item No. 99503901 End stops QR9x100 mm for quick-release assembly

Please note that Deemax hubs with a 12x135/142 mm mounting width cannot be converted to a 150/157 mm mounting width. The hub bodies are of different widths, so conversion is not possible

Spare parts Mavic Deemax Ultimate rear wheel 12x135/142 mm ITS4 hub

• Item No. V2312313 Rear wheel rim 32-hole, 27.5-inch
• Item No. V2380601 Rear wheel spoke, right-hand side (freewheel body side), 278.5 mm
• Item No. V2380701 Rear wheel spoke, left, disc side, 280.5 mm
• Item No. 30870401 Rear axle with screw connection and end stops 12x135mm
• Part No. M40076 Rear wheel bearing set
• Part No. 99610701 Seal for ITS4 freehub body
• Part No. 99610601 ITS4 pawls with springs, 4 pcs
• Part No. 35126001 ITS4 HG10 freehub body with lip seal
• Item No. 35684101 ITS Sram XD freehub body with left-hand end stops
• Item No. 30873101 ITS4 hub end stops 10x135 mm for quick-release mounting
• Item No. 30872201 ITS4 hub end stops 12x135 mm for thru-axle mounting
• Item No. 30859301 ITS4 hub end stops X12x142 mm for thru-axle mounting

Spare parts Mavic Deemax Ultimate rear wheel 12x150/157 mm ITS4 hub

• Item No. V2312313 Rear wheel rim 32-hole, 27.5-inch
• Item No. V2380601 Rear wheel spoke, right-hand side (freewheel body side), 278.5 mm
• Item No. V2380701 Rear wheel spoke, left, disc side, 280.5 mm
• Item No. 30870201 Rear axle with screw connection and end stops 12x150 mm
• Part No. M40076 Rear wheel bearing set
• Part No. 99610701 Seal for ITS4 freehub body
• Part No. 99610601 ITS4 pawls with springs, 4 pcs
• Item No. 35126001 ITS4 HG10 freehub body with lip seal
• Item No. 35684101 ITS Sram XD freehub body with left-hand end stops
• Item No. 30872201 ITS4 hub end stops 12x150 mm for thru-axle mounting
• Item No. 30859301 ITS4 hub end stops X12x157 mm for thru-axle mounting

Mavic hubs are not available as spare parts.

Please note that Deemax hubs with a 12x135/142 mm mounting width cannot be converted to a 150/157 mm mounting width. The hub bodies have different widths, so conversion is not possible

Herstellerinformation: MAVIC GROUP SAS, Parc Altais, 44 Rue Saturne, 74650 CHAVANO, https://mavic.com
