Spare part: Mavic Instant Drive 360 rear wheel hub

Included in part no. 9 of the exploded view drawing.
From the 2019 model year onwards, all Mavic MTB rear wheels feature the Auto Adjust bearing system with the Instant Drive 360 sprocket freewheel system. Not compatible with road bike rear hubs. These have the same system but feature a Centre Lock hub.

Available spare parts for Mavic Instant Drive Auto Adjust hubs:

• Item No: LV2372100, hub axle including clip 135/142 mm
• Item No: LV2372200, Boost hub axle including clip 148 mm
• Item No: LM4007600, Instant Drive rear wheel bearing, dimensions 17x30x7mm Type 6903
• Item No: LV2252700, sprocket mount with retaining ring
• Item No: LV2251600, Seal with grease for Instant Drive freehub body
• Item No: LV2372900, Springs for Instant Drive freehub body
• Item No: LV2375200, Gear disc kit, 24-tooth Instant Drive

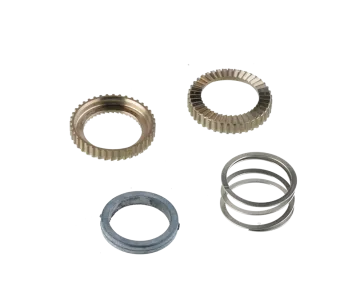

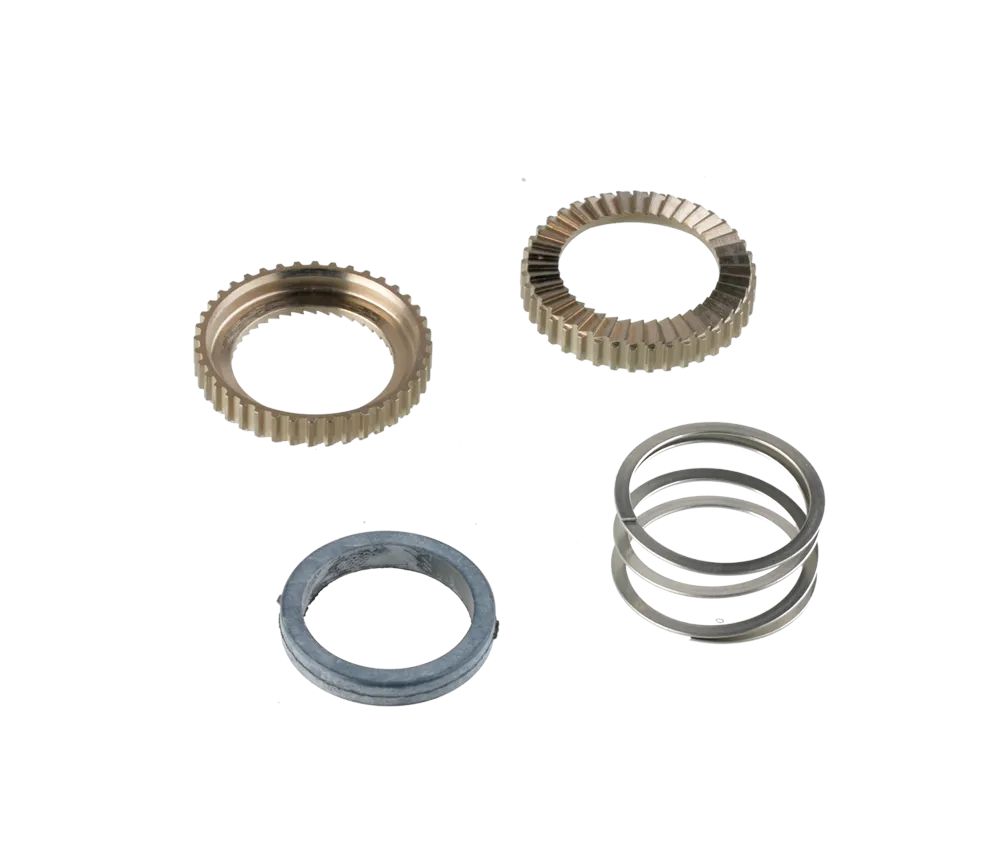

• Item No: LV2372800, Instant Drive sprocket kit, 40-tooth
• Item No: LV3780100, Instant Drive aluminium freewheel body HG10
• Item No: LV3790100, Instant Drive steel freehub body HG10
• Item No: LV3740100, Instant Drive aluminium freehub body Sram XD
• Item No: LV3990100, Instant Drive aluminium freehub body Shimano Micro Spline
• Item No: LV2560500, Left-hand bearing cover with retaining clip for Auto Adjust hub
• Item No: LV2510800, End stops Instant Drive hub 10x135 mm for quick-release mounting
• Item No: LV2510900, End stops for Instant Drive hub 12x135 mm for thru-axle mounting
• Item No: LV2510700, End stops for Instant Drive hub for X12x142 mm thru-axle mounting
