DT Swiss Dicut ARC 1400 Disc 55 Road Bike Wheelset

The third generation of ARC 1400 DICUT wheels – wider, taller and lighter, with new rim profiles and a 22 mm rim width – impress with their perfect blend of acceleration, aerodynamics and handling.

Included:

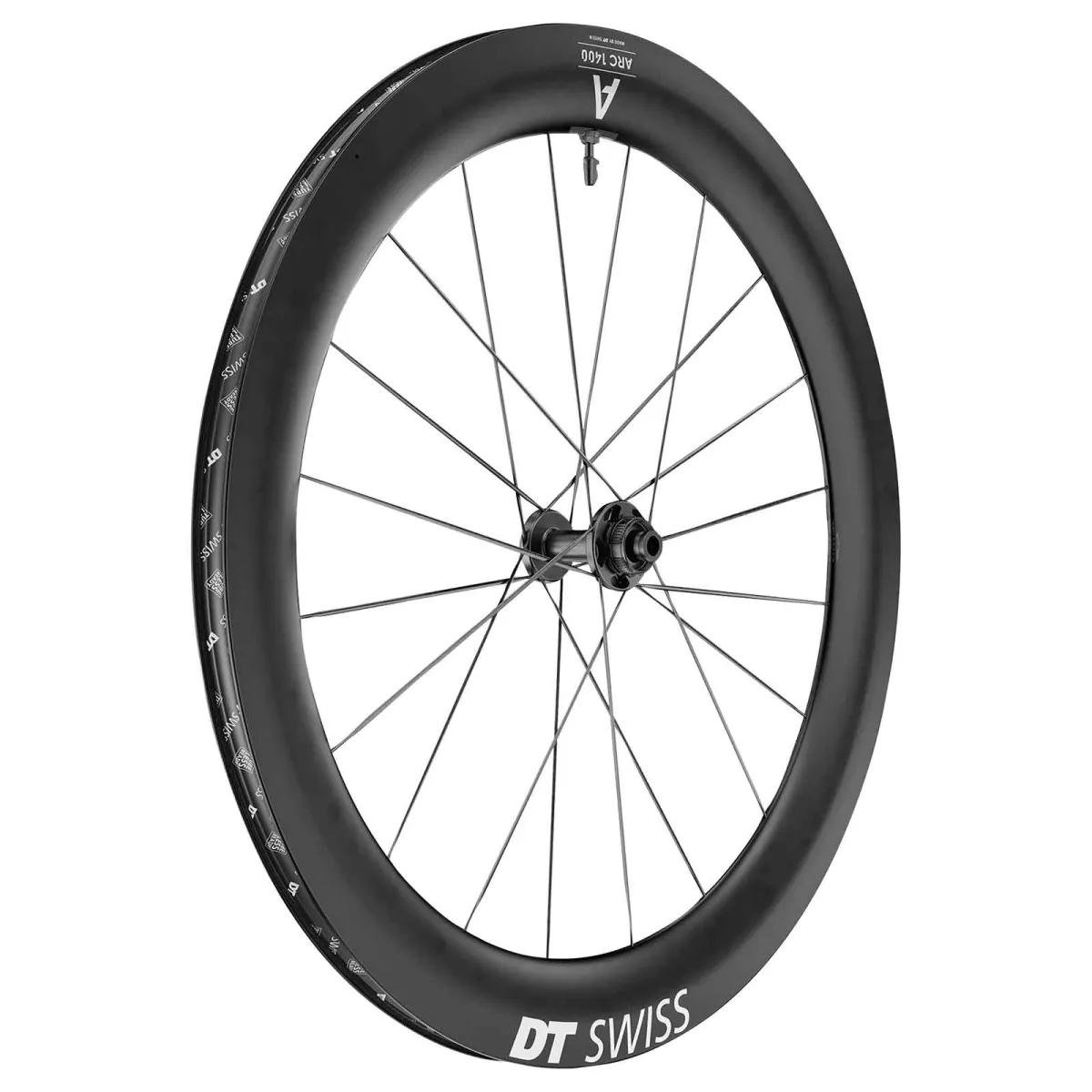

• DT Swiss ARC 1400 Dicut 65 Disc front wheel, tubeless rim tape, tubeless valve

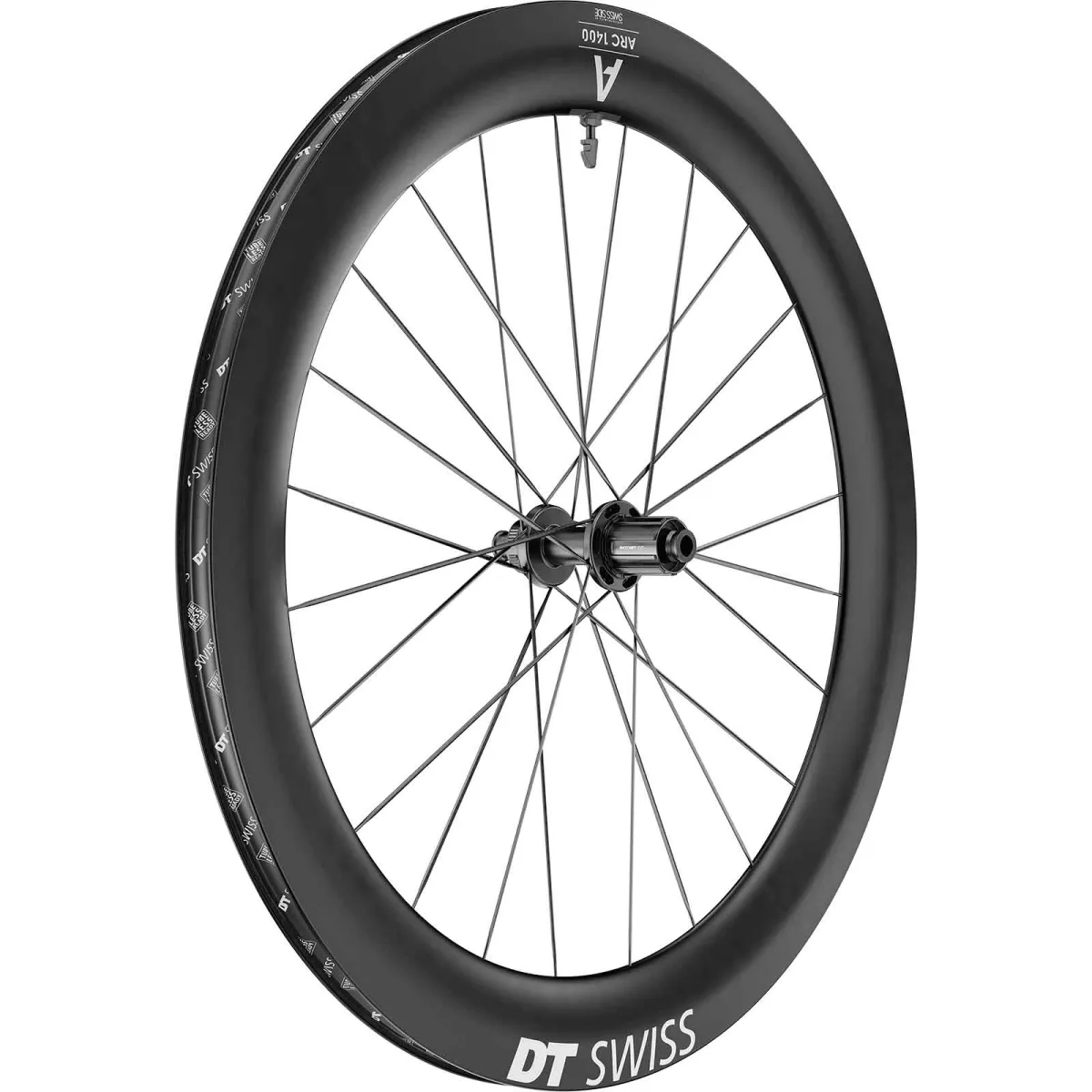

• DT Swiss ARC 1400 Dicut 65 Disc rear wheel, freehub body as selected, tubeless rim tape, tubeless valve

DT Swiss ARC 1400 Dicut 65 Disc wheel technology and dimensions:

• 28 / 29 inch, 700C, ETERO 22x622 rims
• Full carbon rims for folding and clincher tyres, tubeless ready
• Rim type: Hooked / Crotchet tubeless TC

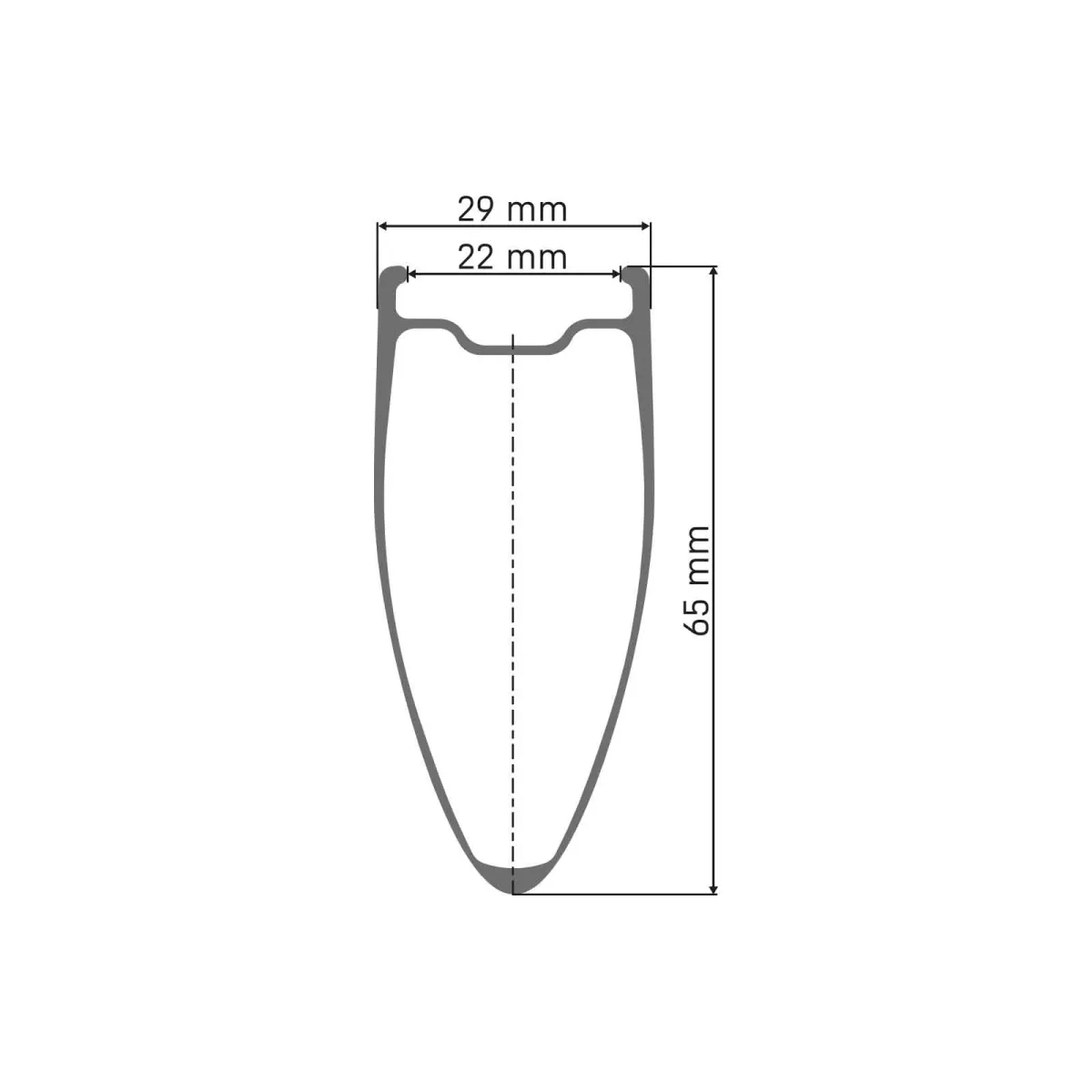

• Rim dimensions 622x22, outer width 28 mm, height 65 mm
• High-end hubs based on 240 mm with sprockets and stainless steel ball bearings
• Disc Centerlock brake disc mount, Centerlock adapters are available as an option
• Cold-forged DT Swiss Aero Comp II T-Head spokes
• Pro Lock hidden special nipples
• Spoke pattern: Front wheel 20 spokes, 2-cross lacing; Rear wheel 24 spokes, 2-cross lacing
• Aero front hub Dicut 240 EXP thru-axle, 12x100 mm, non-convertible
• Aero rear hub Dicut 240 EXP thru-axle, 12x142 mm, convertible
• Ratchet EXP 36T aluminium freehub body, available as:
  • HG11 freehub body compatible with Shimano and SRAM road cassettes 8 + 9 + 10 + 11-speed, also Shimano 12-speed road
  • Campa ED freehub body compatible with Campagnolo cassettes 9 + 10 + 11 + 12-speed
  • Campa N3W freehub body for Campagnolo 13-speed cassettes
  • SRAM XDR freehub body compatible with SRAM road bike AXS 12-speed and MTB XG 11- and 12-speed cassettes
• Weight: Set 1594 grams, front wheel 758 grams, rear wheel 836 grams Manufacturer’s specification
• Maximum recommended rider weight 110 kg
• ASTM classification 1
• NOT approved for e-bikes!

ARC 1400 DICUT® DB

If you want to reach the top, you have to be able to hold your own. Your pursuers are hot on your heels, trying to take the lead. With the 3rd generation of wheels, we have reached a new pinnacle in our development. Wider tyres offer better grip and greater riding comfort. To enable the use of such tyres, the rim shape has been adapted accordingly and continues to provide advantages in competition. The third generation is characterised by a larger inner rim width and a unique V-shape, without compromising on aerodynamics. Wider, taller and lighter: experience a thrilling ride with these wheels that will lead you to your personal victory. Victory isn’t handed to you on a plate. You have to earn it.

Countless tests were necessary for the successful development of wider, taller and lighter wheelsets. For the development of the latest ARC wheelsets, DT Swiss drew on the knowledge gained from previous wheel generations as well as the experience of numerous top athletes across various cycling disciplines.

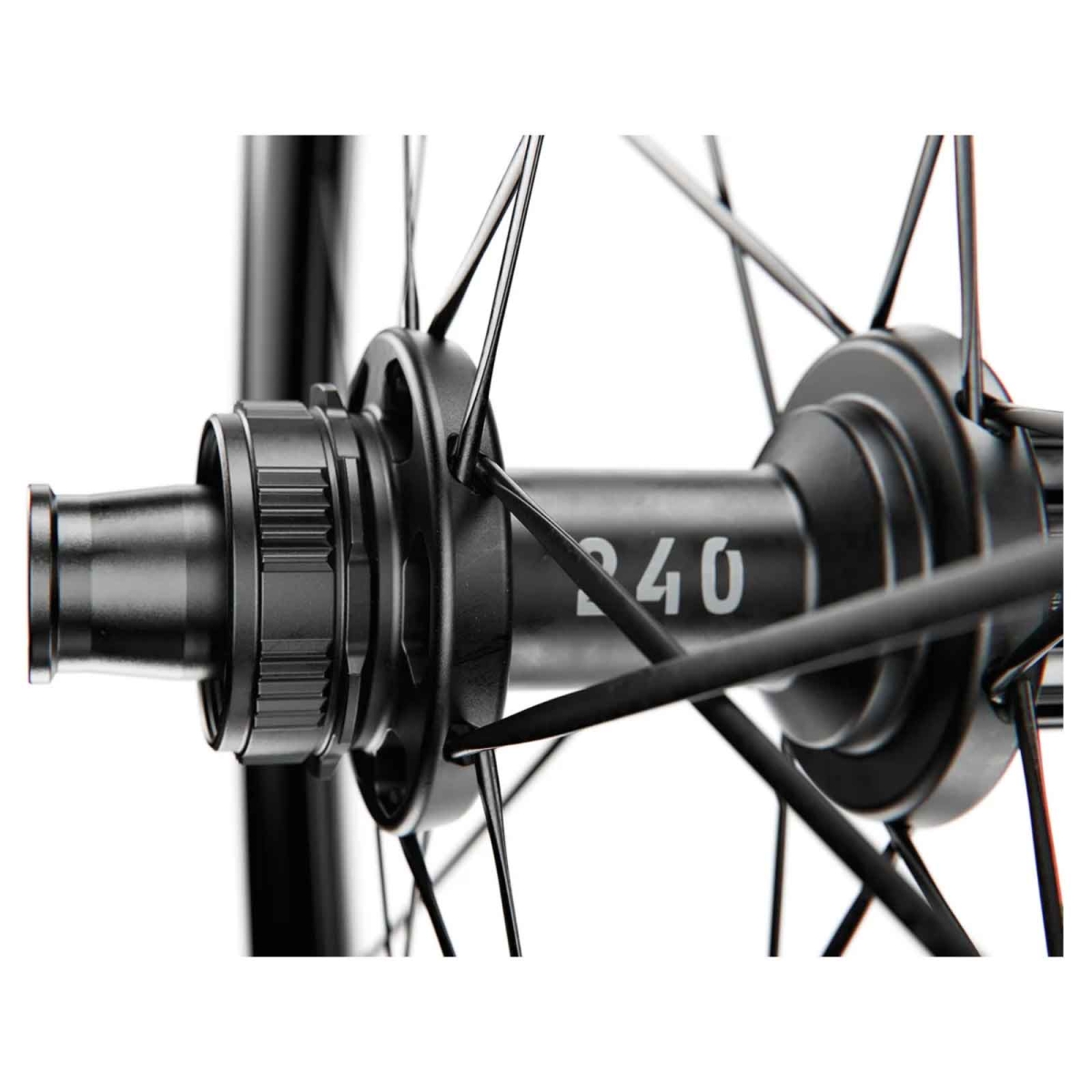

DT Swiss ARC 1400 Dicut hubs:

The ARC Dicut hubs are perfectly matched to the Nail Head spoke system and offer the best aerodynamics of any DT Swiss hub. Equipped with high-quality stainless steel bearings and a wider flange spacing for optimum lateral stiffness at low weight. The ratchet body with EXP Ratchet Star ratchet pawl is virtually maintenance-free and easy to convert.

DT Swiss Ratchet EXP freehub:

The proven DT Swiss Ratchet system in the new EXP version, featuring the ratchet cage, allows for easy conversion to various axle or rotor standards. The integration of the ratchet cage and threaded ring reduces the number of components, thereby lowering the weight. A single coil spring ensures faster, complete engagement and thus greater reliability.

The DT Swiss Ratchet EXP rear hubs can be easily converted to standard mountings, 10x135mm quick-release and 12x142mm thru-axle mountings. The new end caps with an even more precise fit ensure even greater durability. The rear hubs can be converted to Campagnolo ED, Shimano HG, Microspline and Sram XDR, XD freehub bodies without the need for tools. The complete list of available freehub bodies and end stops can be found further down in the product description.

DT Swiss ARC 1400 Dicut rims:

In professional cycling, there has been a trend towards wider tyres in recent years. This requires rims with a larger inner rim width. The 22 mm rim width is optimised for use with the AERO 111 tyre in a 29 mm width. However, a wider tyre must not come at the expense of aerodynamic performance.A larger rim width has a direct effect on the wheel’s frontal area. The V-shaped rim compensates for this and optimises aerodynamic drag. Wind tunnel tests show that this shape minimises aerodynamic drag. At the same time, the steering torque – the force acting on the steering under crosswinds – remains low. This can have a positive impact on handling characteristics. Whatever your riding preferences: the three rim heights offer a wide range of applications. Do you enjoy riding at high speeds over varied terrain and don’t want to worry about the occasional steep climb? Then the 55 mm rim height is ideal for you. With a rim height of 65 mm, the aero-optimised profile gives you the edge in sprints and also benefits you on predominantly flat terrain. The 85 mm high rims are our fastest wheels. They offer the lowest aerodynamic drag and are ideal for triathlons and time trials.

Hooked / Crotchet tubeless TC:

‘Hooked’ or ‘Crotchet’ refers to the shape of the rim flange, which features a so-called hook. This helps secure the tyre bead and ensures reliable performance, even when using high tyre pressure (> 5 bar). ‘Tubeless’ means that the rim can be ridden without an inner tube, although a setup with an inner tube is also possible.

DT Swiss ARC 1400 Dicut spokes:

Using an internally developed measuring device, we determined the influence of a lower number of spokes on rotational air resistance. Rotational air resistance can be described as the additional friction that arises when the wheel, with its rotating components, ‘cuts through’ the air. The measurements were carried out at relative approach angles of 0° (head-on, direct airflow) and 10° (crosswind) at 45 km/h. The result is a reduction in aerodynamic drag of 0.2 watts (5.5%) at 0° yaw and 0.5 watts (12%) at 10° yaw (measurement accuracy: < 0.1 watts). The significantly improved figures for the new ARC 1100 DICUT 55 wheelsets can be attributed to the lower number of spokes and the shorter spoke lengths resulting from the 5 mm higher rim profile.

Lacing with the Nail Head System and straight-pull spokes ensures that the spokes cannot twist under load, meaning the spokes are always at the most aerodynamically favourable angle. The DT Swiss Aerocomp spokes, in combination with the internal Prolock Hidden spoke nipples, ensure outstanding aerodynamics.

Replacement spokes ARC 1400 Dicut DB 65 front wheel:

• Spokes, left: DT Aero Comp II T-head black 2.0/0.9/3.2 x 259 mm Item No.: SCWS20259S00207704
• Spokes (right): DT Aero Comp II T-head black 2.0/0.9/3.2 x 261 mm Item No.: SCWS20261S00207704

Replacement spokes ARC 1400 Dicut DB 65 rear wheel:

• Spokes, left: DT Aero Comp II T-head black 2.0/0.9/3.2 x 256 mm SCWS20253S00207704
• Spokes, right: DT Aero Comp II T-head black 2.0/0.9/3.2 x 253 mm SCWS20253S00207704

The DT Swiss 240 Dicut Aero hub with 12x100mm mounting dimensions for thru-axles cannot be converted to other mounting dimensions:

Compatible end caps for DT Swiss Disc Road rear wheels:

• HG11 freehub, 10x135 mm quick-release mount, item no.: HWGXXX00S7446S
• Microspline Road, 10x135 mm quick-release freehub, Part No: HWGXXX00S5623S
• Sram XDR freehub, 10x135 mm quick-release mount, Item No: HWGXXX00S2760S
• SRAM XD freehub, 10x135 mm quick-release mount, Item No: HWGXXX00S2790S
• Campa ED freehub, 10x135 mm quick-release mount, Item No: HWGXXX00S2766S
• Campa N3W freehub, 10x135 mm quick-release mount, Item No: HWGXXX00S3191S
• HG11 Freehub Thru-Axle Mounting 12x142 mm, Item No: HWGXXX00S2770S
• Microspline Road, freehub 12x142 mm quick-release mount, item no.: HWGXXX00S5624S
• Sram XDR freehub thru-axle mount 12x142 mm, Item No: HWGXXX00S2771S
• SRAM XD freehub thru-axle assembly 12x142 mm, Item No: HWGXXX00S3188S
• Campa ED freehub thru-axle assembly 12x142 mm, Item No: HWYABX00S7154S
• Campa N3W freehub thru-axle assembly 12x142 mm, Item No: HWGXXX00S5641S

DT Swiss EXP Road Freehub Body

• DT Swiss EXP Ceramic Bearing Rotor HG11 with end stop, 12x142 mm thru-axle mount, Item No: HWYCBL00S5380S
• DT Swiss EXP Ceramic Bearing Rotor HG11 with End Stop 10x135mm Quick-release Mounting, Item No: HWYCBL00S5400S
• DT Swiss EXP Rotor HG11 with end stop, 12x142mm thru-axle mount, Item No: HWYABL00S5378S
• DT Swiss EXP Rotor HG11 with end stop, 10x135mm quick-release mount, Item No: HWYABL00S5399S
• DT Swiss EXP Ceramic Bearing Rotor Micro Spline Road with end stop, 12x142mm thru-axle mount, Item No.: HWYCBL00S1959S
• DT Swiss EXP Rotor Micro Spline Road with end stop, 12x142mm thru-axle mount, Item No: HWYABL00S1960S
• DT Swiss EXP Ceramic Bearing Rotor Campagnolo N3W with End Stop 12x142mm Thru-Axle Mounting, Item No: HWYABL00S5705S
• DT Swiss EXP Rotor Campagnolo N3W with end stop, 12x142mm thru-axle mount, Item No: HWYABL00S2993S
• DT Swiss EXP Ceramic Bearing Rotor Campagnolo ED with end stop, 12x142mm thru-axle mount, Item No: HWYCBL00S7075S
• DT Swiss EXP Ceramic Bearing Rotor Campagnolo ED with end stop, 10x135mm quick-release mounting, Item No: HWYCBL00S7068S
• DT Swiss EXP Rotor Campagnolo ED with end stop, 12x142mm thru-axle mount, Item No.: HWYABL00S7074S
• DT Swiss EXP Rotor Campagnolo ED with end stop, 10x135mm quick-release mount, Item No: HWYABL00S7073S
• DT Swiss EXP Ceramic Bearing Rotor Sram XDR with end stop 12x142mm thru-axle mount, Item No: HWYCBL00S5383S
• DT Swiss EXP Ceramic Bearing Rotor Sram XDR with end stop, 10x135mm quick-release mount, Item No: HWYCBL00S5402S
• DT Swiss EXP Rotor Sram XDR with end stop 12x142mm thru-axle mount, Item No: HWYABL00S5401S
• DT Swiss EXP Rotor Sram XDR with end stop, 10x135mm quick-release mount, Item No: HWYABL00S5382S

Herstellerinformation: DT Swiss, Längfeldweg 101, 2504 Biel, Bern, Switzerland, https://www.dtswiss.com/
