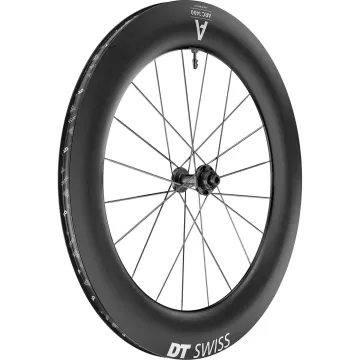

DT Swiss Dicut ARC 1400 Disc 85 Road Bike Wheelset

The third generation of ARC 1400 DICUT wheelsets – wider, taller and lighter, with new rim profiles and a 22 mm rim width – impress with a perfect blend of acceleration, aerodynamics and handling.

Included:

• DT Swiss ARC 1400 Dicut 85 Disc front wheel, tubeless rim tape, tubeless valve

DT Swiss ARC 1400 Dicut 85 Disc wheel specifications and dimensions:

• 28 / 29 inch, 700C, ETERO 22x622 rims
• Full carbon rims for folding and clincher tyres, tubeless ready
• Rim type: Hooked / Crotchet tubeless TC
• Rim dimensions 622x22, outer width 32mm, height 85mm
• High-end hubs based on 240 mm with sprockets and stainless steel ball bearings
• Disc Centerlock brake disc mount, Centerlock adapters are available as an option
• Cold-forged DT Swiss Aero Comp II T-Head spokes
• Pro Lock hidden special nipples
• Spoke pattern: Front wheel 20 spokes, 2-cross lacing; Rear wheel 24 spokes, 2-cross lacing
• Aero front hub Dicut 240 EXP thru-axle mounting 12x100 mm, not convertible
• Weight: Front wheel 835 grams, manufacturer’s specification
• Maximum recommended rider weight 110 kg
• ASTM classification 1
• NOT approved for e-bikes!

ARC 1400 DICUT® DB

If you want to reach the top, you have to be able to hold your own. Your pursuers are hot on your heels, trying to take the lead. With the 3rd generation of wheels, we have reached a new pinnacle in our development. Wider tyres offer better grip and greater riding comfort. To enable the use of such tyres, the rim shape has been adapted accordingly and continues to provide advantages in competition. The third generation is characterised by a larger inner rim width and a unique V-shape, without compromising on aerodynamics. Wider, taller and lighter: experience a thrilling ride with these wheels that will lead you to your personal victory. Victory isn’t handed to you on a plate. You have to earn it.

Countless tests were necessary for the successful development of wider, taller and lighter wheelsets. For the development of the latest ARC wheelsets, DT Swiss drew on the knowledge gained from previous generations of wheelsets as well as the experience of numerous top athletes across various cycling disciplines.

DT Swiss ARC 1400 Dicut hubs:

The ARC Dicut hubs are perfectly matched to the Nail Head spoke system and offer the best aerodynamics of any DT Swiss hub. Equipped with high-quality stainless steel bearings and a wider flange spacing for optimum lateral stiffness at a low weight. The ratchet body with EXP Ratchet Star pawl is virtually maintenance-free and easy to convert.

DT Swiss ARC 1400 Dicut rims:

In professional cycling, there has been a trend towards wider tyres in recent years. This requires rims with a larger inner rim width. The 22 mm rim width is optimised for use with the AERO 111 tyre in a 29 mm width. However, a wider tyre must not come at the expense of aerodynamic performance.A larger rim width has a direct effect on the wheel’s frontal area. The V-shaped rim compensates for this and optimises aerodynamic drag. Wind tunnel tests show that this shape minimises aerodynamic drag. At the same time, the steering torque – i.e. the force acting on the steering under crosswinds – remains low. This can have a positive impact on handling characteristics. Whatever your riding preferences: the three rim heights offer a wide range of applications. Do you enjoy riding at high speeds over varied terrain and don’t want to worry about the occasional steep climb? Then the 55 mm rim height is ideal for you. With a rim height of 65 mm, the aero-optimised profile gives you the edge in sprints and also benefits you on predominantly flat terrain. The 85 mm high rims are our fastest wheels. They offer the lowest aerodynamic drag and are ideal for triathlons and time trials.

Hooked / Crotchet tubeless TC:

‘Hooked’ or ‘Crotchet’ refers to the shape of the rim flange, which features a so-called hook. This helps secure the tyre bead and ensures reliable performance, even when using high tyre pressure (> 5 bar). ‘Tubeless’ means that the rim can be ridden without an inner tube, although a setup with an inner tube is also possible.

DT Swiss ARC 1400 Dicut spokes:

Using an internally developed measuring device, we determined the influence of a lower number of spokes on rotational air resistance. Rotational air resistance can be described as the additional friction that arises when the wheel, with its rotating components, ‘cuts through’ the air. The measurements were carried out at relative approach angles of 0° (head-on, direct airflow) and 10° (crosswind) at 45 km/h. The result is a reduction in aerodynamic drag of 0.2 watts (5.5%) at 0° yaw and 0.5 watts (12%) at 10° yaw (measurement accuracy: < 0.1 watts). The significantly improved figures for the new ARC 1100 DICUT 55 wheelsets can be attributed to the lower number of spokes and the shorter spoke lengths resulting from the 5 mm higher rim profile.

Lacing with the Nail Head System and straight-pull spokes ensures that the spokes cannot twist under load, meaning the spokes are always at the most aerodynamically favourable angle. The DT Swiss Aerocomp spokes, in combination with the internal Prolock Hidden spoke nipples, ensure outstanding aerodynamics.

Replacement spokes ARC 1400 Dicut DB 85 front wheel:

• Spokes left: DT Aero Comp II T-head black 2.0/0.9/3.2 x 239mm Item No: SCWS20239S00207704
• Spokes (right): DT Aero Comp II T-head black 2.0/0.9/3.2 x 241mm Item No.: SCWS20241S00207704

The DT Swiss Dicut Aero hub with a 12x100mm mounting dimension for thru-axles cannot be converted to other mounting dimensions:

Herstellerinformation: DT Swiss, Längfeldweg 101, 2504 Biel, Bern, Switzerland, https://www.dtswiss.com/
