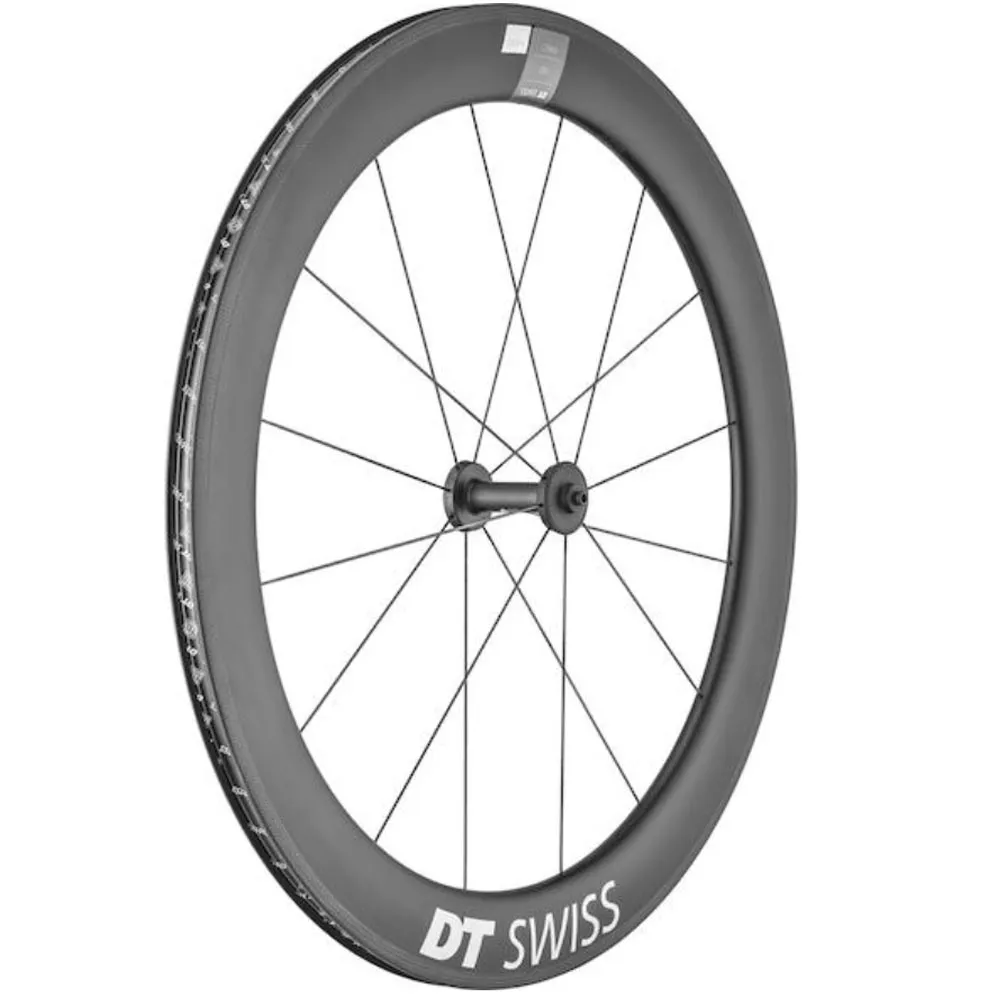

DT Swiss Dicut ARC 1400 Dicut RB wheel set for rim brakes
These aero wheels perform well on a wide range of route profiles and unleash their full potential whenever it matters most in a race. DT Swiss ARC 1400 Dicut 48 RB, rim brake only
Included in delivery:
- DT Swiss ARC 1400 Dicut 48 RB front wheel, RWS quick-release skewer, tubeless rim tape, tubeless valve,
DT Swiss ARC 1400 Dicut 48 RB wheel specifications:
- 28 / 29 inch, 700C, ETERO 20x622 rims
- Full carbon rims for folding and clincher tyres, tubeless ready
- Rim type: Hooked / Crotchet tubeless TC

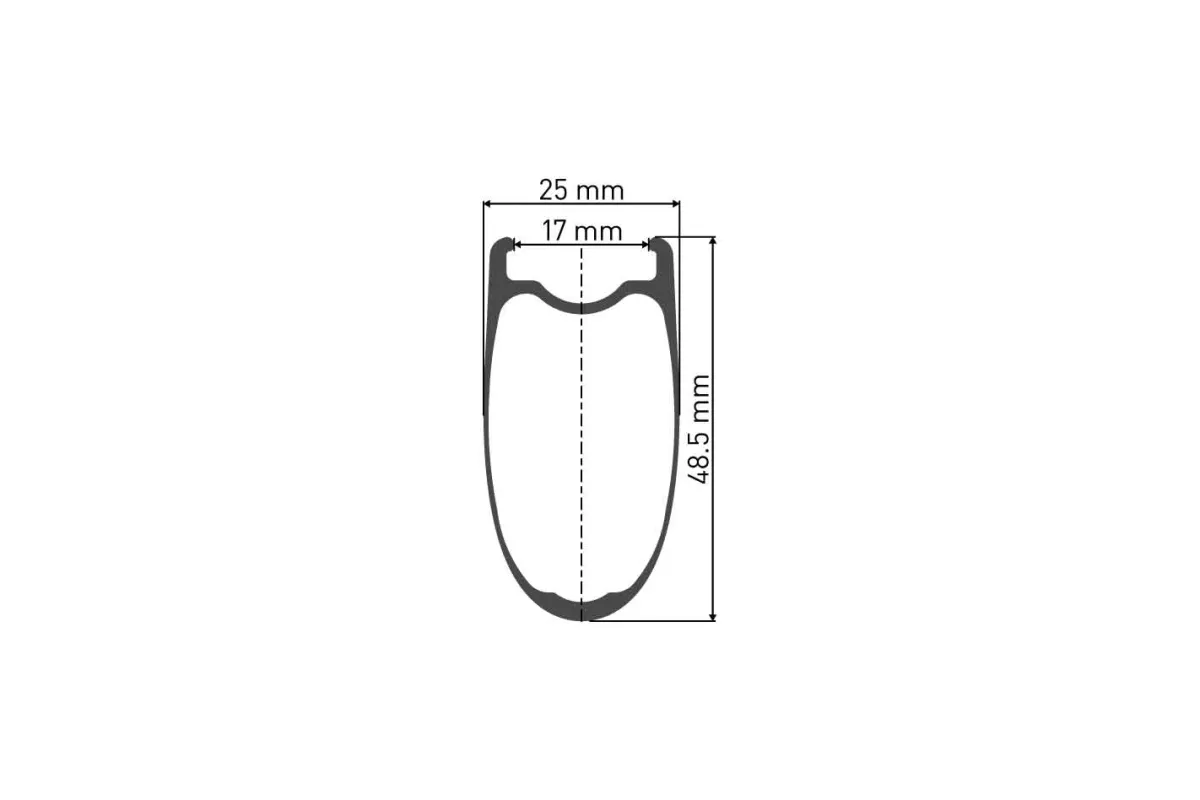

- Rim dimensions 622x17, outer width 27 mm, height 48 mm
- High-end EXP hubs with ratchet discs and stainless steel ball bearings
- Cold-forged DT Swiss Aerocomp spokes
- Pro Lock hidden special nipples
- Spoke pattern: Front wheel 16 spokes, radial
- Front hub: 240 Dicut quick-release, mounting width 9x100 mm
- Weight: 727 grams, manufacturer’s specification
- Maximum recommended rider weight 100 kg
- ASTM classification 1
The aero wheelset for marathon and race bikes, featuring the new Dicut EXP hubs based on the high-end 240 EXP. The 48 mm high and 25 mm wide elliptical full-carbon aero rim allows the use of wider, excellent-rolling tubeless tyres; the asymmetrical design provides very high lateral stiffness for maximum steering precision. The DT Swiss ARC 1400 Dicut 48 wheels are lightweight, weighing just 1583 grams. Finally, the patented EXP Ratchet System guarantees durability and easy maintenance of the wheelset. Thanks to the internal spoke nipples, the highly aerodynamic hubs and the rims developed in collaboration with Swiss Side, the ARC Dicut series offers ultimate aero performance

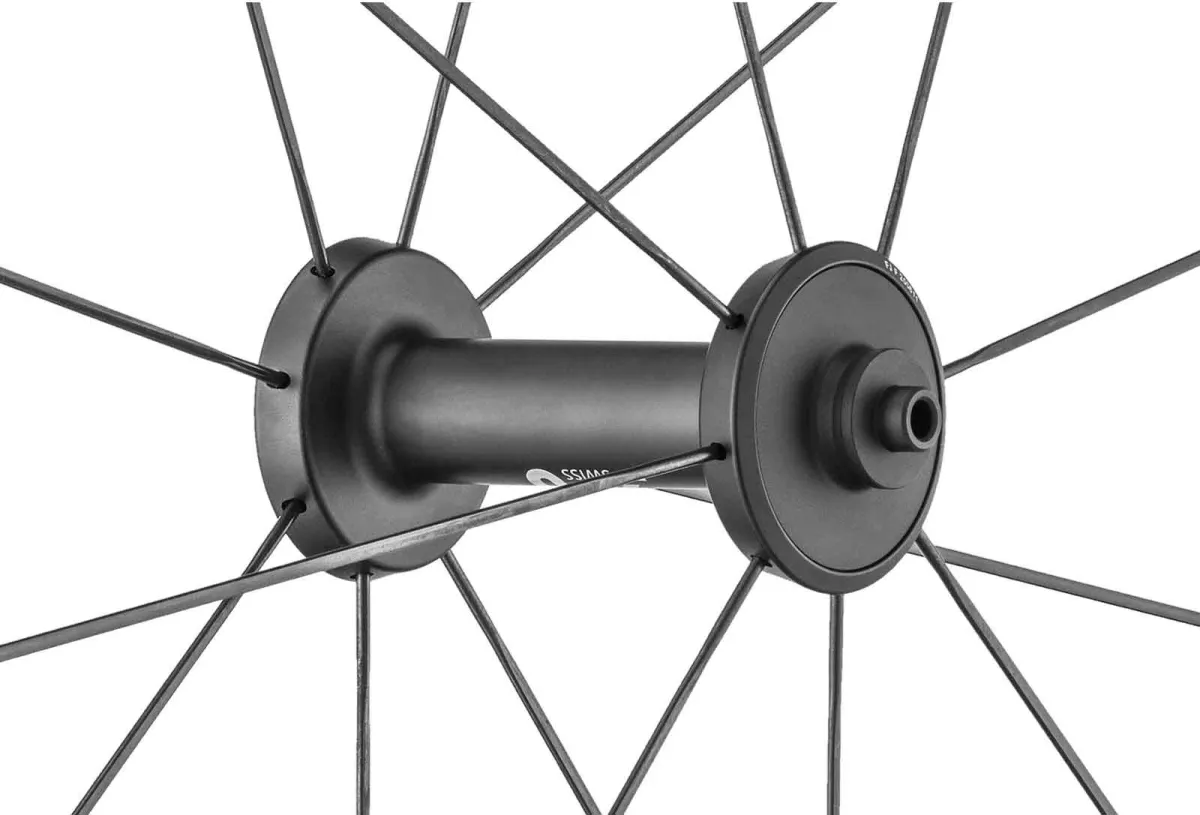

DT Swiss ARC 1400 Dicut EXP hubs:
The ARC Dicut EXP hubs are perfectly matched to the Nail Head spoke system and offer the best aerodynamics of any DT Swiss hub. Equipped with high-quality stainless steel bearings and a widened flange spacing for optimum lateral stiffness at a low weight. The ratchet body with Ratchet Star pawl is virtually maintenance-free and easy to convert.

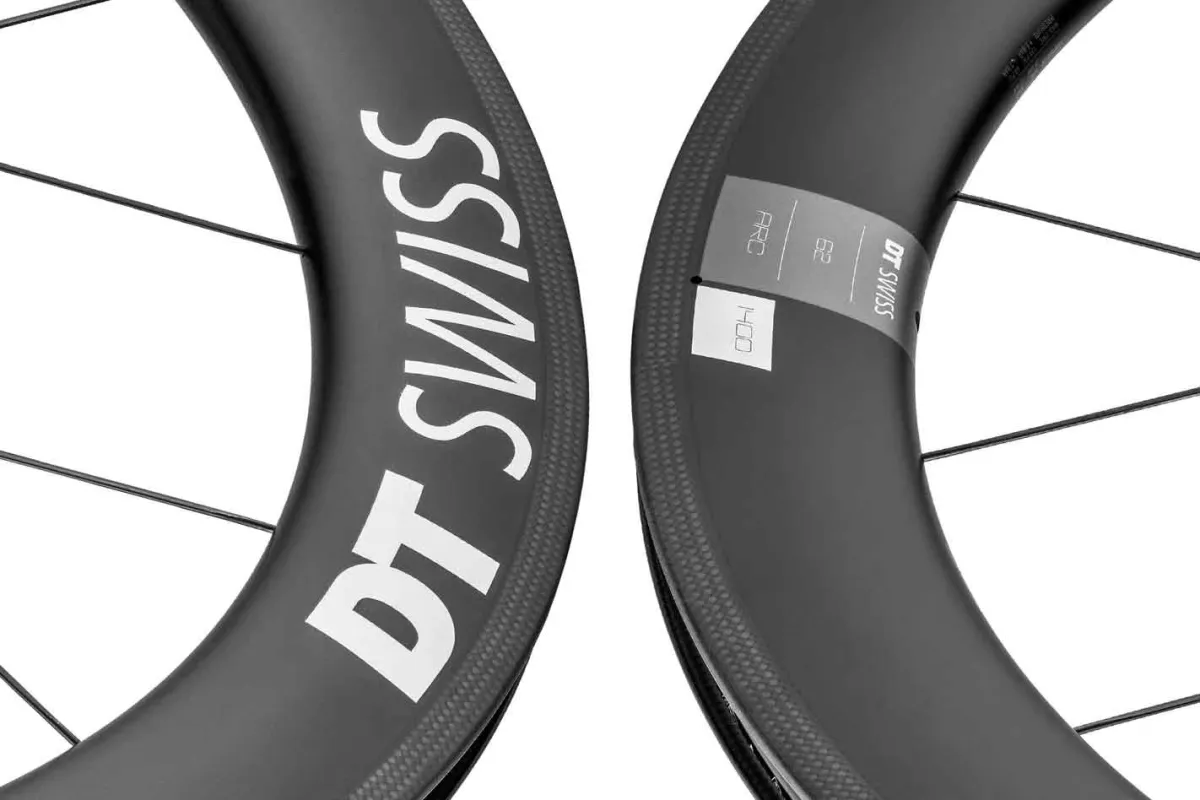

DT Swiss ARC 1400 Dicut rims:
The ARC 1400 carbon rims, developed entirely in collaboration with Swiss Side, offer the best aerodynamics and excellent handling in all wind conditions. Extensively tested and optimised in the wind tunnel, the ARC 1400 rims offer the best compromise between aerodynamics and handling. The finish is applied using a new process and does not affect aerodynamics in any way. With a 17 mm inner rim width, they are ideal for tyres from 25 mm wide and, of course, tubeless-ready.
Hooked / Crotchet tubeless TC:
‘Hooked’ or ‘Crotchet’ refers to the shape of the rim flange, which features a so-called hook. This aids in securing the tyre bead and ensures reliable performance, even when using high tyre pressure (> 5 bar). ‘Tubeless’ means that the rim can be ridden without an inner tube, although a setup with an inner tube is also possible.
DT Swiss ARC 1400 Dicut spokes:
The lacing pattern, using the Nail Head System and straight-pull spokes, ensures that the spokes cannot twist under load, meaning they always remain at the most aerodynamically favourable angle. The DT Swiss Aerocomp spokes, in combination with the internal Prolock Hidden spoke nipples, ensure outstanding aerodynamics.
Herstellerinformation: DT Swiss, Längfeldweg 101, 2504 Biel, Bern, Switzerland, https://www.dtswiss.com/
