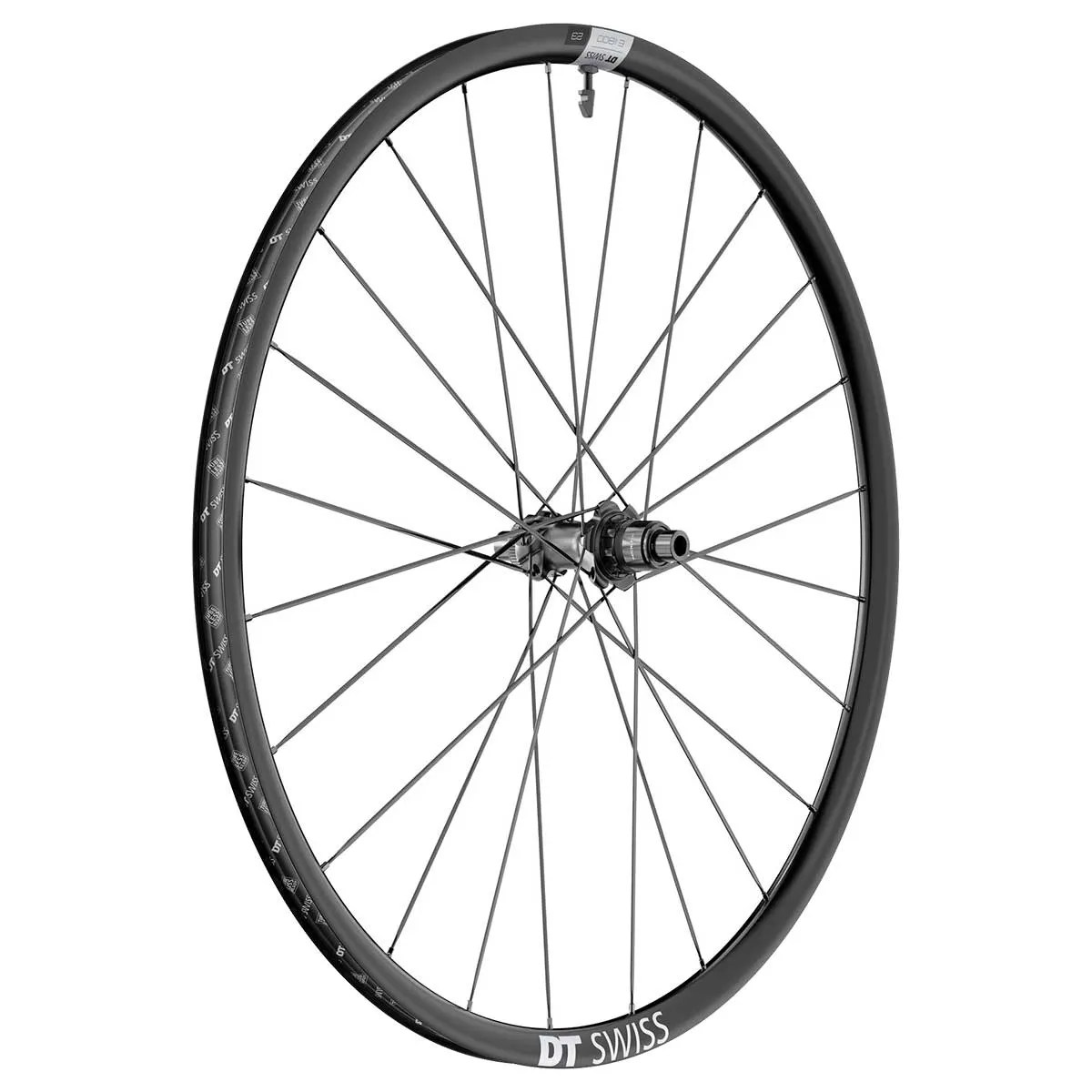

DT Swiss E 1800 Spline 25 DB wheelset

The affordable Endurance wheels, DT Swiss E 1800 Spline DB, now available in a new version featuring the Ratchet LN freehub system.

With a 22 mm rim width, the DT Swiss Endurance 1800 Spline 23 Disc wheels are ideal for road and light off-road use. Also perfectly suited for touring and travel bikes. Fitted with DT Swiss Spline 370 straight-pull hubs, lightweight and sturdy 23 mm high rims with a 22 mm rim width, and the Ratchet LN freehub body. The wide and lightweight aluminium rim, suitable for tyre widths up to 45 mm, offers comfort and safety on all surfaces.

Included:

• DT Swiss E 1800 Spine DB 23 rear wheel, DT Swiss end caps as selected, tubeless rim tape, tubeless valve

DT Swiss E 1800 Spline 23 wheel technology:

• for folding and clincher tyres, clincher tubeless ready
• ETRTO: 622 x 22 / 700C / 28 inches
• Rim width 26 mm, height 23 mm, rim depth 22 mm
• Rim type: Hooked / Crochet tubeless TC, tubeless ready
• DT 370 Spline hub with Swiss steel ball bearings and Ratchet LN 18 freehub
• Spokes: butted, cold-forged New Aero flat spokes
• Nipples: DT Swiss Prolock aluminium special nipples
• Lacing: 2-cross
• Number of spokes: 24/24 per wheel
• DT Swiss 370 Spline rear hub, Disc Centerlock, convertible
• Ratchet LN freehub body available as:
  • HG11 rotor compatible with Shimano and SRAM cassettes 8 + 9 + 10 + 11 + 12-speed
  • Campa N3W rotor compatible with Campagnolo 13-speed cassettes
  • Campa N3W rotor with AC21-N3W adapter, compatible with Campagnolo ED cassettes (11–13-speed)
  • XDR rotor compatible with SRAM AXS 12-speed and MTB XG cassettes (11- and 12-speed)
  • Micro Spline rotor compatible with Shimano MTB 12-speed cassettes
• Weight from 1764 grams, front: 829 grams, rear: 935 grams Manufacturer’s specification
• Recommended maximum system weight 120 kg
• ASTM classification 2
• Maximum air pressure: 7 bar

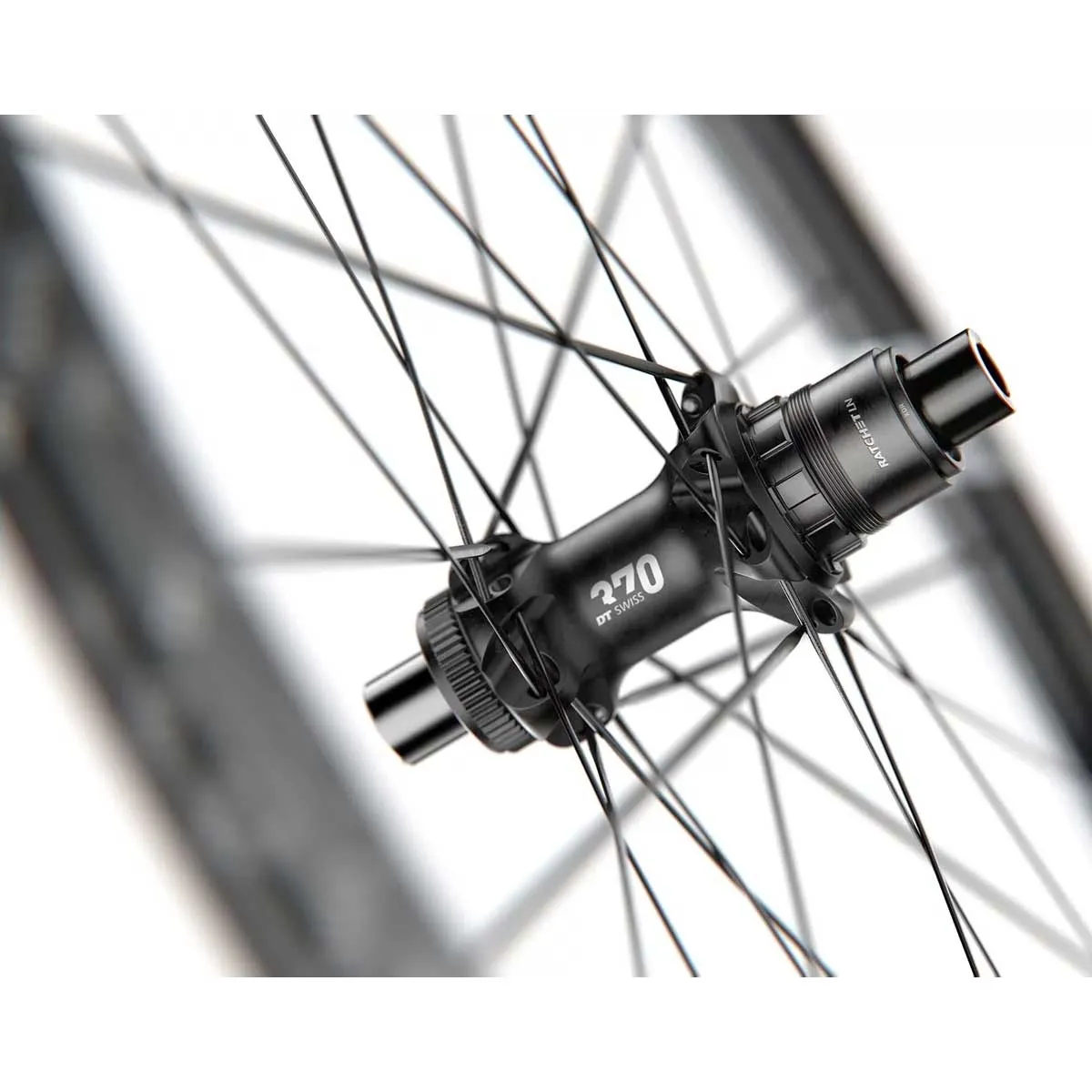

DT Swiss 1800 Spline Disc Hubs:

Equipped with a Centerlock mount, the DT Swiss 1800 Spline Straightpull Disc hubs from the DT 370 series are compatible with all types of brake discs; adapters for 6-bolt brake discs are available as an option. The DT Swiss Spline Disc hubs, with their optimised hub shell for straight-pull spokes and the proven Ratchet LN 18 freehub system based on the classic DT Swiss 370 hubs, are exceptionally durable; the rear hubs can be serviced without tools.

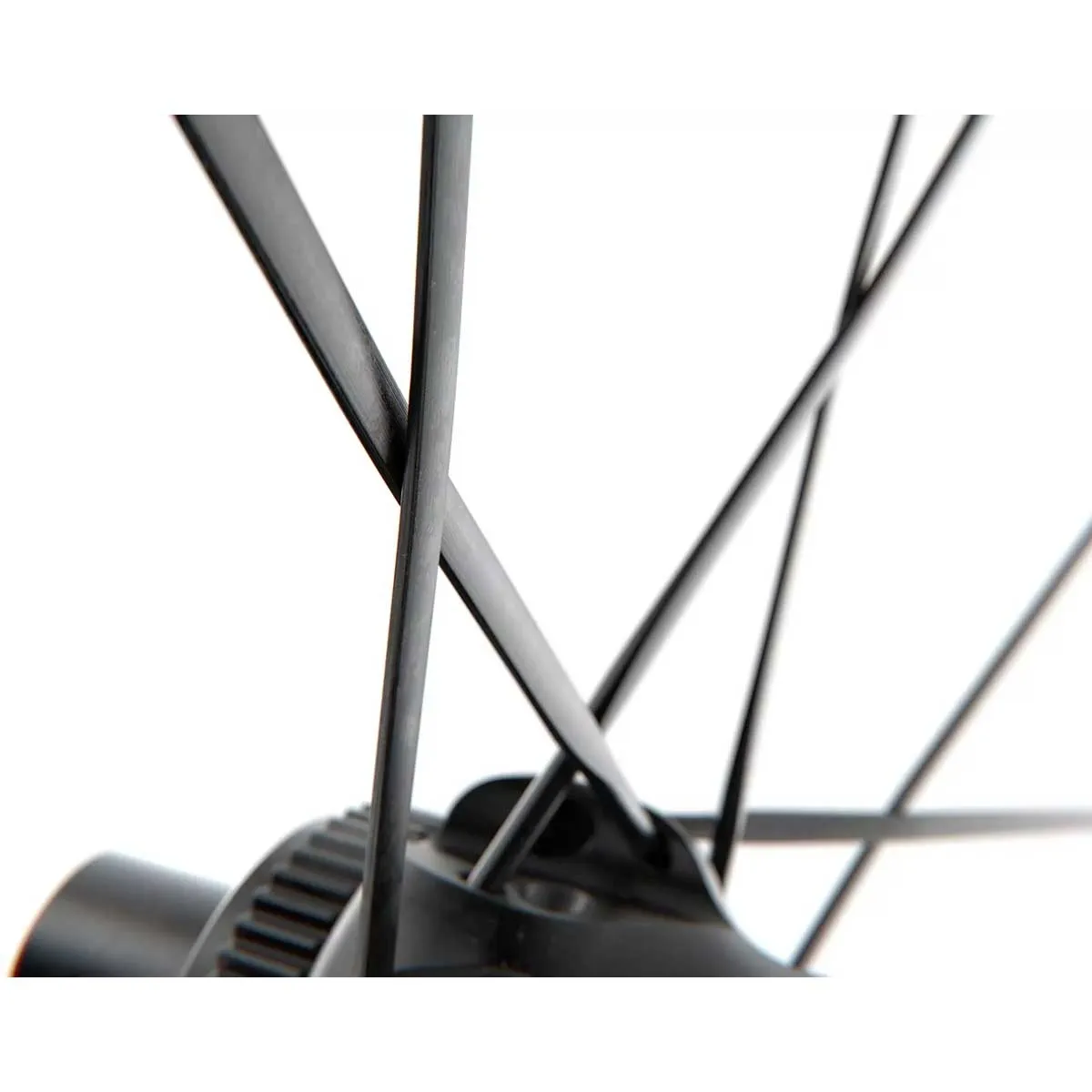

DT Swiss Straight Pull Spokes

To achieve an ideal balance of weight and stability, only the highest-quality Aero Comp Wide straight-pull spokes are used in the Spline wheelsets. They are stiffer than conventional spokes yet can still be trued and replaced using standard tools.

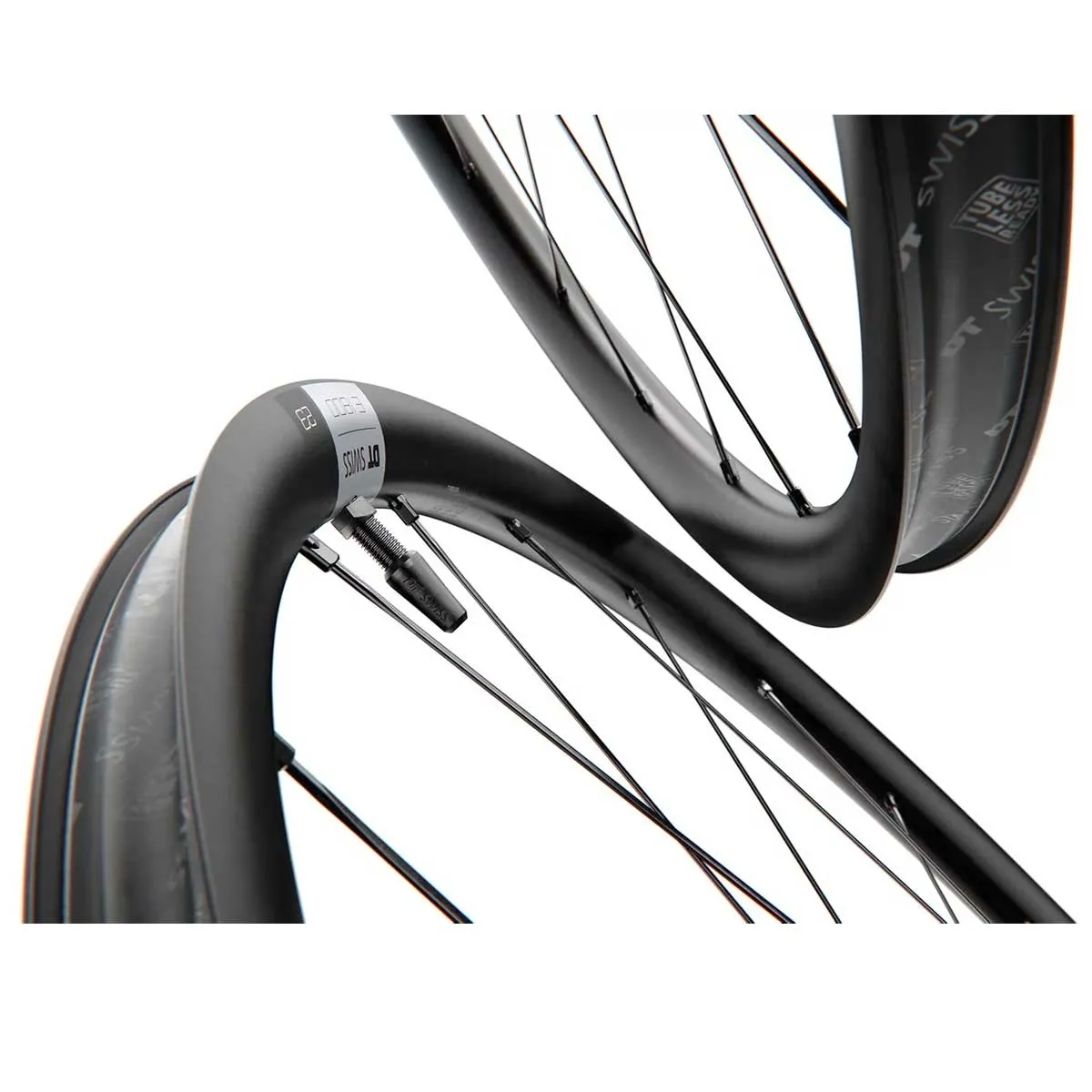

DT Swiss E 1800 Spline 23 Disc rims

Classic hooked/crochet rims with a 22 mm rim depth, 26 mm outer width and 23 mm profile height for folding and clincher tyres from 30–45 mm wide. The new rims are supplied with tubeless rim tape already fitted. Required tubeless rim tape width: 27 mm

DT Swiss Ratchet LN freehub body:

The proven DT Swiss Star Ratchet LN system with the toothed freehub body allows for easy conversion to various axle or rotor standards. The DT Swiss Ratchet LN rear hubs can be easily converted to fit the various standard cassette systems.

Spare parts DT Swiss E 1800 SPLINE 23 db 12/142 mm rear wheel

• Tubeless ready tape 25 mm / 10 m black, Item No: TVX2510S29809S
• Tubeless valve, aluminium, black, for 26–35 mm rim height, Item No.: TVVXA32S25866S
• Maintenance kit, SERVICE KIT H240/240S/FR/440, Item No: HWTXXX00NSK24S
• Threaded ring, steel M34x1 mm, RING NUT STEEL M34X1 240, Item No.: HCDXXX00S1110S
• Shim ring DIN 988 Ø28/20x0.5mm, burnished, SHIM RING, Item No: HXDXXX00N1131S
• Ball bearing 6902 Ø 15/28x7mm, B.BEARING 6902 ESB/ESNB L, Item No: HSBXXX00N2336S
• Aluminium axle 130/135mm, Ø15mm / 42.1mm, BRW AXLE AL XXXMM Ø15/42.1MM, Item No: HCCXXX00S2216S
• DT aluminium nipple, hidden Pro Lock, silver, Item No: NPAF20120N01000
• Spokes, left: DT new aero II straight pull black 2.0/1.1/3.3 x 298mm, Item No: SNWS20298S0020
• Spokes, right: DT new aero II straight pull black 2.0/1.1/3.3 x 294mm, Item No: SNWS20294S0020
• Compatible replacement rim: DT Swiss R 470 700C 23 mm DB VI, Item No: RDR047DPN24S011543

Compatible endstops for DT Swiss rear hub type 370 Disc Road:

• Quick-release mounting HG11 freehub, 10x135 mm, Item No: HWGXXX0002777S
• Quick-release mount Shimano Microspline Road freehub, 10x135 mm, Item No: HWGXXX00S5623S
• Quick-release mount Campa ED freehub, 10x135 mm, Item No: HWGXXX00S2766S
• Quick-release mount Campa N3W freehub, 10x135 mm, Item No: HWGXXX00S3191S
• Quick-release mount Sram XD freehub, 10x135 mm, Item No: HWGXXX00S3115S
• Quick-release mount Sram XDR freehub, 10x135 mm, Item No: HWAXXX00S8123S
• Thru-bolt mount HG11 freehub, 10x135 mm, Item No: HWGXXX0004634S
• Thru-bolt mount Sram XD freehub, 10x135 mm, Item No: HWGXXX00S3218S
• Thru-axle mounting HG11 freehub, 12x135 mm, Item No.: HWGXXX0007569S
• Thru-axle mount Shimano Microspline Road, 12x135 mm, Item No: HWGXXX00S5624S
• Thru-axle assembly Sram XD freehub, 12x135 mm, Item No: HWGXXX00S3382S
• Thrust Axle Assembly HG11 Freewheel, 12x142 mm, Item No: HWGXXX0003525S
• Thru-axle assembly Campa ED freehub, 12x142 mm, Item No: HWYABX00S7154S
• Thru-axle fitting Campa N3W freehub, 12x142 mm, Item No: HWYABX00S7154S
• Thru-axle fitting Sram XD freehub, 12x142 mm, Item No: HWGXXX00S3188S
• Thru-axle fitting for Sram XDR freehub, 12x142 mm, Item No: HWYAAX00S8888S

Compatible freehub bodies for DT Swiss Disc Road rear wheels with Ratchet LN system with end stop

• DT Swiss Rotor Alu HG11 with end stop, 12x142 mm thru-axle mount, Item No: HWYABX00S7708S
• DT Swiss Rotor Aluminium HG11 with end stop, 10x135 mm quick-release mount, Item No: HWYABX00S7708S + HWGXXX0006383S
• DT Swiss Rotor Steel HG11 with end stop, 12x142 mm thru-axle mount, Item No: HWYABX00S7708S
• DT Swiss Rotor Steel HG11 with end stop, 10x135 mm thru-axle mount, Item No: HWYABX00S7708S + HWGXXX0006383S
• DT Swiss Aluminium Rotor Campagnolo N3W with end stop, 12x142 mm thru-axle mount, Item No.: HWYABM00S0692S
• DT Swiss aluminium rotor Campagnolo N3W with end stop, 10x135 mm quick-release mounting, Item No.: HWYABM00S0692S + HWGXXX00S3191S
• DT Swiss aluminium rotor Sram XDR with end stop, 12x142mm thru-axle mount, Item No: HWYABX00S7711S
• DT Swiss aluminium rotor Sram XDR with end stop 110x135mm quick-release mounting, Item No: HWYABM00S5716S
• DT Swiss aluminium rotor Micro Spline with end stop, 12x142mm thru-axle mount, Item No: HWYABM00S1962S
• DT Swiss aluminium rotor Micro Spline with end stop 10x135mm quick-release mount, item no.: HWYABM00S1962S + HWGXXX00S5623S

Herstellerinformation: DT Swiss, Längfeldweg 101, 2504 Biel, Bern, Switzerland, https://www.dtswiss.com/
