DT Swiss Dicut ERC 1100 wheelset

The high-end disc wheelset for endurance and all-road bikes, the DT Swiss ERC 1100 Dicut with ceramic bearings, 45 mm high and 28.5 mm wide elliptical full-carbon rims with a 22 mm rim depth.

The rims allow the use of wide, excellent-rolling tubeless tyres; the asymmetrical design provides very high lateral stiffness for maximum steering precision. The DT Swiss ERC 1100 wheelset is lightweight, weighing just 1449 grams, and features high-end DT Swiss Dicut hubs with DT Swiss Sinc ceramic bearings. Finally, the patented Ratchet EXP system guarantees durability and easy maintenance of the wheelset.

Included:

• DT Swiss ERC 1100 Dicut 35 DB front wheel, end caps as selected, tubeless rim tape, tubeless valve
• DT Swiss ERC 1100 Dicut 35 DB rear wheel, freehub body and end caps as selected, tubeless rim tape, tubeless valve

DT Swiss ERC 1100 Dicut Disc wheel technology:

• Full carbon rims for folding and clincher tyres
• ETRTO: 622 x 22 / 700C, 28/29 inches

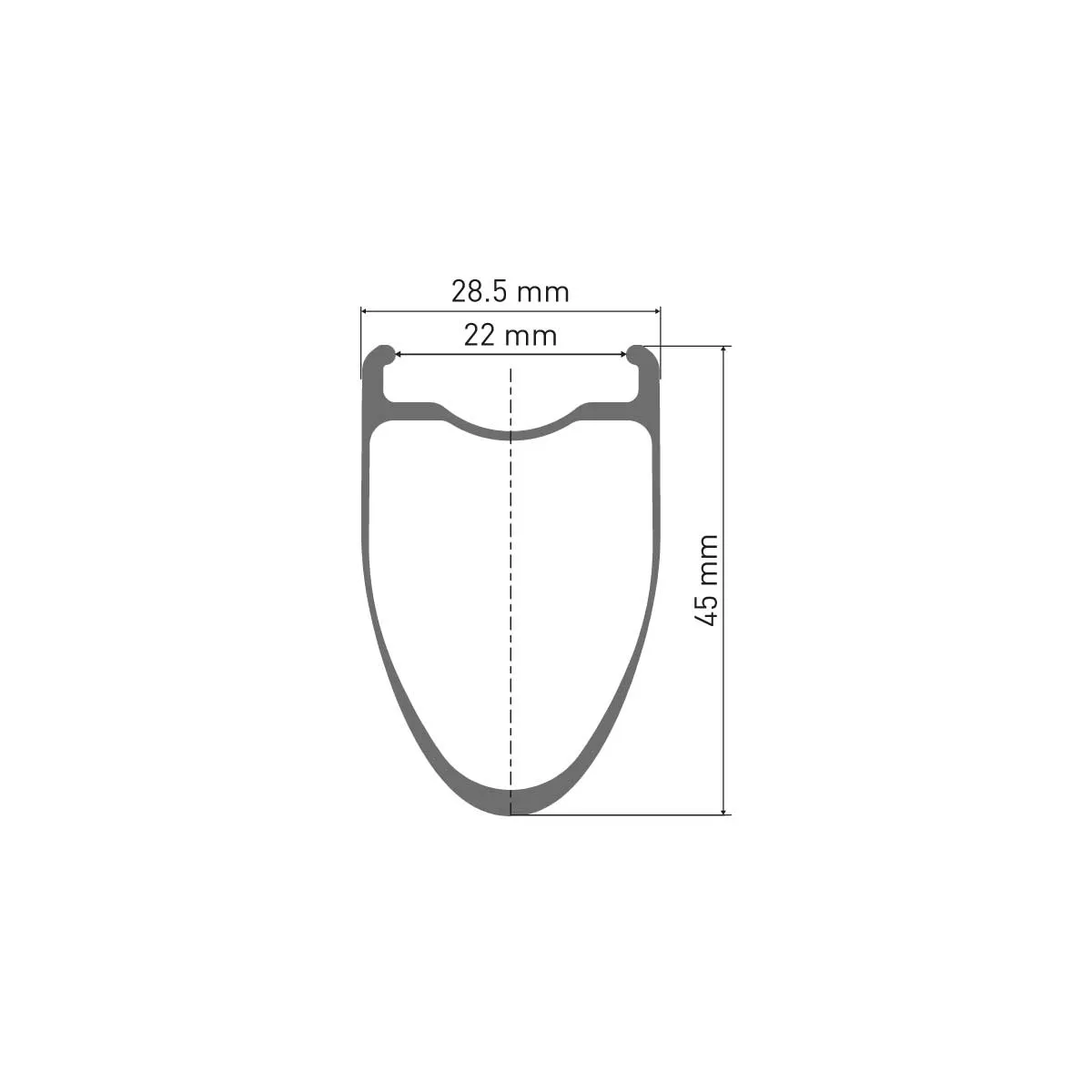

• Rim dimensions: External width 28.5 mm, height 45 mm, rim depth 22 mm
• Rim type: Hooked / Crotchet tubeless TC
• High-end hubs with ratchet discs and Sinc ceramic ball bearings
• Cold-forged DT Swiss Aerolite/Aerocomp spokes Front and rear wheels 24 spokes
• Pro Lock Hidden special nipples
• Spoke pattern: 2-cross
• Front hub: ERC Dicut, available with either 12x100mm thru-axle or 9x100mm quick-release end caps
• ERC Dicut rear hub, optionally with 12x142mm or 10x135mm quick-release end caps
• EXP Ratchet freehub body, available as:
  • HG11 freehub body compatible with Shimano Road 8–12-speed and Sram PG Road 8–11-speed cassettes
  • ED freehub body compatible with Campagnolo 9, 10, 11 and 12-speed cassettes
  • N3W freehub body compatible with Campagnolo 13-speed cassettes
  • XDR freehub body compatible with SRAM Red AXS 12-speed cassettes
  • Micro Spline freehub body compatible with Shimano MTB 12-speed cassettes
• Weight: Set 1449 grams, front wheel 663 grams, rear wheel 786 grams, manufacturer’s specification
• Maximum recommended rider weight: 120 kg
• ASTM classification 2

DT Swiss ERC 1100 Dicut 45:

Unlimited riding fun with the versatile ERC wheels. Whether mountainous, undulating or flat – with these aerodynamically optimised wheels, you’ll be flying along. Even climbs and fast descents can be tackled with ease.

Different road surfaces or weather conditions are hardly a problem: with the ERC wheelsets, you always retain full control whilst riding. The new AERO+ rim profiles allow the use of comfortable, wider tyres. Technical highlights include the 180 DICUT Aero hubs with ultra-smooth-running SINC Ceramic bearings, as well as the latest DT Swiss Aero spokes. And with the Ratchet EXP freehub system featuring 36T ratchet pinhubs, every pedal stroke is precisely converted into forward momentum and speed – from the start to the finish of your ride.

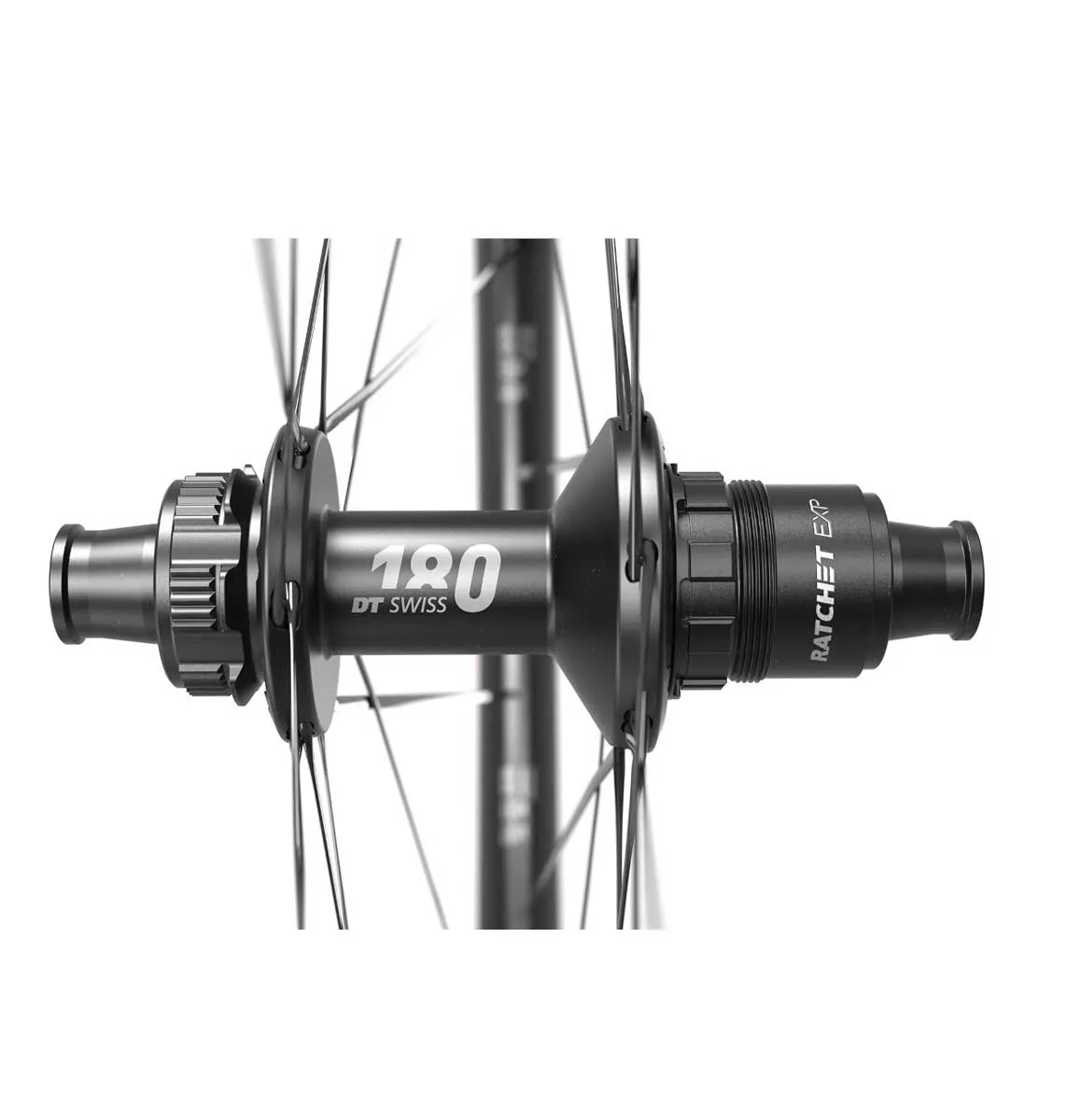

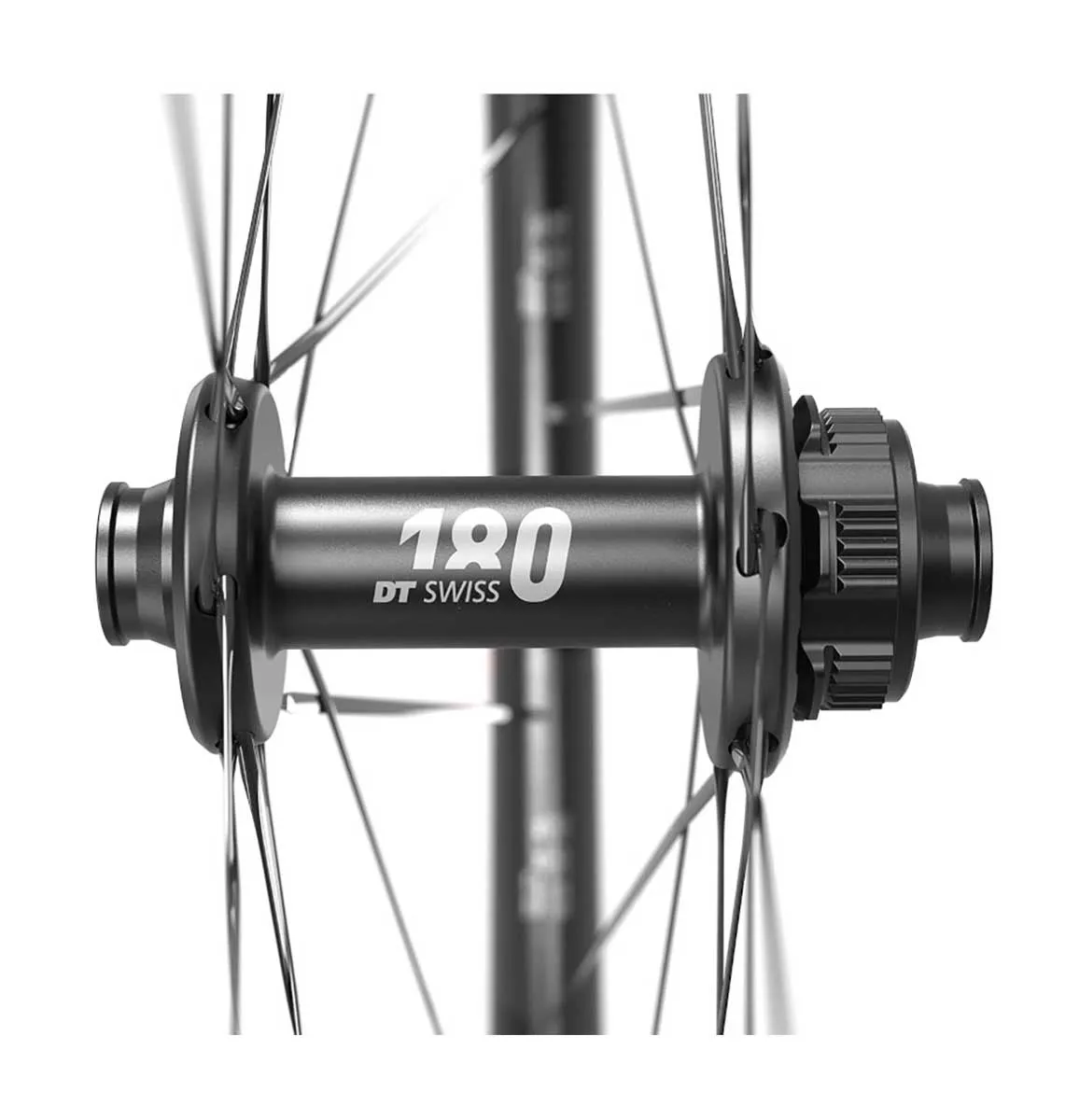

DT Swiss ERC 1100 Dicut Disc Hubs:

The Dicut Disc hubs, based on DT Swiss 180 EXP hub technology, are perfectly matched to the Nail Häd spoke system and offer optimum aerodynamics. Equipped with high-end Sinc Ceramic bearings and a widened flange spacing for optimum lateral stiffness at low weight. The ratchet body with the Ratchet EXP pawl is virtually maintenance-free and easy to convert. The Centerlock brake disc mount allows IS 6-hole brake discs to be fitted using an adapter.

DT Swiss ERC 1100 Dicut Disc compatibility:

The hub of the DT ERC 1100 Dicut Disc front wheel is compatible with 9x100 mm quick-release mounts and 12x100 mm thru-axles; the hub of the DT ERC 1100 Dicut Disc rear wheel is compatible with quick-release mounts and 12x142 mm thru-axles

DT Swiss Sinc Ceramic:

The high-end ceramic bearings from DT Swiss, specially optimised for DT Swiss hubs, offer maximum smoothness and minimal weight. In a special manufacturing process, the balls are rolled until their surface exhibits perfect roundness. Whilst the surface of conventional ceramic balls is not 100 per cent smooth, SINC Ceramic balls exhibit extremely high smoothness and, thanks to their perfect roundness, achieve extremely low rolling resistance. By combining these ceramic balls with high-quality steel bearing cups, the full potential of the bearings can be realised.

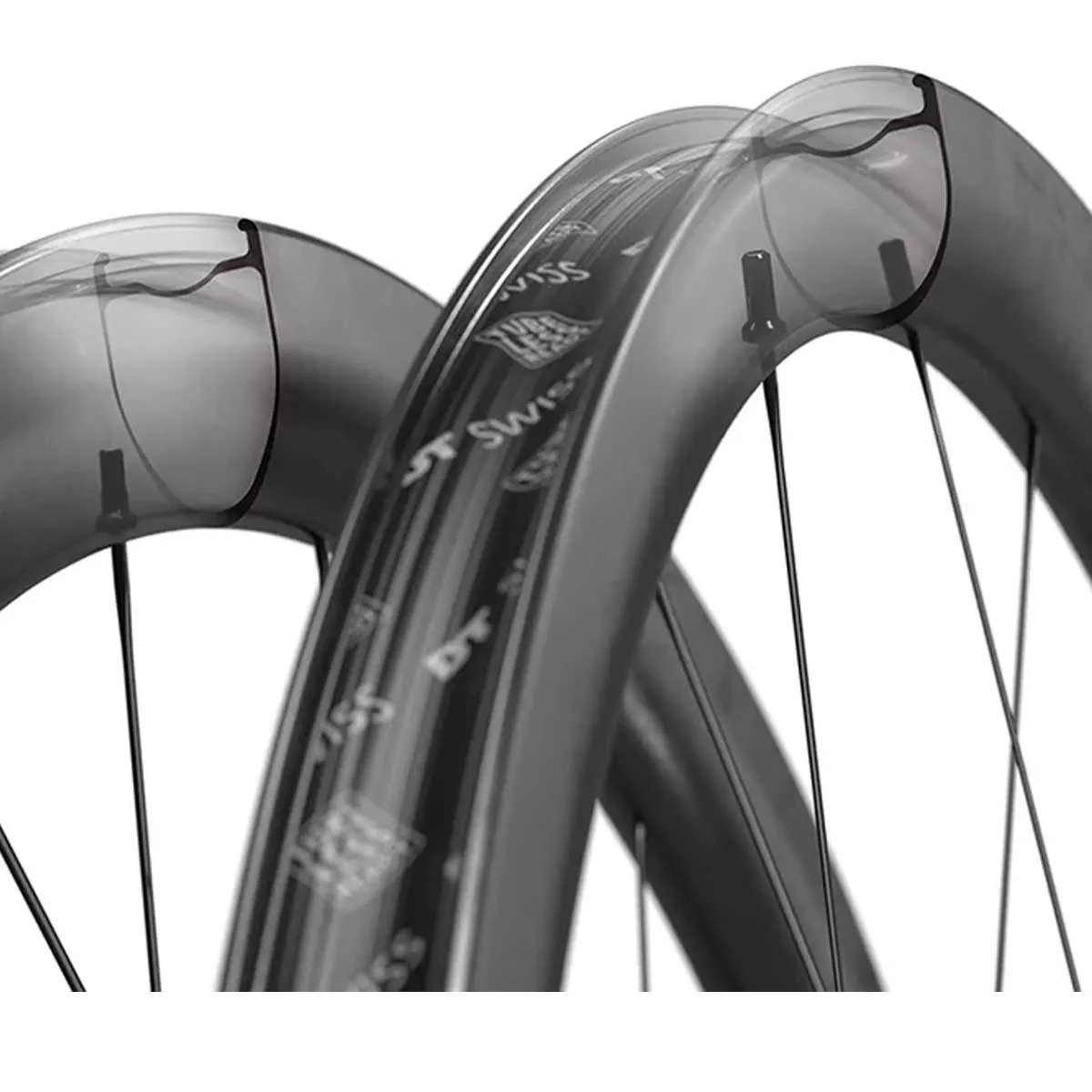

DT Swiss ERC 1100 Dicut Disc rims:

The ERC 1400 carbon rims, developed entirely in collaboration with Swiss Side, offer good aerodynamics and excellent handling in all wind conditions. Extensively tested and optimised in the wind tunnel, the ERC 1400 rims offer the best compromise between aerodynamics and handling. The finish is applied using a new process and does not affect aerodynamics in any way. With a 22 mm inner rim width, they are ideal for tyres from 25 mm wide and, of course, tubeless-ready.

Rim type Hooked / Crotchet tubeless TC:

Manufactured with a hook or crochet refers to the shape of the rim flange, which features a so-called hook. This supports the tyre bead and ensures reliable performance, even when using high tyre pressure > 5 bar. Tubeless means that the rim can be ridden without an inner tube, but a setup with an inner tube is also possible.

DT Swiss ERC 1100 Dicut spokes:

Lacing with the Nail Head System ensures that the spokes cannot twist under load, so the spokes always remain at the most aerodynamically favourable angle. Flatter and lighter than all others, the DT Swiss Aerolite spoke features an aerodynamic flat profile and is extremely lightweight. On the freehub side of the Dicut wheels, the slightly heavier and even more stable DT Aerocomp spokes are fitted.

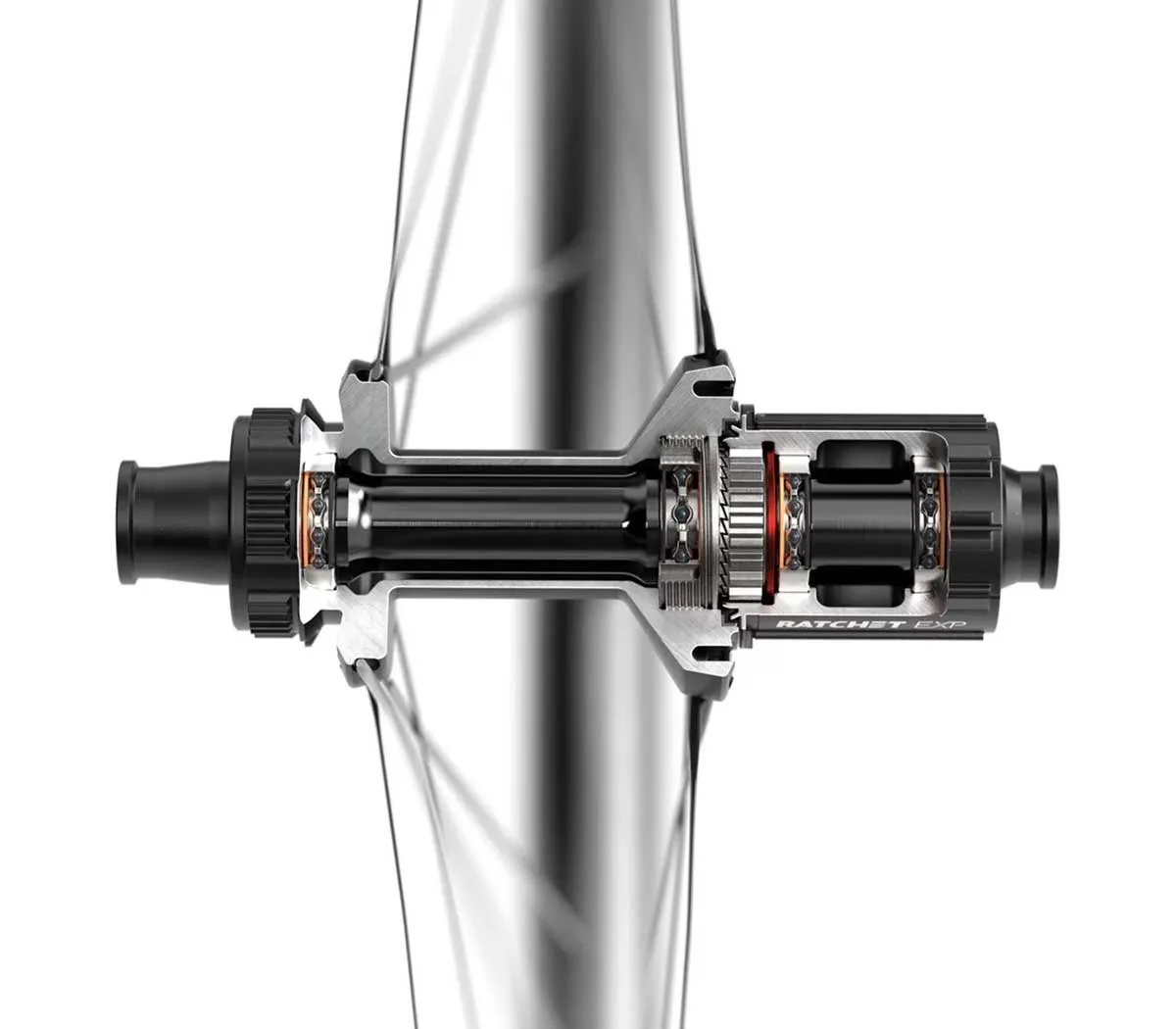

DT Swiss EXP Star Ratchet Freehub:

The tried-and-tested DT Swiss Ratchet System in the new EXP version, featuring a toothed disc freehub body, allows for easy conversion to various axle or rotor standards. The integration of the toothed disc and threaded ring reduces the number of components and thus lowers the weight. A single coil spring ensures faster, complete engagement and therefore greater reliability.

DT Swiss EXP Road freehub body

• DT Swiss EXP Ceramic Bearing Rotor HG11 with end stop 12x142mm thru-axle Mounting Type No. HWYCBL00S5380S
• DT Swiss EXP Ceramic Bearing Rotor HG11 with end stop 10x135mm quick-release Mounting Type No. HWYCBL00S5400S
• DT Swiss EXP Rotor HG11 with end stop 12x142mm thru-axle Mounting type No. HWYABL00S5378S
• DT Swiss EXP Rotor HG11 with end stop 10x135mm quick-release Mounting type No. HWYABL00S5399S
• DT Swiss EXP Rotor Micro Spline with end stop, 12x142mm thru-axle, Mounting Type No. HWYABL00S1960S
• DT Swiss EXP Rotor Campagnolo N3W with end stop 12x142mm thru-axle Mounting type No. HWYABL00S2993S
• DT Swiss EXP Ceramic Bearing Rotor Campagnolo ED with end stop 12x142mm thru-axle Mounting Type No. HWYCBL00S7075S
• DT Swiss EXP Ceramic Bearing Rotor Campagnolo ED with end stop 10x135mm quick-release Mounting Type No. HWYCBL00S7068S
• DT Swiss EXP Rotor Campagnolo ED with end stop 12x142mm thru-axle Mounting Type No. HWYABL00S7074S
• DT Swiss EXP Rotor Campagnolo ED with end stop 10x135mm quick-release Mounting type No. HWYABL00S7073S
• DT Swiss EXP Ceramic Bearing Rotor Sram XDR with end stop 12x142mm thru-axle Mounting Type No. HWYCBL00S5383S
• DT Swiss EXP Ceramic Bearing Rotor Sram XDR with end stop 10x135mm quick-release Mounting Type No. HWYCBL00S5402S
• DT Swiss EXP Rotor Sram XDR with end stop 12x142mm thru-axle Mounting type No. HWYABL00S5401S
• DT Swiss EXP Rotor Sram XDR with end stop 10x135mm quick-release Mounting type No. HWYABL00S5382S

Herstellerinformation: DT Swiss, Längfeldweg 101, 2504 Biel, Bern, Switzerland, https://www.dtswiss.com/
