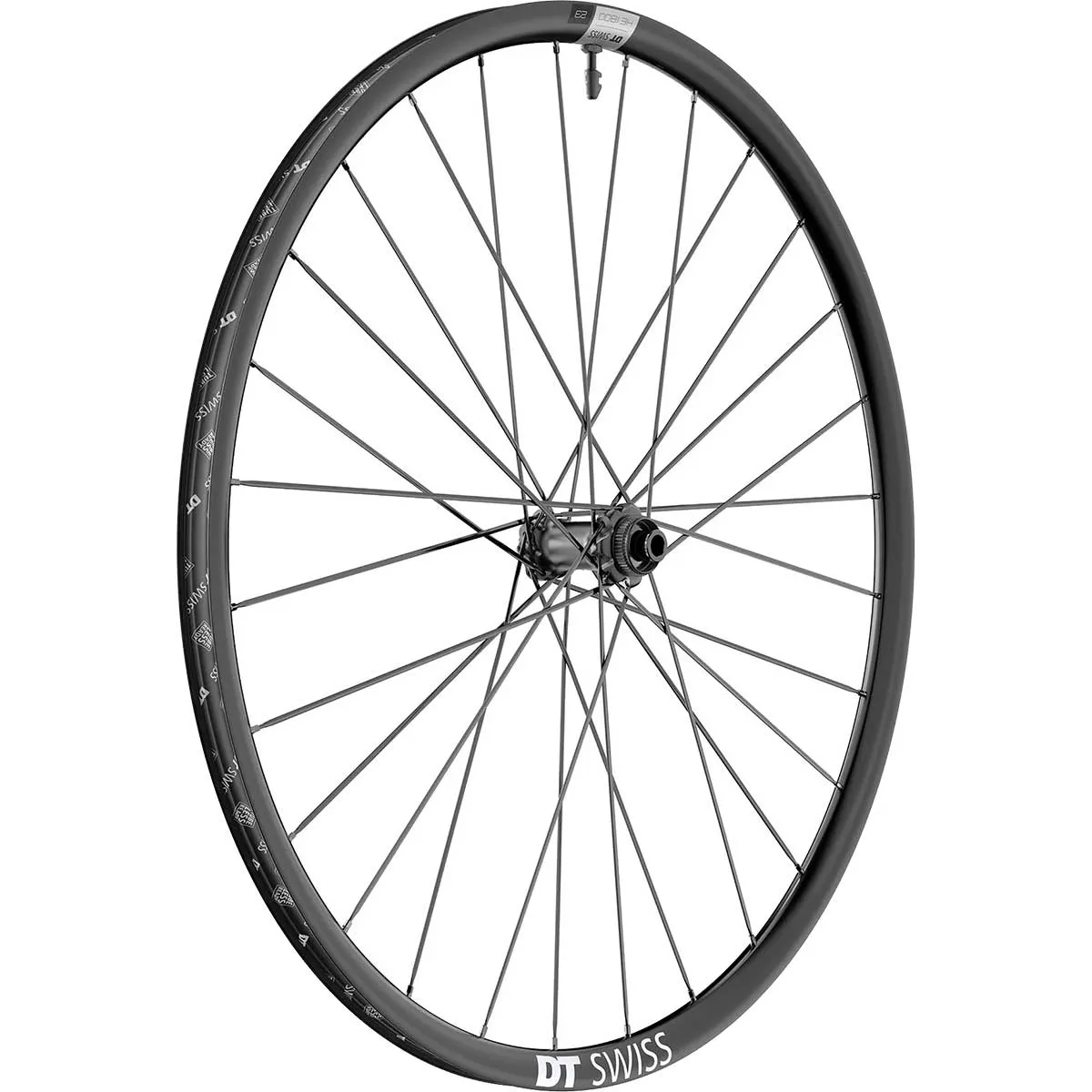

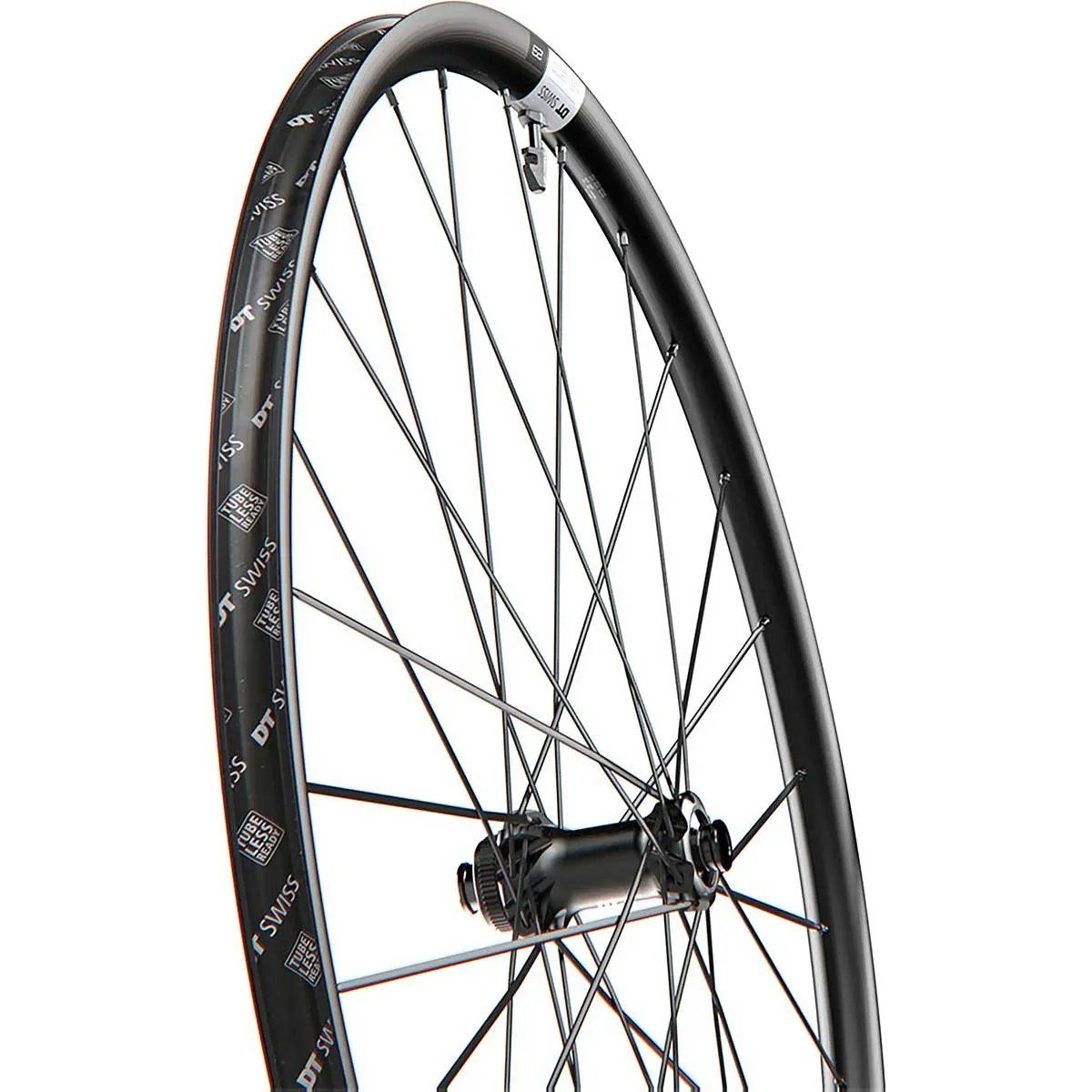

DT Swiss HE 1800 Hybrid Spline 23 DB wheel

The 28/29-inch DT Swiss Hybrid HE 1800 wheel with the Boost front hub for 12x110mm or 15x110mm thru-axles.

The DT Swiss HE 1800 SPLINE has been specially developed to meet the requirements of e-road bikes. The sleeved rim with a 22 mm rim width accommodates wide tyres for an ideal combination of comfort, traction and durability. The specially reinforced spokes and hub ensure durability, whilst the Ratchet LN freehub system guarantees reliable power transmission through simultaneous engagement. The result is a robust and durable wheelset that allows the rider to focus on just one thing: enjoying the ride.

DT Swiss Hybrid Wheels:

E-road bikes help cyclists keep going. However, due to the additional weight and power from the specific frame and motor designs, the wheels are subjected to higher loads and torques over longer distances. DT Swiss Hybrid Road wheels are designed to cope with these additional loads thanks to the increased strength of the individual wheel components.

DT Swiss HE 1800 Spline 23 Hybrid 28-inch wheel technology:

• For folding and tubular tyres, 28/29-inch clinchers ETRTO: 622 x 22
• Recommended for e-bikes max. 32 km/h or max. 250 W

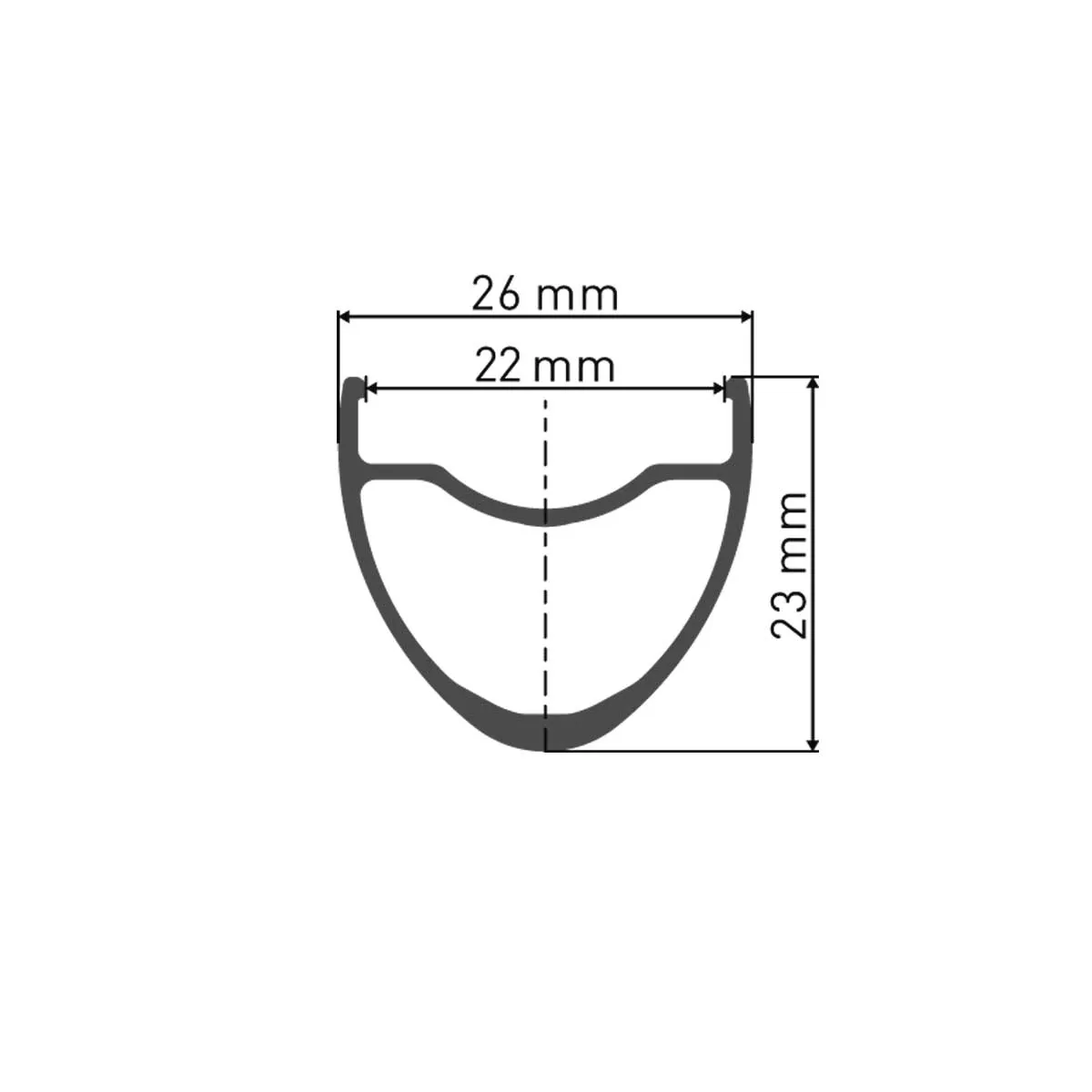

• Rim width 26 mm, height 23 mm, rim depth 22 mm
• Rim type: Hooked / Crochet tubeless TC
• DT 370 Spline hub with Swiss steel ball bearings and Ratchet LN freehub
• Spokes: butted, cold-forged New Aero Hybrid flat spokes
• Nipples: DT Swiss Prolock aluminium special nipples
• Lacing pattern: 3-cross
• 28 spokes per wheel
• DT Swiss 370 Spline Boost front wheel hub, Disc Centerlock
• Weight approx. 917 grams, manufacturer’s specification
• Recommended maximum system weight: 130 kg
• ASTM classification 2
• Maximum air pressure: 7 bar

Scope of delivery DT Spline HE 1800 Spline DB 23 wheelset:

DT Swiss HE 1800 Spine DB 23 front wheel, DT Swiss Boost end caps as selected, 25 mm tubeless rim tape, 32 mm tubeless valves Road

DT Swiss New Aero Hybrid Straight Pull spokes

Exceptionally strong and durable, the New Aero Hybrid spokes are specially designed for high-stress use on e-bikes; they are sturdier than conventional spokes yet can still be trued and replaced using standard tools.

DT Swiss HE 1800 Hybrid Disc rims

The extra-reinforced hybrid rims with a 22 mm rim depth, 25 mm outer width and 23 mm profile height for folding and clincher tyres from 28–40 mm wide. The classic rim profile with a flange is suitable for tubeless and standard tyres with inner tubes. The rims are supplied with tubeless rim tape fitted and a UST valve.

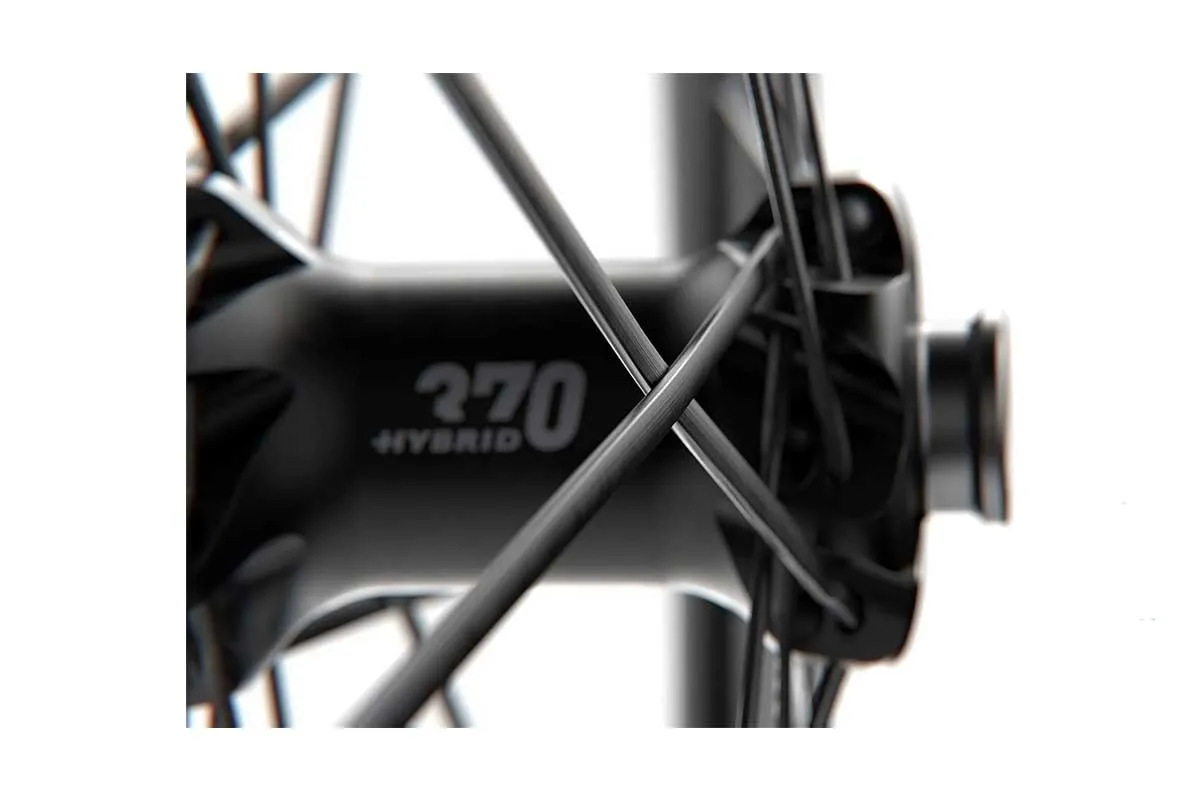

DT Swiss 1800 Spline Hybrid Disc Hubs

Equipped with a Centerlock mount, the DT Swiss 1800 Hybrid Spine Disc hubs are compatible with all types of brake discs; adapters for 6-bolt brake discs are available as an option. The DT Swiss Spline Disc hubs, featuring an optimised hub shell for straight-pull spokes and the super-robust Ratchet LN freehub system based on the classic DT Swiss 370 hubs, are exceptionally durable; the rear hubs can be serviced without tools.

Compatible endstops for DT Swiss Disc Road 1800 Boost front wheels:

• Thru-axle mounting 12x100/110 mm: Item No. HWGXXX00S6885S
• Thru-axle mounting 15x100/110 mm: Item No. HWGXXX0004785S

Herstellerinformation: DT Swiss, Längfeldweg 101, 2504 Biel, Bern, Switzerland, https://www.dtswiss.com/
