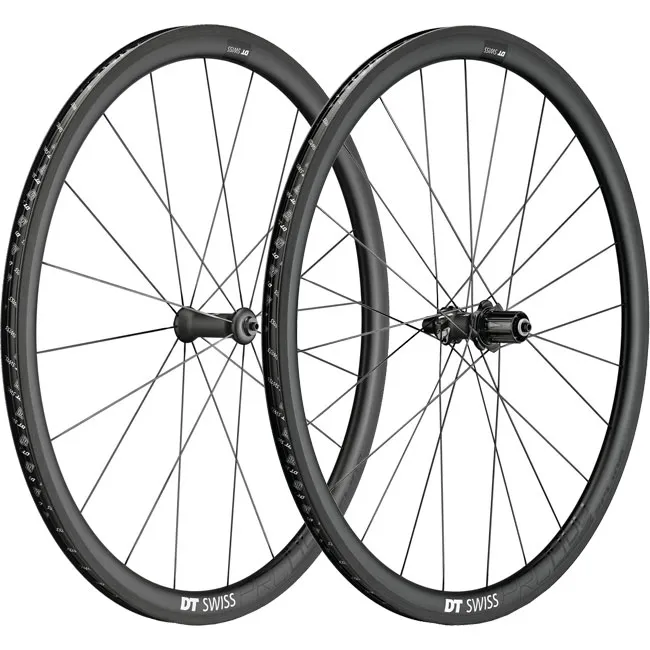

DT Swiss PRC 1400 SPLINE 35 wheelset

The ultimate full-carbon road race wheelset, the DT Swiss Spline PRC 1400 Spline 35, for classic rim brakes.

The completely redesigned PRC 1400 wheelset series offers minimal weight, outstanding aerodynamics, very high lateral stiffness and 20 per cent improved heat resistance, The PRC 1400 Spline carbon wheelset features a 35 mm high, high-modulus full-carbon rim from DT Swiss for folding and clincher tyres, with straight-pull spokes and the proven, lightweight Ratchet Star rear hub technology.

Designed for competition use, the DT Swiss PRC 1400 Spline Carbon wheels, with their 35 mm high rims, offer excellent aerodynamics and, weighing just 1475 grams for the clincher wheelset, deliver exceptional acceleration

Included in delivery:

• DT Swiss PRC 1400 Spline 35 front wheel, DT Swiss tubeless rim tape 21 mm, DT Swiss tubeless valve 53 mm, carbon brake pads, DT Swiss RWS quick-release skewers
• DT Swiss PRC 1400 Spline 35 rear wheel, DT Swiss tubeless rim tape 21 mm, DT Swiss tubeless valve 53 mm, carbon brake pads, DT Swiss RWS quick-release skewers

DT Swiss PRC 1400 Spline 35 C Wheel Technology:

• for folding and clincher tyres
• Maximum recommended rider weight 100 kg
• Rims: unidirectional carbon ERTRO 622 x 18
• Rim width (external): 25 mm, height: 35 mm
• Top-end hub with stainless steel ball bearings and cog freewheel
• Spokes: butted, cold-forged Aerolite flat spokes
• Nipples: DT Swiss Prolock hexagonal special nipples
• Lacing: 3-cross
• Number of spokes: 20/24 per wheel
• DT Swiss Ratchet System 36T
• Freewheel body available as:
  • HG11 freehub body for Shimano and Sram cassettes, compatible with 8, 9, 10 and 11-speed
  • Campa ED freehub body for Campagnolo cassettes, compatible with 9-, 10-, 11- and 12-speed
  • SRAM XDR freehub body for SRAM 11- and 12-speed AXS Road and XG MTB cassettes
• Weight approx. 1475 grams, front: 635 grams, rear: 823 grams

DT Swiss straight-pull spokes

To achieve an ideal balance between weight and stability, only the highest quality straight pull spokes are used in SPLINE wheels. They are more stable than conventional spokes yet can still be trued and replaced using standard tools.

DT Swiss PRC 1400 Spline 35 clincher rims

For the PRC 35 Spline C, the rims are made from high-modulus carbon fibre using a new heat-resistant resin. The NCAC profile, derived from aircraft construction, offers optimum aerodynamics. The 1475-gram wheelset, suitable for both folding and clincher tyres, is completed by straight-pull spokes. The DT PRC 1400 Spline Clincher wheels, the ultimate choice for competitive use

DT Swiss Spline hubs

The DT Swiss Spline hubs, with their optimised hub shell and wider hub flanges, offer greater lateral stiffness. Designed for straight-pull spokes and the proven ratchet pawl freewheel system, based on the DT Swiss high-end hubs with Swiss industrial stainless steel bearings, they are extremely durable and can be serviced and converted to Shimano, Sram, Campagnolo and Sram XD freewheel bodies without tools.

Swissstop brake pads

DT Swiss recommends Swiss Stop Black Prince brake pads for DT Swiss carbon rims. These are compatible with Shimano, SRAM FAS, etc. brakes. Campagnolo uses a different brake shoe shape. Special pads are available for these, designed to fit Campagnolo brake shoes.

Herstellerinformation: DT Swiss, Längfeldweg 101, 2504 Biel, Bern, Switzerland, https://www.dtswiss.com/
